Because there are no pumps or injection nozzles, the paddle system and evaporator with fingers ensure quiet and smooth running even in tough conditions.

Product benefits

• Robustly constructed for peak loads: The pump-free paddle system guarantees stable, low-maintenance operation even under extreme conditions – ideal for professional continuous use in commercial kitchens and catering establishments.
• Quiet performance for demanding environments: With its low-noise operation, the Q 46 is ideal for open kitchen concepts, hotel bars or catering areas with public access.
• Compact efficiency – 45 kg of ice per day: With a production capacity of up to 45 kg of ice in 24 hours, the Q 46 reliably supplies large numbers of guests – even in limited space.
• Structured control unit for smooth operations: The intuitive touch panel with control lamp enables easy operation, immediate status monitoring and quick response in everyday use.
• Universally integrable thanks to the fact that it can be installed: Flexible use thanks to height-adjustable feet and compact design – the Q 46 can be seamlessly integrated into existing kitchen systems.
• Sustainable cooling with natural refrigerant: With the environmentally friendly coolant R290, the ice cube maker meets the highest sustainability standards while also using energy efficiently.
• Always ready for use with 16 kg storage capacity: The generous storage container ensures a readily available ice reserve at all times – perfect for peak times in restaurants and catering.
• Precise shape for high beverage aesthetics: The standardised hollow cone shape ensures rapid cooling and attractive glass presentation – ideal for cocktails, soft drinks and high-end beverage service.

Technical data

• Width: 500 mm
• Depth: 600 mm
• Height: 690 mm
• Net weight: 38.799999999999997 kg
• Gross weight: 46.4 kg
• Volume: 0.309 MTQ
• Guarantee: VG
• Customs tariff number: 84186900
• Height-adjustable from: 690 mm
• Filling level sensor: Yes
• Production by means of: Paddle system
• Coolant: R290 / 0,080 kg
• Production max.: 45 kg / 24 h
• Number of ice cube sizes: 1
• ON/OFF switch: Yes
• Height-adjustable to: 710 mm
• Power: 0.36 kW
• Water connection: 3/4"
• Voltage: 230 V
• Material: CNS 18/10

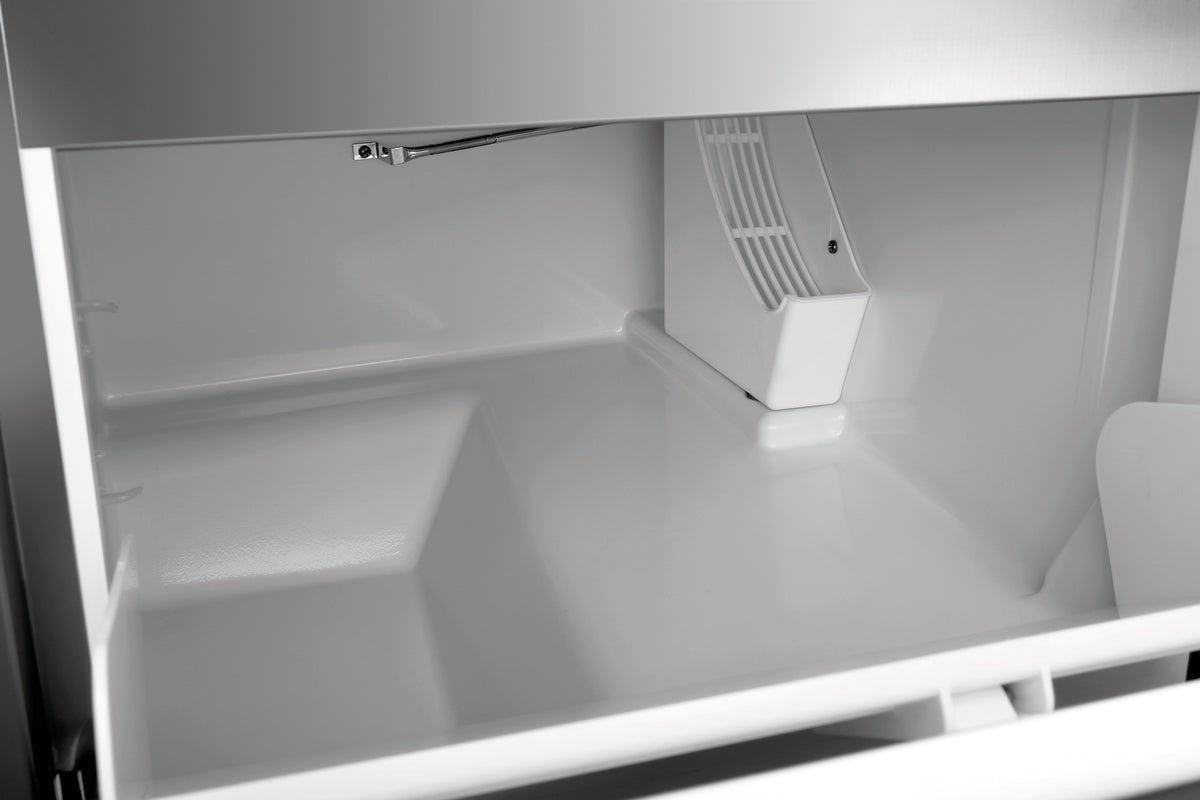

• Storage container capacity: 16 kg
• Height-adjustable feet: Yes
• Production / work step: 35 Ice cubes
• Control lamp: yes
• Colour: Silver
• Height without feet: 690 mm
• Can be installed: Yes
• Control unit: Touch
• Climate class: SN
• Water outlet: Ø 20 mm
• Ice cube size: 32,5 x 29 x 41 mm, 21 g
• Design ice cube: Tapered form (hollow taper)
• Frequency: 50 Hz
• Cooling: Air cooled
• Important information: Clearance to all sides at least 15 cm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 104306
