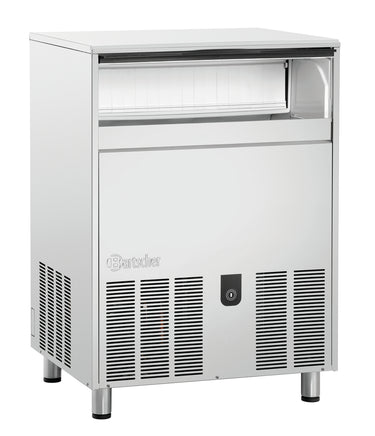

More efficient and economical – the optimised ice-cube maker series B Plus supplies fully conical ice-cubes in high production quantities and is also very economical.

Product benefits

• Up to 86 kg of ice per day – reliable at maximum performance: The B 86 Plus produces consistent quantities of high-quality full cone ice cubes and meets all the requirements of a professional kitchen, even when there is a high volume of guests.
• Efficient ice cube production with minimal consumption: With only 9.1 litres of water per hour and modern spray technology, the ice maker is particularly resource-efficient – ideal for long-term economical use.
• Compact and can be fitted below the counter – perfect integration: With a height of 910 mm and a well-thought-out design, the device can be easily installed under worktops – for maximum space savings in kitchenettes and bar areas.
• Robust and hygienic – materials for everyday professional use: Stainless steel and galvanised steel ensure durability and easy cleaning, while the integrated cleaning function facilitates hygiene processes.
• Full cones with Format – 20 g of ice cream per piece: The standardised cone shape with adjustable size ensures perfect cooling in drinks and food presentations – stable, clear and slow melting.
• Direct control – intuitive operation with status display: The electronic control unit with ON/OFF switch and control lamp makes it easy to monitor operation – for full control in hectic everyday life.
• Natural refrigerant for environmentally friendly operation: With R290 as its refrigerant, the B 86 Plus meets modern environmental standards and actively contributes to reducing climate-damaging emissions.
• 42 kg capacity – always enough ice to hand: The integrated storage container with large volume ensures sufficient reserves – even when demand is high, service remains smooth.

Technical data

• Width: 583 mm
• Depth: 700 mm
• Height: 1015 mm
• Net weight: 54.2 kg
• Gross weight: 63.8 kg
• Volume: 0.505 MTQ
• Guarantee: VG
• Customs tariff number: 84186900
• Filling level sensor: Yes
• Production by means of: Spray system
• Coolant: R290 / 0,090 kg
• Production max.: 86 kg / 24 h
• Number of ice cube sizes: 1
• ON/OFF switch: Yes
• Power: 0.98 kW
• Water connection: 3/4"
• Voltage: 230 V
• Properties: Cleaning function ,Water consumption / hour: 9.1 litres
• Material: Stainless steel ,Plastic ,Steel ,Galvanised
• Can be fitted below the counter: Yes

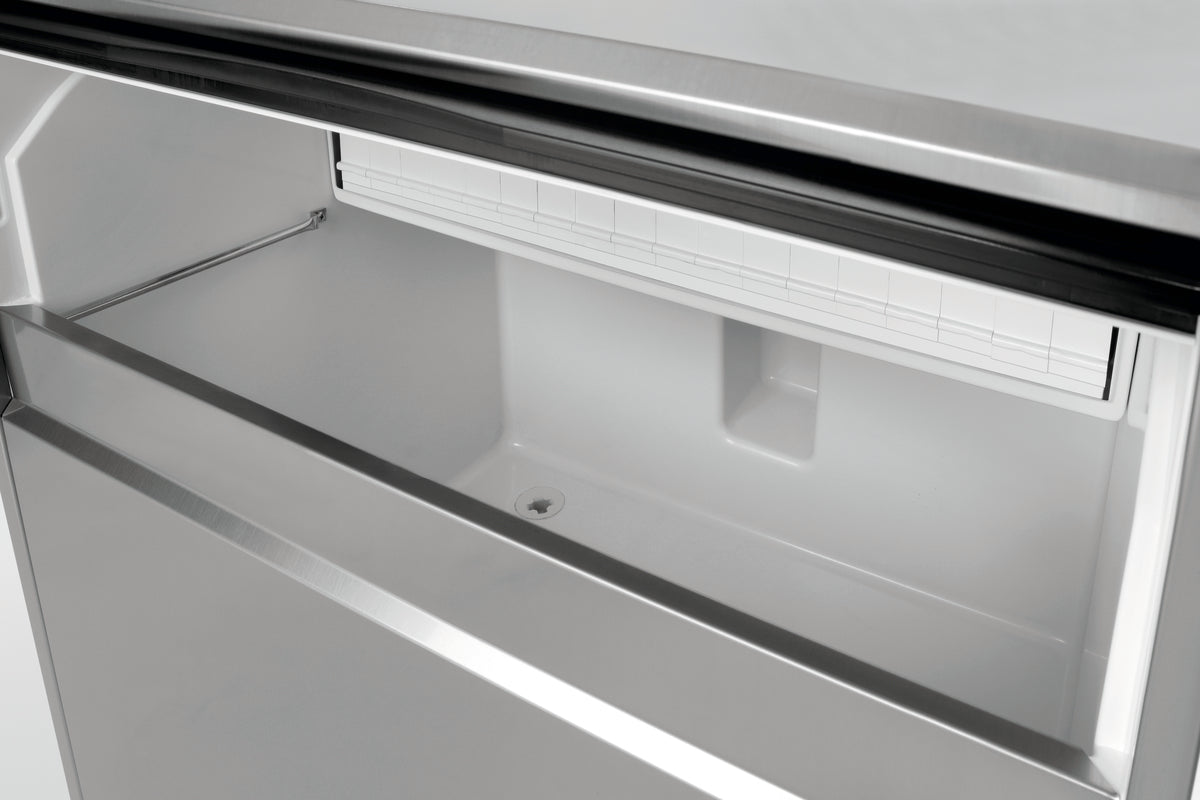

• Storage container capacity: 42 kg
• Production / work step: 56 Ice cubes
• Control lamp: ON/OFF
• Colour: Silver
• Height-adjustable feet: No
• Can be installed: No
• Control unit: Electronic
• Climate class: T
• Water outlet: Ø 20 mm

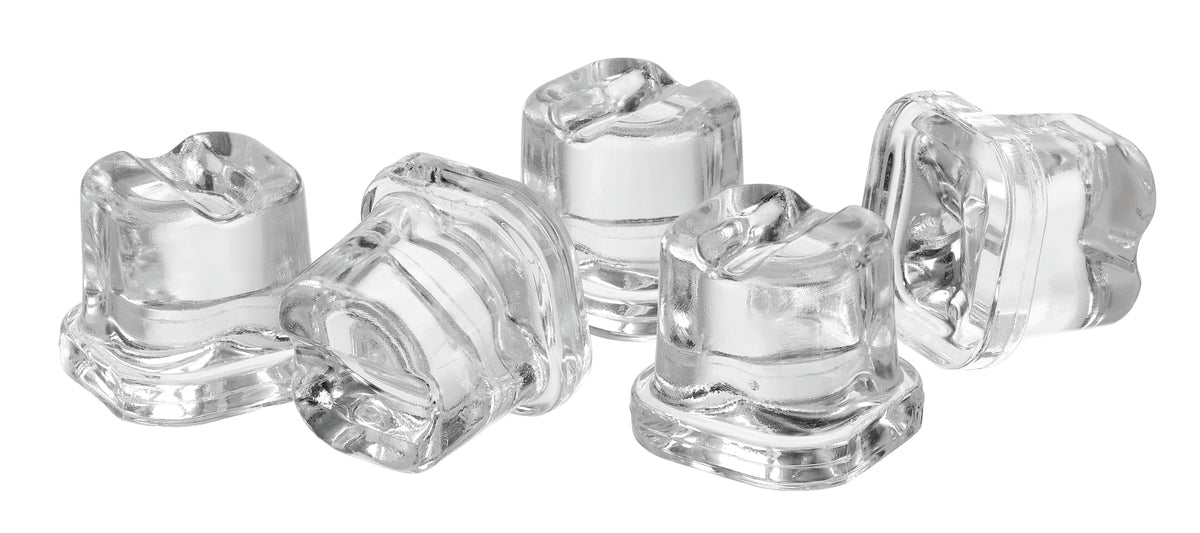

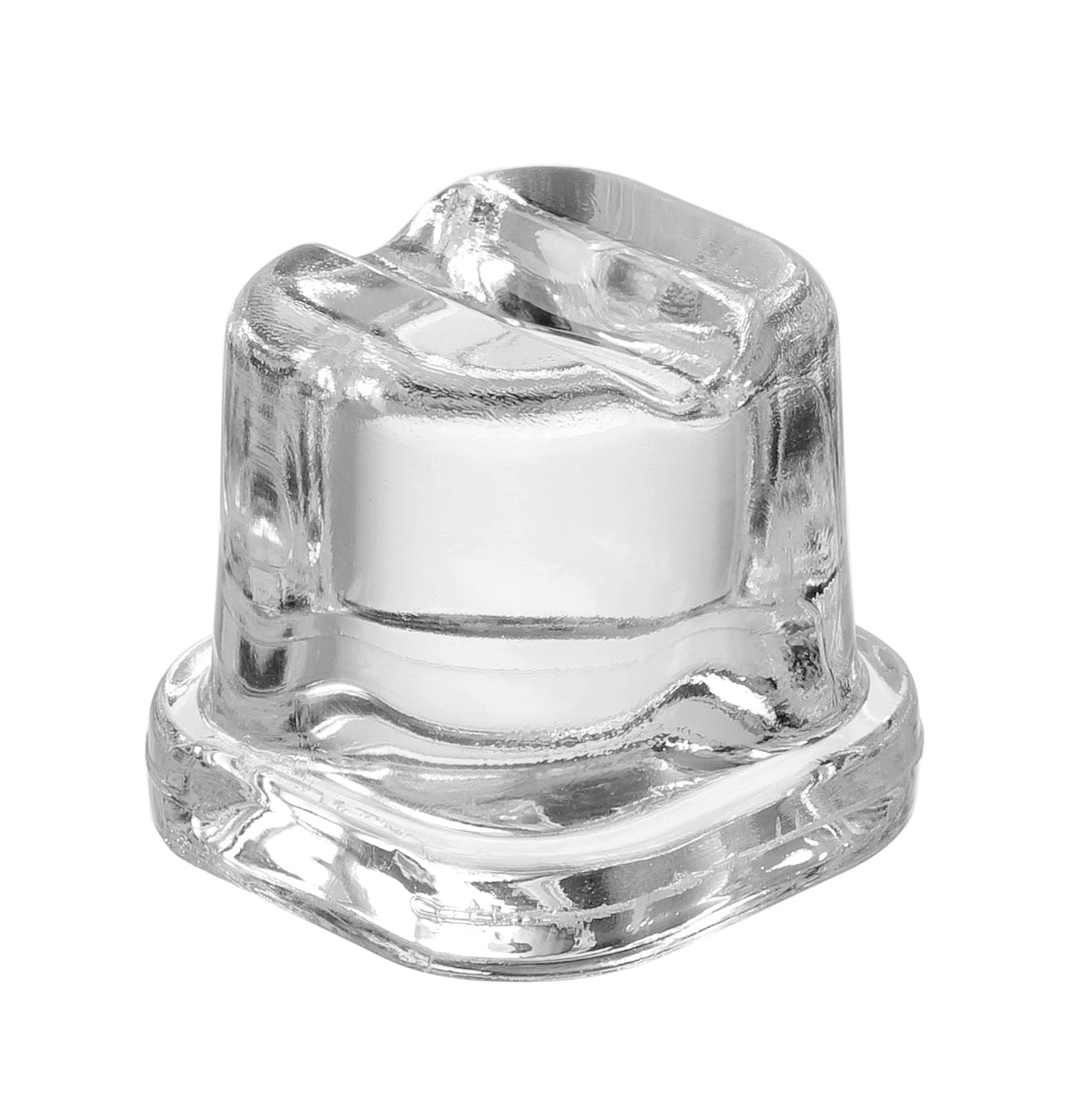

• Ice cube size: 35 x 32 mm, 20 g, adjustable
• Design ice cube: Tapered form (full taper)
• Height without feet: 900 mm
• Frequency: 50 Hz
• Cooling: Air cooled
• Including: 1 ice shovel
• Important information: Clearance to all sides at least 15 cm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 104593
