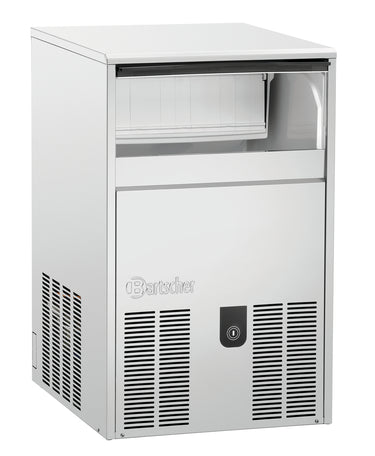

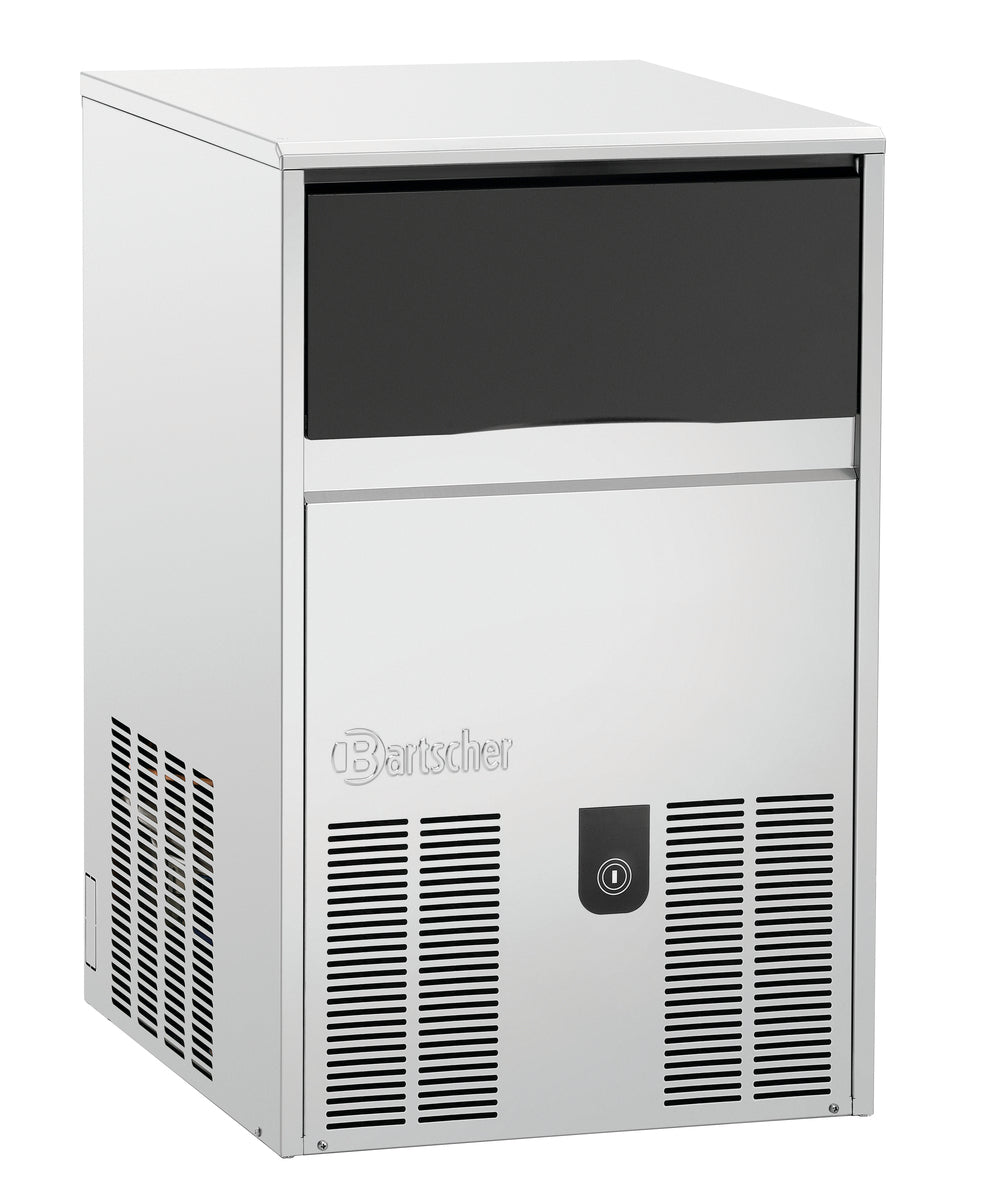

More efficient and economical – the optimised ice-cube maker series B Plus supplies fully conical ice-cubes in high production quantities and is also very economical.

Product benefits

• More ice output for high peaks: Up to 46 kg of perfect full cone ice cubes per day – ideal for high demands in gastronomy and catering.
• Sustainable cooling with natural refrigerant: With its environmentally friendly R290 refrigerant, the ice cube maker meets modern standards for energy efficiency and climate protection.
• Consistent quality thanks to spray system: The precise spray system forms clear, hygienically perfect ice cubes with optimum consistency – even during Continuous operation.
• Space-saving under the counter: Thanks to the fact that it can be fitted below the counter, it is ideal for small kitchens or counter areas with a high degree of organisation.
• Reliable storage during full operation: The 15 kg storage container ensures continuous availability even during peak times – without any production stoppages.
• Cleanliness at the touch of a button: Integrated cleaning function reduces manual effort – for hygienically perfect ice cubes in every batch.

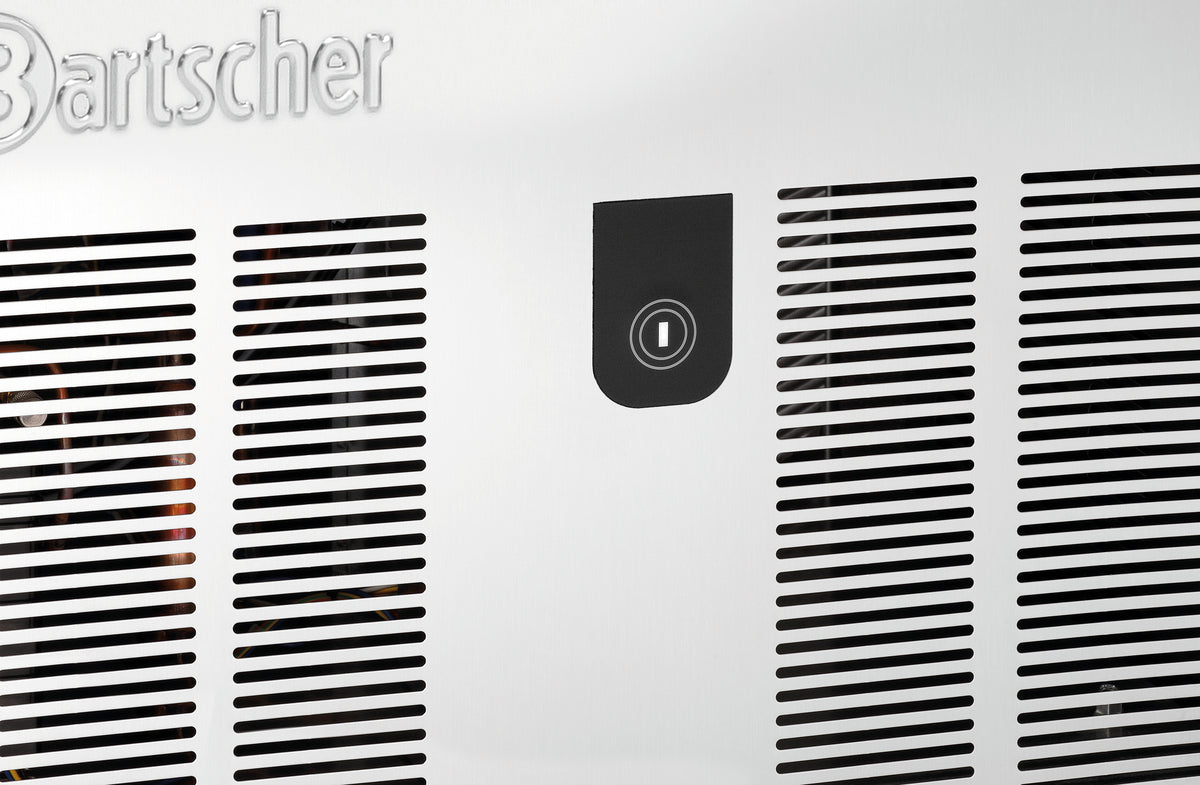

• Precise control unit, easy operation: Electronic control unit with ON/OFF switch and control lamp provides clear control in daily kitchen use.
• Robust construction for continuous use: Housing made of stainless steel, plastic and galvanised steel – durable design for demanding kitchen environments.

Technical data

• Width: 500 mm
• Depth: 540 mm
• Height: 690 mm
• Net weight: 28.2 kg
• Gross weight: 35 kg
• Volume: 0.273 MTQ
• Guarantee: VG
• Customs tariff number: 84186900
• Filling level sensor: Yes
• Production by means of: Spray system
• Coolant: R290 / 0,080 kg
• Production max.: 46 kg / 24 h
• Number of ice cube sizes: 1
• ON/OFF switch: Yes
• Power: 0.68 kW
• Water connection: 3/4"
• Voltage: 230 V
• Properties: Cleaning function ,Water consumption / hour: 3.8 litres
• Material: Stainless steel ,Plastic ,Steel ,Galvanised
• Can be fitted below the counter: Yes

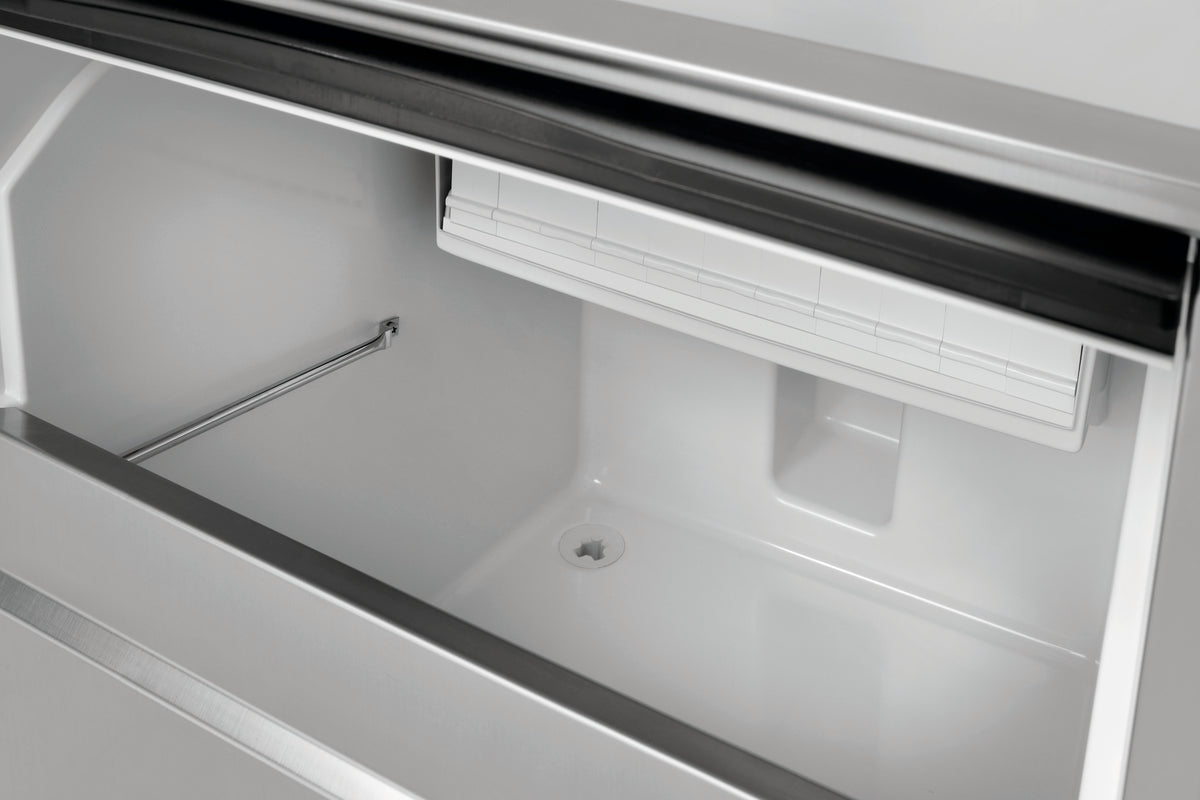

• Storage container capacity: 15 kg
• Production / work step: 28 Ice cubes
• Control lamp: ON/OFF
• Colour: Silver
• Can be installed: No
• Control unit: Electronic
• Climate class: T
• Water outlet: Ø 20 mm

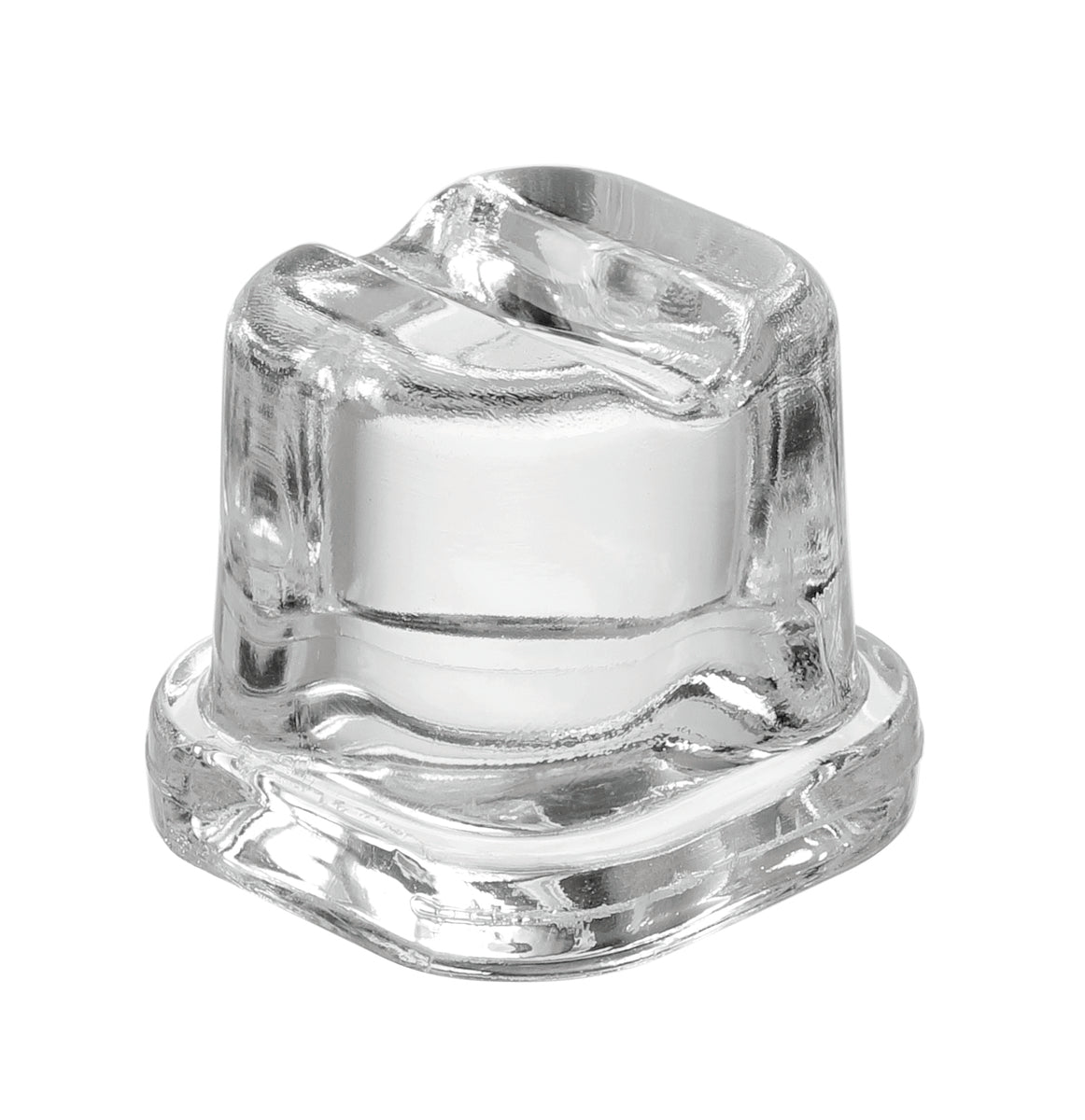

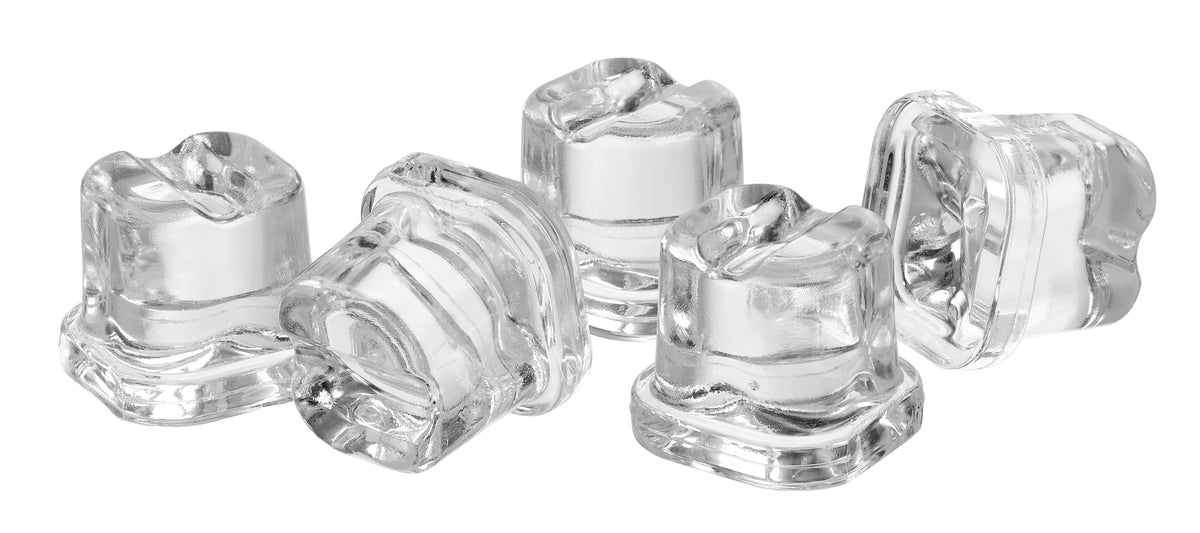

• Ice cube size: 35 x 32 mm, 20 g, adjustable
• Design ice cube: Tapered form (full taper)
• Frequency: 50 Hz
• Cooling: Air cooled
• Including: 1 ice shovel
• Important information: Clearance to all sides at least 15 cm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 104548
