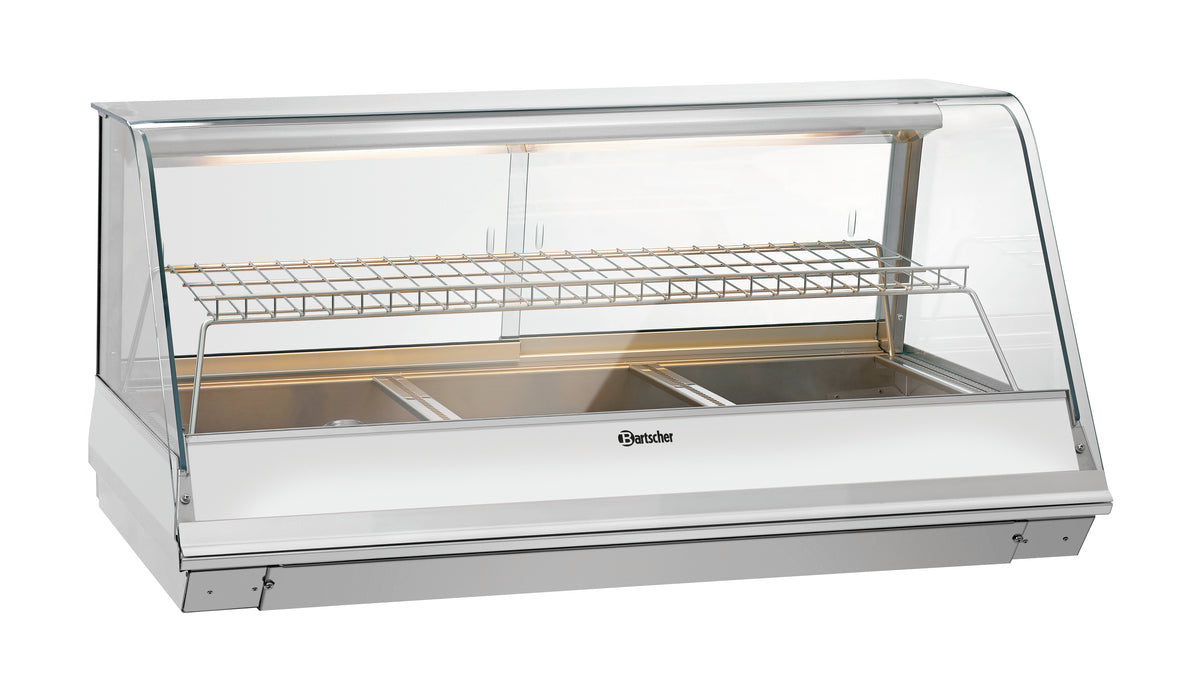

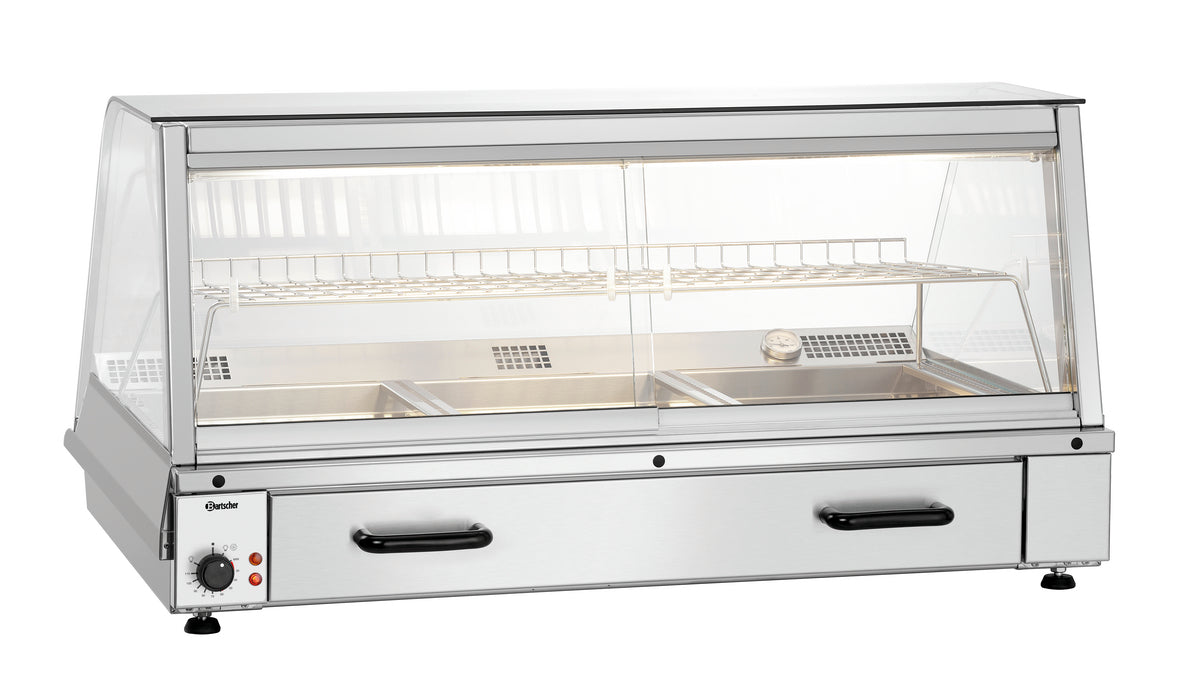

Thanks to the high-quality design and inside lighting, prepared meals are presented simply perfectly in the serving area. The custom equipment of up to 3 x 1/1 GN and the shelf allow the hot counter to be used in accordance with requirements. The removable front window and drip tray ensure easy cleaning.

Product benefits

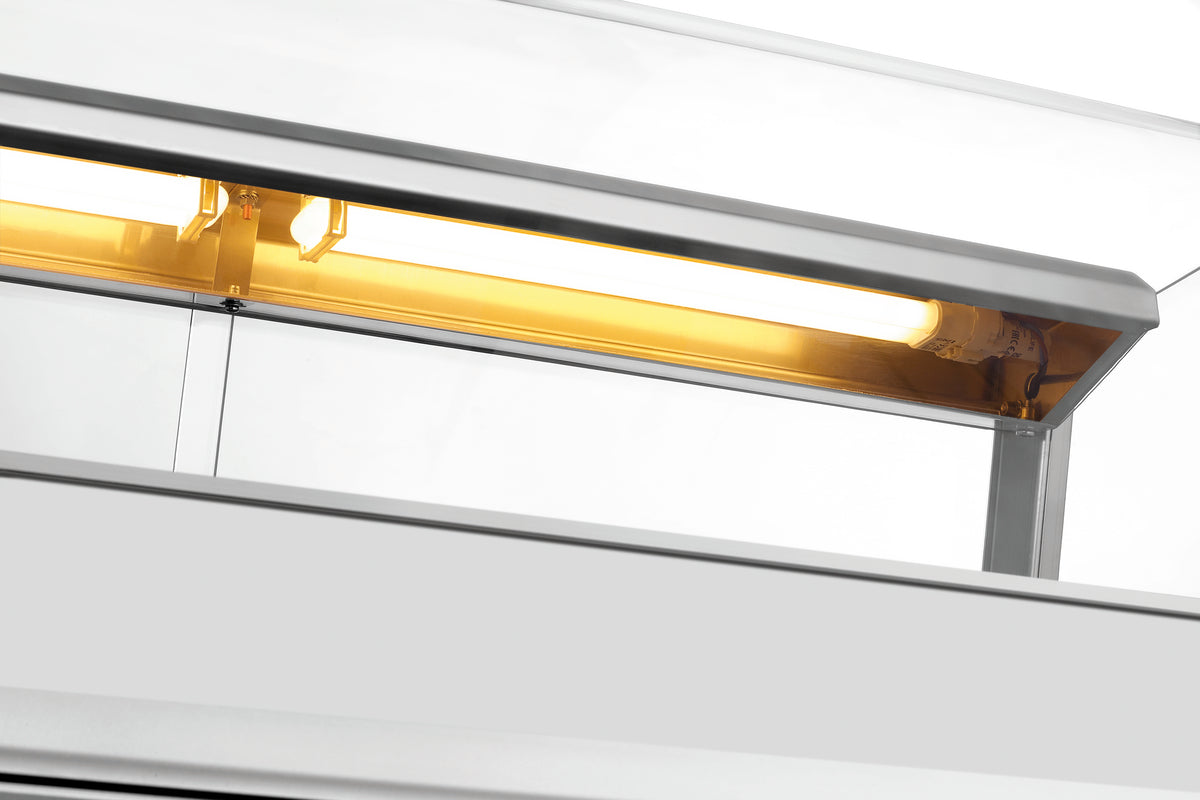

• Optimal presentation thanks to all-round glazing: The one-piece, all-round glazed design with LED interior lighting presents your dishes in a sales-promoting way - for maximum attention at the point of sale.

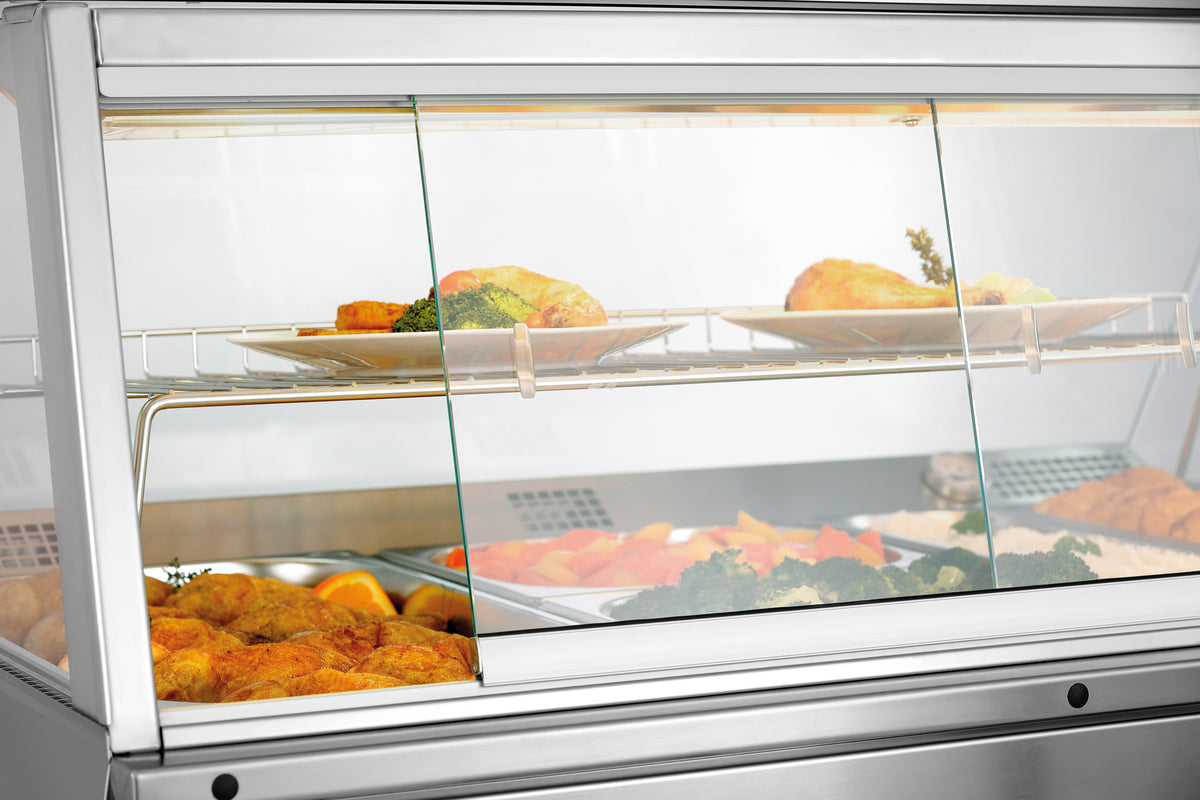

• Flexible filling for changing food offerings: With space for up to 3 x 1/1 GN containers and a generous intermediate shelf, you can use the space efficiently – ideal for daily specials and peak times.

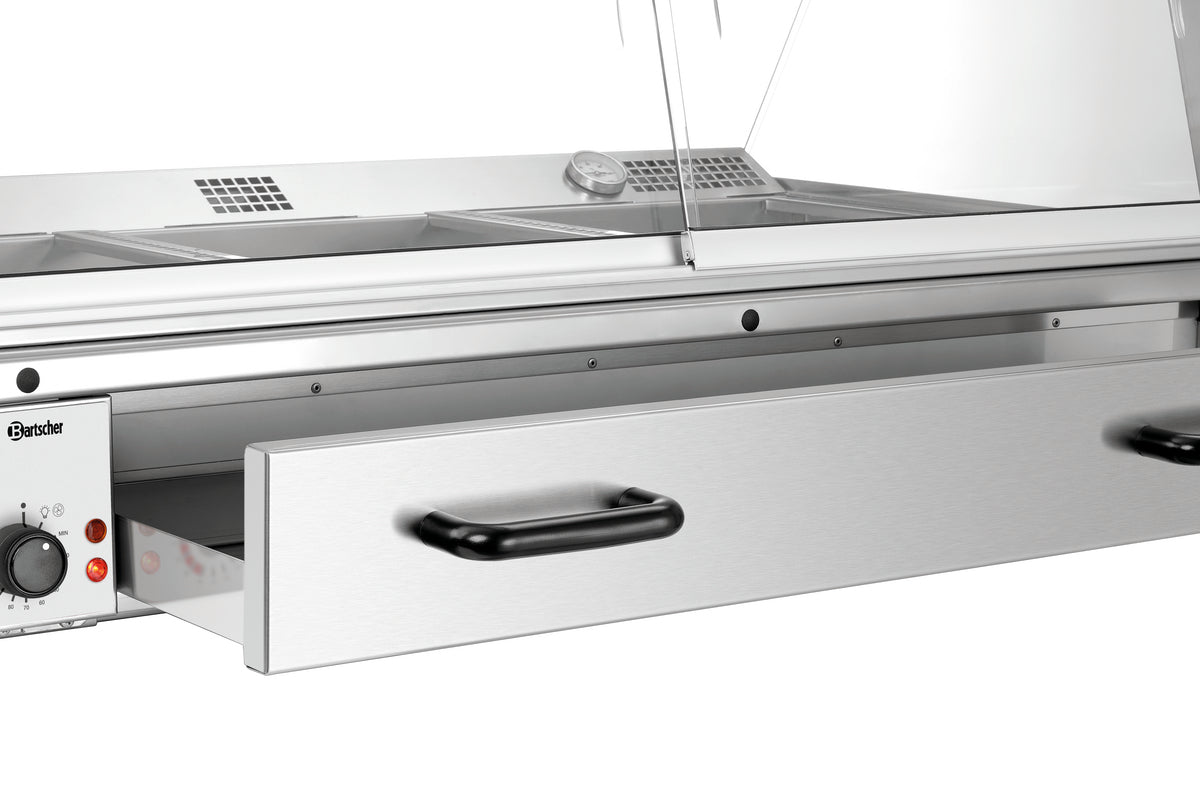

• Hygiene in no time: The hinged front pane and removable drip tray enable quick and thorough cleaning – even in the stressful everyday kitchen environment.

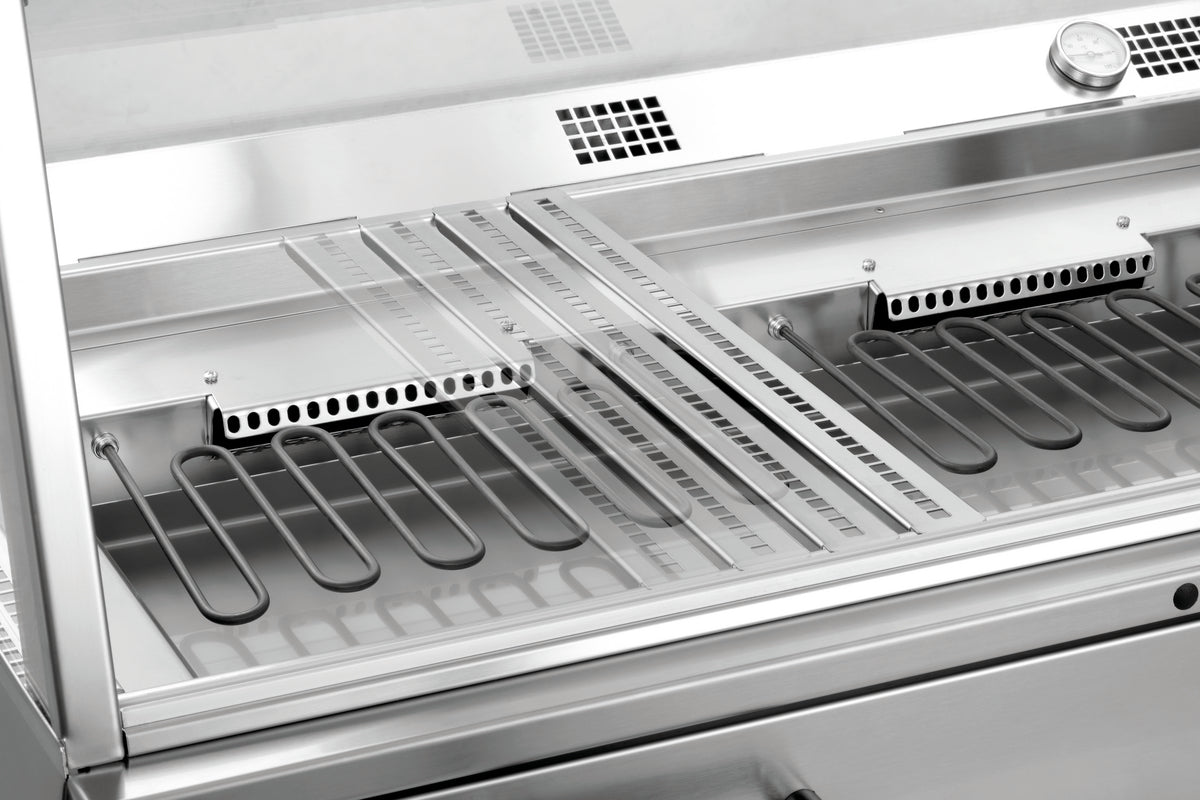

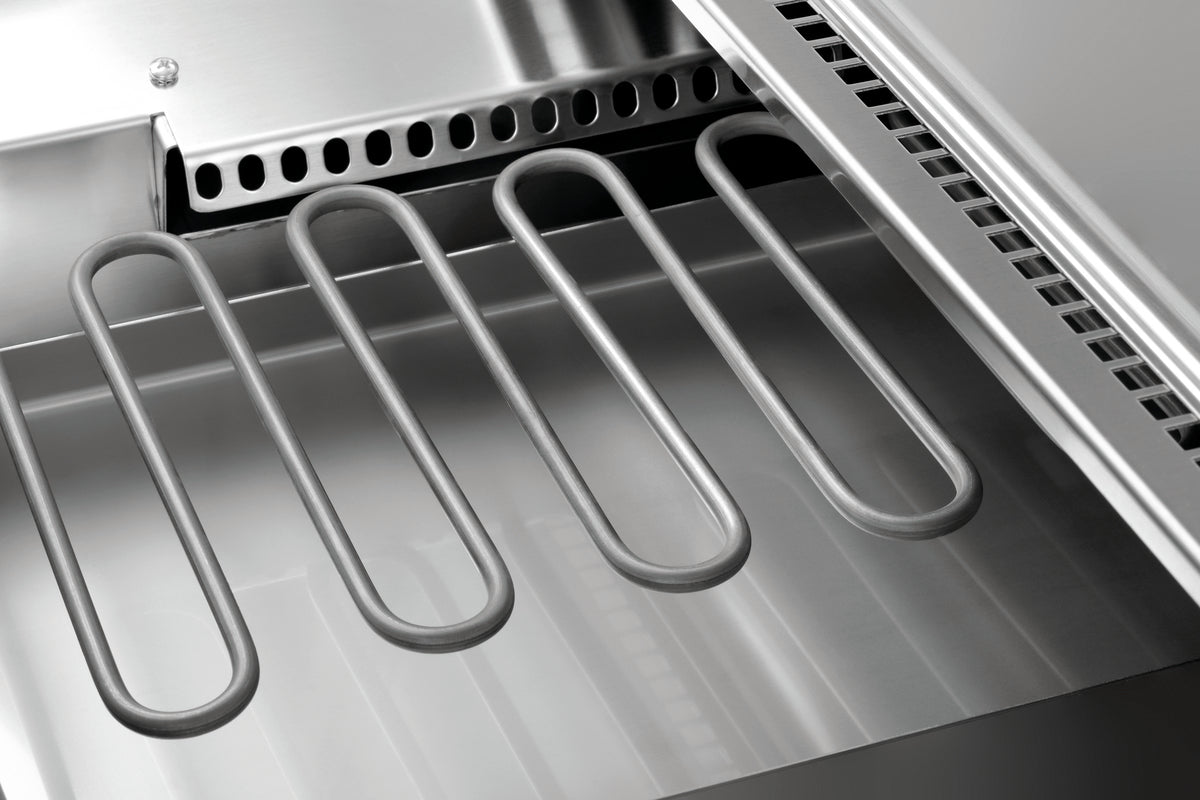

• Temperature precision for consistently hot food: The powerful, dry-heated system with Thermostat control reliably keeps food at serving temperature between 30 °C and 110 °C.
• Robust construction for professional use: Stainless steel housing, wire shelves and sliding doors, as well as Safety glass, ensure durability and reliability in daily use.
• Space-saving access via rear sliding doors: Convenient and efficient filling via smooth-running sliding doors at the rear – ideal for cramped, high-frequency serving counters.

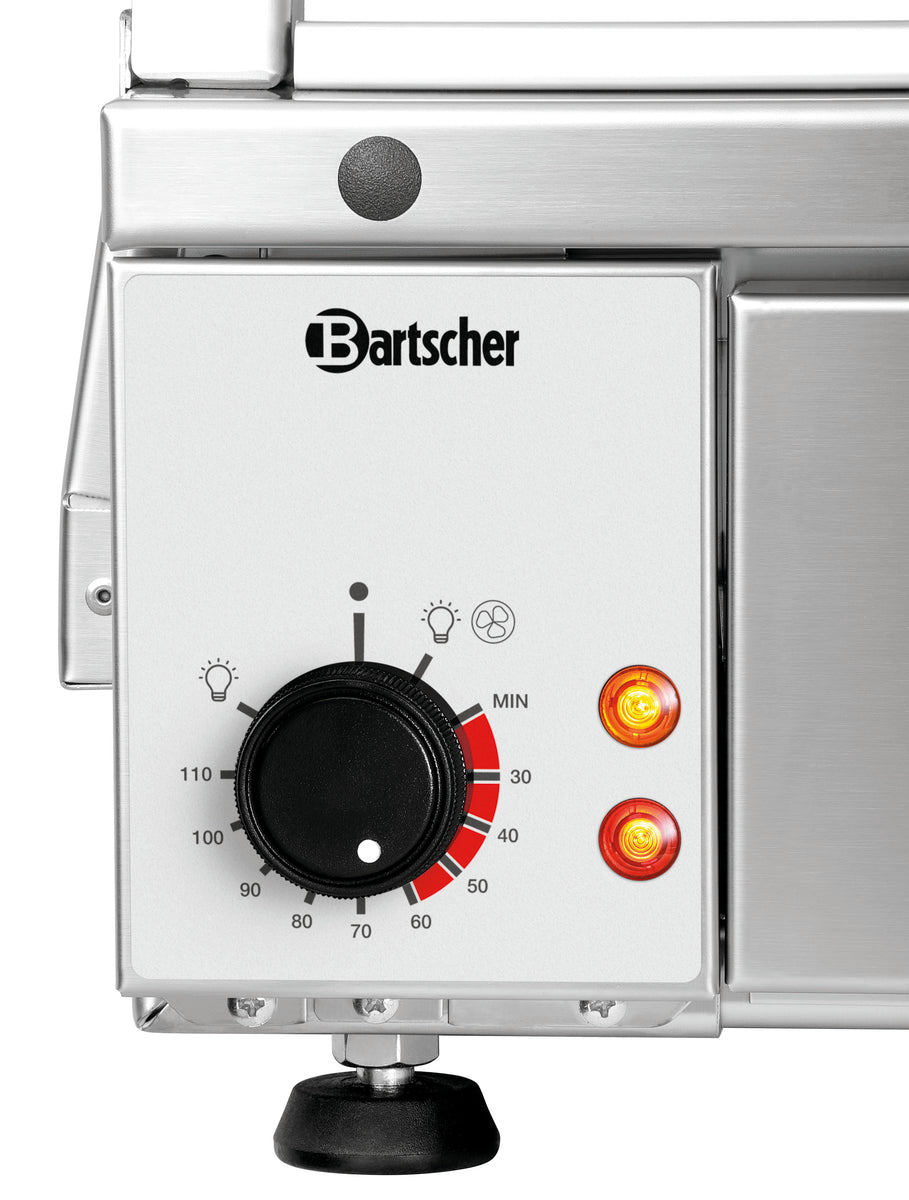

• Intuitive control unit with clear status display: Toggle switch operation with control lamps for heating and operating status reduces operating errors and ensures easy handling in everyday catering.
• Timeless design meets functional requirements: The elegant, rounded front pane in combination with stainless steel surfaces blends harmoniously into any professional kitchen or serving concept.

Technical data

• Width: 1095 mm
• Depth: 785 mm
• Height: 560 mm
• Net weight: 84.8 kg
• Gross weight: 104.7 kg
• Volume: 0.851 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Safety glass: Yes
• Type of intermediate shelves: Grid rack, stainless steel
• Interior lighting: Yes
• Type of door: Sliding door(s)

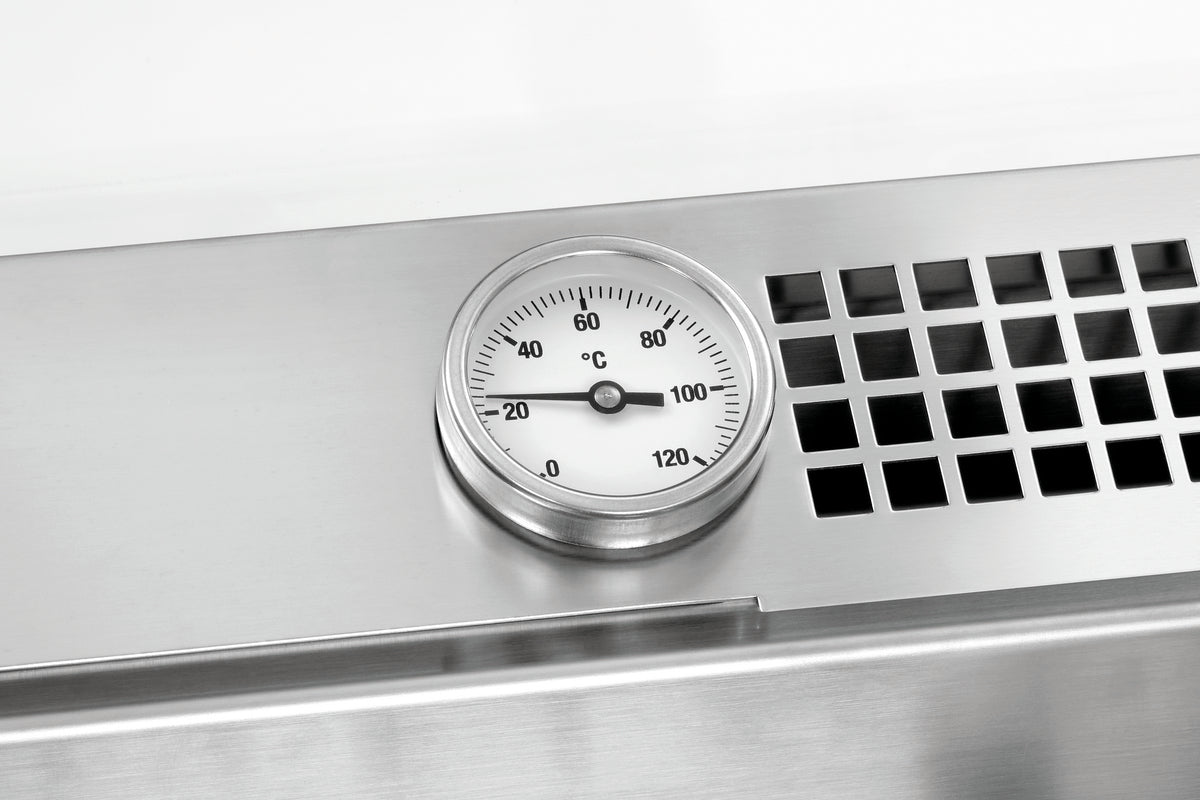

• Properties: Drip drawer ,Folding front pane ,Thermometer
• Digital display: No
• Not included in delivery: GN containers
• Temperature range from: 30 °C
• Frequency: 50/60 Hz
• Material: Stainless steel
• Water bowl for air humidification: No
• Heating type: Dry heated
• Type of glass: Single glazing ,All-round glass
• Depth GN container max.: 40 mm
• Position of the door: Reverse
• Content: 185 litre(s)
• Temperature control: Thermostat
• Lighting: LED
• Height-adjustable intermediate shelves: No
• Colour: Silver
• Temperature range to: 110 °C
• Control lamp: Heat up ,In operation
• Gastronorm: 3 x 1/1 GN
• Power: 3.65 kW
• Depth intermediate shelf: 325 mm
• Control unit: Toggle
• Width intermediate shelf: 920 mm
• Voltage: 230 V
• Front pane: Rounded
• Number of intermediate shelves: 1

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 305068
