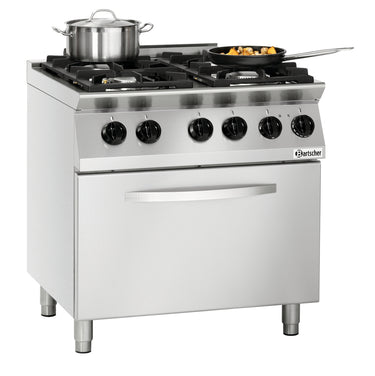

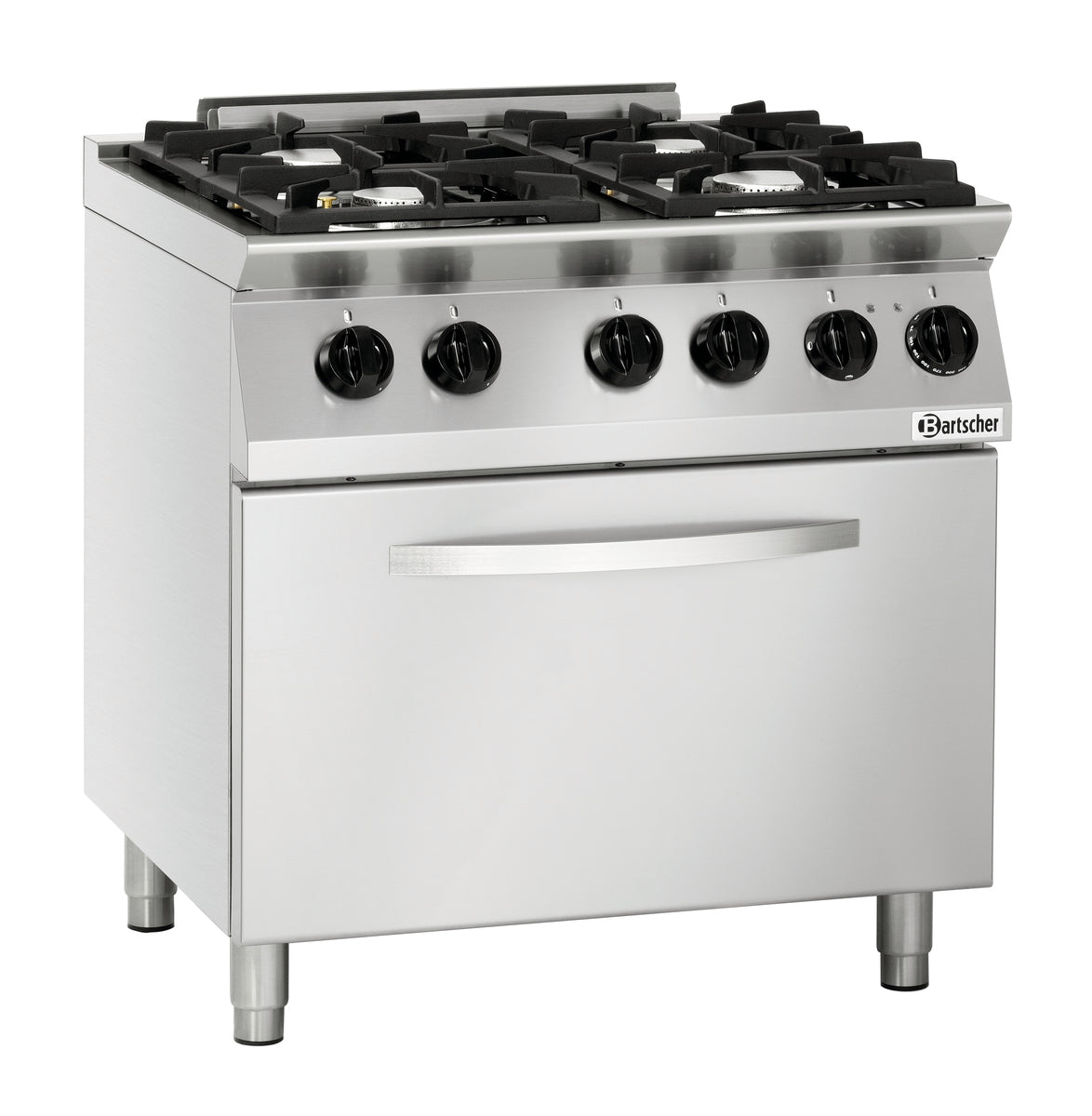

The gas oven series MFG – starter models for the professional field in a solid design made of stainless steel. Due to the intuitive operation with a pilot flame, they are ideally suited for everyday use in the kitchen.

Product benefits

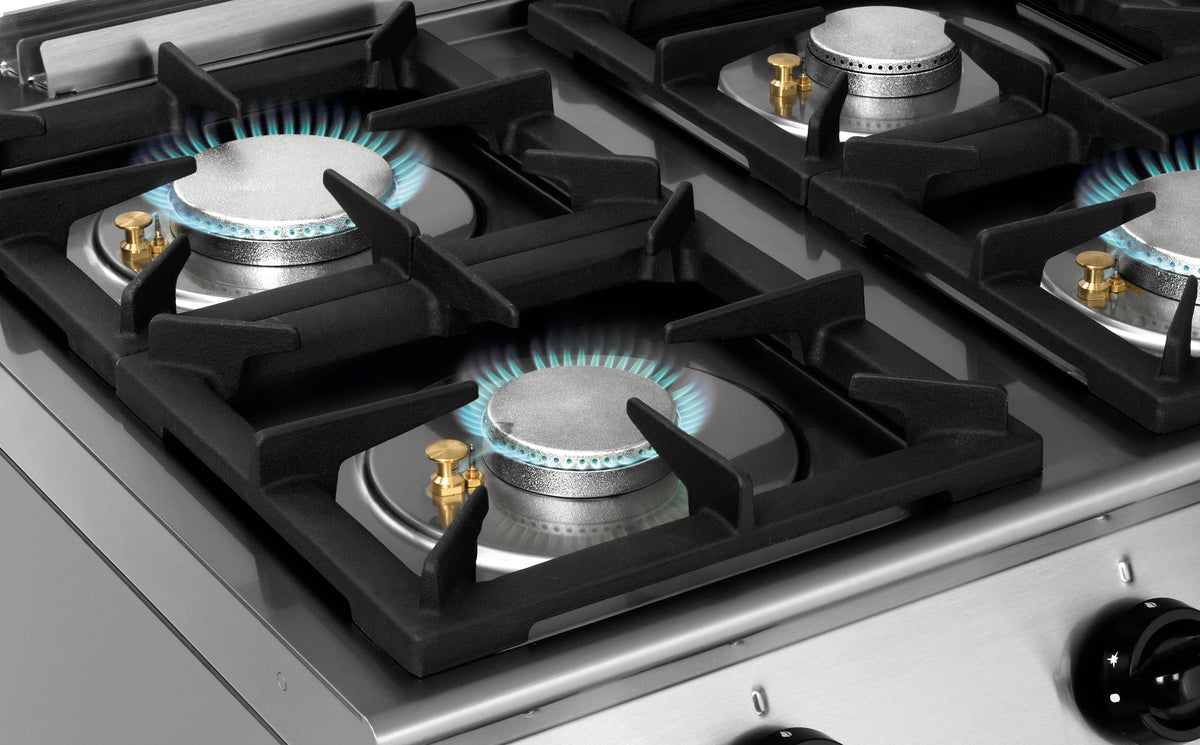

• Four burners, one goal: maximum efficiency: With two powerful 6 kW burners and two 3.5 kW burners, the MFG 7341 gas range offers flexible cooking performance for every everyday kitchen requirement.
• Robust design, made for continuous use: The all-stainless steel model and solid cast iron grates guarantee stability, durability and easy cleaning – ideal for demanding professional kitchens.
• Full control thanks to manual ignition with Pilot flame: Intuitive operation with a secure Ignition guard ensures reliable operation even in hectic kitchen moments – without electronic susceptibility to faults.
• Two systems, one solution: gas and electricity combined: The gas range with integrated 400 V electric oven combines the rapid response of open gas flames with the stability of precise oven heat – for maximum versatility when cooking and baking.

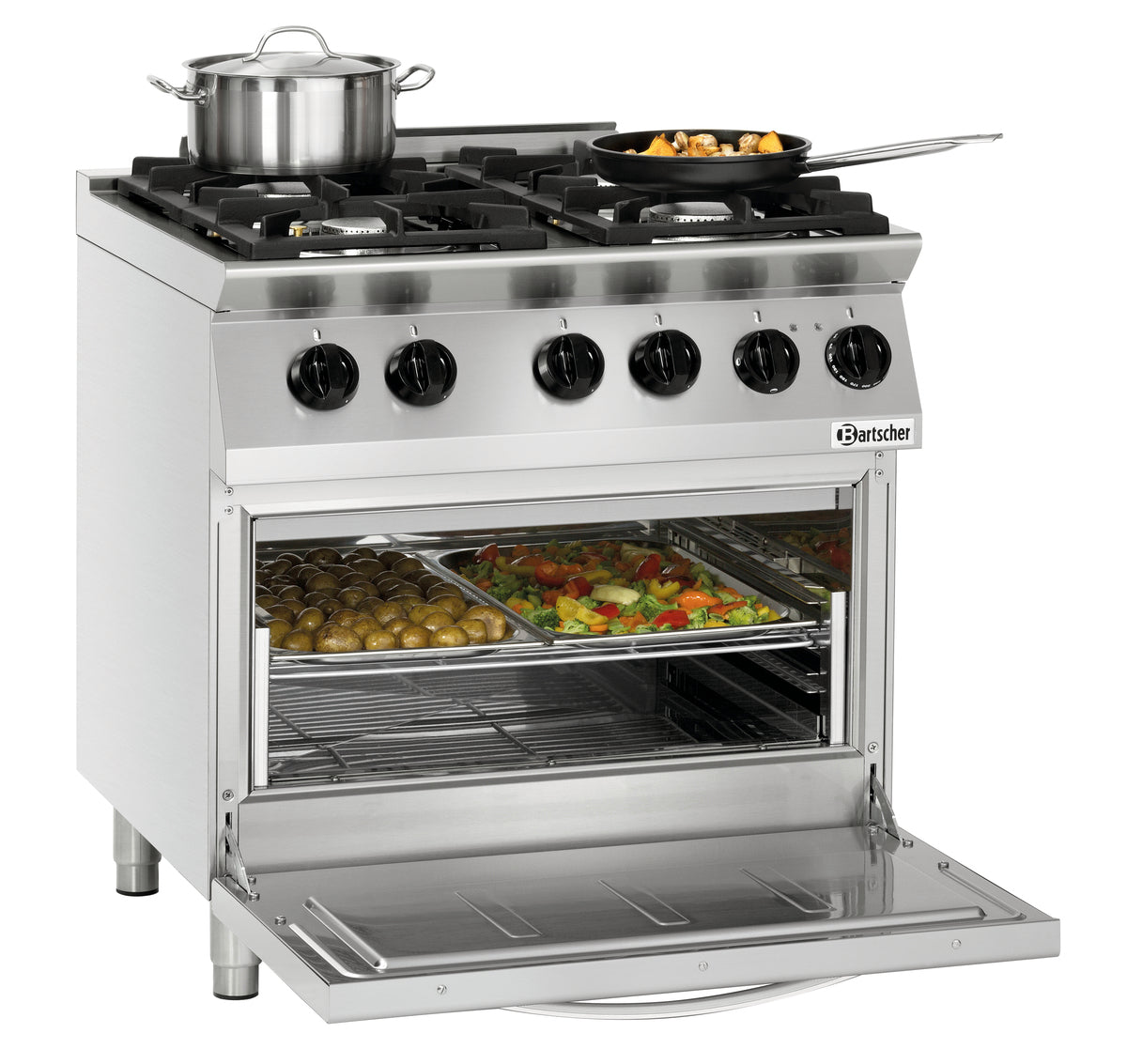

• Reliable professional oven with 105 litres of usable space: With top/bottom heat, GN 2/1 compatibility and three shelves, this spacious oven is perfect for large quantities and professional food preparation.
• Easily adaptable – tailored to your kitchen: The height-adjustable feet from 910–955 mm allow seamless integration into existing kitchen units – for ergonomic working without restrictions.
• Prepared for any type of gas – flexible on-site use: Whether natural gas H, natural gas L or liquid gas – with the nozzles supplied, the MFG 7341 can be easily adapted to local conditions.
• Well-thought-out format for full catering compatibility: With a GN 2/1-compatible interior and 52 mm shelf spacing, the oven is optimally designed for professional kitchen processes – ideal for working with standard catering containers.

Technical data

• Width: 800 mm
• Depth: 730 mm
• Height: 910 mm
• Net weight: 108.4 kg
• Gross weight: 117.2 kg
• Volume: 0.793 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Pilot flame: Yes
• Including: 1 grid
• Temperature range from: 100 °C
• Gastronorm: 2/1 GN
• Material cooking chamber: Stainless steel
• Number of hobs: 4
• Height oven: 260 mm
• Ignition type: Manual ignition
• Oven voltage: 400 V
• Height-adjustable to: 955 mm
• Oven connected load: 3.6 kW
• Oven connection: 2 NAC
• Material: Stainless steel
• Height-adjustable from: 910 mm
• Frequency: 50-60 Hz
• Power: 19 kW
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Size hobs: 330 x 300 mm
• Depth oven: 580 mm
• Width oven: 650 mm
• Type: Upright unit
• Oven functions: Upper / lower heat
• Properties: Cast iron grille ,Gas burner with ignition guard ,Stainless steel handles
• Distance between trays: 52 mm
• Gas burner: Single burner
• Distribution of hobs: 2 x 3.5 kW, 2 x 6 kW
• Oven type: Electro
• Multifunctional oven: No
• Operating mode: Electro / gas
• Temperature range to: 300 °C
• Number of drawers: 3
• Series: MFG
• Vapour extractor: Yes
• Oven volume: 105 litre(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 1582011
