Product benefits

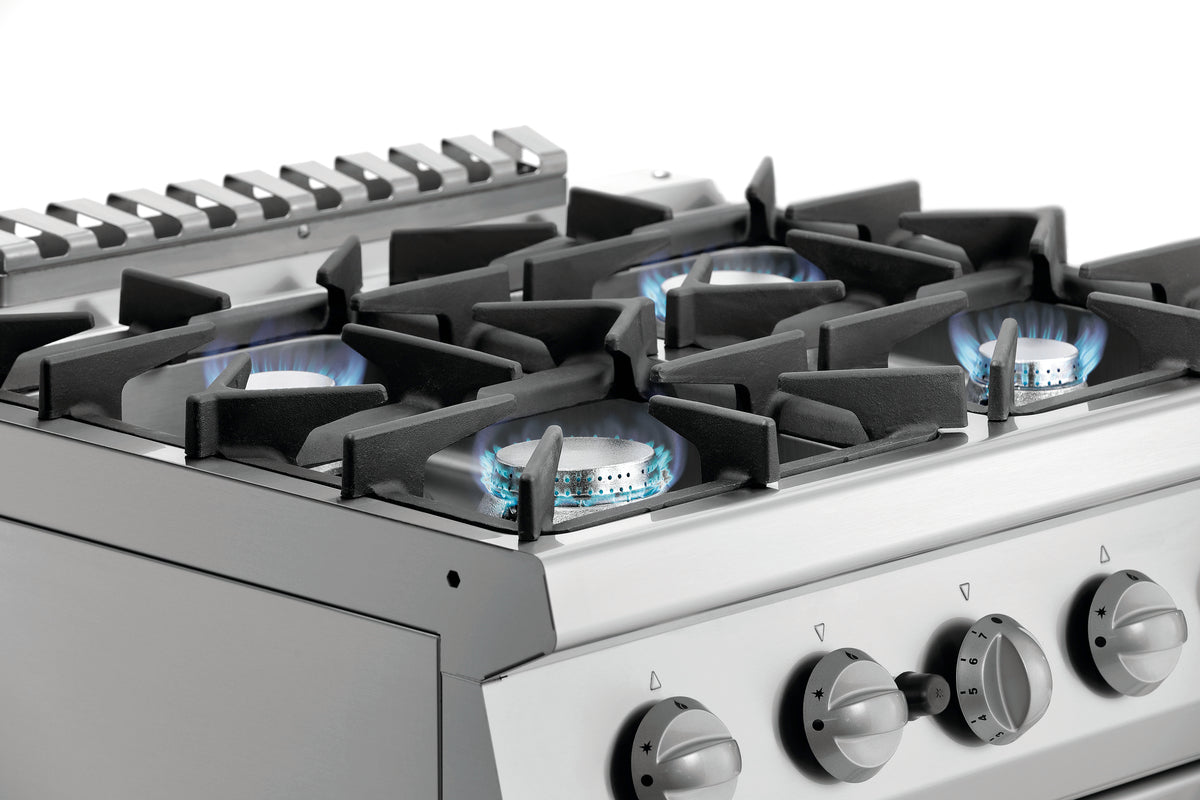

• Maximum output in a compact space: Four powerful gas burners with up to 8.5 kW offer flexible cooking options in a limited space – ideal for busy kitchens with high output.

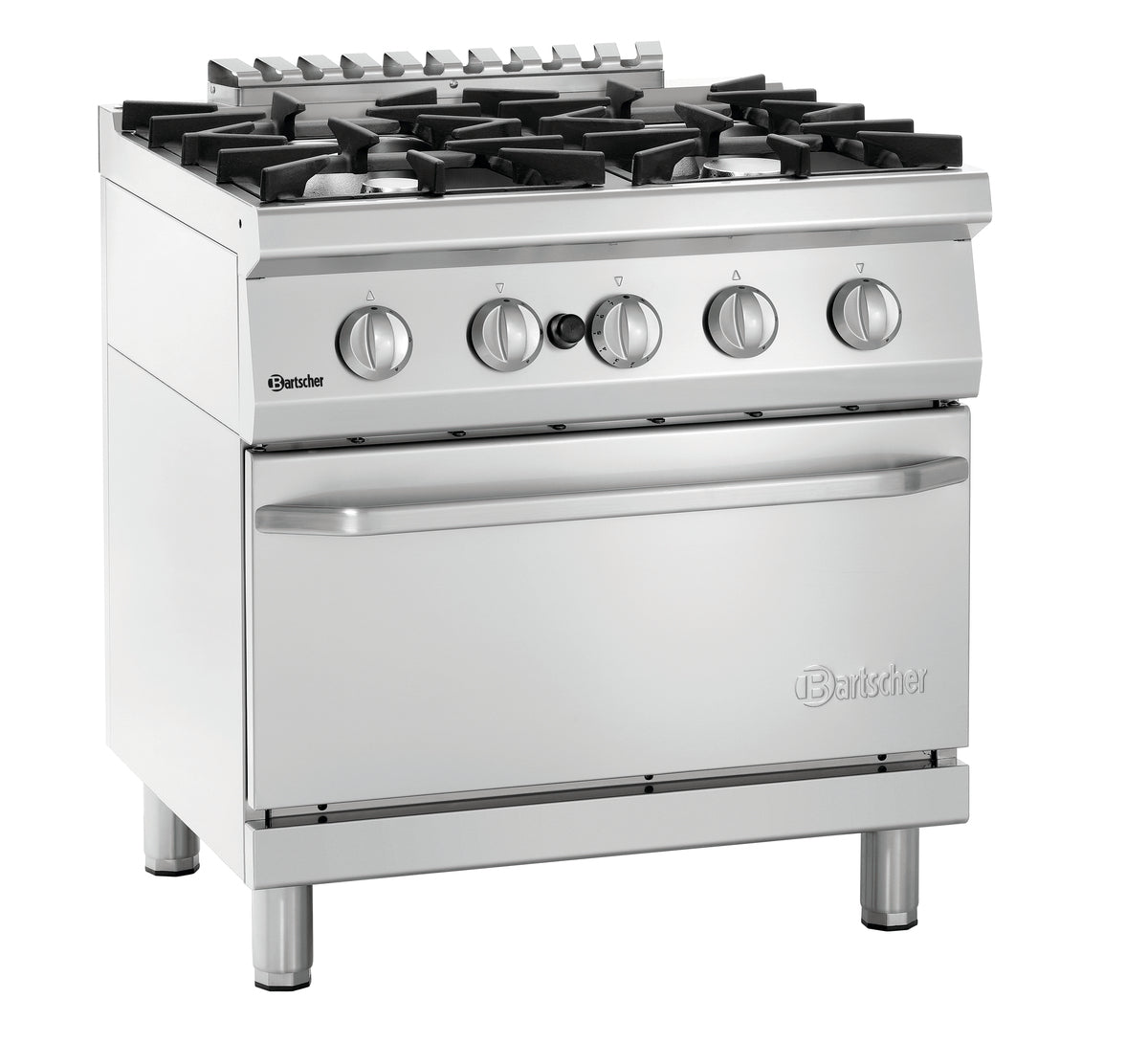

• Robust construction for the toughest demands: Made from durable 18/10 chrome-nickel steel, the 70040 GB21 gas range is designed for daily use in commercial kitchens and continuous operation.
• Individually customisable – thanks to modular design: The 700 Classic series can be adapted precisely to your kitchen requirements thanks to its modular design – for optimal integration into existing work processes.

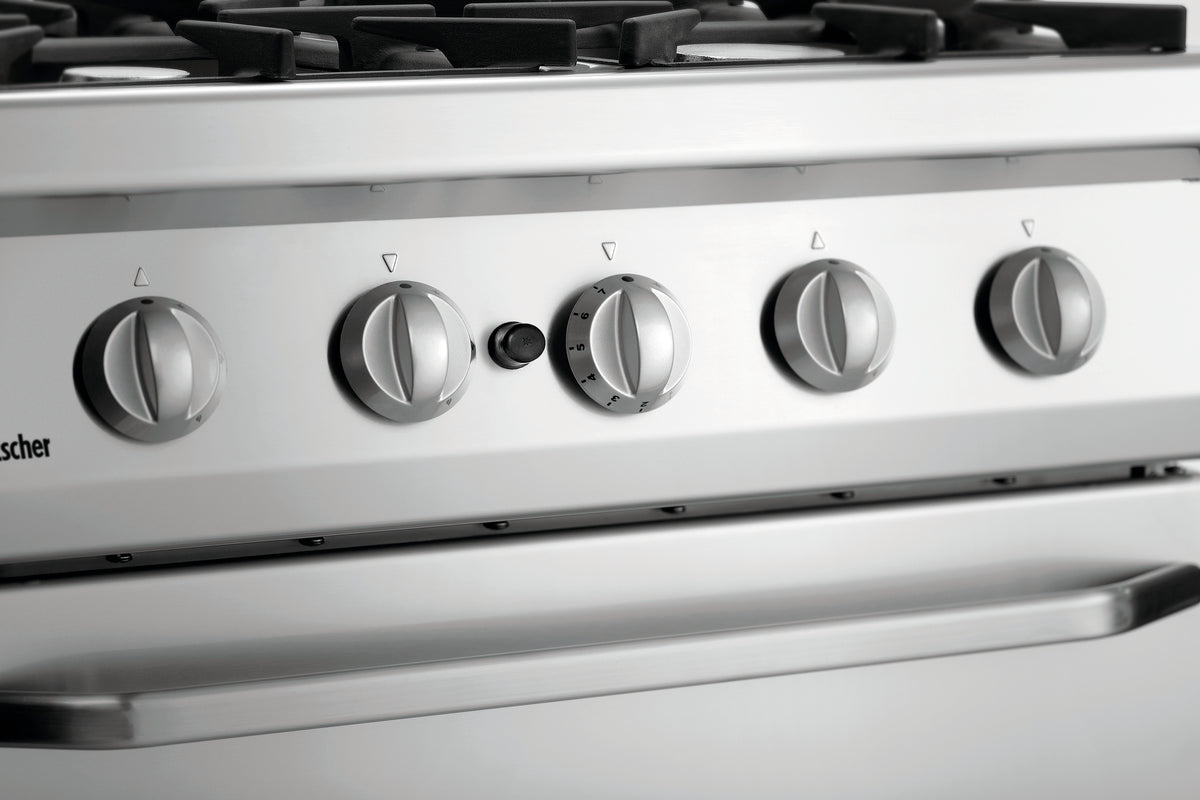

• Safety and convenience thanks to sophisticated technology: Manual ignition with Pilot flame on the hobs and piezo ignition in the oven enable safe handling and reliable start-up in every shift.

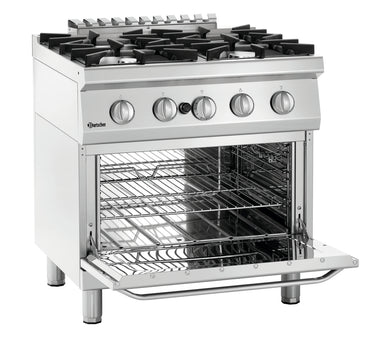

• Powerful oven with a volume of 126 litres: With a power of 7.5 kW and bottom heat, the gas-powered oven offers a reliable solution for even cooking of even large quantities on 3 shelves.
• Well thought-out details for easy cleaning: Cast iron grates and removable burner trays simplify cleaning and improve operational hygiene – a plus for any professional kitchen.
• Flexible gas options – ready for any installation: The nozzles supplied for natural gas H, natural gas L and liquid gas enable smooth connection to a wide variety of supply networks.
• Ergonomic and height-adjustable: Thanks to height-adjustable feet from 850 to 900 mm, the free-standing cooker can be ergonomically integrated into a wide variety of kitchen layouts – for long-term comfortable working.

Technical data

• Width: 800 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 115.4 kg
• Gross weight: 129.80000000000001 kg
• Volume: 0.784 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Pilot flame: Yes
• Temperature range from: 140 °C
• Gastronorm: 2/1 GN
• Material cooking chamber: CNS 18/0
• Number of hobs: 4
• Height oven: 310 mm
• Ignition type: Manual ignition
• Height-adjustable to: 900 mm
• Oven connected load: 7,5 kw
• Material: CNS 18/10
• Height-adjustable from: 850 mm
• Power: 36.9 kW
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Oven properties: Ignition type: Piezo ignition
• Size hobs: 330 x 270 mm
• Depth oven: 565 mm
• Width oven: 650 mm
• Type: Upright unit
• Oven functions: Lower heat
• Properties: Cast iron grille ,Hobs with removable collection tray
• Distance between trays: 90 mm
• Gas burner: Two-circle burner
• Distribution of hobs: 2 x 6,2 kW, 2 x 8,5 kW
• Oven type: Gas
• Multifunctional oven: No
• Operating mode: Gas
• Temperature range to: 300 °C
• Number of drawers: 3
• Series: 700
• Vapour extractor: Yes
• Oven volume: 126 litre(s)

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 2851251
