Product benefits

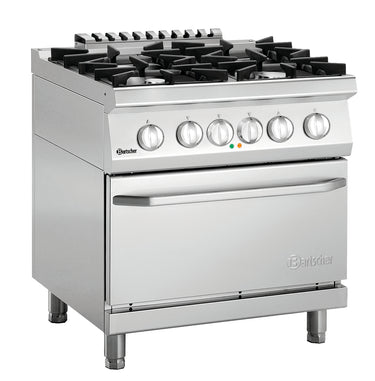

• Maximum flexibility – has combinability with gas and electricity: Thanks to the combined operating mode of gas hobs and electric oven, the 70040 EB21 gas range is ideally suited to existing kitchen infrastructures.

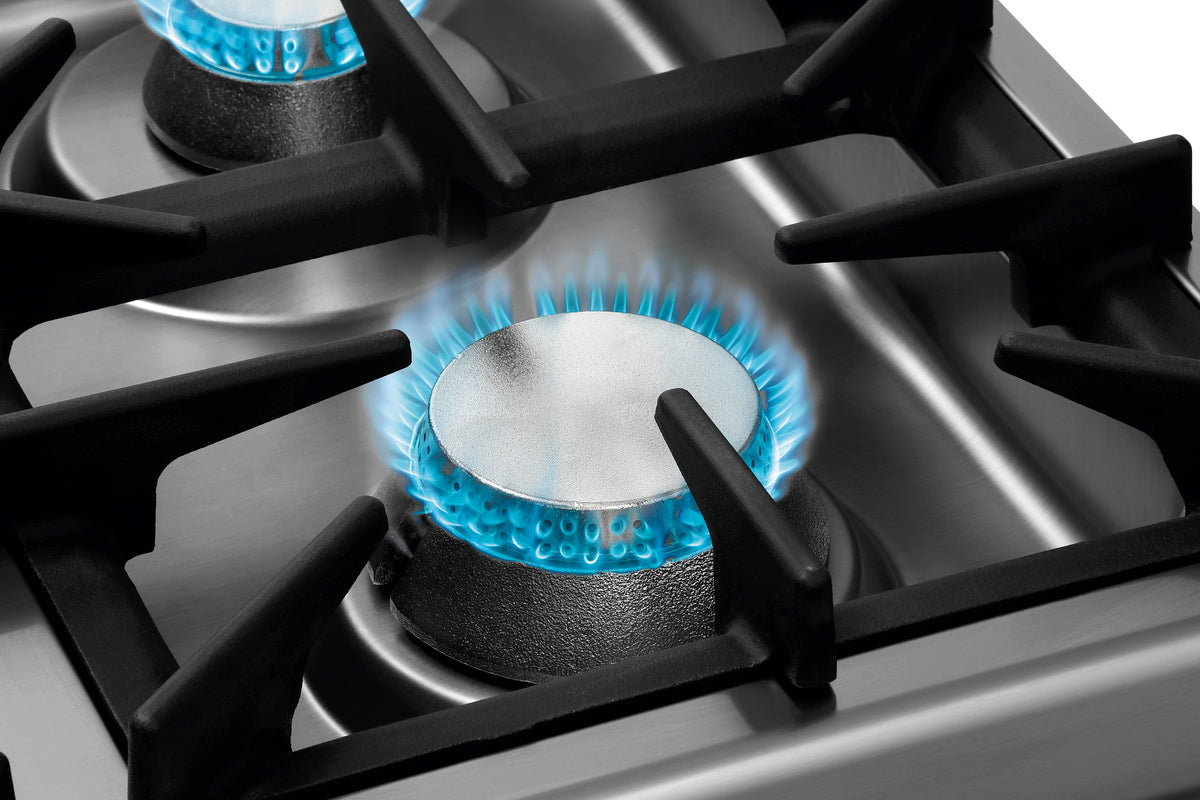

• Performance that can handle any rush hour: With four powerful dual-circuit burners up to 8.5 kW and a 5.4 kW electric oven, you can rely on constant heat availability even at high throughput.
• GN 2/1-compatible oven – ideal for professional use: The large-volume 126-litre oven with top/bottom heat and three shelves spaced 90 mm apart is optimally designed for use with GN containers.
• Robust construction for continuous operation: The housing and work surface made of CNS 18/10 guarantee a long service life even under the toughest conditions in large and professional kitchens.
• Well thought-out cleaning – minimal effort: Removable burner tray drip pans and cast iron grates facilitate daily cleaning and reduce downtime between uses.
• Ergonomically adjustable thanks to height-adjustable feet: With an adjustable working area of 850 to 900 mm, the stove adapts precisely to existing kitchen layouts and ergonomic requirements.
• Modular expandability – part of the 700 Classic Series: As part of a fully configurable modular system, the gas range can be integrated into individual cooking lines – precisely tailored and future-proof.
• Universally connectable – ready for use with all types of gas: Whether natural gas H or L or liquid gas: nozzles for all common gas types are already included – for flexible use regardless of location.

Technical data

• Width: 800 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 111 kg
• Gross weight: 139 kg
• Volume: 0.789 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Pilot flame: Yes
• Temperature range from: 100 °C
• Gastronorm: 2/1 GN
• Material cooking chamber: CNS 18/0
• Number of hobs: 4
• Height oven: 320 mm
• Ignition type: Manual ignition
• Oven voltage: 400 V
• Height-adjustable to: 900 mm
• Oven connected load: 5,4 kW
• Oven connection: 3 NAC
• Material: CNS 18/10
• Height-adjustable from: 850 mm
• Frequency: 50 Hz
• Power: 29.4 kW
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Size hobs: 330 x 270 mm
• Depth oven: 550 mm
• Width oven: 670 mm
• Type: Upright unit
• Oven functions: Upper / lower heat
• Properties: Cast iron grille ,Hobs with removable collection tray
• Distance between trays: 90 mm
• Gas burner: Two-circle burner
• Distribution of hobs: 2 x 6,2 kW, 2 x 8,5 kW
• Oven type: Electro
• Multifunctional oven: No
• Operating mode: Electro / gas
• Temperature range to: 300 °C
• Number of drawers: 3
• Series: 700
• Vapour extractor: Yes
• Oven volume: 126 litre(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 2851271
