Product benefits

• Maximum power for the highest demands: With a total output of 29.4 kW and powerful dual-circuit burners (2 × 6.2 kW & 2 × 8.5 kW), the 70040 gas range delivers maximum efficiency during peak times – ideal for commercial kitchens and catering businesses.
• Flexible for every gas situation: Thanks to the included nozzles for natural gas H, natural gas L and liquid gas, the gas range remains flexible in use – ideal for individual requirements at the place of use.
• Robust construction for long-term use: Made from high-quality CNS 18/10, the 70040 gas range stands for durability, corrosion resistance and an easy-to-clean surface – even under the toughest kitchen conditions.
• Optimal ergonomics for productive work: The height-adjustable feet allow a flexible working height between 850 mm and 900 mm – for ergonomic working in the long term.

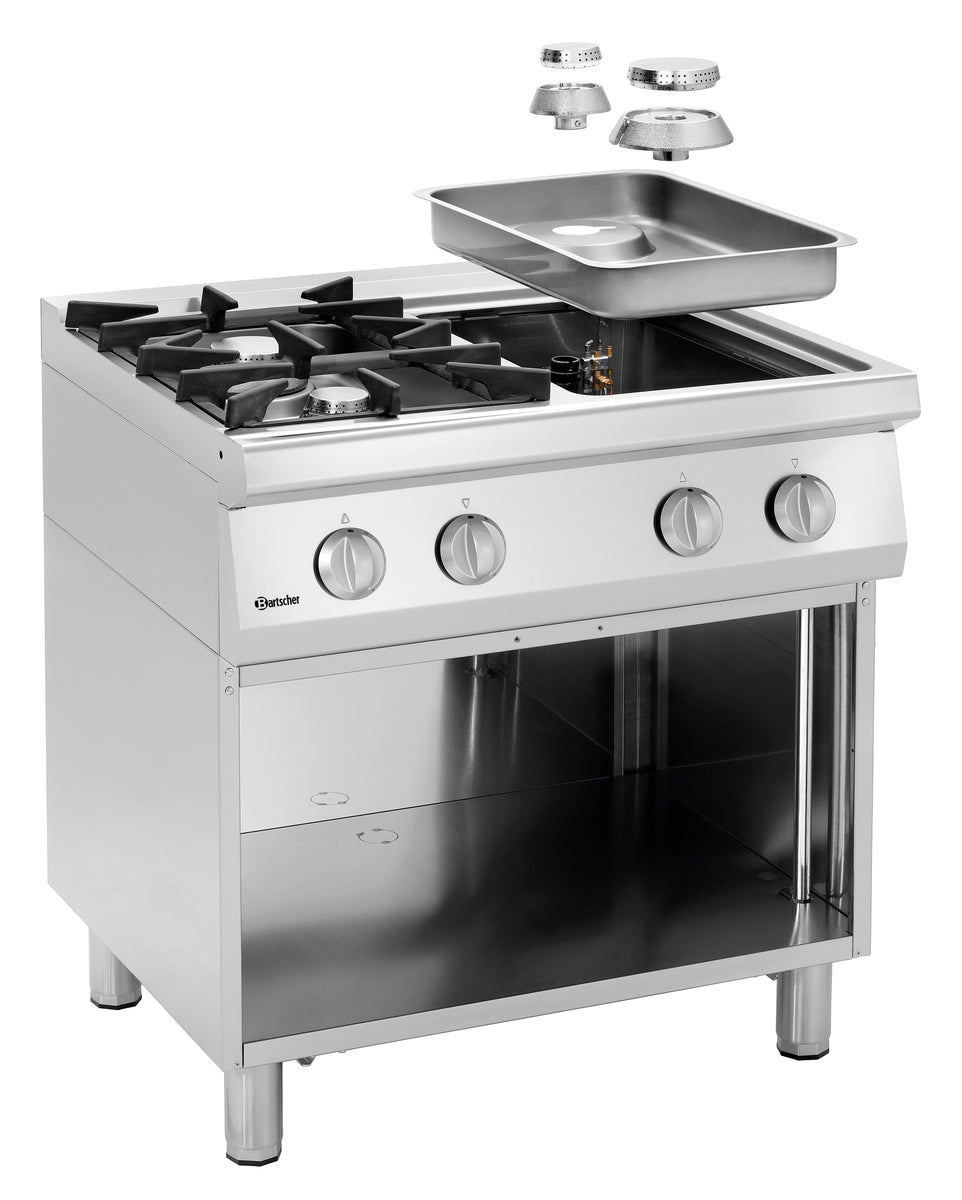

• Cleaning made easy – even in Continuous operation: Removable drip trays under the burners and solid cast iron grates ensure quick, hygienic cleaning – ideal for frequent use and tight schedules.
• Compact design – high performance: With a width of 79.9 cm and an open base, the 70040 combines optimal use of space with generous storage space for kitchen utensils and GN Containers.

Technical data

• Width: 800 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 58 kg
• Gross weight: 72.8 kg
• Volume: 0.789 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Pilot flame: Yes
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Height sub-counter unit: 470 mm
• Size hobs: 330 x 270 mm
• Depth sub-counter unit: 610 mm
• Height-adjustable to: 900 mm
• Type: Upright unit
• Number of hobs: 4
• Width sub-counter unit: 799 mm
• Ignition type: Manual ignition
• Properties: Cast iron grille ,Hobs with removable collection tray

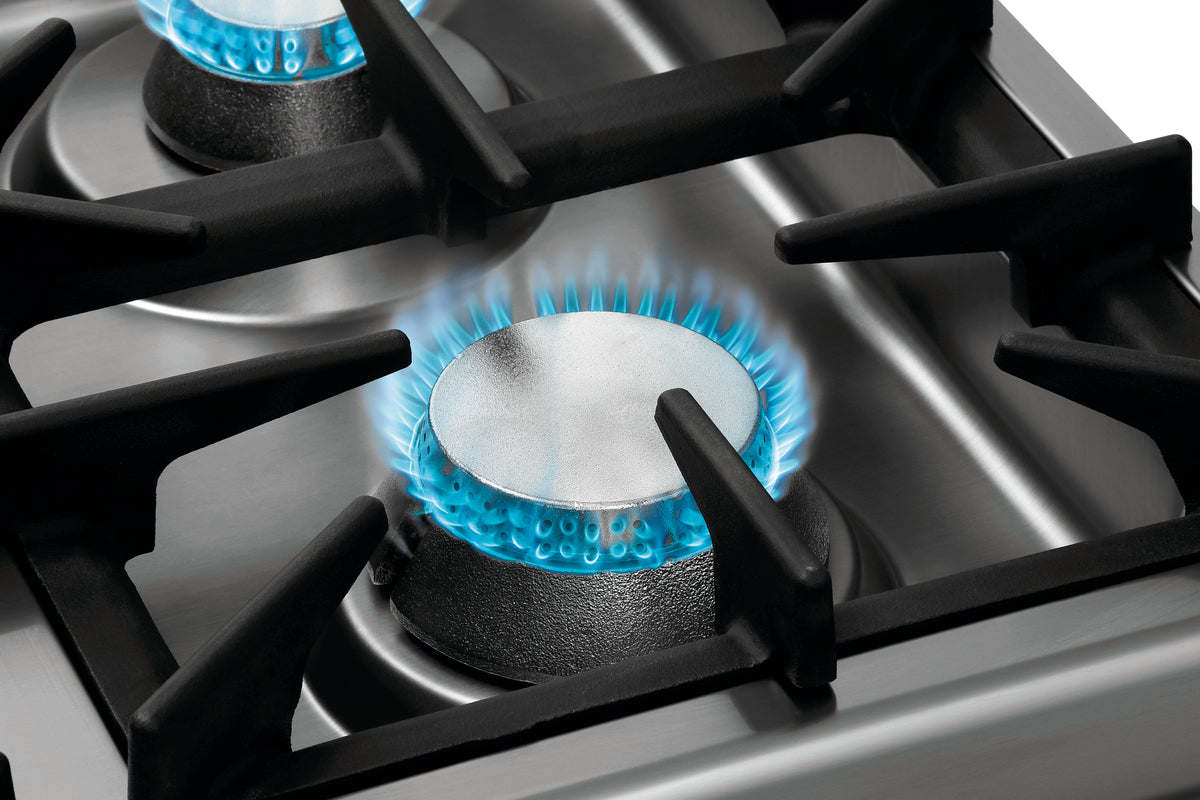

• Gas burner: Two-circle burner
• Distribution of hobs: 2 x 6,2 kW, 2 x 8,5 kW
• Operating mode: Gas
• Height-adjustable from: 850 mm
• Material: CNS 18/10
• Series: 700
• Sub-counter unit type: Open
• Power: 29.4 kW

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 2851051
