The 900 Master series and its high-quality and solid stainless steel version in CNS 18/10 is the ideal choice for modern professional kitchens with high standards. First-rate, flexible and high-performance.

Product benefits

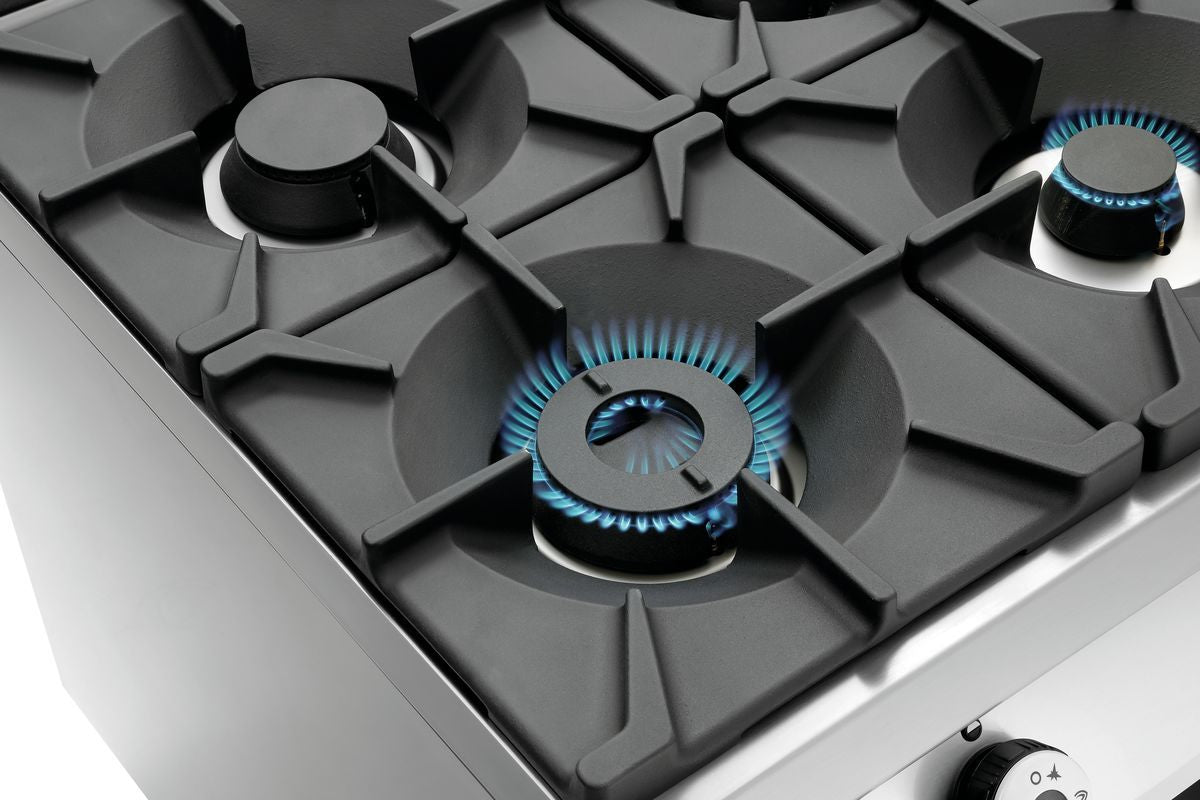

• Performance that supports your kitchen: With a total output of 24.5 kW and four powerful dual-circuit burners, the 4-burner gas range is optimally designed for high production volumes in professional kitchens.
• Efficient heat distribution – precisely controlled: The graduated burner distribution from 3.5 kW to 8 kW enables precise working and maximum energy utilisation – the right power for every cooking requirement.
• Robust design for continuous use: Thanks to its solid CNS 18/10 stainless steel construction, the appliance can withstand even the toughest conditions in commercial kitchens – durable, easy to clean and hygienic.
• Flexibility with gas types including: Equipped with nozzles for natural gas H, natural gas L and liquid gas – a device that can be easily adapted to your energy supply.

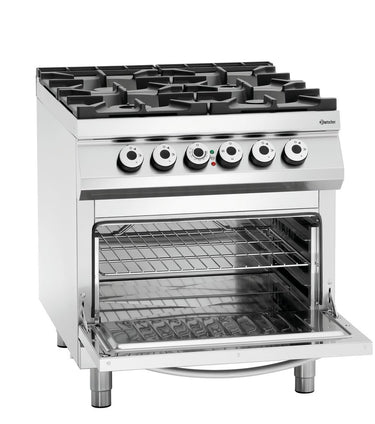

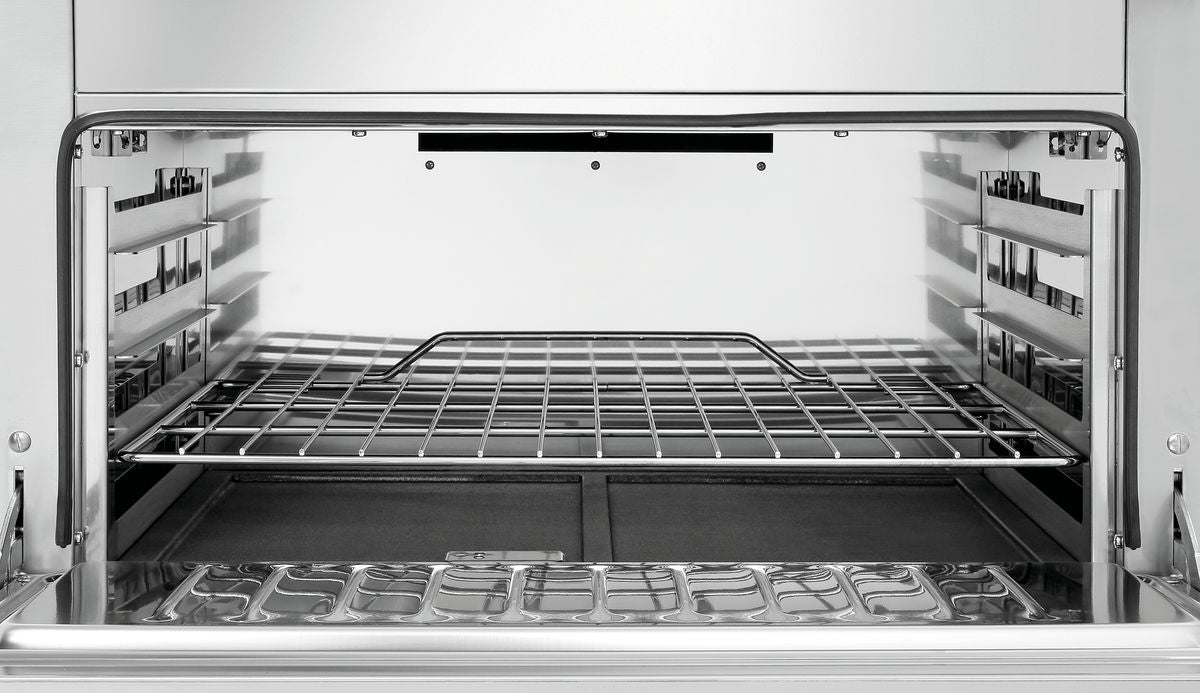

• More space for large items: The spacious electric oven in 2/1 GN Format offers space for large-format inserts and ensures even cooking at a professional level.
• Modular design, professional construction: As part of the modular 900 Master Series, the appliance can be seamlessly combined and individually integrated into existing kitchen units – for perfectly coordinated workflows.
• Stability with room to manoeuvre: The height-adjustable feet from 900–950 mm allow for an ergonomically optimal working height – even on uneven floors.

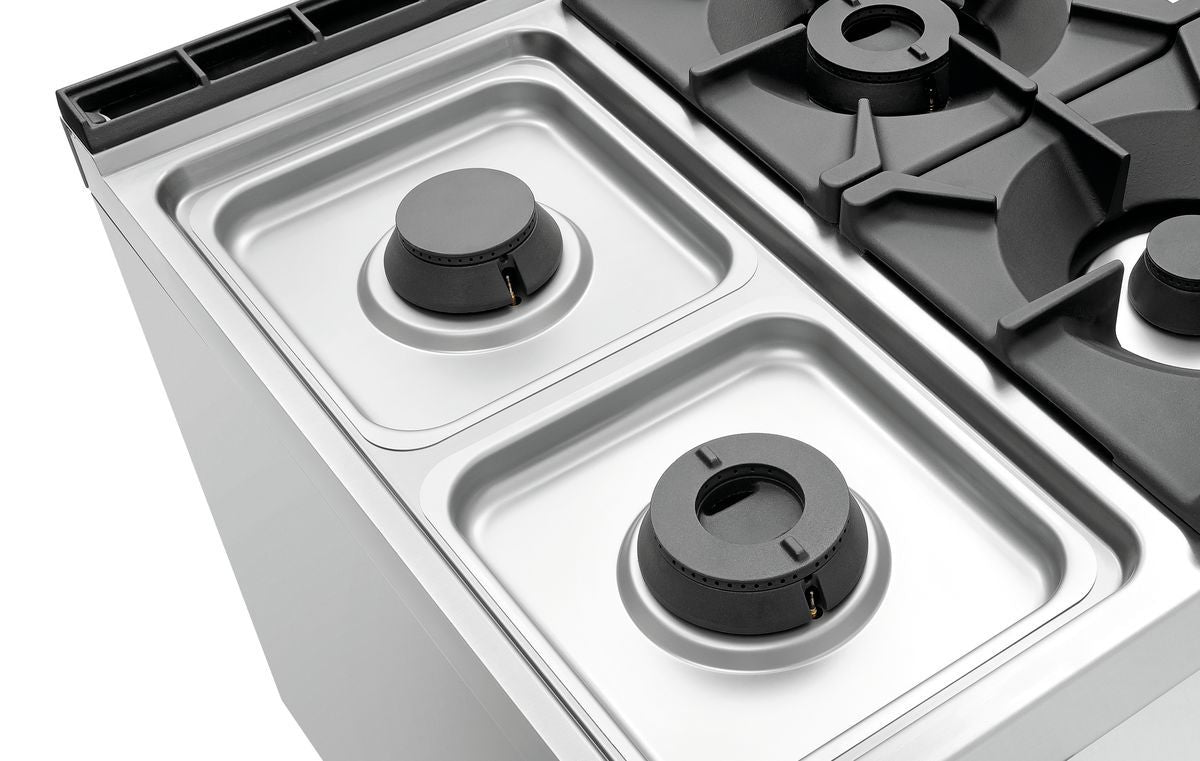

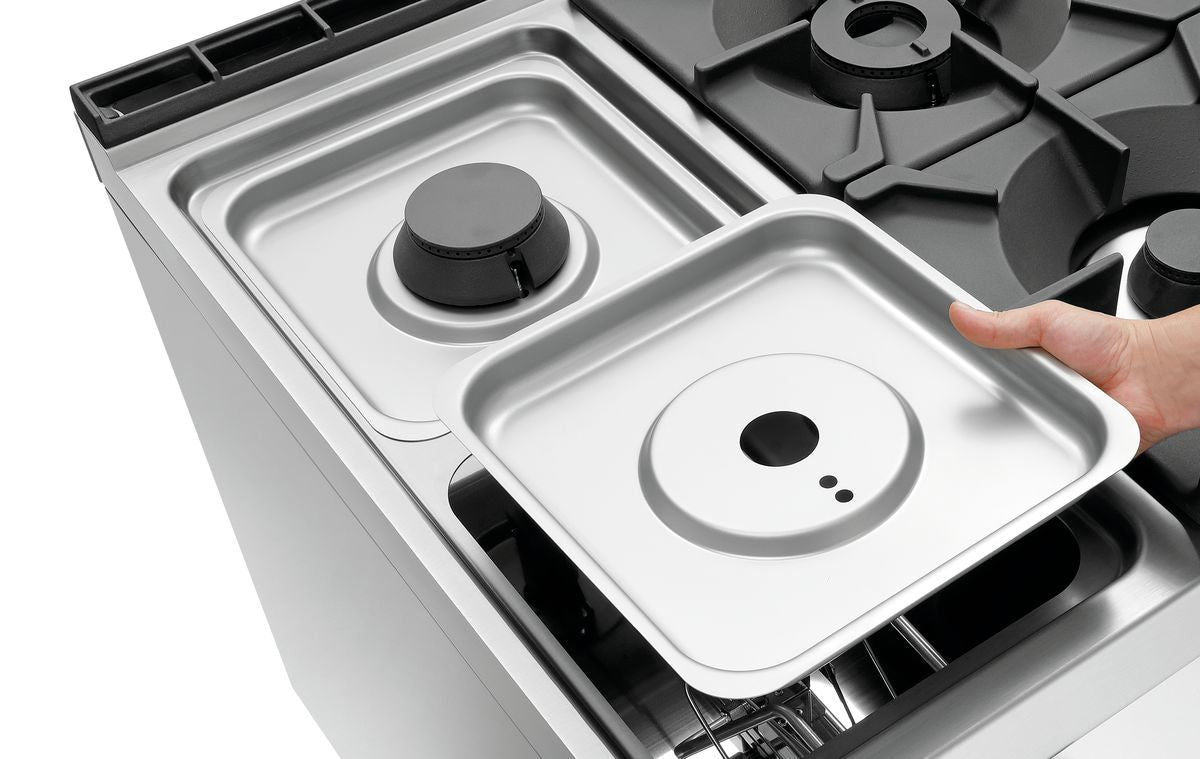

• Well thought-out down to the last detail: Removable burner tray catch trays facilitate cleaning and increase operational safety – for efficient everyday use in catering and hospitality.

Technical data

• Width: 800 mm
• Depth: 900 mm
• Height: 900 mm
• Net weight: 136.80000000000001 kg
• Gross weight: 170 kg
• Volume: 1.058 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Temperature range from: 70 °C
• Gastronorm: 2/1 GN
• Number of hobs: 4
• Height oven: 300 mm
• Ignition type: Manual ignition
• Oven voltage: 400 V
• Height-adjustable to: 950 mm
• Oven connected load: 5,6 kW
• Oven connection: 3 NAC
• Material: CNS 18/10
• Height-adjustable from: 900 mm
• Frequency: 50/60 Hz
• Power: 24.5 kW
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Depth oven: 550 mm
• Width oven: 655 mm
• Type: Upright unit
• Properties: Hobs with removable collection tray

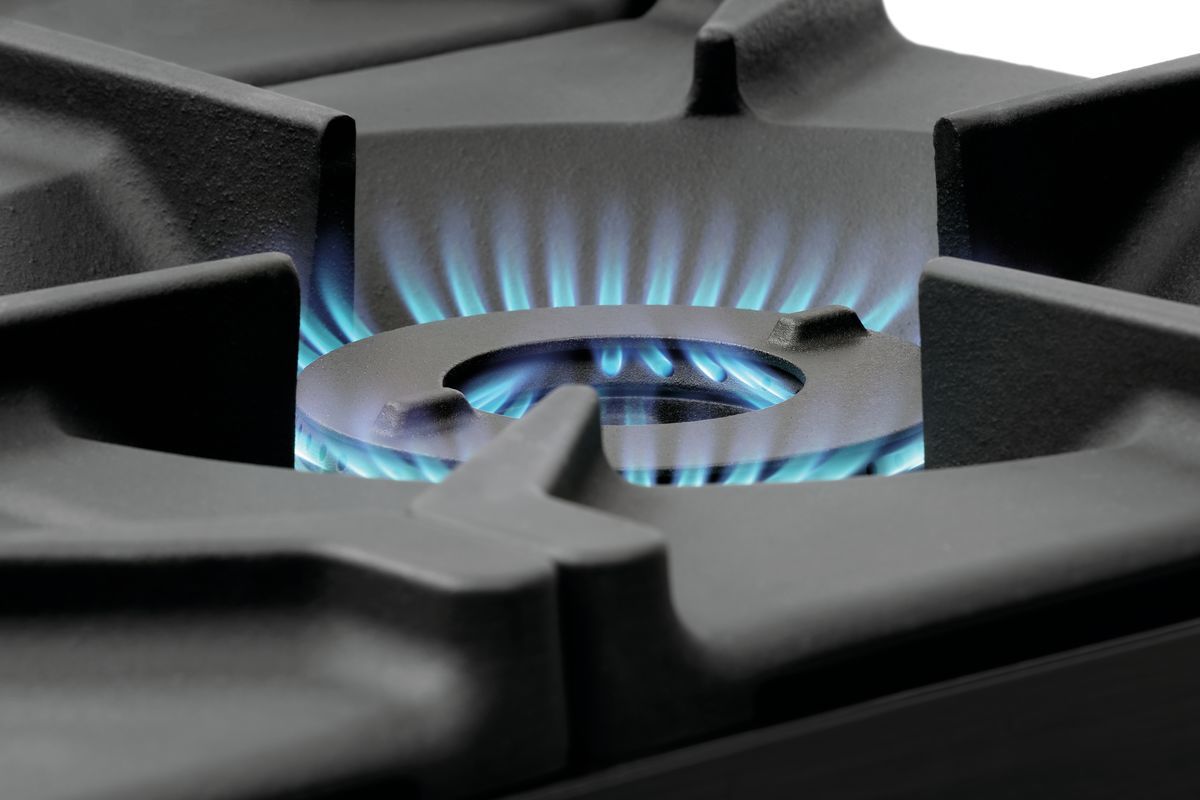

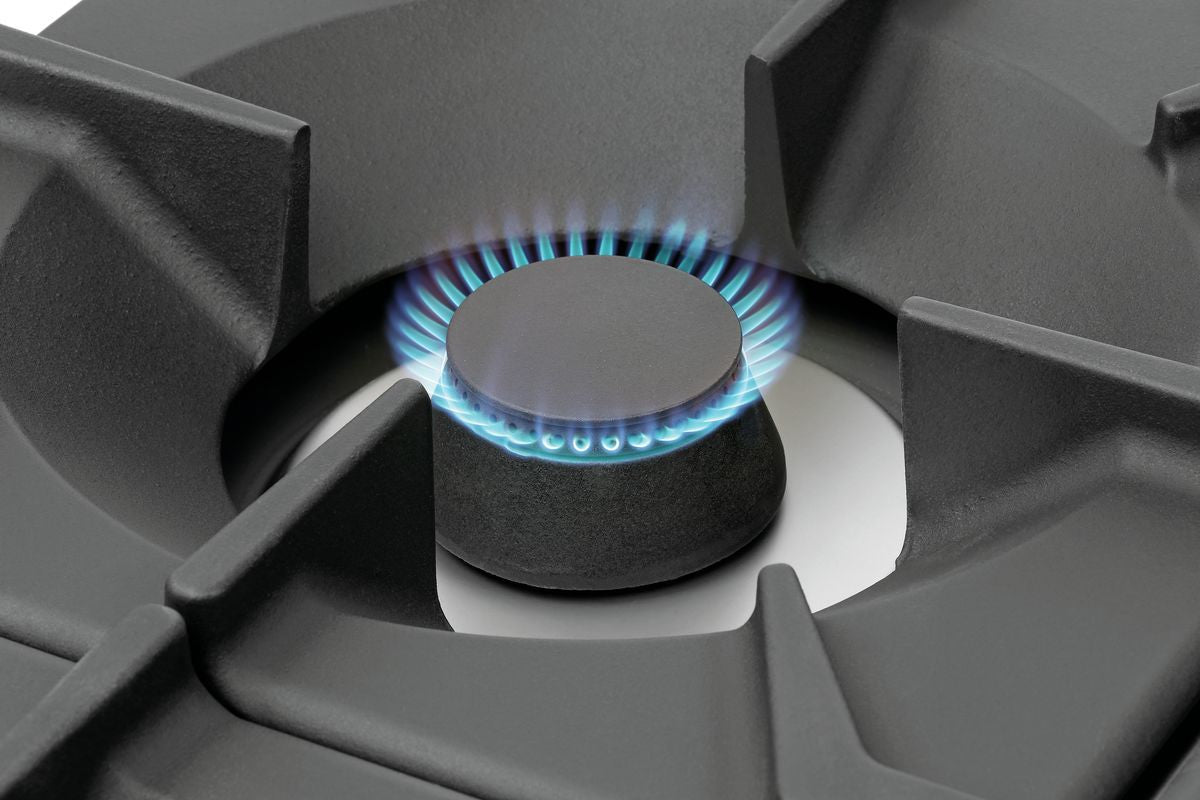

• Gas burner: Two-circle burner
• Distribution of hobs: 1 x 3,5 kW, 1 x 5 kW, 2 x 8 kW
• Oven type: Electro
• Multifunctional oven: No
• Operating mode: Electro / gas
• Temperature range to: 300 °C
• Series: 900

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 2952271
