Product benefits

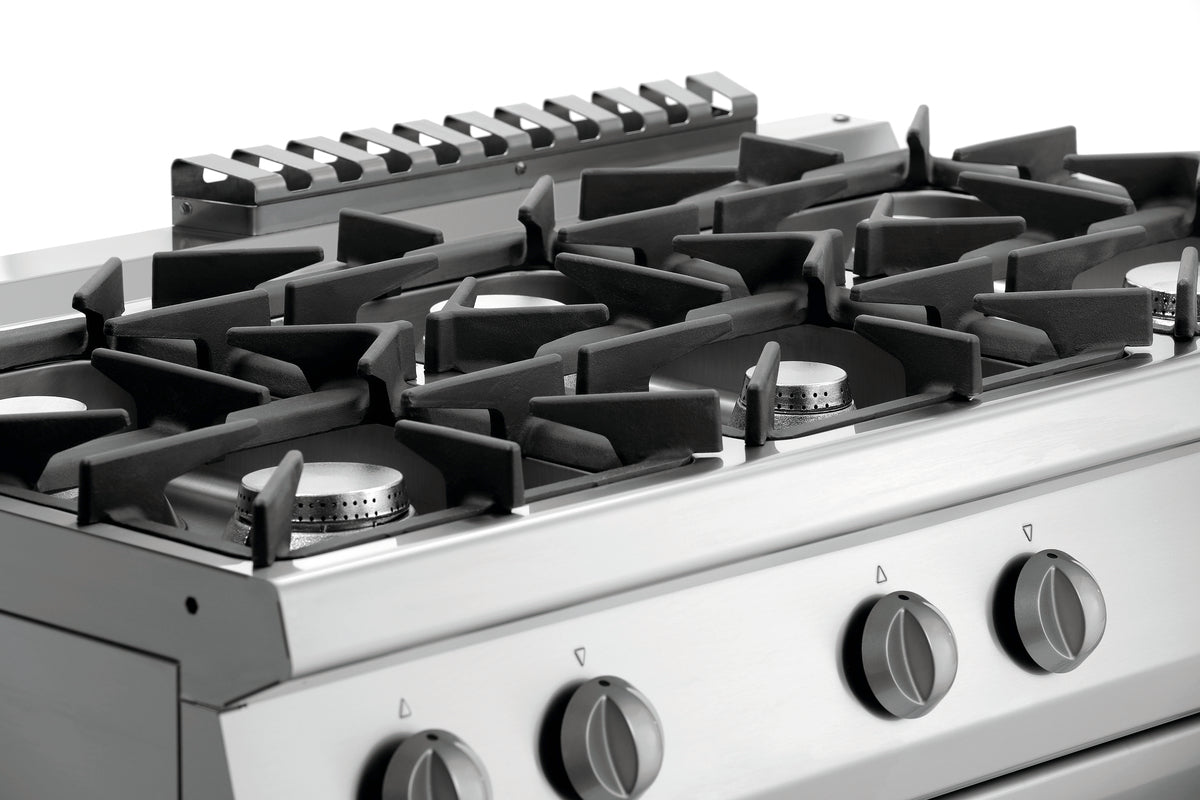

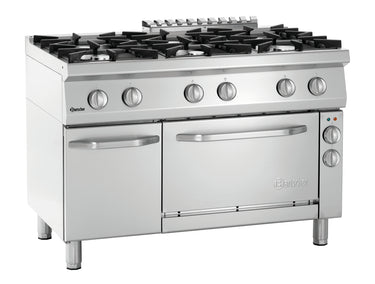

• Maximum output in a compact space: With 6 powerful dual-circuit burners and a total output of 44.1 kW, the 70060 EB11 gas range offers full cooking power – even when all burners are in use at the same time.
• Flexible in any environment: Thanks to its modular design and height-adjustable feet, the gas range can be optimally adapted to any kitchen situation and working position – for ergonomic and efficient working.
• Robust construction for the highest demands: The body and cooking chamber are made of high-quality 18/10 chrome-nickel steel, ensuring durability, easy cleaning and hygienic resistance in daily professional use.

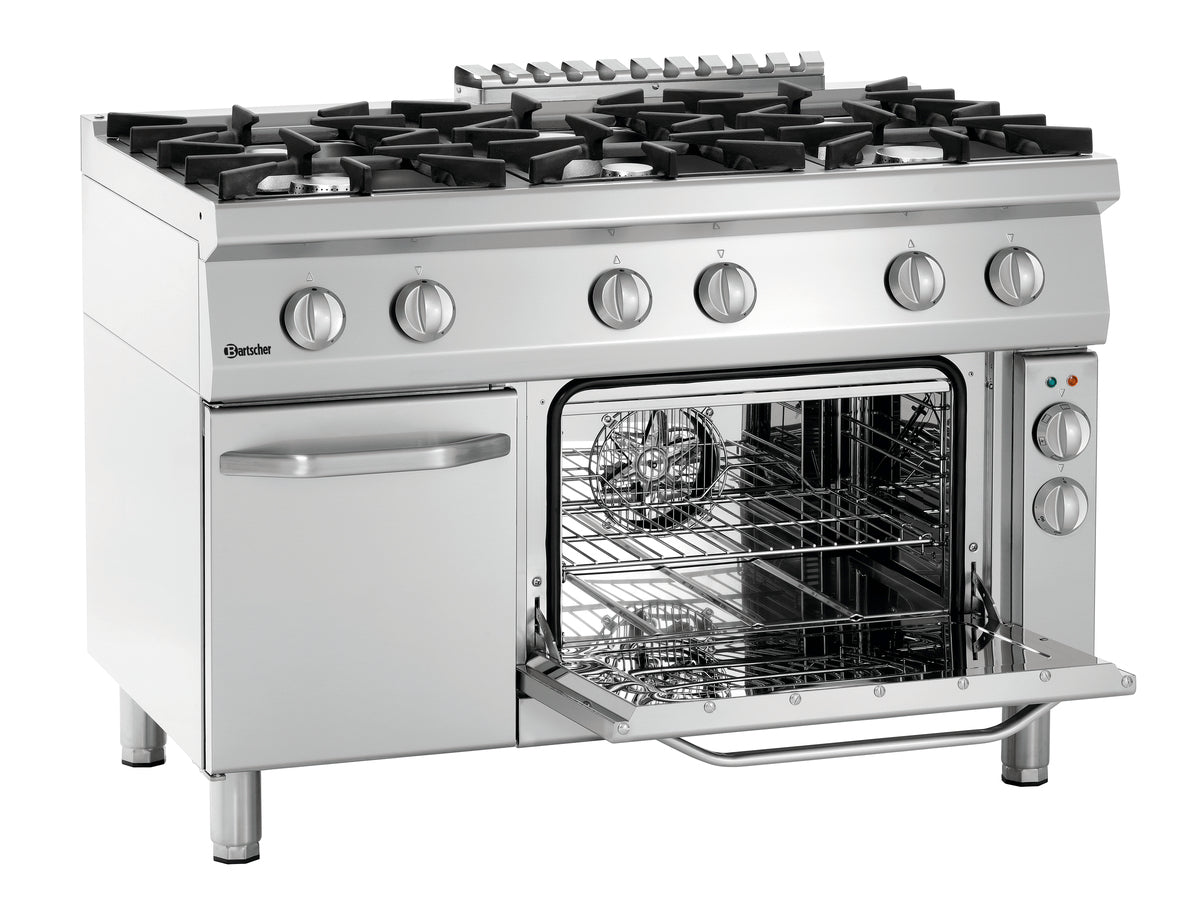

• Multifunctional professional oven including: The integrated convection oven with a volume of 58 litres ensures even cooking results – ideal for parallel kitchen shifts at up to 300 °C.
• Cooking professional for restaurateurs with system requirements: Part of the 700 Classic series – with consistent modular design, has combinability with other appliances in the series for consistently efficient kitchen solutions.

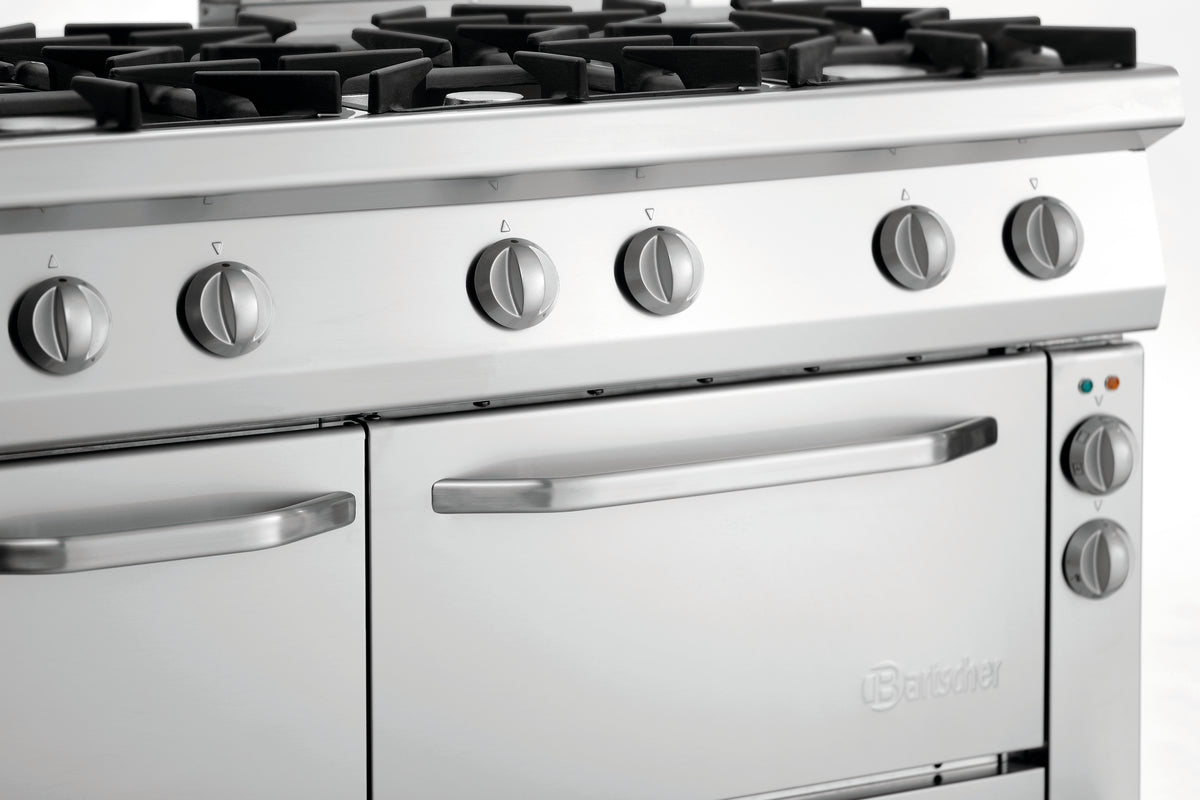

• Safe ignition, precise control: Manual ignition with Pilot flame enables reliable ignition and consistently safe operation – even under high loads during peak times.
• Flexible choice of energy source: Whether natural gas H, natural gas L or liquid gas – the gas range can be adapted to any local energy supply thanks to the nozzles supplied.
• Solid base with intelligent storage space: The integrated hinged door base unit creates valuable space for baking trays or kitchen utensils – robustly built and quickly accessible in any work situation.

Technical data

• Width: 1200 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 133.80000000000001 kg
• Gross weight: 152.4 kg
• Volume: 1.313 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Pilot flame: Yes
• Distance between trays: 90 mm
• Width oven: 535 mm
• Height-adjustable to: 900 mm
• Number of hobs: 6
• Ignition type: Manual ignition
• Oven functions: Circulating air
• Height-adjustable from: 850 mm
• Multifunctional oven: Yes
• Width sub-counter unit: 350 mm
• Material: CNS 18/10
• Height sub-counter unit: 400 mm
• Oven volume: 58 litre(s)
• Power: 44.1 kW
• Frequency: 50 Hz
• Gas type: Natural gas H (20 mbar) ,Liquid gas (50 mbar) and natural gas nozzles L (20 mbar) are enclosed
• Type of hobs: Gas
• Height-adjustable feet: Yes
• Size hobs: 330 x 270 mm
• Depth sub-counter unit: 600 mm
• Type: Upright unit
• Oven connected load: 3,65 kW
• Properties: Cast iron grille
• Oven voltage: 400 V
• Gas burner: Two-circle burner
• Distribution of hobs: 3 x 6,2 kW, 3 x 8,5 kW
• Material cooking chamber: CNS 18/0
• Temperature range to: 300 °C
• Height oven: 290 mm
• Depth oven: 370 mm
• Oven connection: 3 NAC
• Sub-counter unit type: Leaf door
• Operating mode: Electro / gas
• Temperature range from: 100 °C
• Vapour extractor: Yes
• Oven type: Electro
• Series: 700
• Number of drawers: 3
• Gastronorm: 1/1 GN

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 2851361
