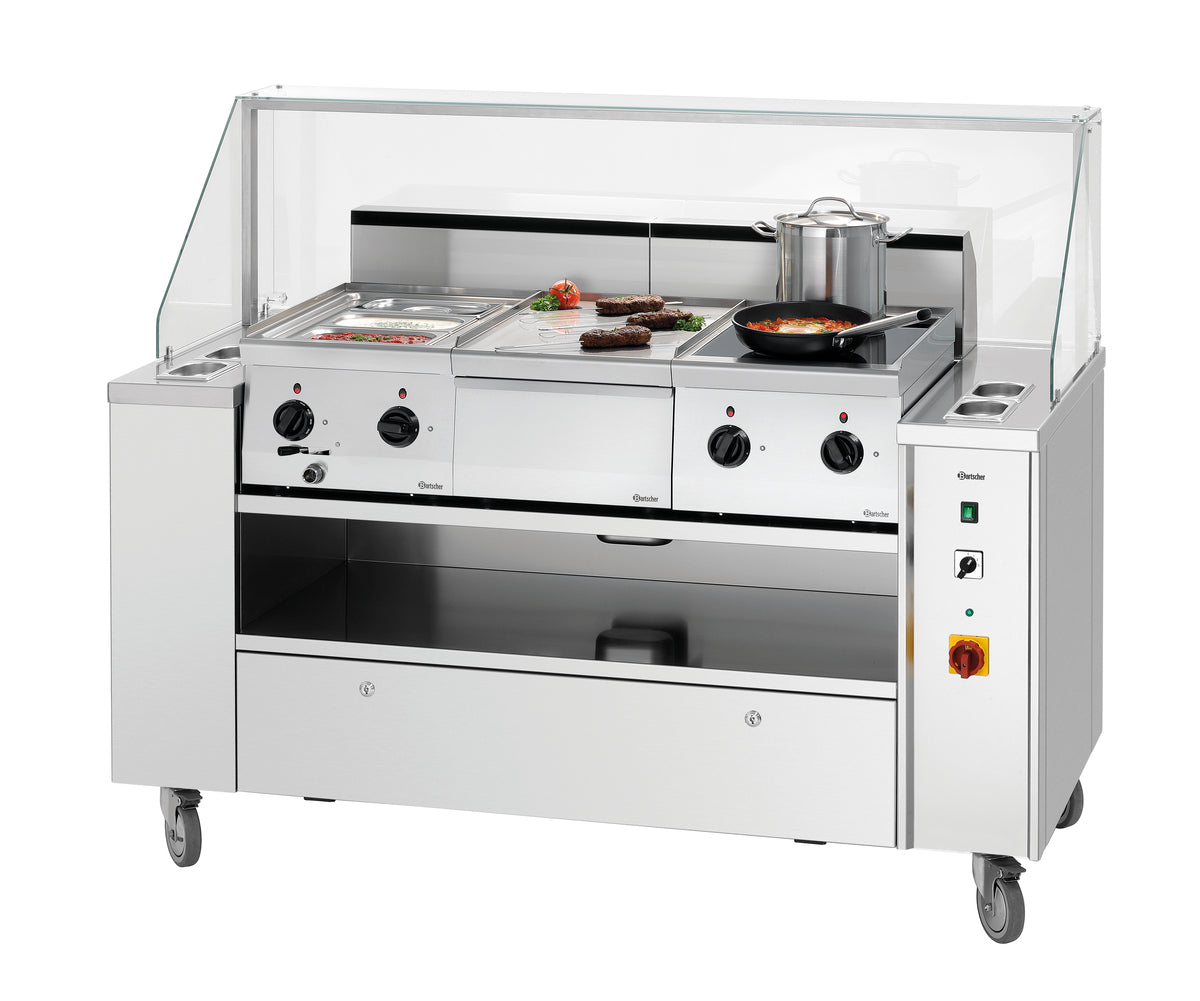

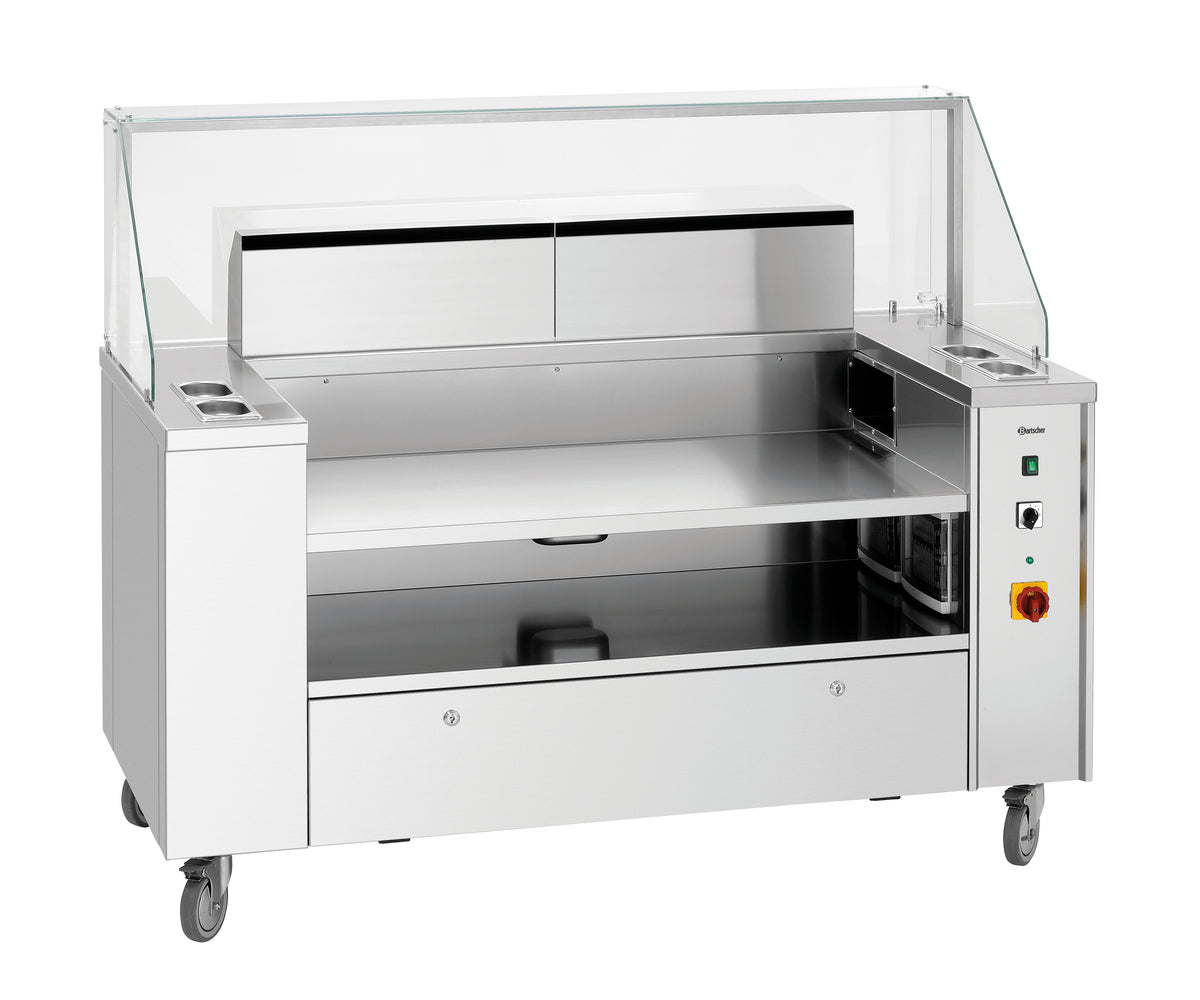

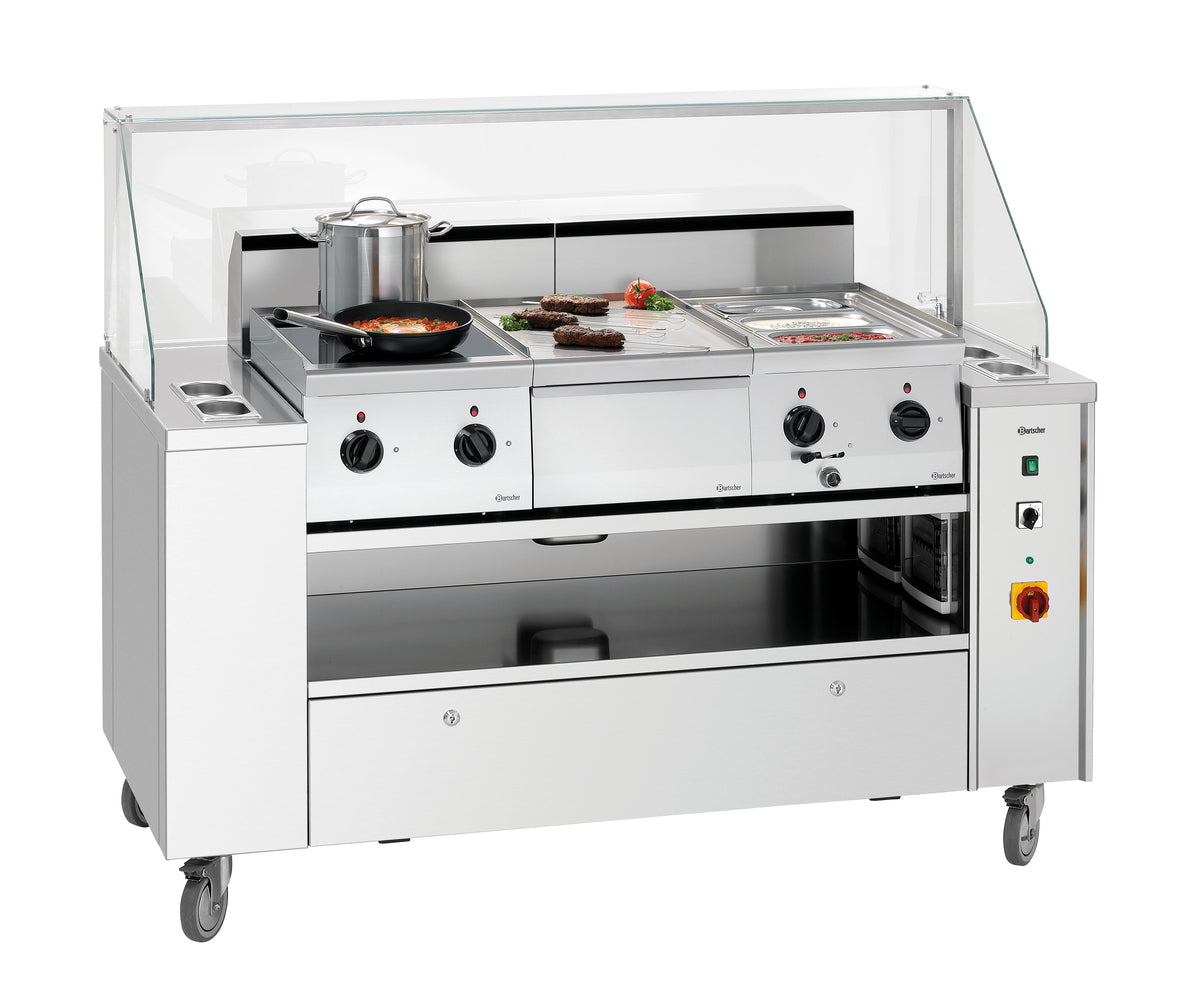

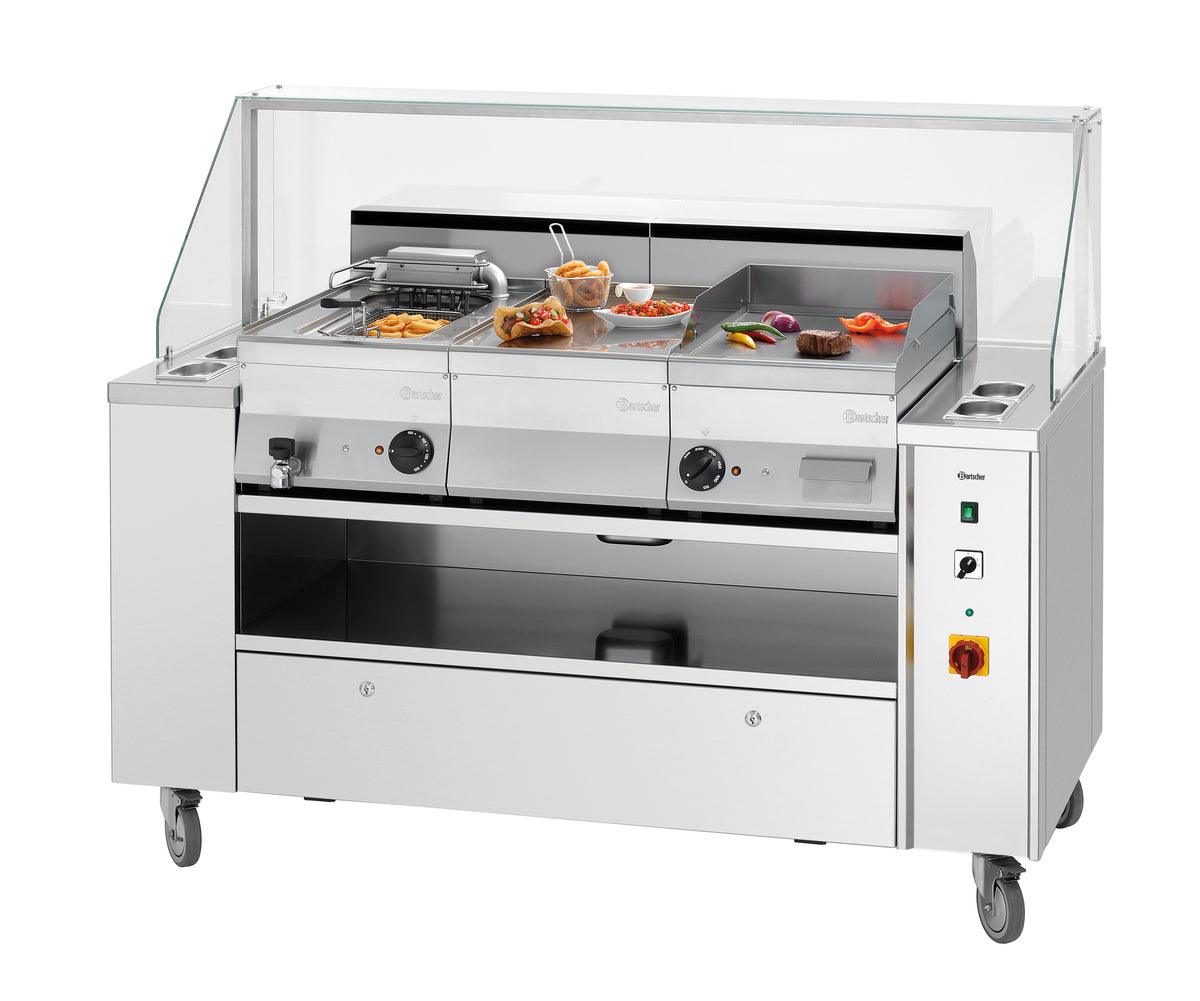

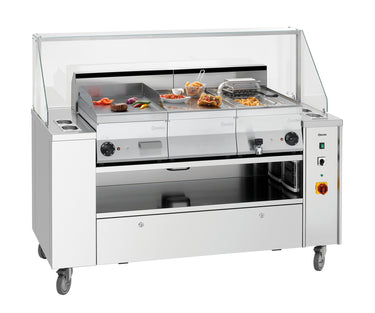

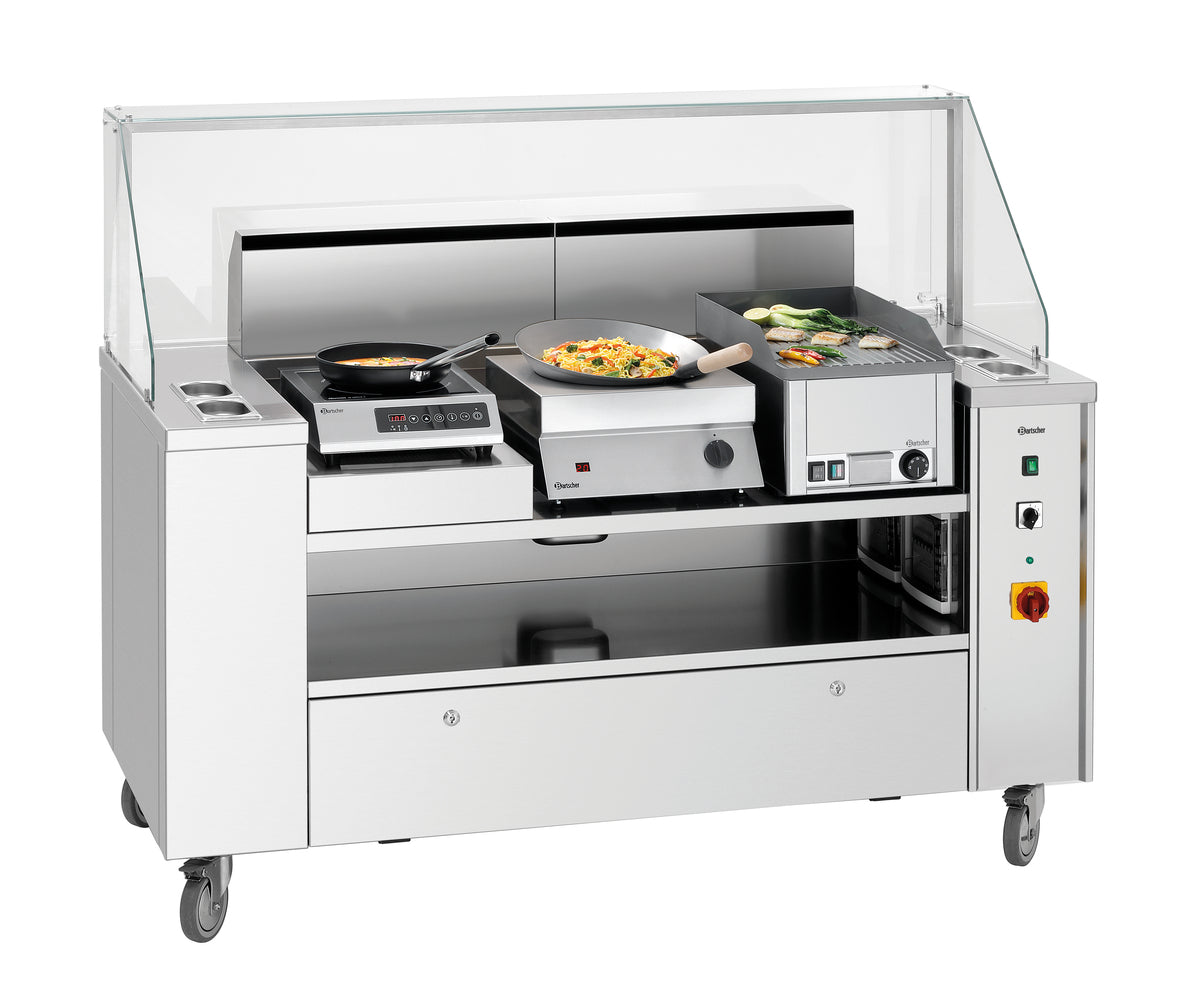

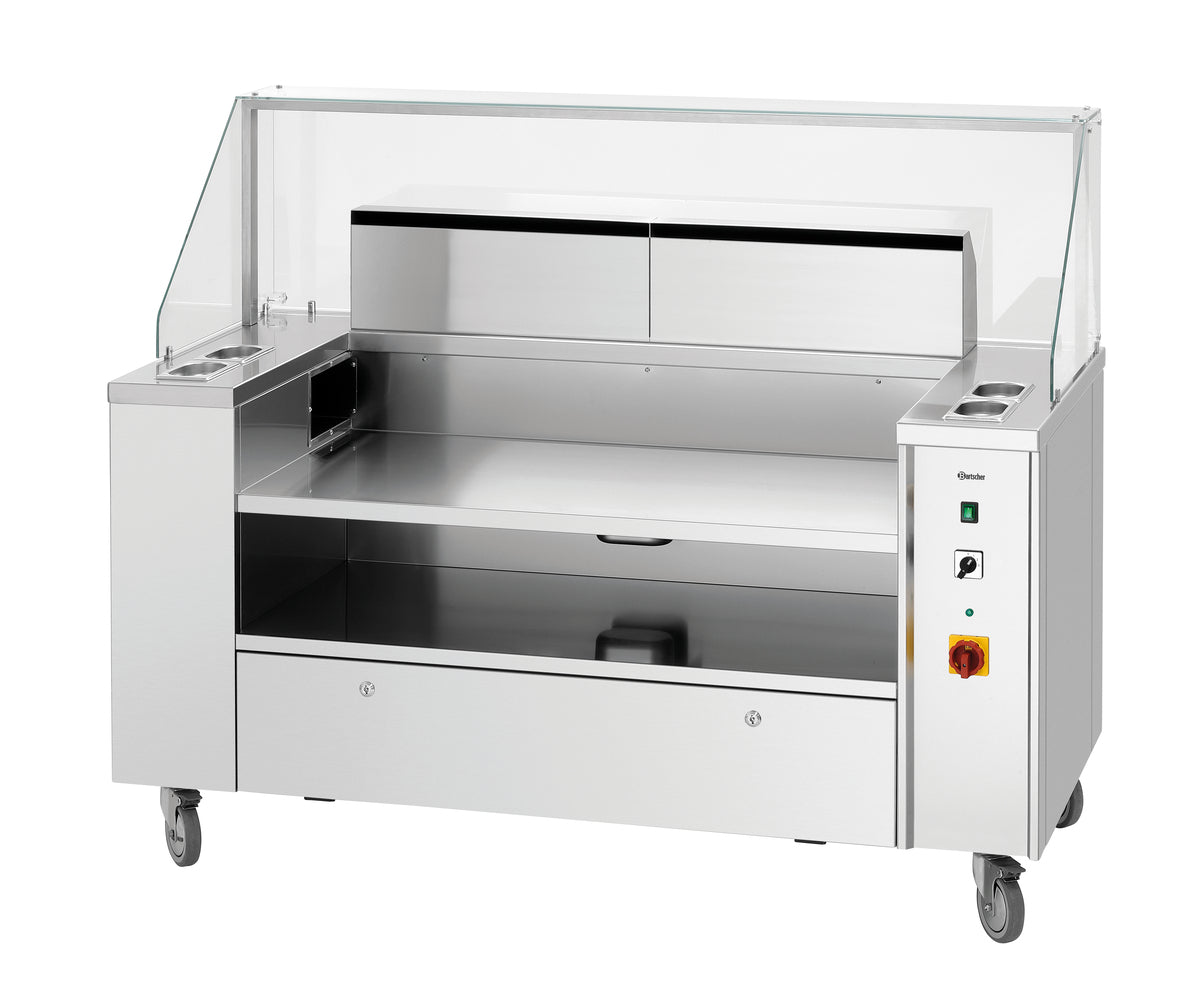

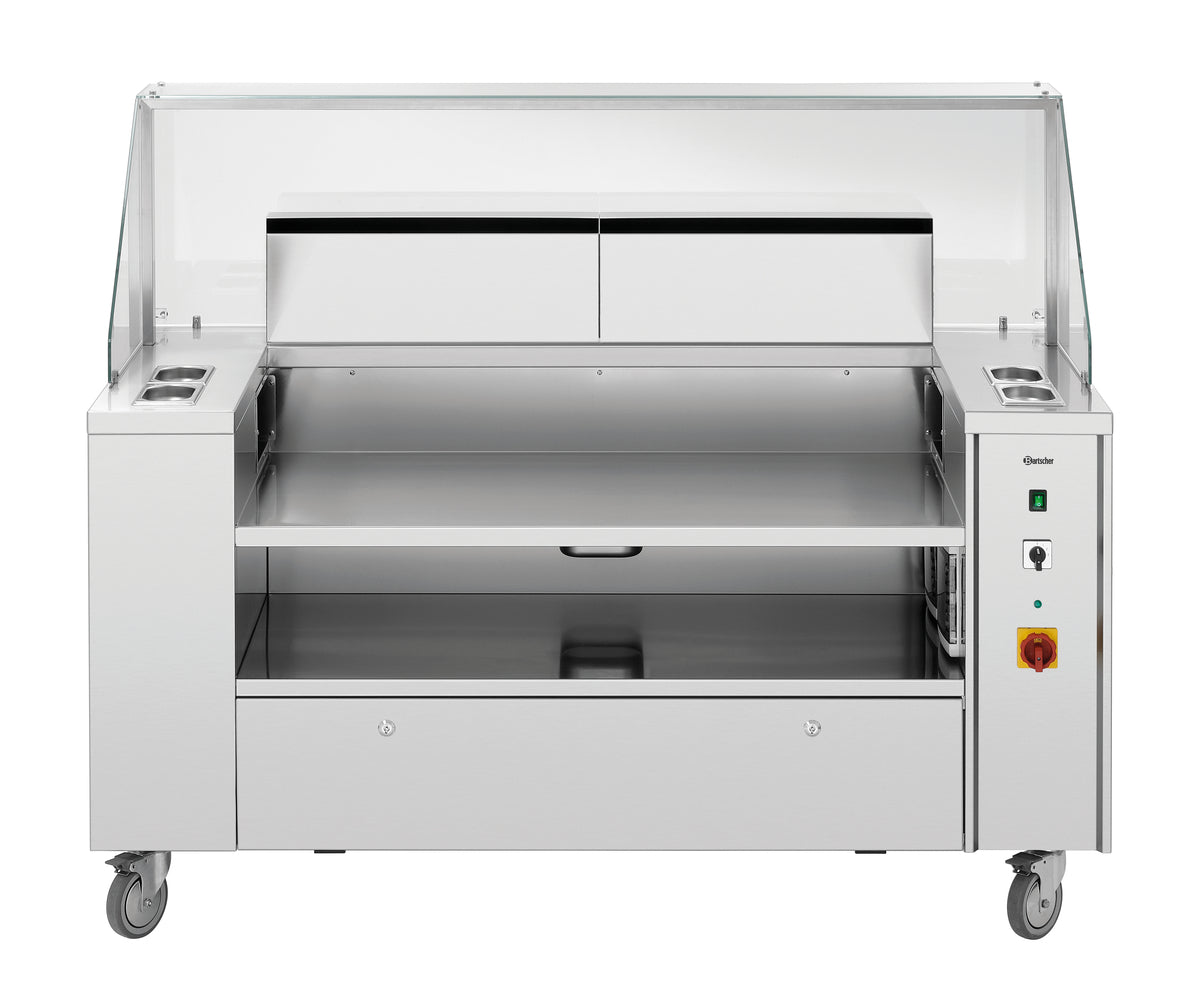

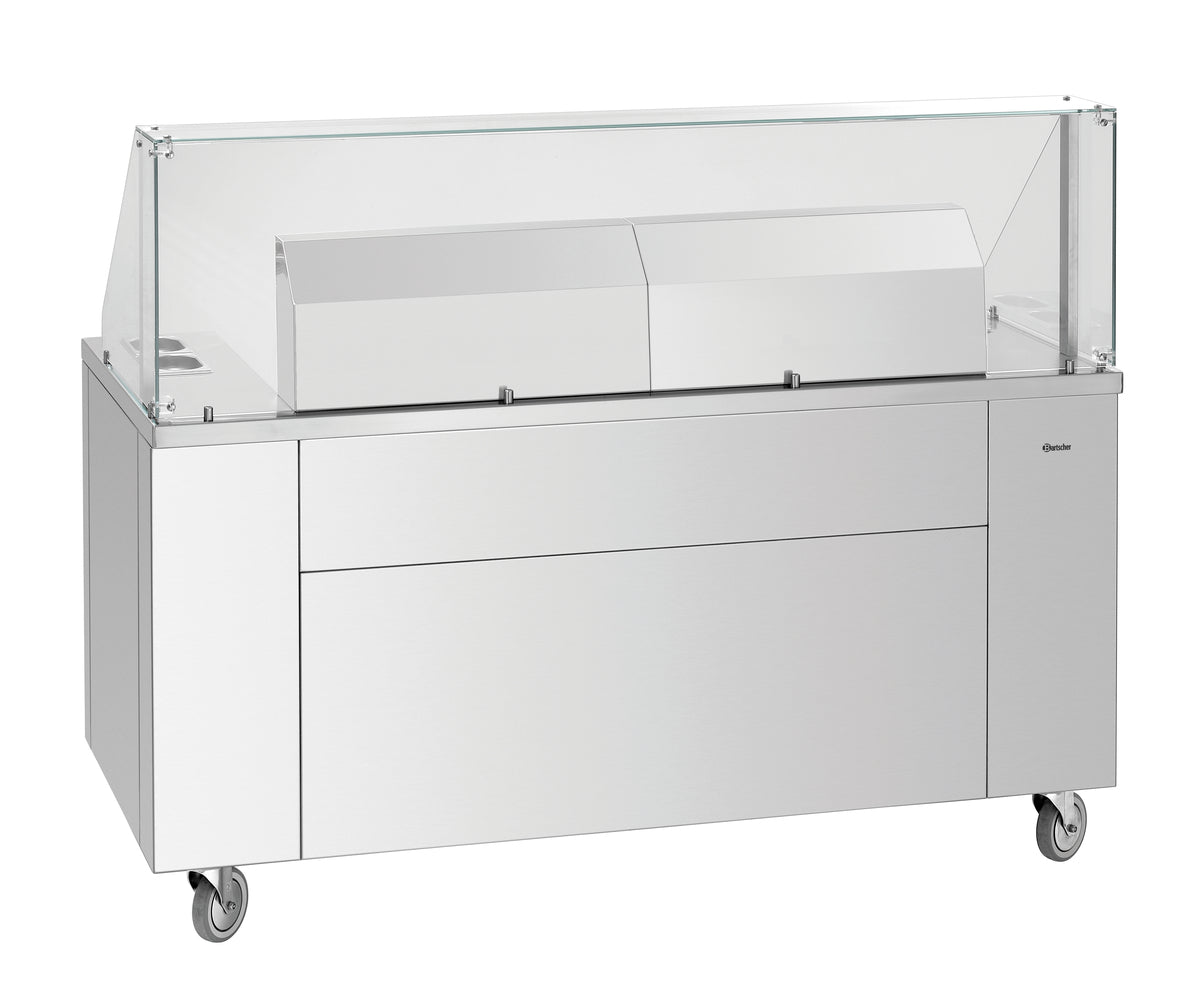

Simply perfect – a mobile solution for front cooking, catering and events. This unit can be flexibly equipped with the perfect table-top appliances and accessories for really versatile use. The appliances can be easily exchanged as needed to meet changing requirements.

Product benefits

• Flexibility at the highest level: With interchangeable tabletop appliances, the KST3240 Eco cooking station adapts to any application scenario – from live cooking to large events with multiple courses.

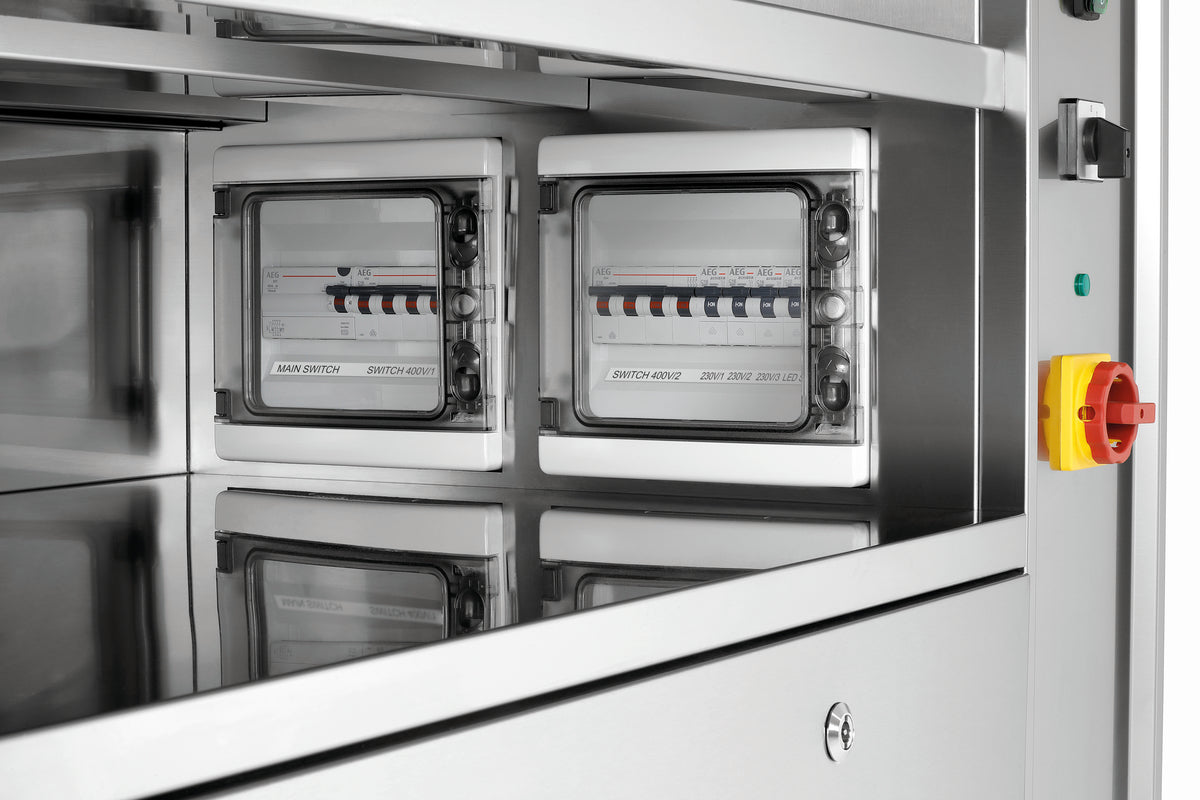

• Integrated safety – as standard: With built-in electrical protection and tested filter types in accordance with flame protection Type A, the station offers added operational safety in any environment.

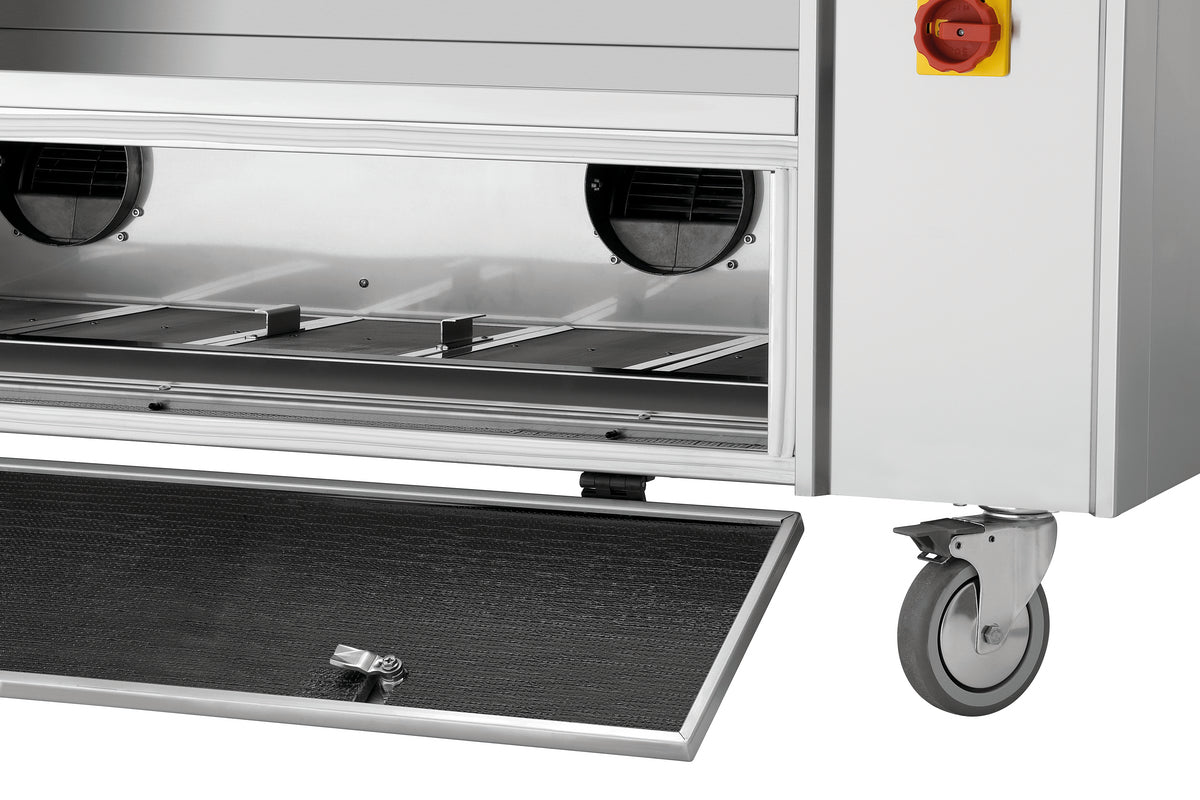

• Professional air flow meets hygiene standards: The triple filter unit made of stainless steel – comprising activated carbon, wire and silica gel filters – ensures a low-odour, safe environment when cooking in the guest area.

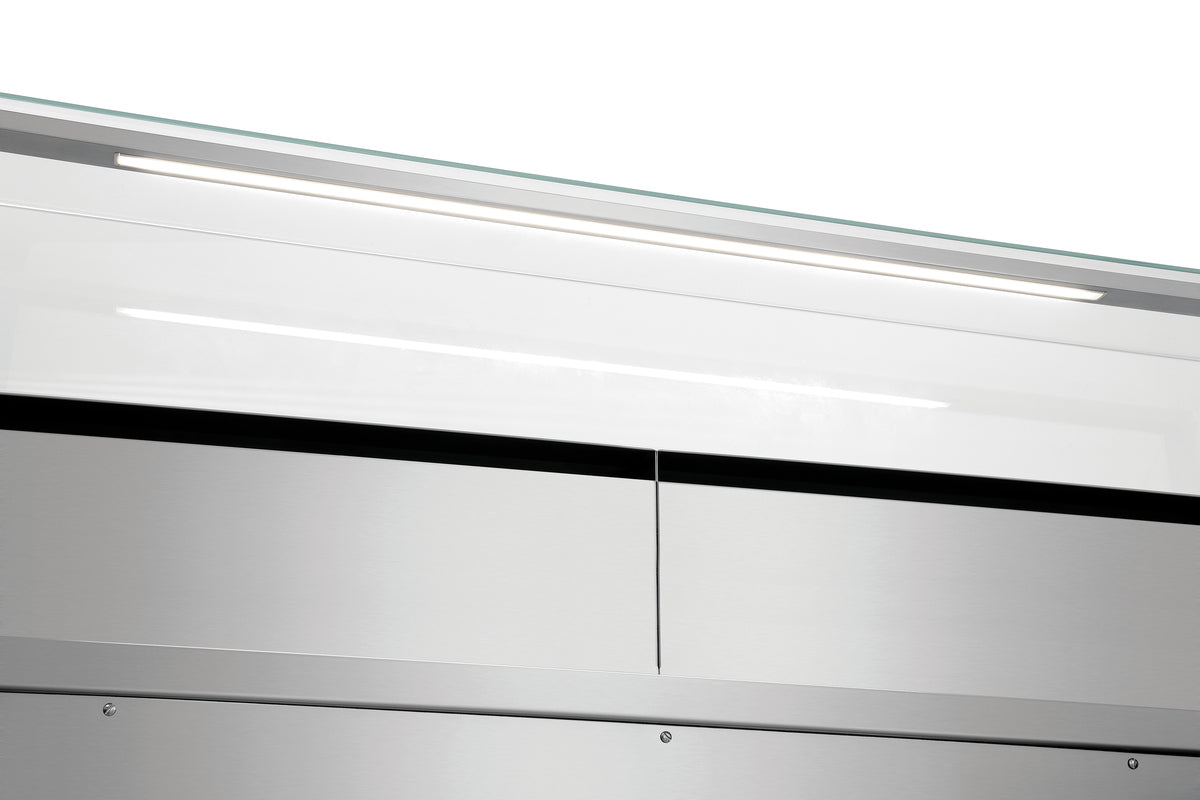

• Light at the stove – where it is needed: The integrated LED lighting in the Germ guard allows for precise control when plating up and gives front cooking stations a clean, high-quality appearance.

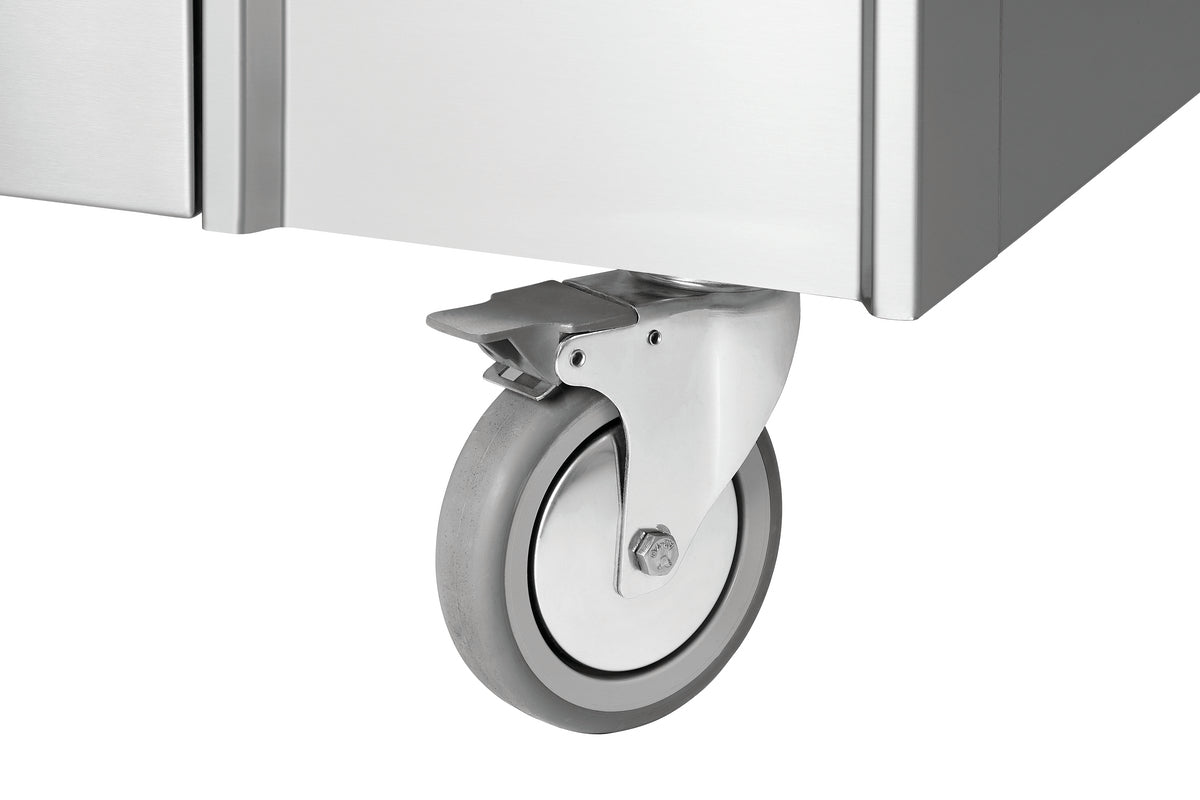

• Mobility without compromise: With four sturdy swivel casters, two of which are lockable, the KST3240 Eco can be manoeuvred safely and positioned stably – even at events with changing setups.

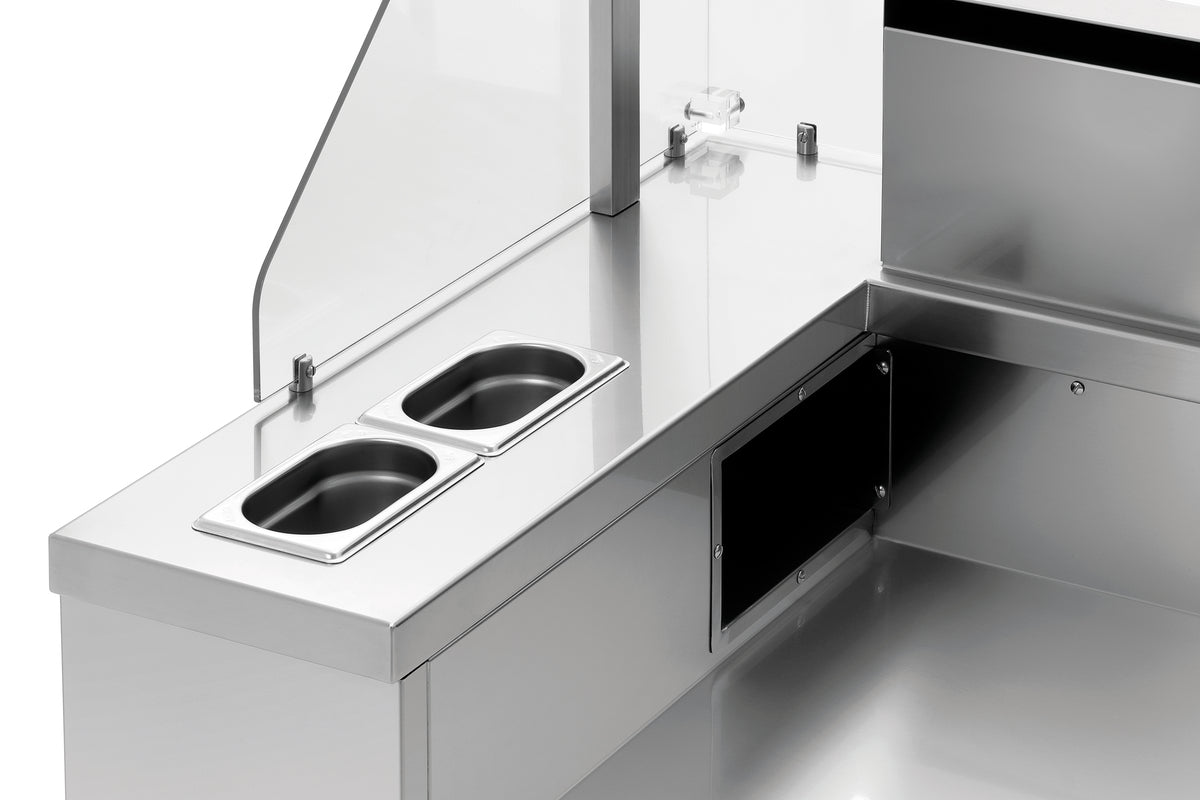

• Space for everything – organised and within easy reach: GN containers for oils, sauces and accessories, as well as a generous storage compartment under the shelf, ensure order and efficiency at every location.

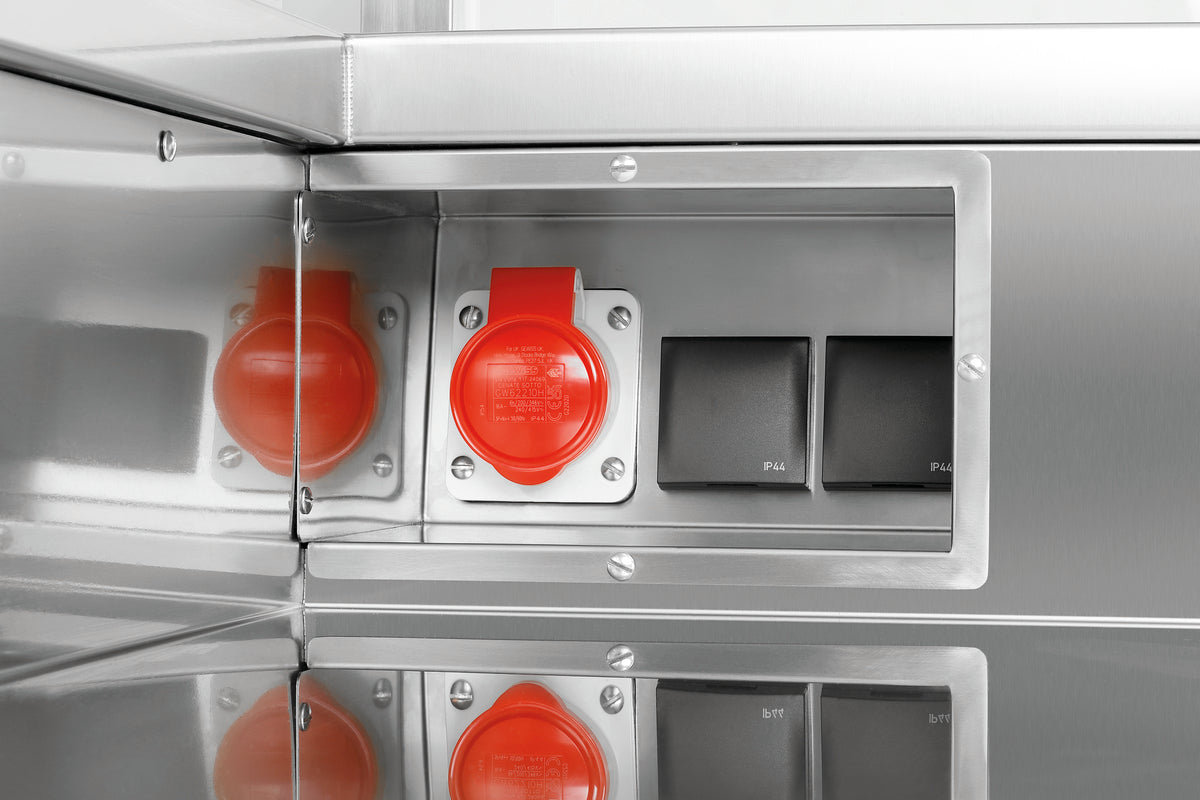

• Maximum connection versatility for your kitchen technology: With five professional socket versions for 230 V and 400 V, the station is ready for a wide range of cooking and heating appliances – even in parallel operation.
• Robustly built for continuous daily use: The high-quality stainless steel body and reinforced glass top guarantee durability and an attractive appearance – even after thousands of uses.

Technical data

• Width: 1715 mm
• Depth: 845 mm
• Height: 1380 mm
• Net weight: 180 kg
• Gross weight: 225 kg
• Volume: 2.003 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• ON/OFF switch: Yes
• Lighting: LED ,On the germ guard
• Height glass top: 470 mm
• Dimensions of niche utility space: W 1,206 x D 600 mm
• Depth glass top: 611 mm
• Designed for: 2-3 table-top units
• Filter type: Activated carbon filter ,Wire mesh filter ,Flame protection filter ,Silica gel filter
• Power: 24 kW
• Equipment connection: 3 NAC
• Material: Stainless steel
• Frequency: 50 Hz
• Flame protection filter: Type A
• Not included in delivery: Connection cable ,Electrical appliances ,Platforms
• Number of niches: 1

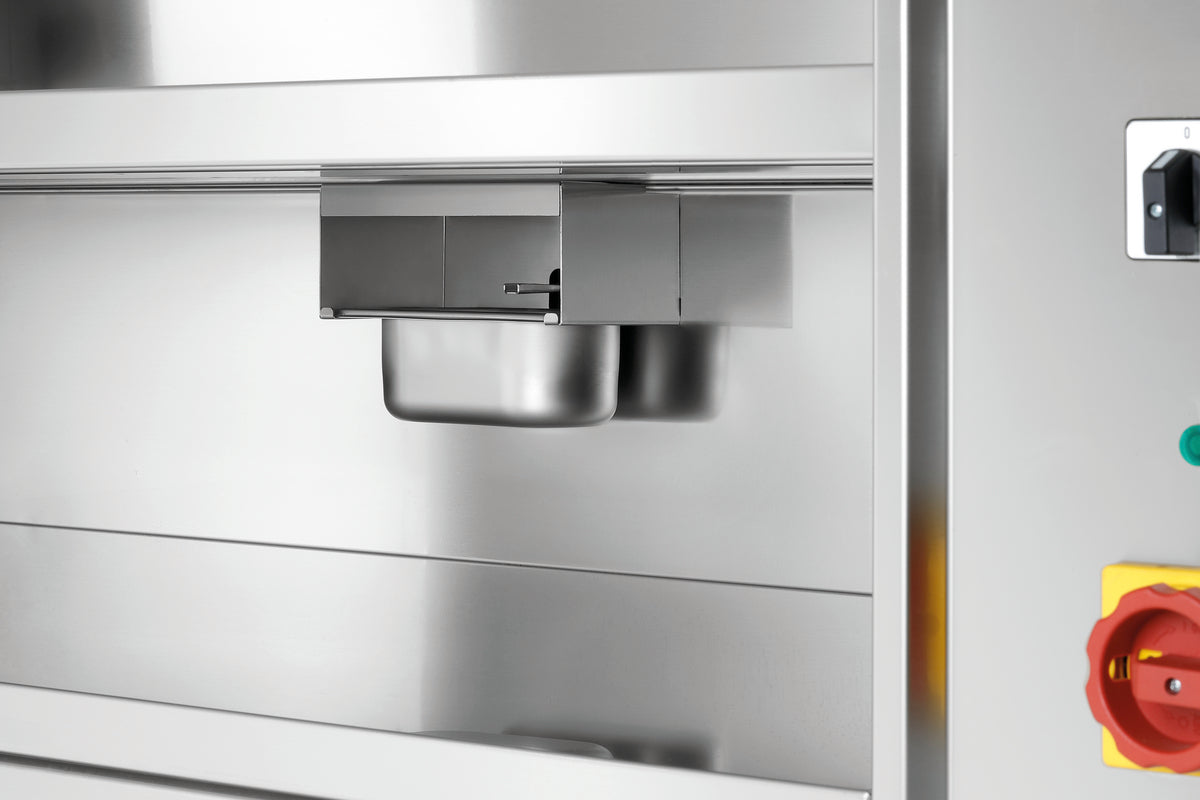

• Equipped with: 4 GN containers 1/9 GN, 100 mm deep for oils, sauces, cooking cutlery ,Storage compartment below the setting niches, dimensions: W 1,180 x D 455 x H 221 mm ,Integrated electrical fuse ,Integrated ventilation with flame protection filter
• Control lamp: ON/OFF

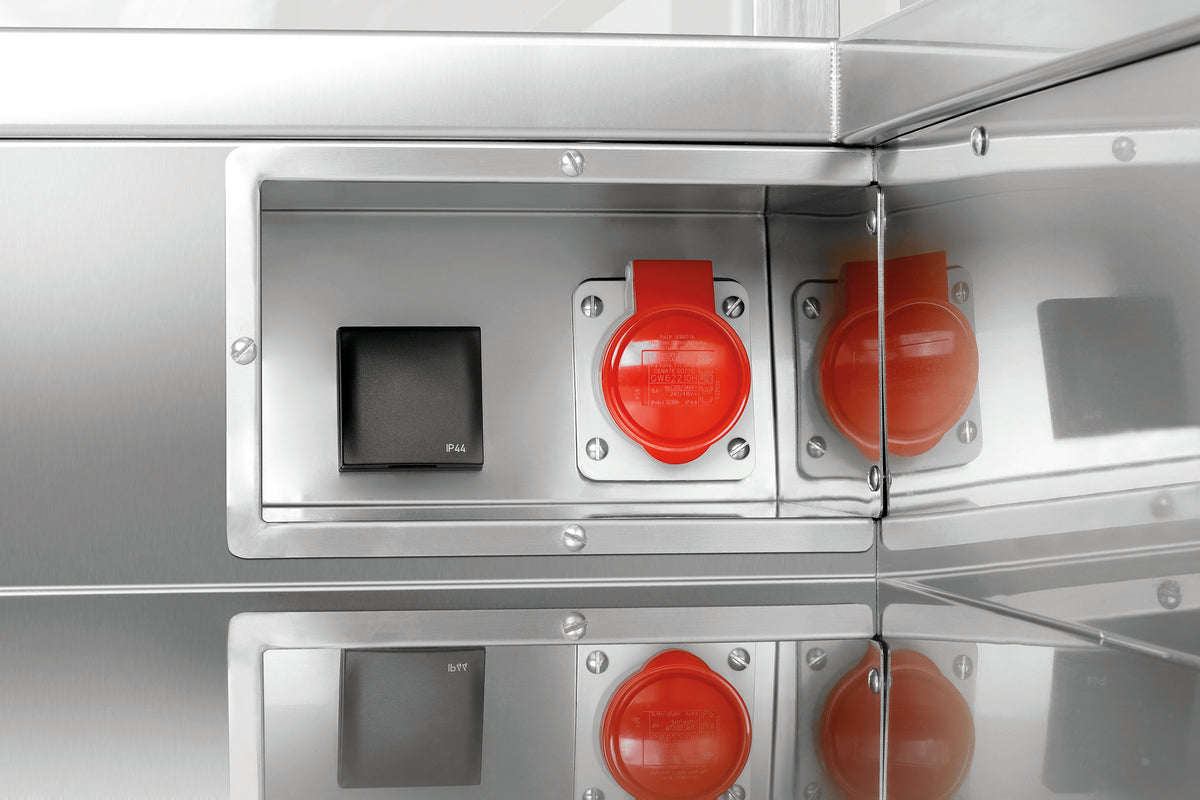

• Plug design: 3 x 230 V, 2 x 400 V 16A CEE
• Voltage: 400 V
• With glass top: Yes
• Width glass top: 1684 mm
• Swivel casters: 4 swivel casters, 2 with brake

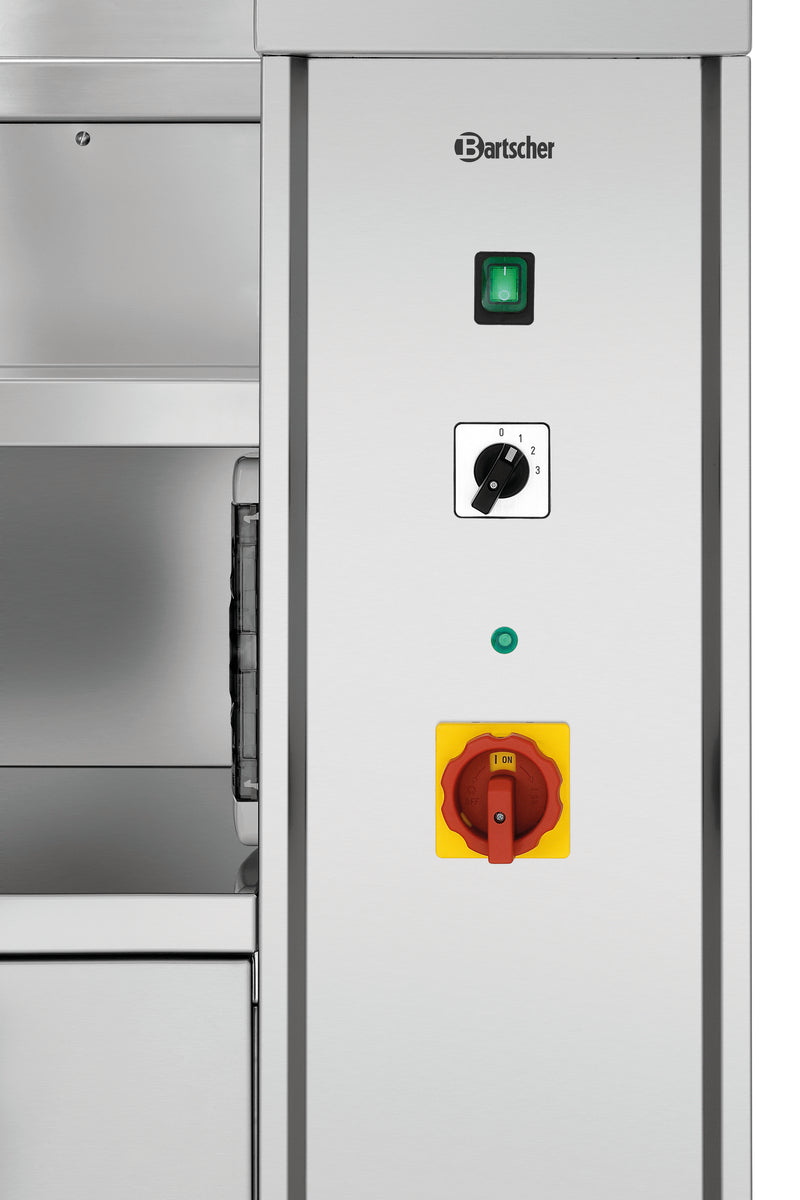

• Fan regulation: 3-level
• Number of filters: 3
• Material filter: Stainless steel
• Important information: The connection cable must be attached by a specialist at the site

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 107311
