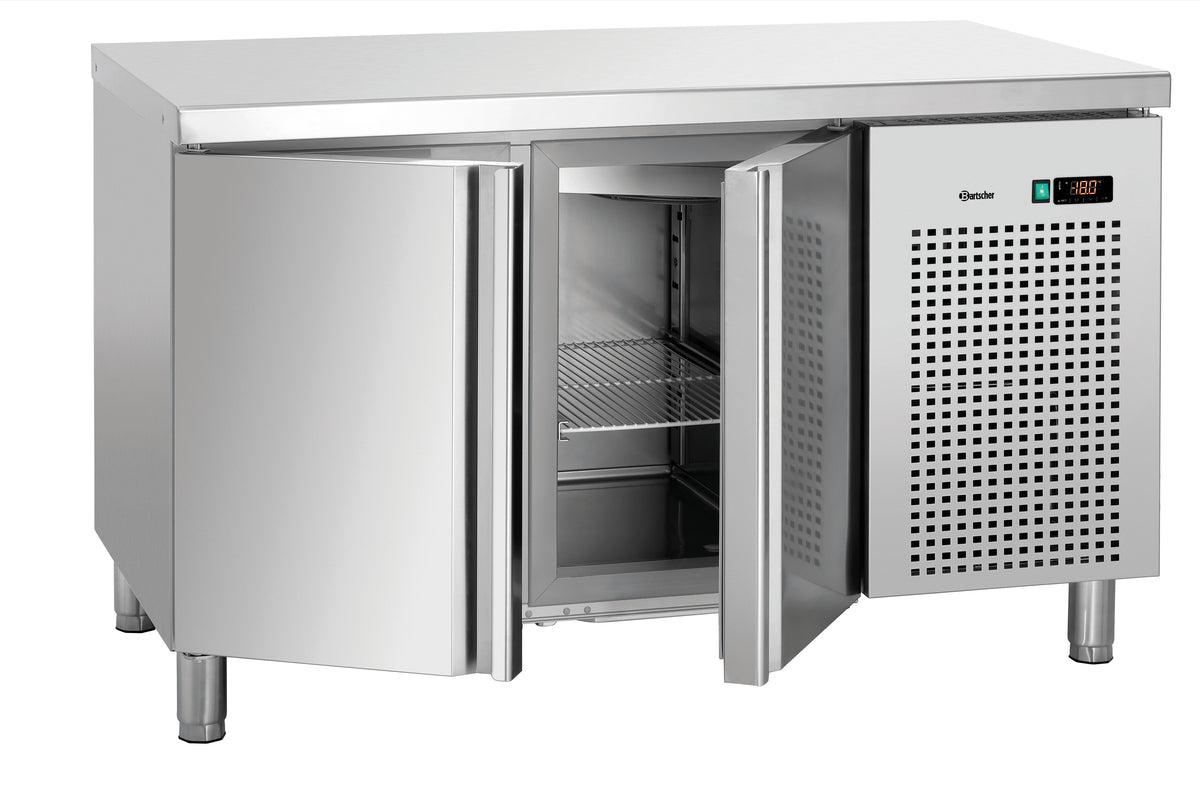

This 2-door freezer counter with its high-quality stainless steel work surface provides ample easily accessible space for frozen foods. Thanks to the convection cooling, it keeps the temperature constant and uniform – a reliable partner for any kitchen.

Product benefits

• Think big – rinse perfectly: Designed for oversized containers such as pots, bowls and meat crates – where conventional washing baskets reach their limits.
• Stability that professionals rely on: Made from high-quality chrome-nickel steel, the 500 washing rack offers maximum robustness for daily use in commercial kitchens and catering establishments.
• Redefining efficiency in the washing-up process: Thanks to its open structure, the 500 dishwashing rack enables optimum water circulation – for hygienically clean washing results with bulky items.
• More space for big tasks: Thanks to its clever design, the 500 washing rack creates space for unusually large items – ideal for commercial kitchens with high throughput.
• Compatible with standard machines: The Spülrost 500 is designed to be integrated into numerous commercial dishwasher formats – easy to use and efficient in operation.
• Durable thanks to high-quality material: The use of chrome-nickel steel guarantees corrosion resistance and a long service life – even with intensive use and high temperatures.
• Easy to load – easy to unload: The open and stable design makes it much easier to load and unload large items – for smooth processes during peak times.
• Specially designed for special tasks: The 500 dish rack was specifically developed for applications where standard solutions fail – a reliable choice for professional requirements.

Technical data

• Width: 1340 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 92.4 kg
• Gross weight: 105.2 kg
• Volume: 1.113 MTQ
• Guarantee: VG
• Customs tariff number: 84185090
• Control unit: Electronic
• Height-adjustable to: 200
• Number of cupboards: 1
• Cooling: Circulating air
• Coolant: R290 / 0.087 kg
• Thermostat: Yes
• Number of doors: 2
• Temperature control: In 0.1 °C steps
• Height-adjustable from: 125 mm

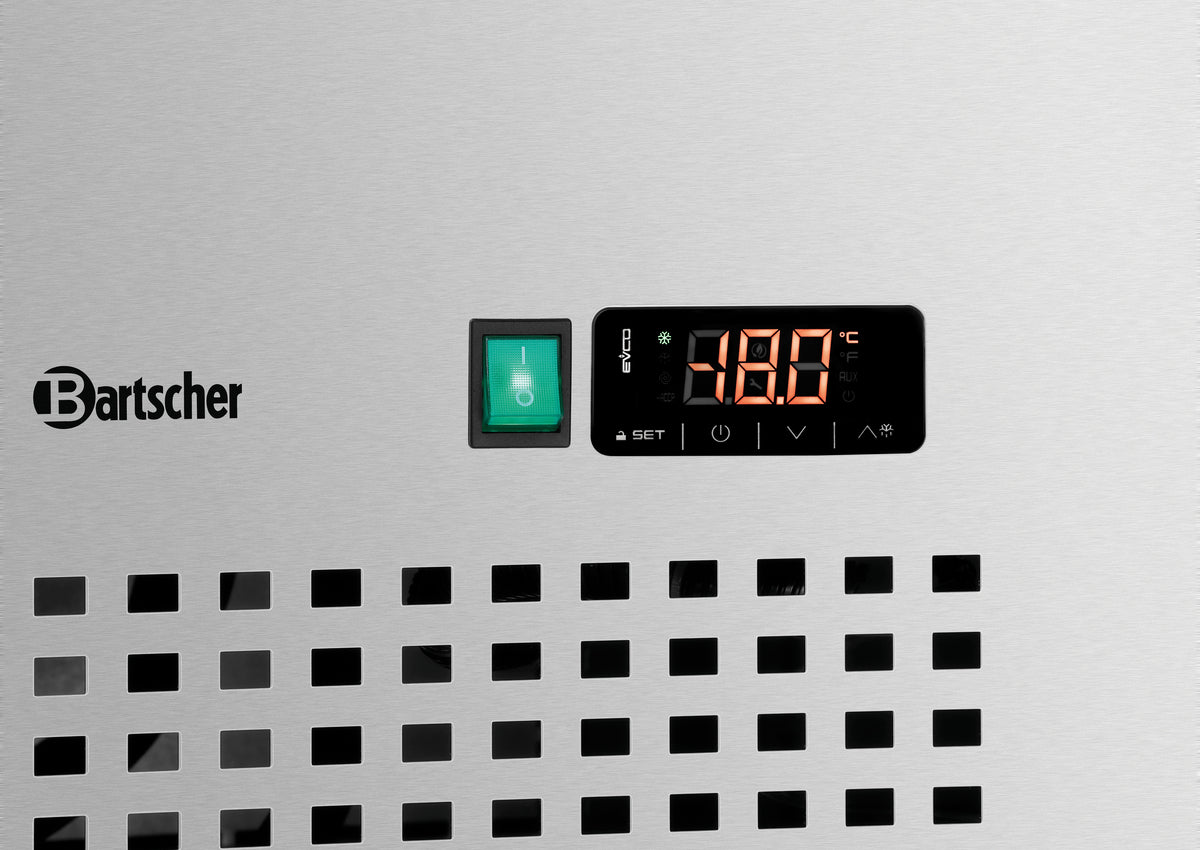

• Digital display: Yes
• Type of cooling device: Commercial freezer counter
• Power: 0.667 kW
• Number of drawers: 6
• Temperature range from: -22 °C
• Including: 2 grids
• Material inside: Stainless steel ,Aluminium
• Design: Horizontal
• Control lamp: No
• Type of door: Leaf door(s)
• Voltage: 230 V
• Material: Stainless steel
• Door hinge side: Left / right
• Automatic defrosting function: Yes
• Width cupboard: 335 mm
• Interior lighting: No

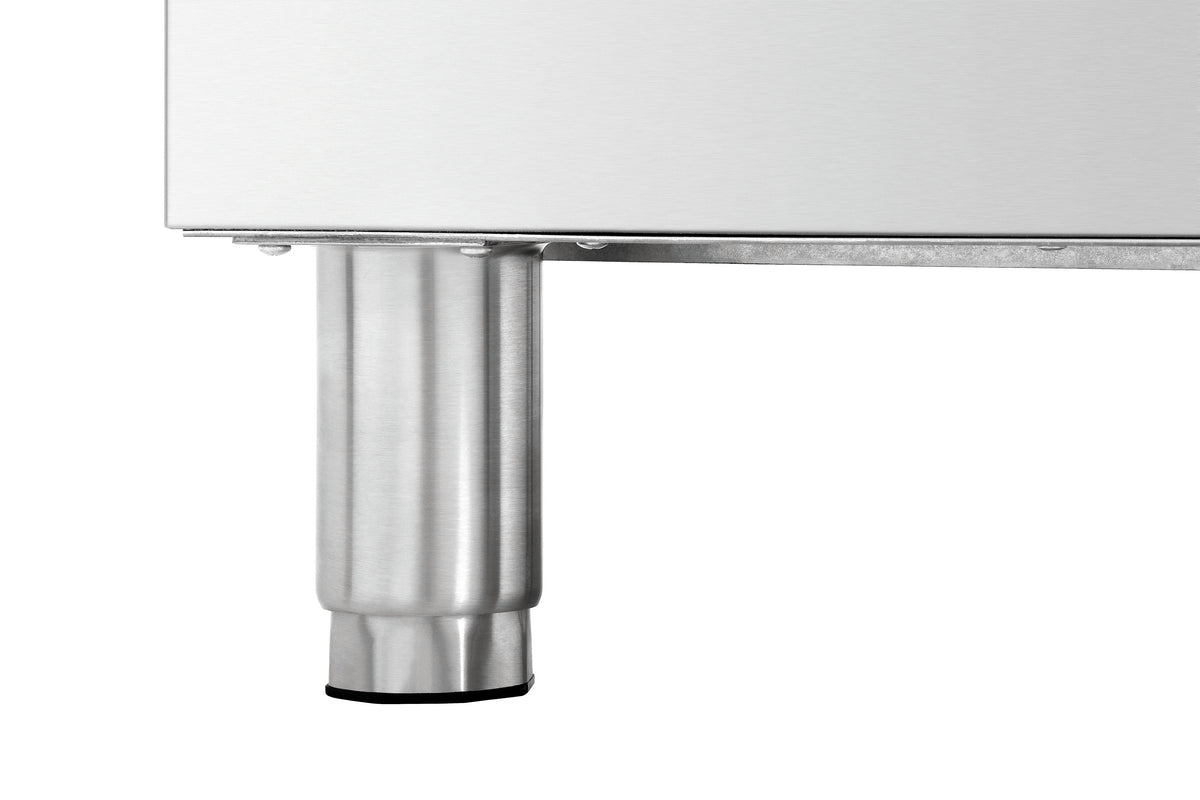

• Height-adjustable feet: Yes
• Drip water evaporation: Yes
• Norm-format cabinets: 1/1 GN
• Temperature range to: -18 °C
• Climate class: 4 ,This appliance is intended for use in ambient temperatures up to 30 °C.
• Energy consumption kWh / an: 2644
• Energy efficiency class: E (EU No. 2015 / 1094)
• EEI: 82.24
• Distance between trays: 70 mm
• Insulation: Polyurethane, 50 mm
• ON/OFF switch: Yes
• Door hinge side can be changed: No
• Cupboards refrigerated: Yes
• Tilting: No
• Energy consumption kWh / 24 h: 7.24
• Depth cupboard: 570 mm
• GWP: 3
• Height cupboard: 554 mm
• Frequency: 50 Hz

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram
• Energy label
• EU data sheet

Manufacturer item number: 110872
