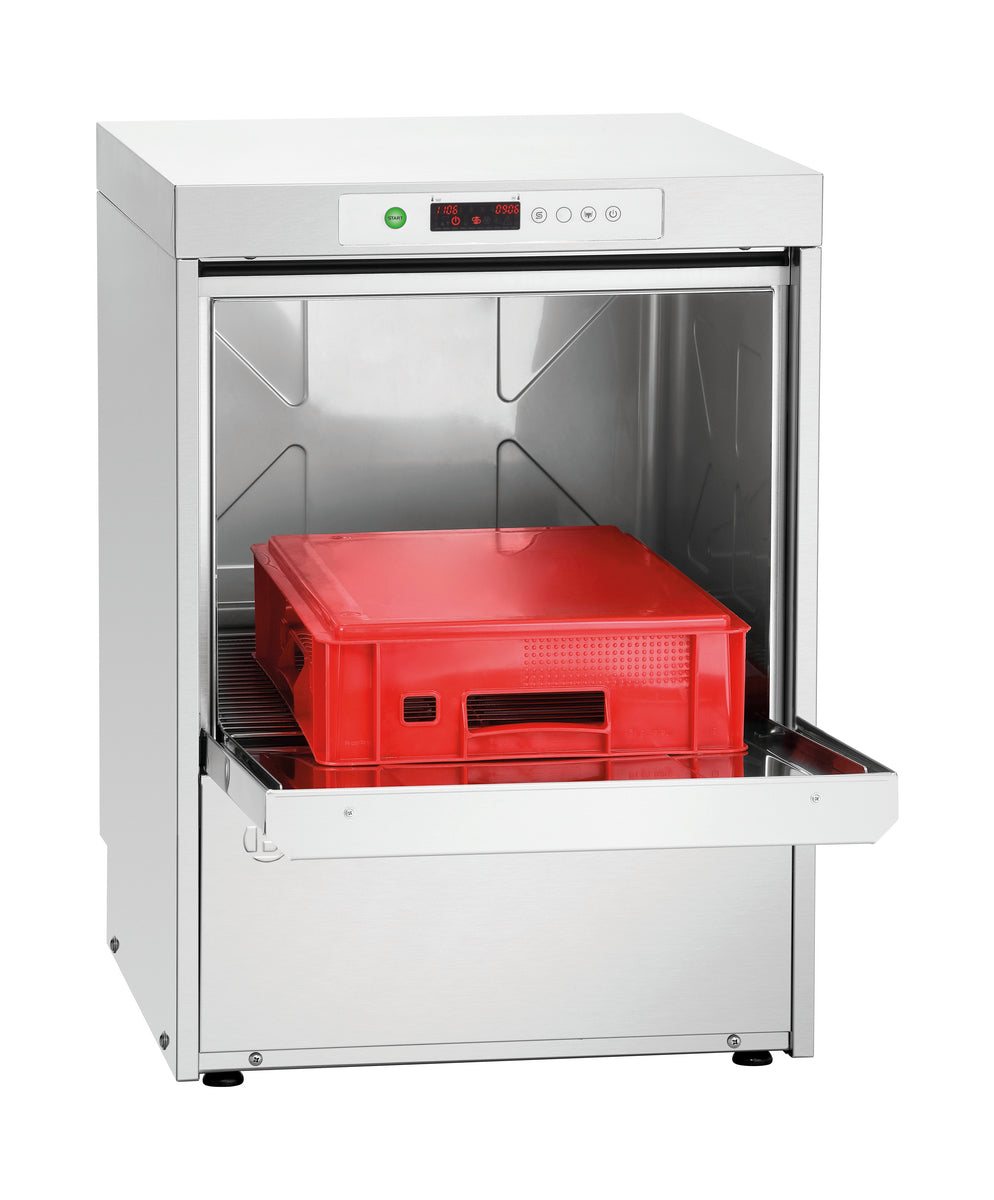

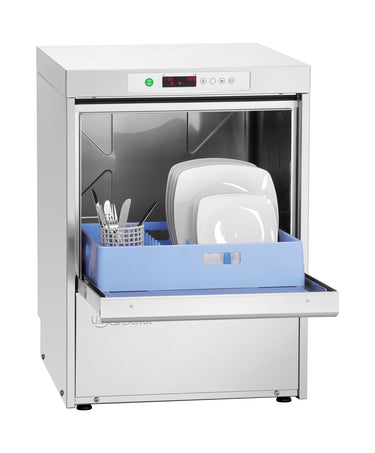

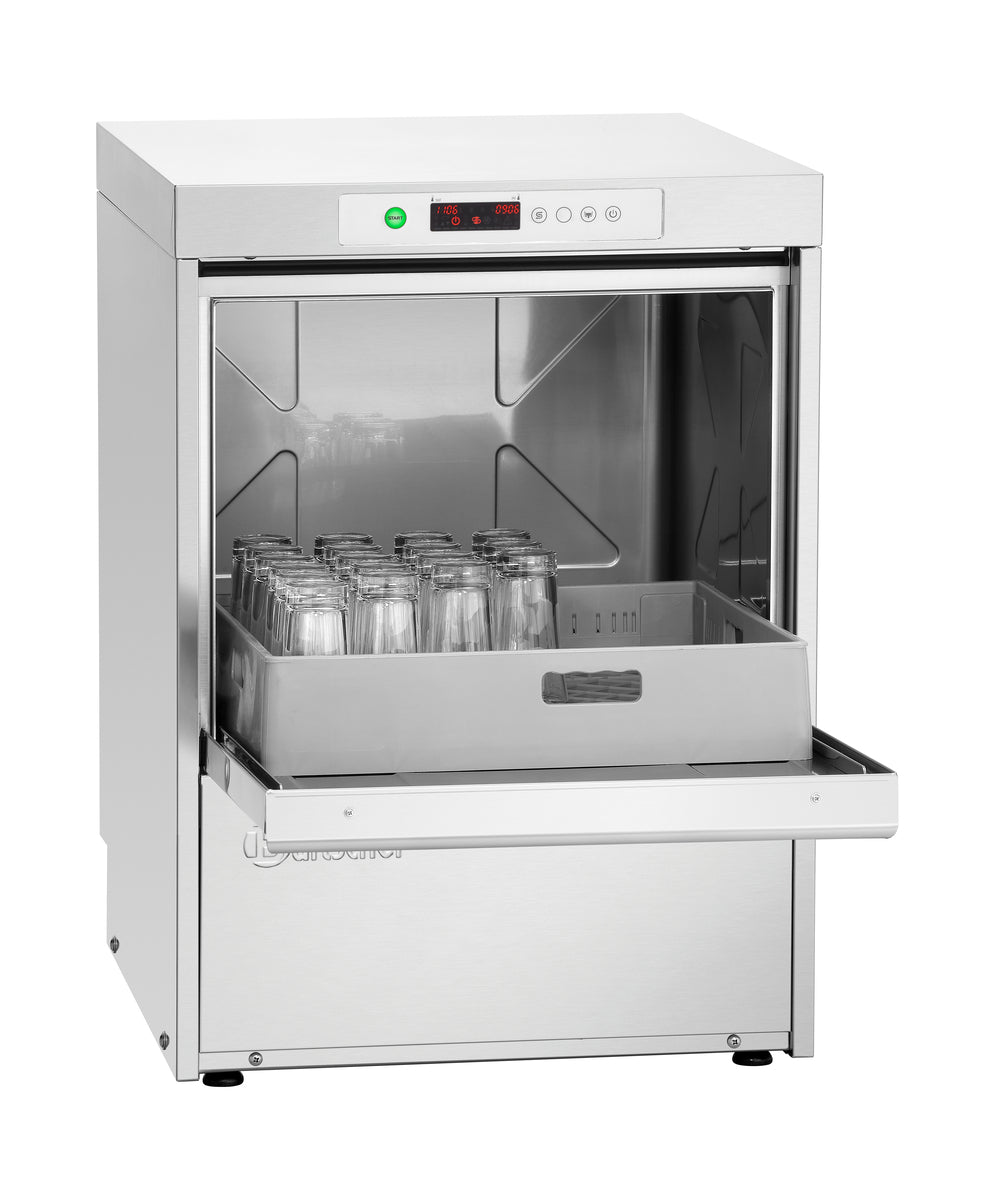

The all-rounder among dishwashers is ideal for glasses and dishes with a basket size of 500x500 mm. Thanks to the spacious interior, there is also space for baking trays, trays, butcher boxes and much more up to 600x400 mm.

Product benefits

• Maximum flexibility thanks to generous interior space: From classic plates to meat crates – the washing-up compartment offers space for items up to 600 x 400 mm, thus supporting a wide range of requirements in catering and commercial kitchens.
• Efficiency that saves water: With just 2.3 litres per wash cycle at 2 bar water pressure, the US PPlus500 LPWR impresses with its exceptionally low water consumption – ideal for economical continuous use.
• Uncompromising hygiene – even under high pressure: Four freely selectable programs, integrated cleaning and clear rinsing dosing pumps and automatic Self-cleaning guarantee reliable hygienic washing results – even with heavy soiling.
• Robust professional technology for tough everyday kitchen use: The sturdy construction made of CNS 18/10 stainless steel, double-walled Door and safety features such as Dry-run protection and Door contact switch offer long-lasting performance in daily use.

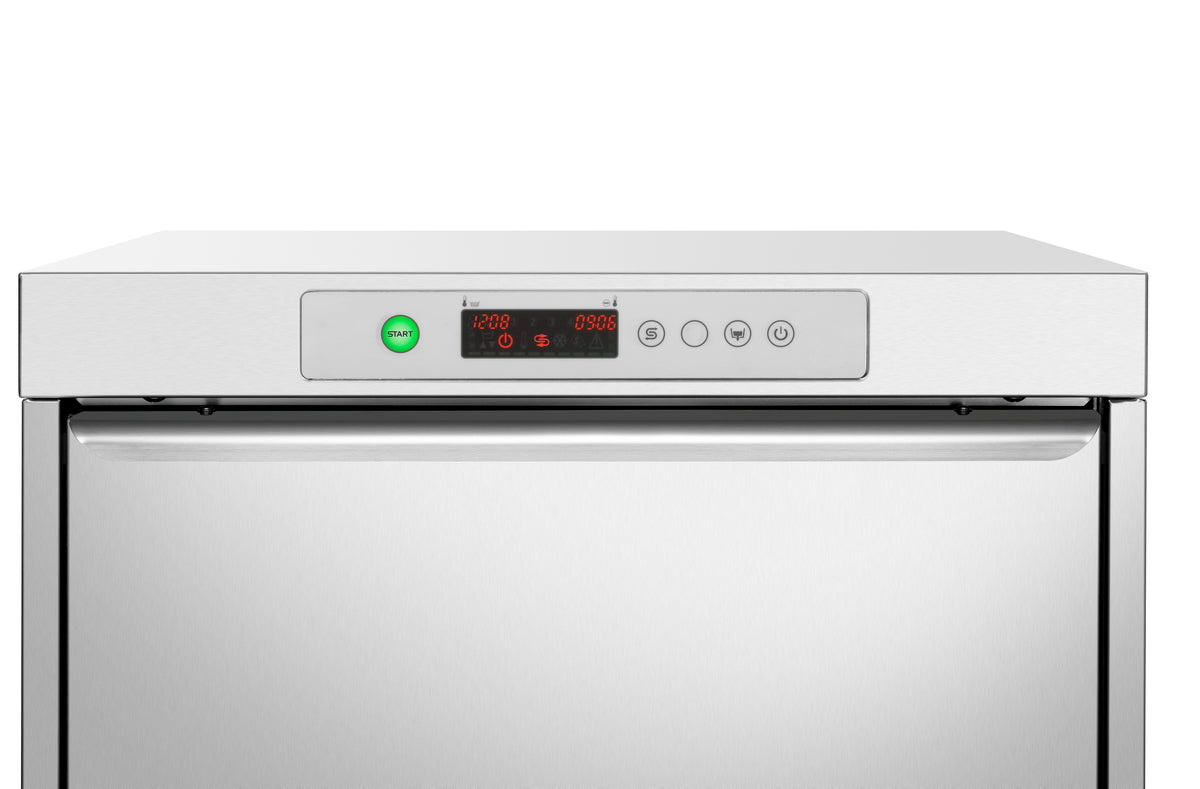

• Full control at a glance: The integrated display allows you to intuitively read the boiler temperature, programme status and operating data – for easy monitoring in hectic kitchen operations.
• Short run-times for high productivity: With up to 60 baskets per hour and selectable rinse times from 60 seconds, the appliance sustainably increases output without compromising on cleaning quality.
• Well-designed accessories for immediate use: Included in delivery: plate basket, universal basket, cutlery basket, filling funnel and hose sets – everything you need to get started right away.
• Space-saving integration into any kitchen layout: Thanks to its under-counter capability and standardised power values, the US PPlus500 LPWR fits seamlessly into existing kitchen layouts.

Technical data

• Width: 600 mm
• Depth: 705 mm
• Height: 850 mm
• Net weight: 71.599999999999994 kg
• Gross weight: 81.400000000000006 kg
• Volume: 0.519 MTQ
• Guarantee: VG
• Customs tariff number: 84221900
• Plate height max.: 400 mm
• Boiler heater: 6 kW
• Water pressure: 2 - 4 bar
• Tank heater: 2.7 kW
• Water supply: 3/4"
• Output / hour max.: 60 baskets
• Number of wash programs: 4
• Cleaning agent dosing pump: Yes
• Lye pump: Yes
• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 60 / 90 / 120 / 180 seconds
• Water consumption at 2 bar: 2.3 litres / wash cycle
• Water softener: Yes
• Tank volume: 16.5 litre(s)
• Can be fitted below the counter: Yes
• Material: CNS 18/10
• Water intake temperature: Max. 60 °C
• Door double-walled: Yes
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 cutlery holder ,1 filling funnel for salt ,1 plate basket ,1 universal basket ,1 water outlet hose ,1 water supply hose ,2 mains cables
• Frequency: 50 Hz
• Display: Boiler temperature and status ,Programme code
• Safety thermostat: Yes
• Water outlet: Ø 24 mm
• Glasses height max.: 400 mm

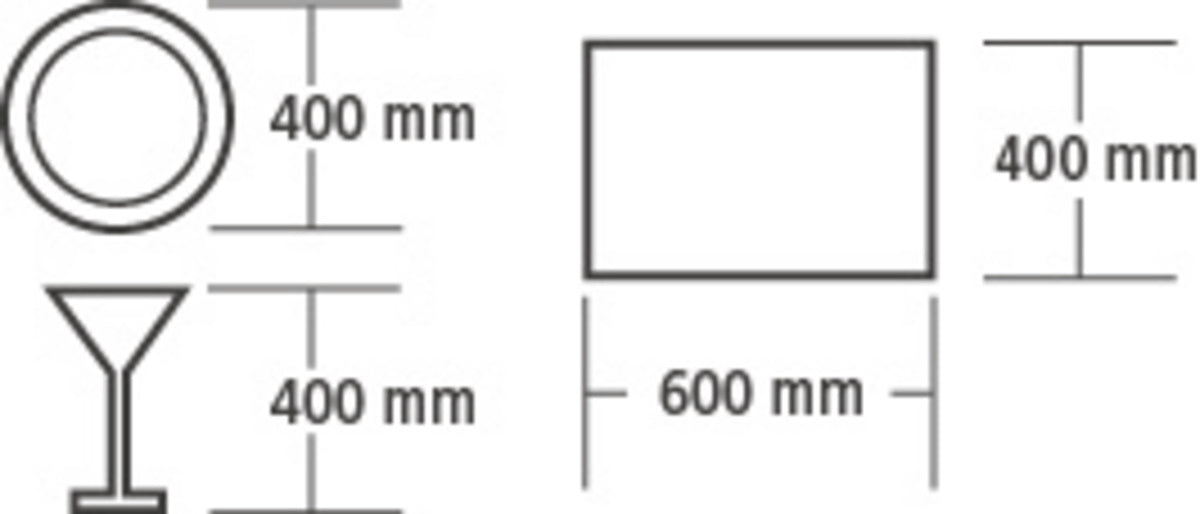

• Tray size max.: 600 x 400 mm
• Self-cleaning: Yes
• Equipment connection: 3 NAC
• Voltage: 400 V
• Control lamp: yes
• Cold rinsing: No
• Double-walled: Yes
• Power: 6.65 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 109641
