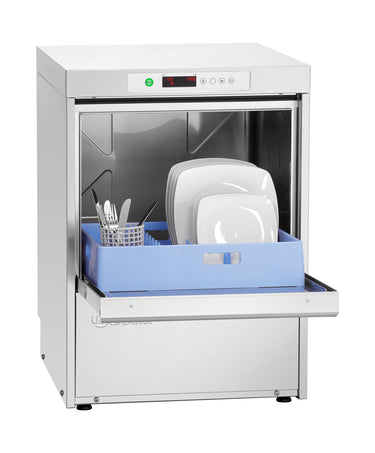

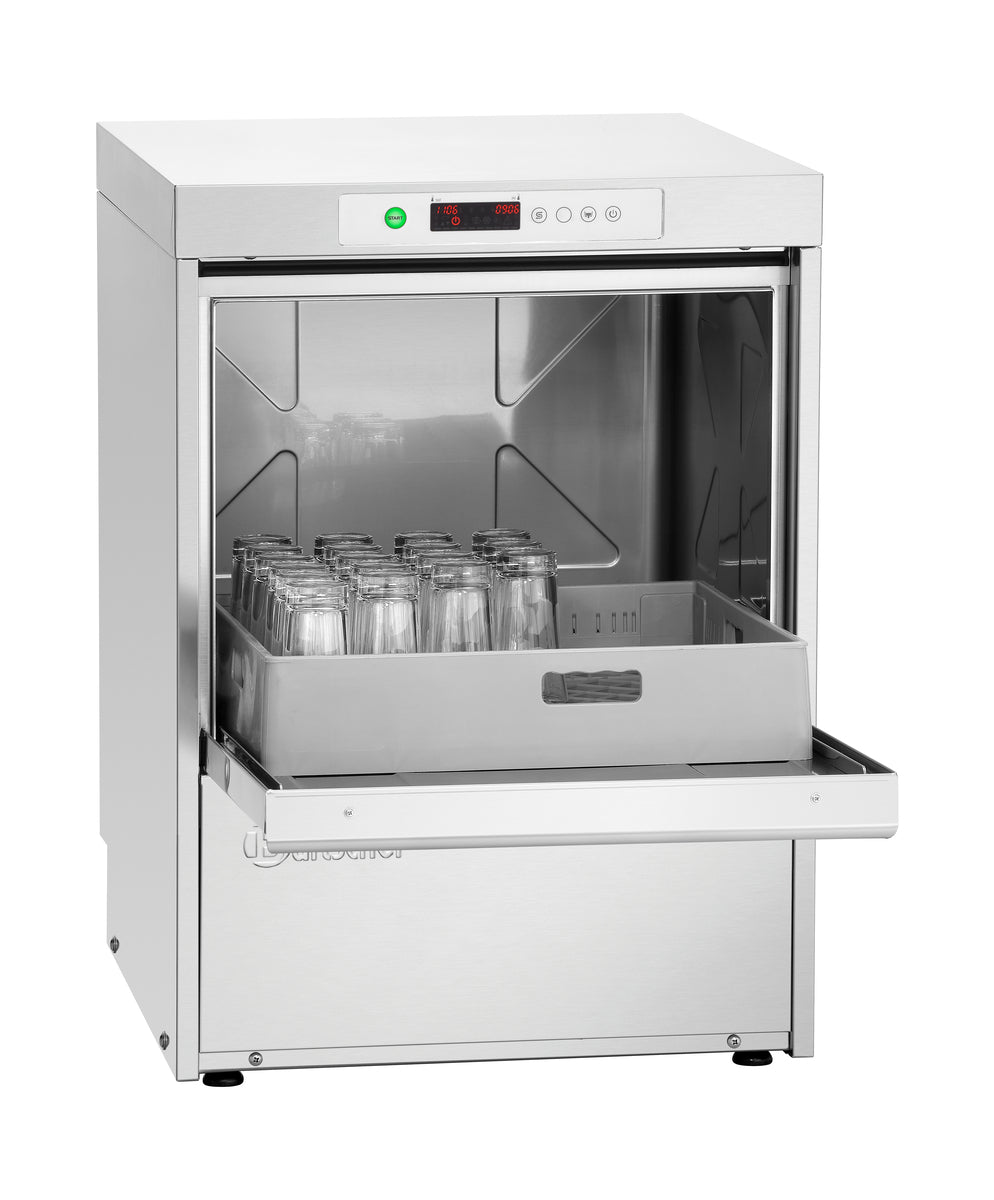

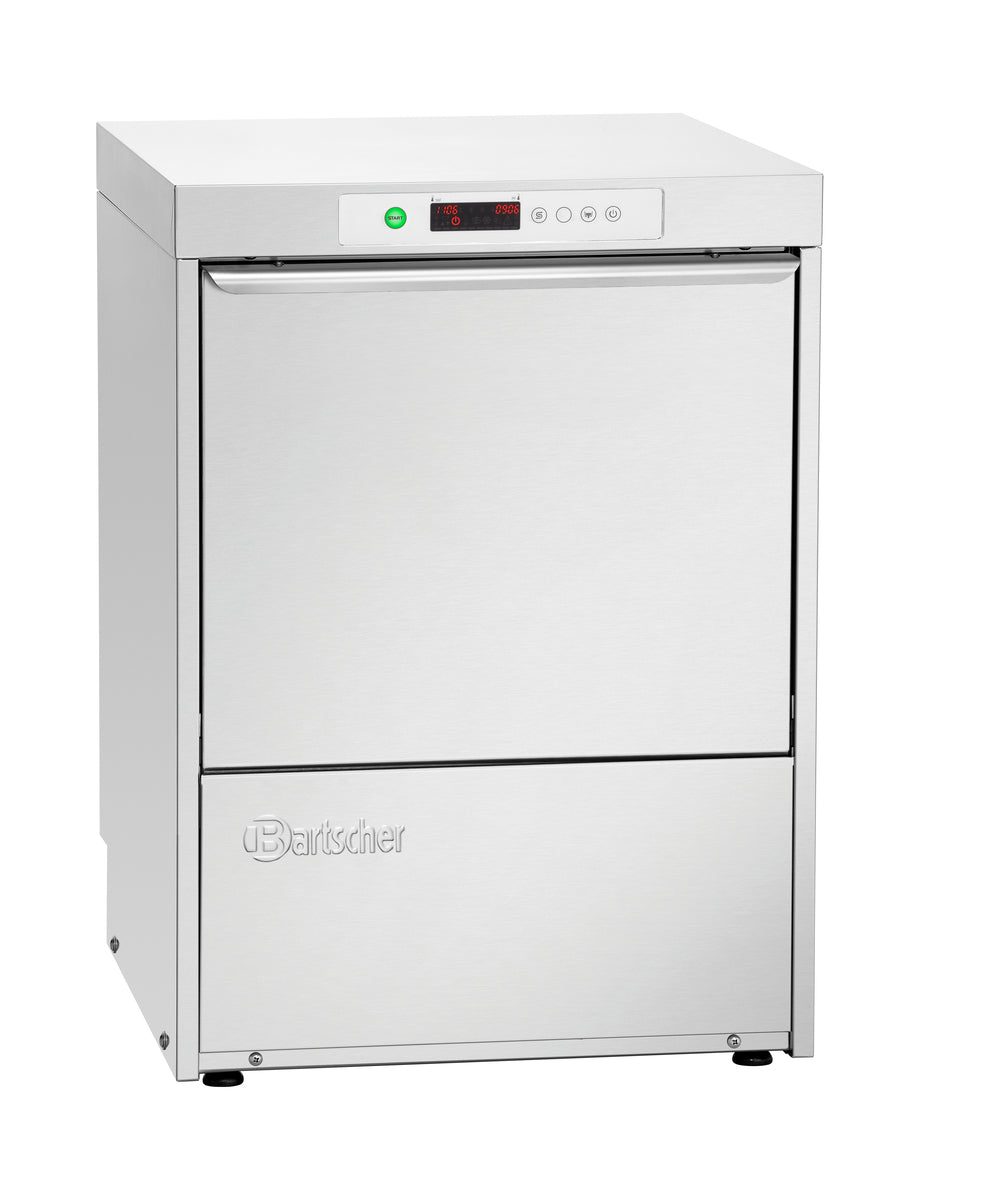

This all-rounder dishwasher is ideal for glasses and crockery. It has a 500 mm x 500 mm basket. Thanks to the spacious interior, baking trays, dinner trays, meat boxes and other items up to 600 mm x 400 mm can be washed in it.

Product benefits

• Maximum flexibility in the smallest of spaces: With an interior space for baskets up to 500x500 mm and additional insert options up to 600x400 mm, the US PPlus500 LPR offers space for crockery, trays, baking trays and meat crates – ideal for changing requirements in professional operations.
• Four programs for perfect washing results: Whether delicate glasses or heavily soiled cookware – the freely selectable run-times from 60 to 180 seconds can be adapted precisely to the items being washed and the workload.
• Only 2.3 litres per wash cycle: Thanks to its efficient water consumption, the machine saves resources and operating costs – without compromising on shine and hygiene.
• Full output: up to 60 baskets per hour: Even at high capacity, the US PPlus500 LPR consistently delivers clean dishes – reliable in the stressful everyday life of a catering business.
• Including dosing pumps for detergent and rinse aid: Integrated dosing systems ensure consistently hygienic washing quality and simplify handling in daily use.
• Robust, can be fitted below the counter, double-walled – built for continuous use: Housing made of high-quality CNS 18/10, double-walled Door and solid technology guarantee durability, smooth operation and low heat loss in professional environments.
• Self-cleaning included: The integrated cleaning program facilitates maintenance after closing time and ensures hygienically perfect interior conditions – without any manual effort.
• Everything you need for an immediate start: Plate and universal baskets, cutlery holders and Connections are included – for quick and easy installation in the kitchen or dishwashing area.

Technical data

• Width: 600 mm
• Depth: 705 mm
• Height: 850 mm
• Net weight: 69 kg
• Gross weight: 79.2 kg
• Volume: 0.526 MTQ
• Guarantee: VG
• Customs tariff number: 84221900
• Plate height max.: 400 mm
• Boiler heater: 6 kW
• Water pressure: 2 - 4 bar
• Tank heater: 2.7 kW
• Water supply: 3/4"
• Output / hour max.: 60 baskets
• Number of wash programs: 4
• Cleaning agent dosing pump: Yes
• Lye pump: Yes
• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 60 / 90 / 120 / 180 seconds
• Water consumption at 2 bar: 2.3 litres / wash cycle
• Water softener: No
• Tank volume: 16.5 litre(s)
• Can be fitted below the counter: Yes
• Material: CNS 18/10
• Water intake temperature: Max. 60 °C
• Door double-walled: Yes
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 cutlery holder ,1 universal basket ,1 plate basket ,1 water supply hose ,2 mains cables
• Frequency: 50 Hz

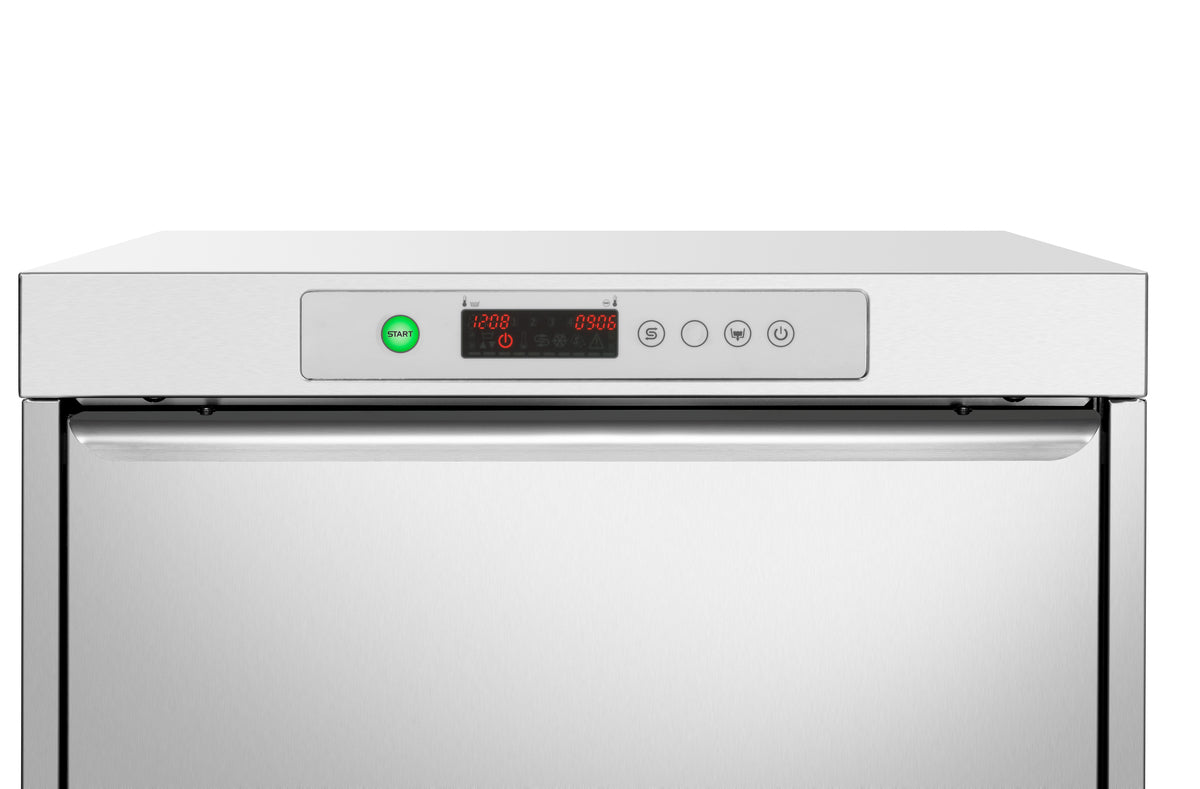

• Display: Boiler temperature and status ,Programme code ,Tank temperature and status
• Safety thermostat: Yes
• Water outlet: Ø 24 mm

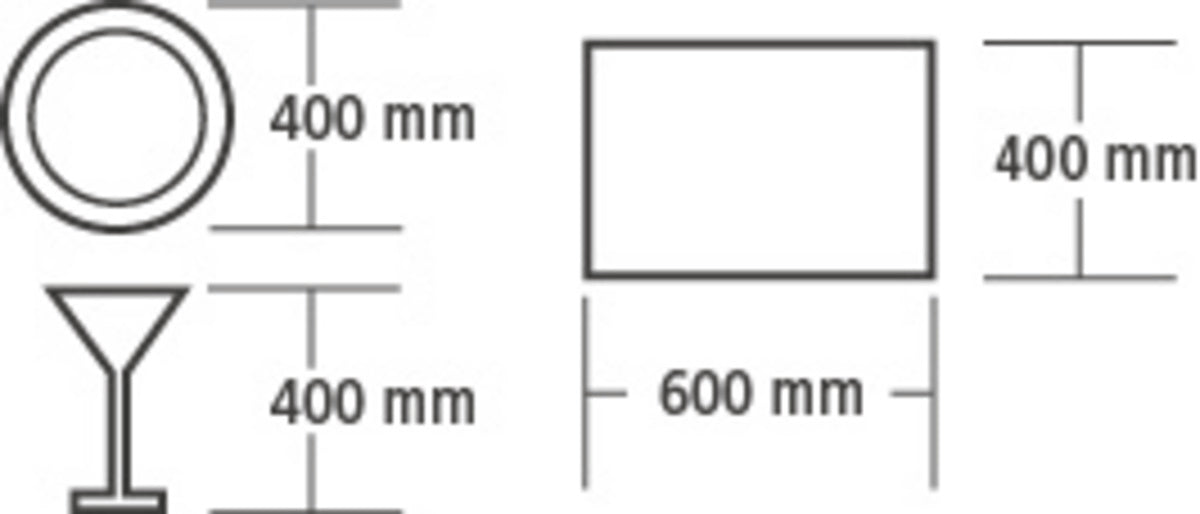

• Glasses height max.: 400 mm
• Tray size max.: 600 x 400 mm
• Self-cleaning: Yes
• Equipment connection: 3 NAC
• Voltage: 400 V
• Control lamp: yes
• Cold rinsing: No
• Double-walled: Yes
• Power: 6.65 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 109640
