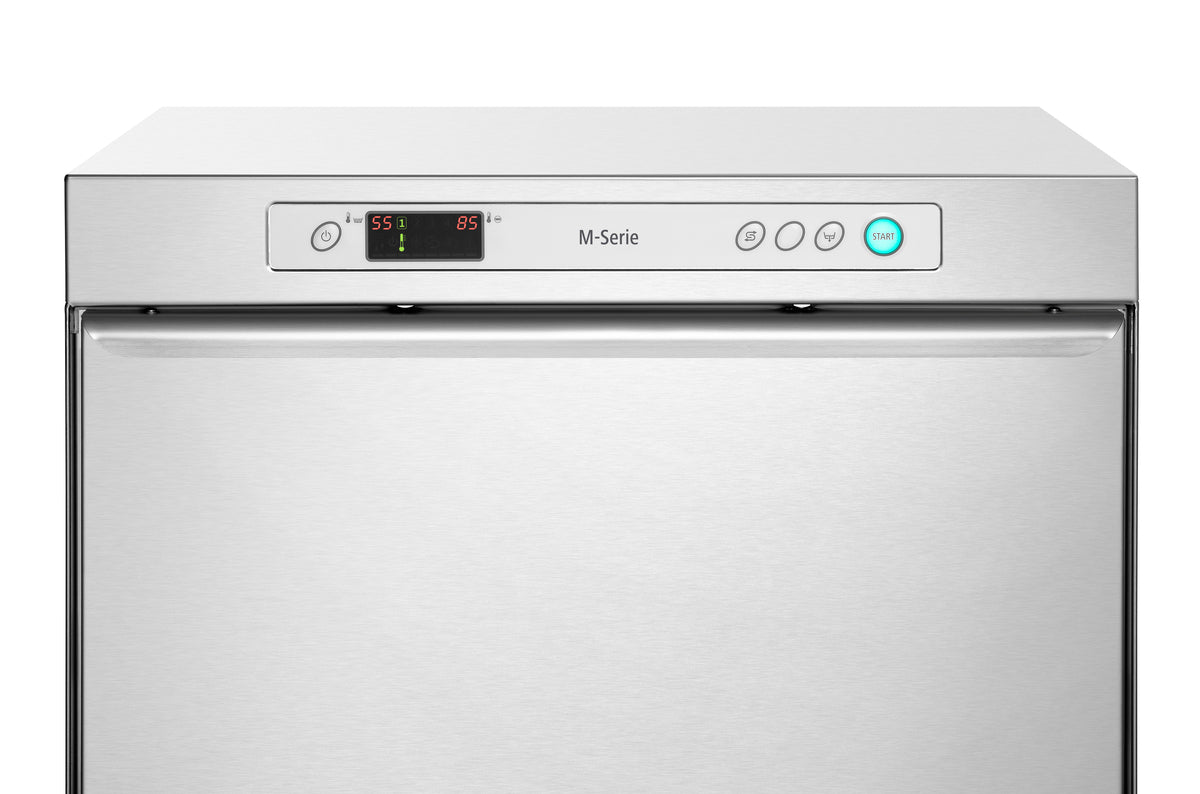

Thanks to this dishwasher with cold rinse function, glasses in particular are ready for reuse really quickly. It's also perfect for use for all other washing areas. The small display means that you can keep an eye on the settings and program progress at all times.

Product benefits

• Large volume for high cycle rates: With a volume of 10.4 litres, it is ideal for preparing large quantities in restaurants and commercial kitchens – without compromising on quality and handling.
• Sophisticated design for ergonomic working: The fixed handle and an inner diameter of 300 mm enable efficient stirring and easy portioning – even during intensive use.
• Clean pouring without reworking: Thanks to the integrated pouring rim, liquids can be poured in a controlled manner without dripping – efficient in every phase of everyday kitchen work.
• Including a perfectly fitting lid for energy-efficient cooking: The lid supplied keeps heat and aromas safely in the pot – ideal for gentle cooking and energy-saving work processes.

Technical data

• Width: 590 mm
• Depth: 630 mm
• Height: 840 mm
• Net weight: 63.2 kg
• Gross weight: 71.599999999999994 kg
• Volume: 0.448 MTQ
• Guarantee: VG
• Customs tariff number: 84221900
• Properties: Surface strainer

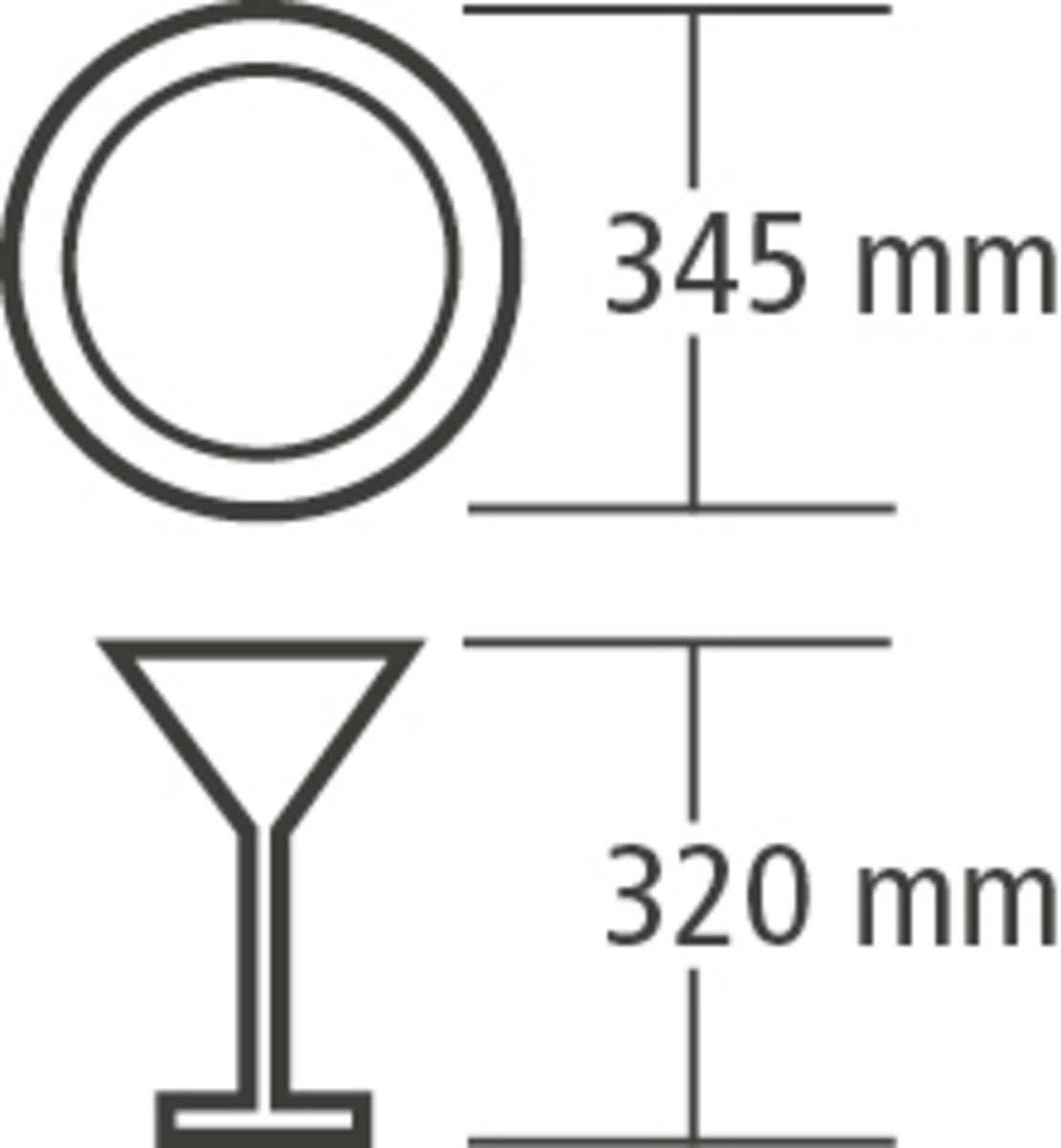

• Plate height max.: 345 mm
• Boiler heater: 4.5 kW
• Water pressure: 2 - 4 bar
• Tank heater: 2.7 kW
• Water supply: 3/4"
• Output / hour max.: 60 baskets
• Number of wash programs: 4
• Cleaning agent dosing pump: Yes
• Lye pump: Yes
• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 60 / 90 / 120 / 180 seconds
• Water consumption at 2 bar: 2.3 litres / wash cycle
• Water softener: Yes
• Tank volume: 29 litre(s)
• Can be fitted below the counter: Yes
• Material: Stainless steel
• Water intake temperature: 5 °C to 60 °C
• Door double-walled: Yes
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 cutlery holder ,1 universal basket ,1 plate basket ,1 filling funnel for salt ,1 water supply hose ,1 water outlet hose
• Frequency: 50 Hz
• Display: yes
• Safety thermostat: Yes
• Water outlet: Ø 20 mm
• Glasses height max.: 320 mm
• Self-cleaning: No
• Equipment connection: 3 NAC
• Voltage: 400 V
• Control lamp: yes
• Cold rinsing: Yes
• Double-walled: No
• Power: 5.15 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 110542
