This floor-standing dishwasher is easy to use and concentrates on what really matters – cleanliness and reliability in the traditional way.

Product benefits

• Made for every stove: The E3L-SG1 cooking pot can be used on all types of cookers – including induction – and offers maximum flexibility in commercial kitchens.
• Professional handling – even under full load: The permanently attached, heat-insulated stainless steel handle enables safe and comfortable working, even during intensive use.
• 3 litre capacity, cleverly utilised: With an internal diameter of 180 mm and an optimal footprint, the pot makes efficient use of space on the hob – ideal for high cycle rates.
• Robust. Hygienic. Durable.: The high-quality stainless steel guarantees a particularly easy-care surface that can withstand the demands of professional kitchens in the long term.
• Clean pouring without spillage: Thanks to the integrated pouring rim, pouring is precise and hygienic – without any dripping or spilling.
• Comfort meets resilience: With its compact shape and included lid, the pot is ideal for pre-storage and temporary storage of food preparations.

Technical data

• Width: 590 mm
• Depth: 625 mm
• Height: 840 mm
• Net weight: 60.2 kg
• Gross weight: 68.8 kg
• Volume: 0.436 MTQ
• Guarantee: VG
• Customs tariff number: 84221900

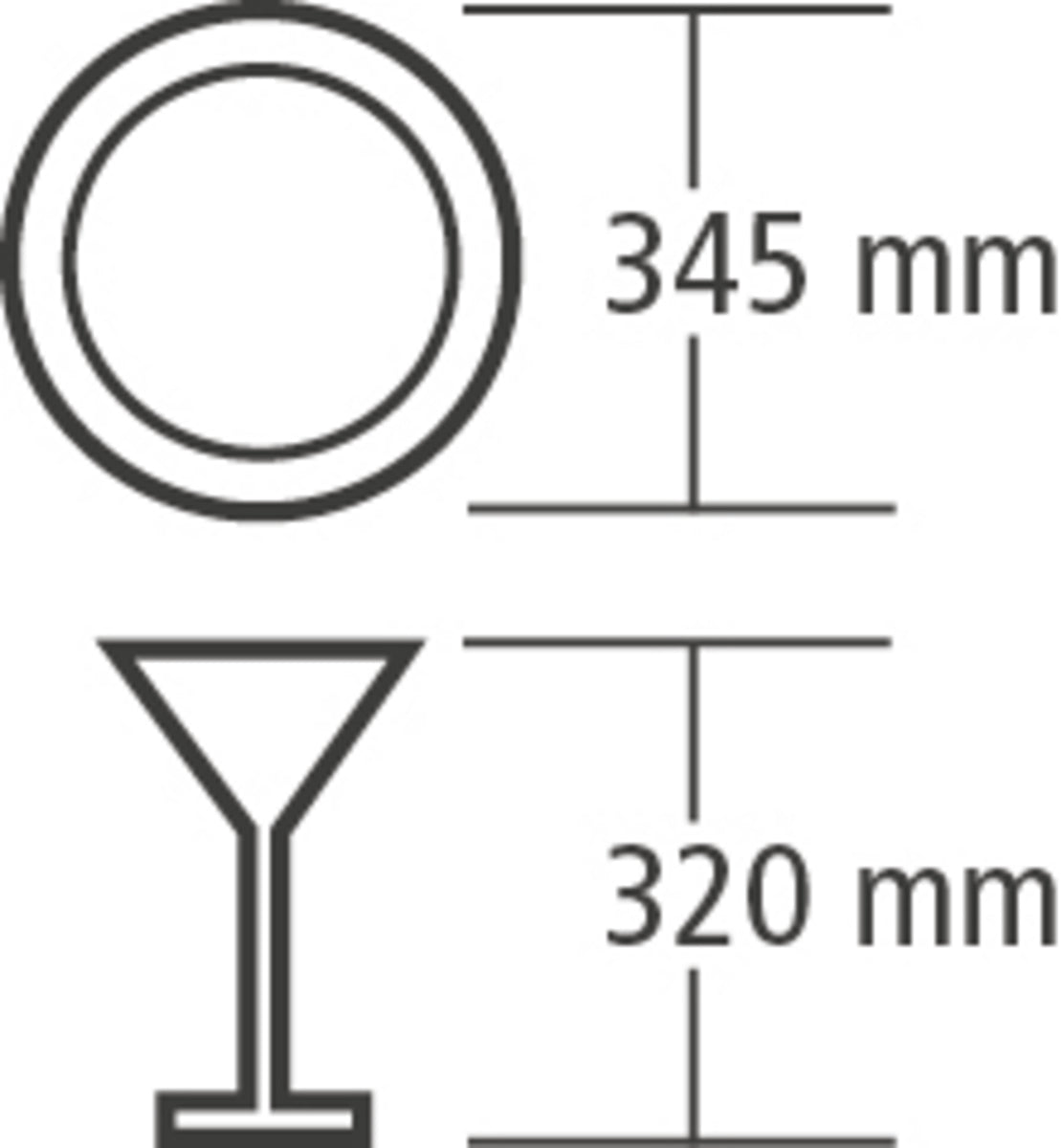

• Plate height max.: 345 mm
• Boiler heater: 2.8 kW
• Water pressure: 2 - 4 bar
• Tank heater: 2.7 kW
• Water supply: 3/4"
• Output / hour max.: 30 baskets
• Number of wash programs: 2
• Cleaning agent dosing pump: Yes
• Lye pump: Yes

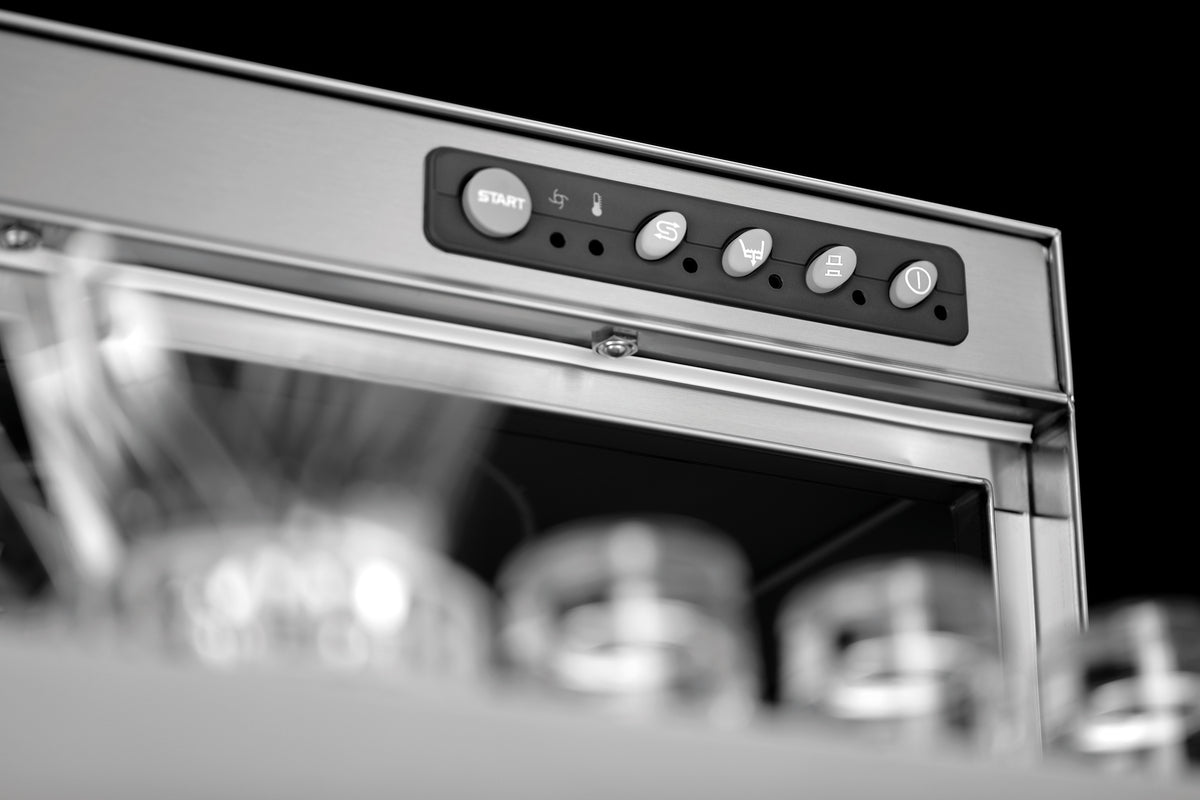

• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 120 / 180 seconds
• Water consumption at 2 bar: 2.3 litres / wash cycle
• Water softener: Yes
• Tank volume: 29 litre(s)
• Can be fitted below the counter: Yes
• Material: Stainless steel
• Water intake temperature: 5 °C to 60 °C
• Door double-walled: Yes
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 cutlery holder ,1 filling funnel for salt ,1 plate basket ,1 universal basket ,1 water outlet hose ,1 water supply hose
• Frequency: 50 Hz
• Safety thermostat: Yes
• Water outlet: Ø 20 mm
• Glasses height max.: 320 mm
• Self-cleaning: No
• Equipment connection: Pluggable
• Voltage: 230 V
• Control lamp: yes
• Cold rinsing: No
• Double-walled: No
• Power: 3.45 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 110532
