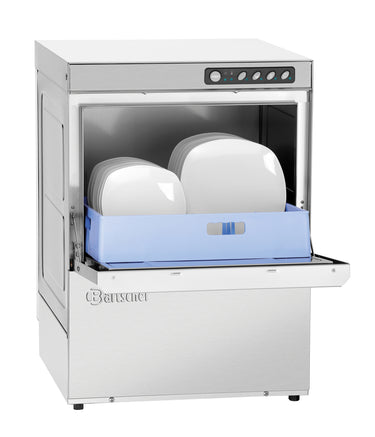

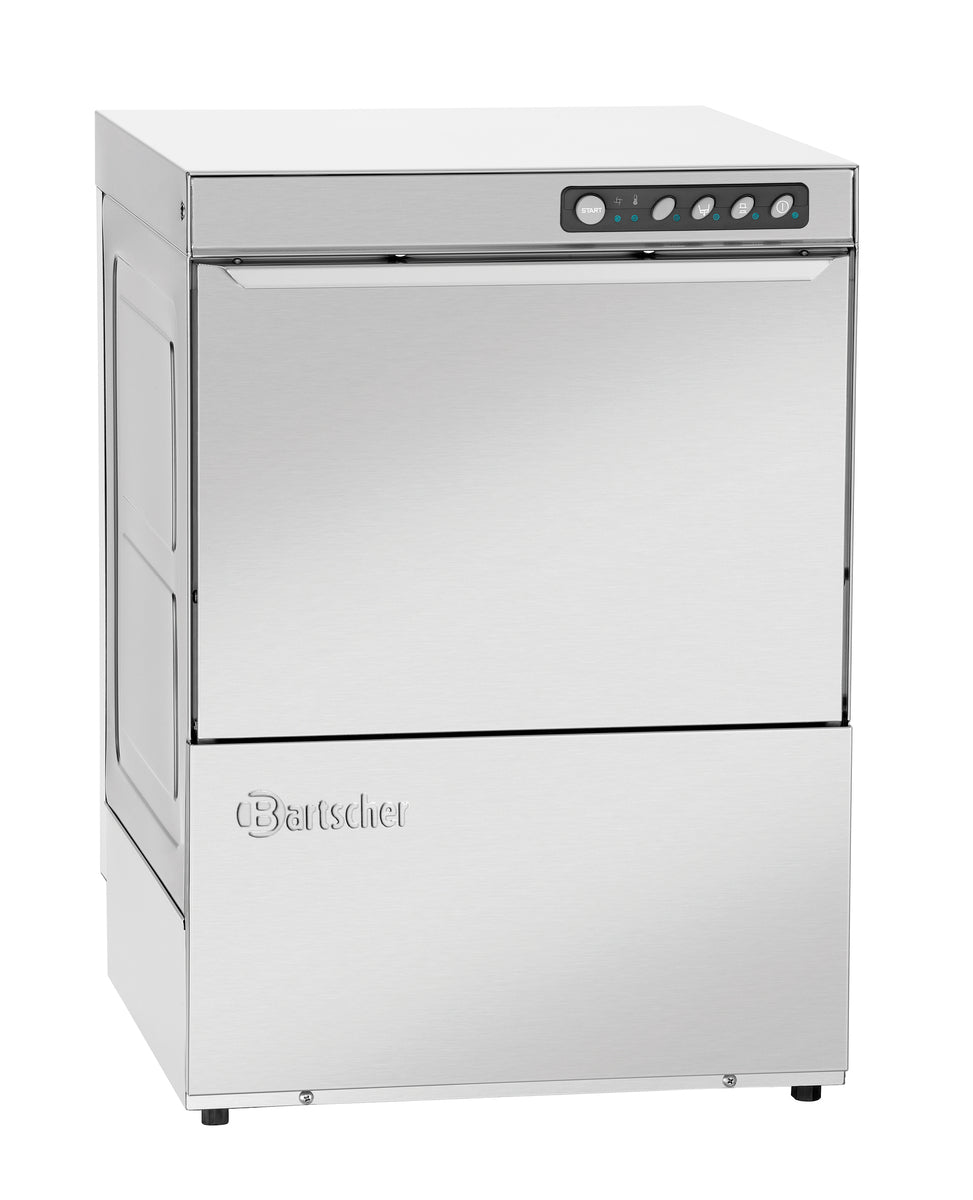

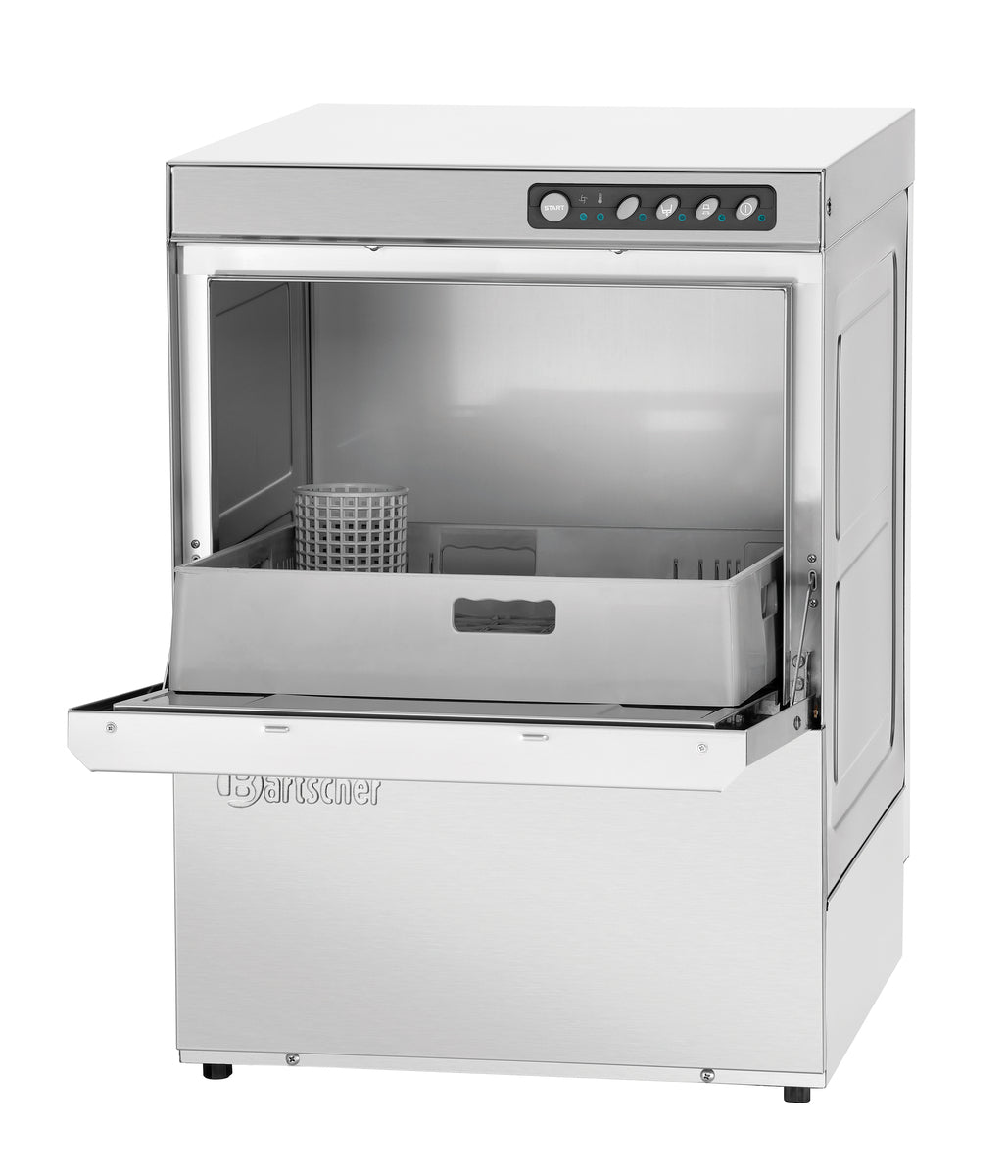

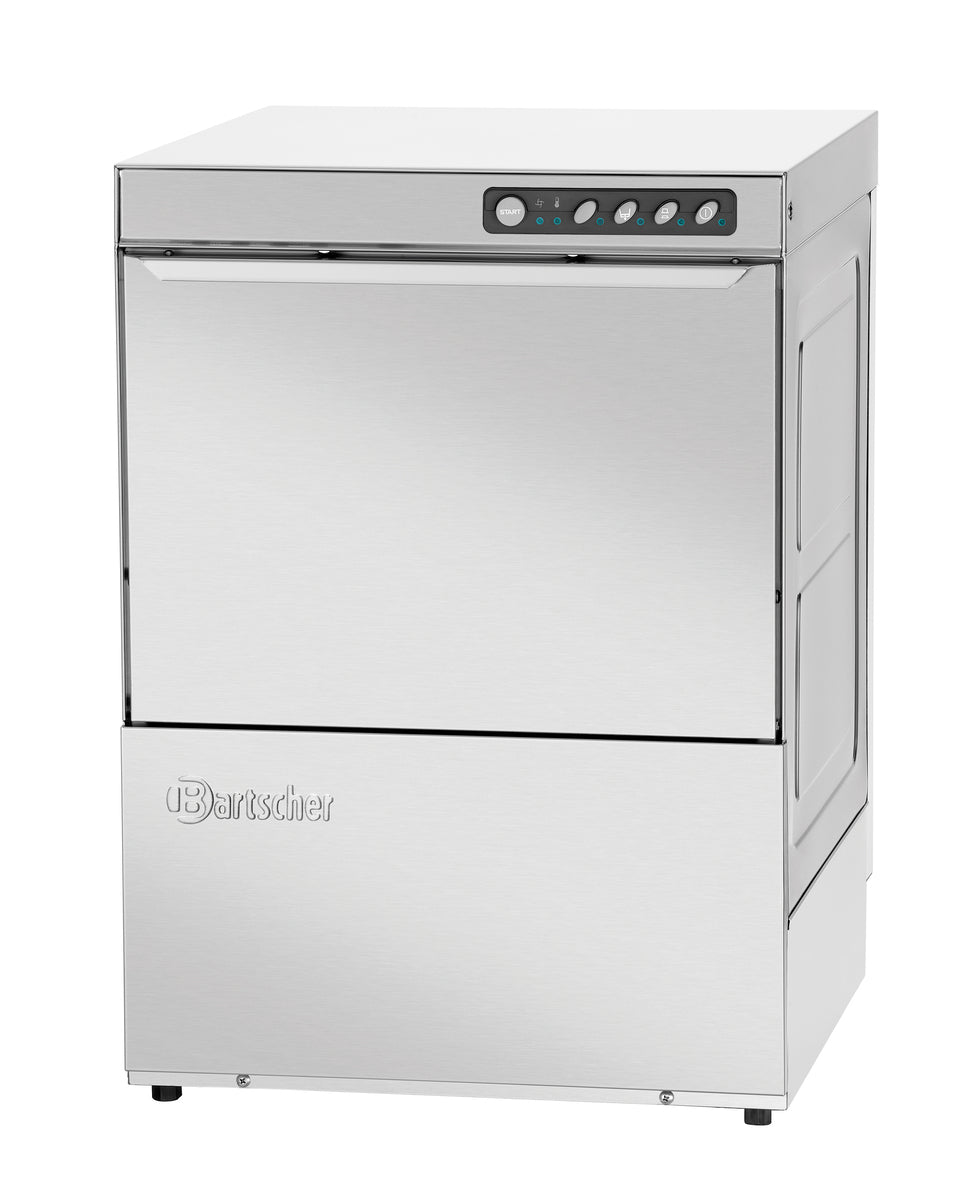

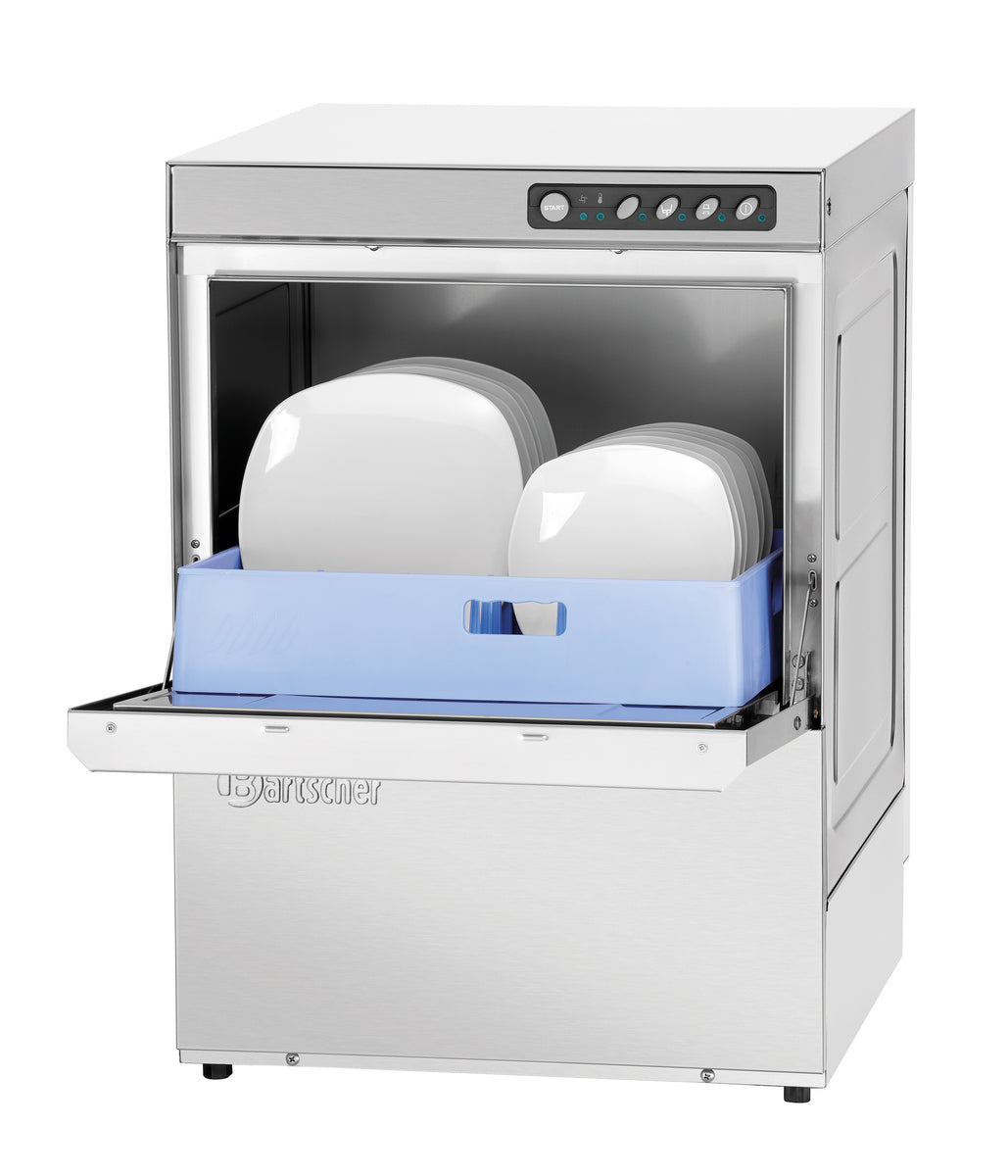

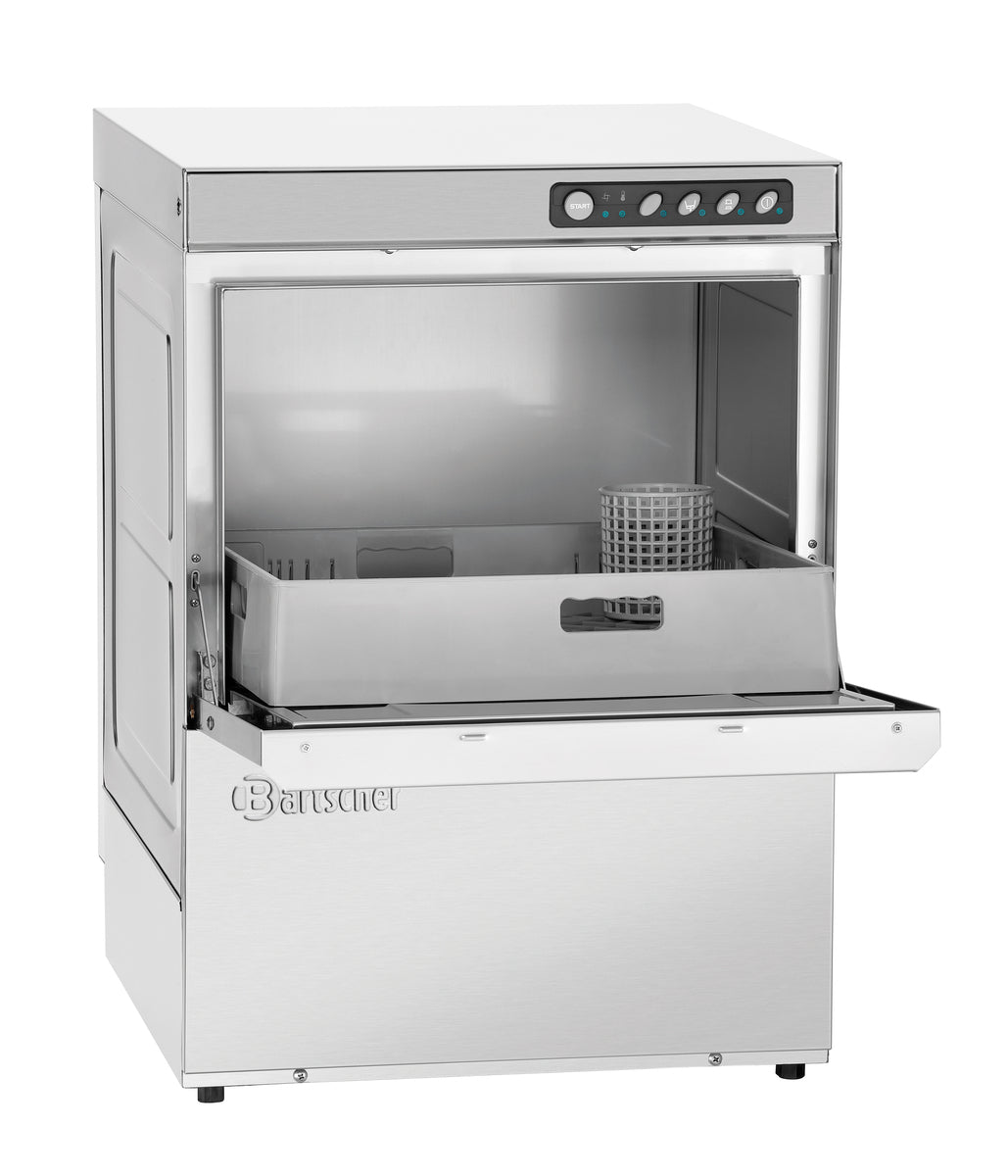

This floor-standing dishwasher is easy to use and concentrates on what really matters – cleanliness and reliability in the traditional way.

Product benefits

• Robust for continuous use: Made from high-quality stainless steel, the E10.4L-1 cooking pot impresses with its durability and stability – ideal for professional kitchen use.
• Safe working at high temperatures: The heat-insulated stainless steel handles enable comfortable and safe handling – even during intensive use on hot cooking surfaces.
• Volume for high demands: With a volume of 10.4 litres, the pot is ideal for larger quantities – perfect for canteens, catering and commercial kitchens.
• Reliable on any type of hob: Whether induction, gas, electric or ceramic – the saucepan is universally applicable and adapts easily to any kitchen technology.
• Clean pouring guaranteed: Thanks to the integrated pouring rim, liquids can be poured in a controlled manner without dripping – efficient service without waste.
• Lid including – efficiency right from the start: The precisely fitting stainless steel lid saves energy and time through rapid heating and even cooking – included in the scope of delivery.
• Optimal heat distribution thanks to width surface: With a base area of 262 mm, the saucepan ensures even heat transfer – ideal for time-efficient and even cooking.
• Fits standard commercial kitchen appliances: With an internal diameter of 240 mm, the pot is compatible with most professional cooking systems – for seamless everyday kitchen work.

Technical data

• Width: 590 mm
• Depth: 640 mm
• Height: 845 mm
• Net weight: 57.4 kg
• Gross weight: 66.400000000000006 kg
• Volume: 0.442 MTQ
• Guarantee: VG
• Customs tariff number: 84221900

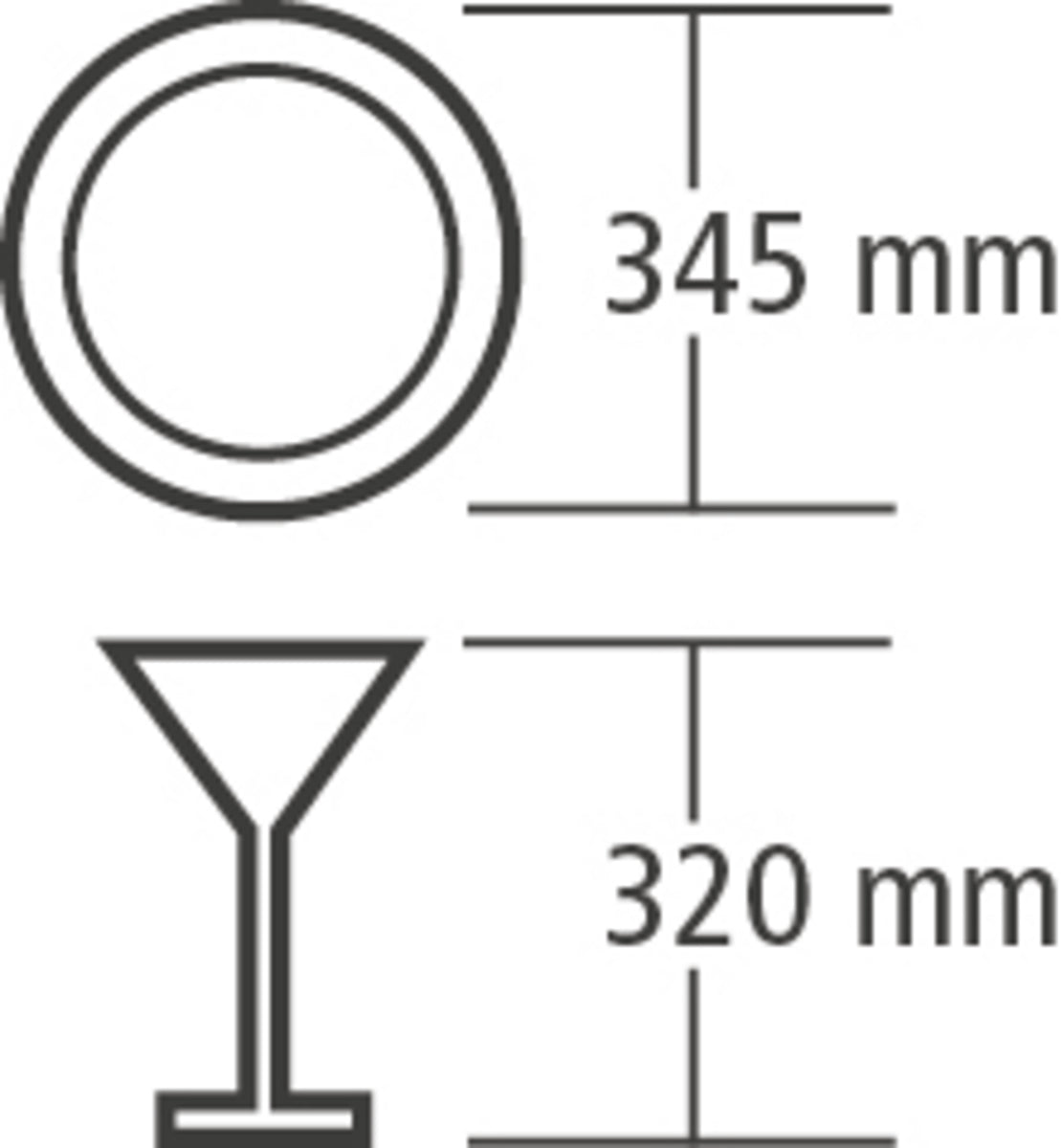

• Plate height max.: 345 mm
• Boiler heater: 2.8 kW
• Water pressure: 2 - 4 bar
• Tank heater: 2.7 kW
• Water supply: 3/4"
• Output / hour max.: 30 baskets
• Number of wash programs: 2
• Cleaning agent dosing pump: Yes
• Lye pump: Yes
• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 120 / 180 seconds
• Water consumption at 2 bar: 2.3 litres / wash cycle
• Water softener: No
• Tank volume: 29 litre(s)
• Can be fitted below the counter: Yes
• Material: Stainless steel
• Water intake temperature: 5 °C to 60 °C
• Door double-walled: Yes
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 cutlery holder ,1 plate basket ,1 universal basket ,1 water outlet hose ,1 water supply hose
• Frequency: 50 Hz
• Safety thermostat: Yes
• Water outlet: Ø 20 mm
• Glasses height max.: 320 mm
• Self-cleaning: No
• Equipment connection: Pluggable
• Voltage: 230 V
• Control lamp: yes
• Cold rinsing: No
• Double-walled: No
• Power: 3.45 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 110531
