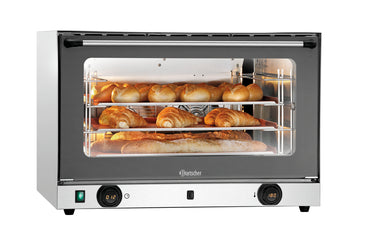

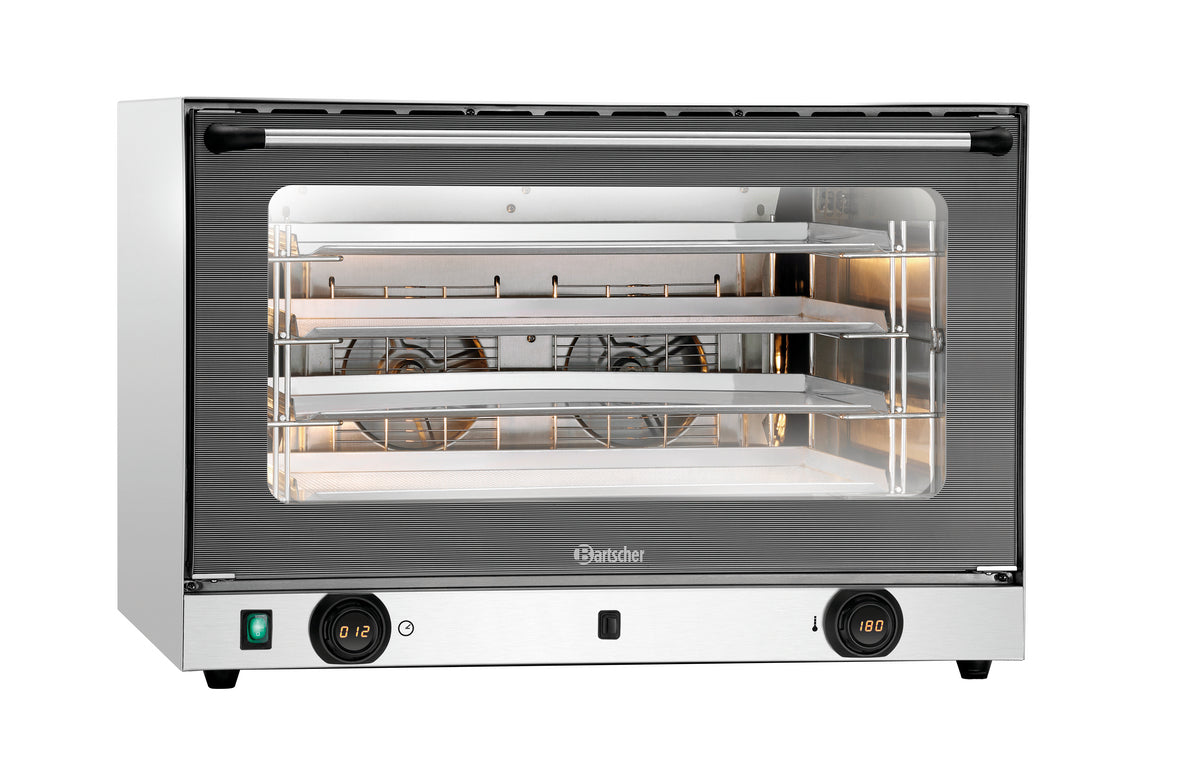

Tried-and-tested features meet top ease-of-use – the AT410-MDI combines the solid functionality of the AT series with the digital Bartscher MDI control for quick and easy temperature and time regulation.

Product benefits

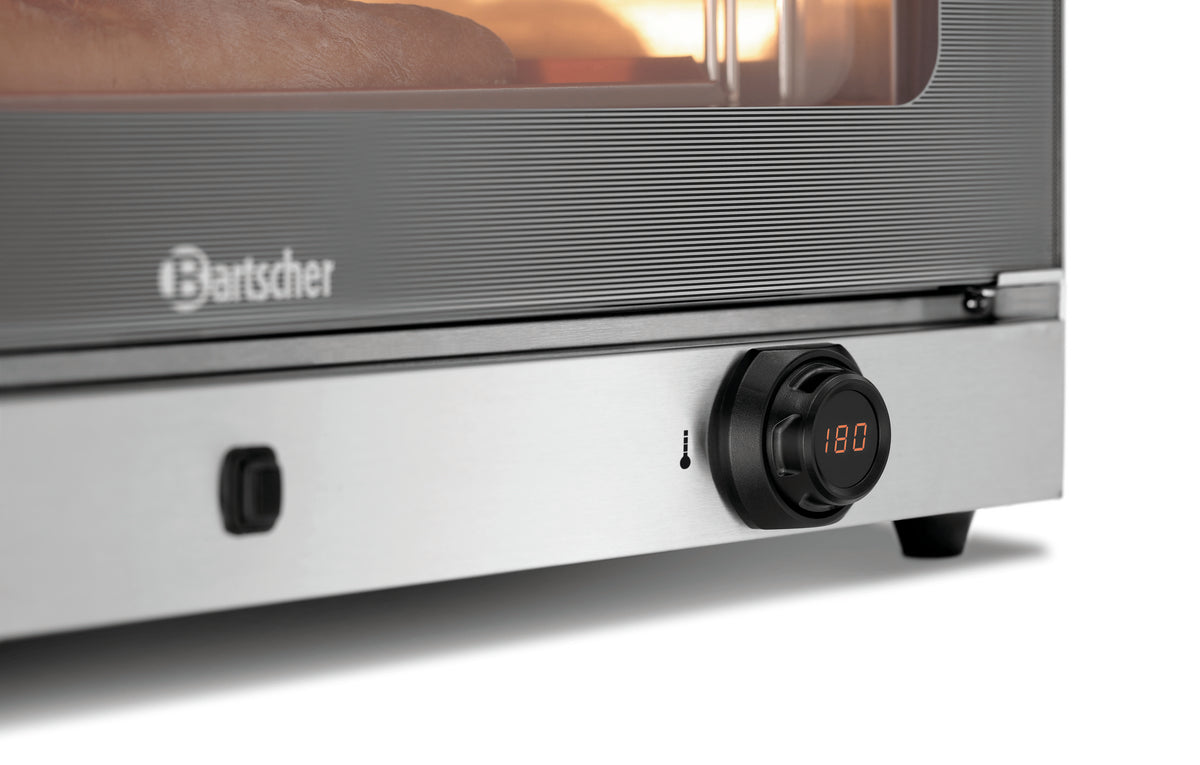

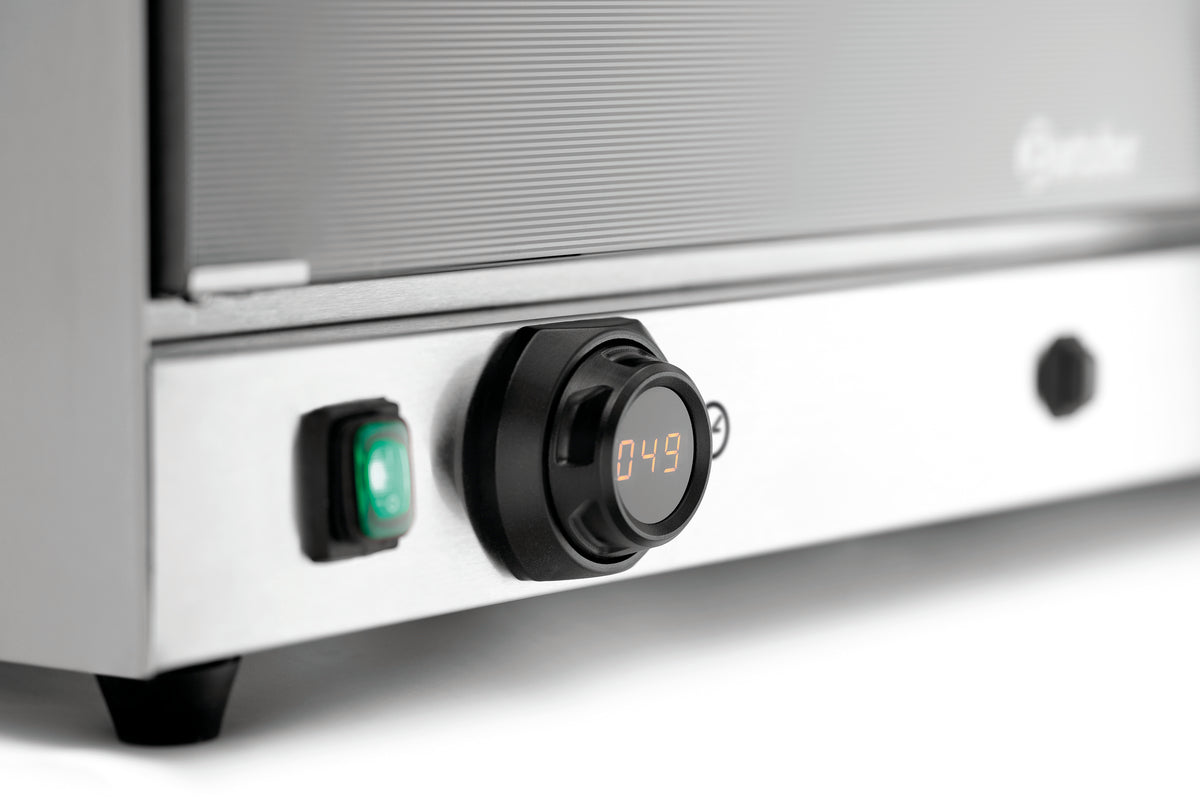

• Precision at the touch of a button: The MDI toggle control with digital display allows precise Regulation of temperature and time – intuitive to use even under time pressure.
• Consistently designed for efficiency: With a heat-up time of only approx. 12 minutes to 150 °C, the AT410-MDI is ready to go when you are – for smooth operations in the professional kitchen.
• Reliability in every cooking phase: Thermostat temperature control in 1 °C increments and a reliable Timer with acoustic signal ensure consistent cooking results – even at high throughput.
• Robust construction for continuous operation: Stainless steel cooking chamber and housing, double-glazed door and IPX3 Protection class guarantee durability and easy cleaning in intensive everyday kitchen use.

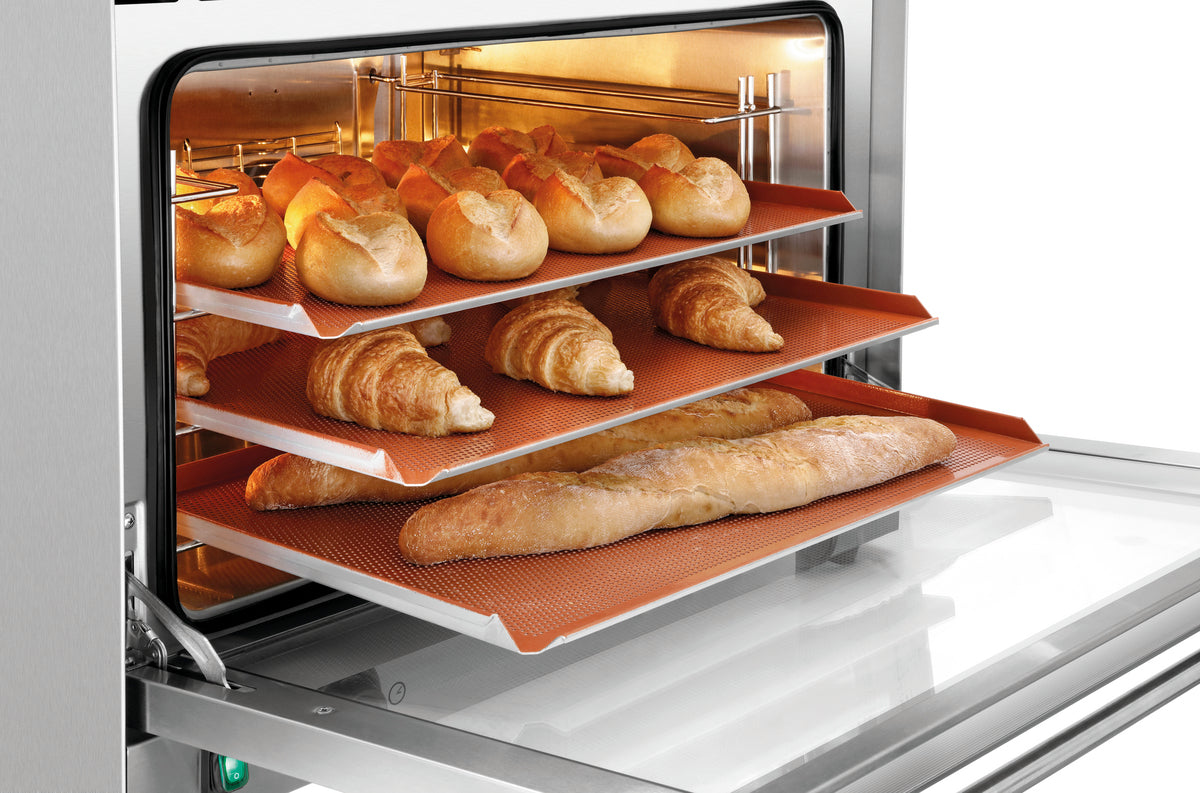

• More space, cleverly used: Four standard patissier trays (600 x 400 mm) with 80 mm spacing offer sufficient space for large production quantities – ideal for bakeries and catering businesses.

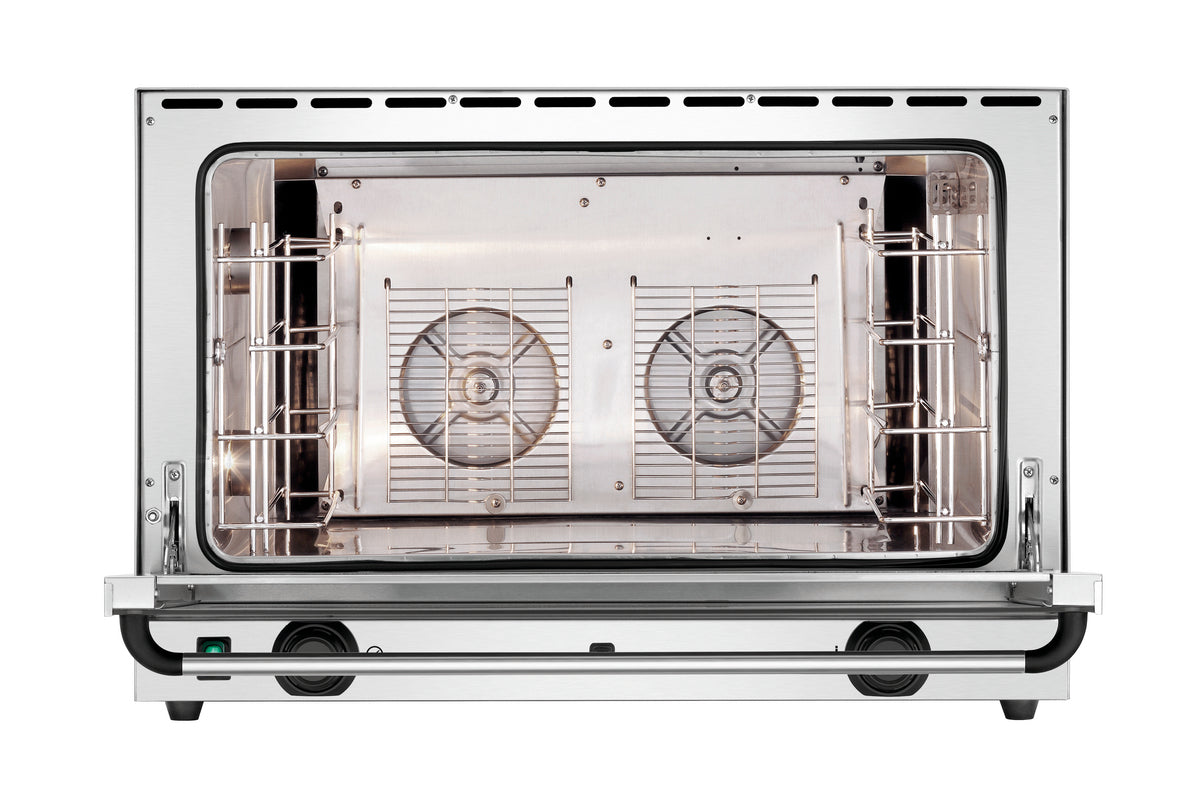

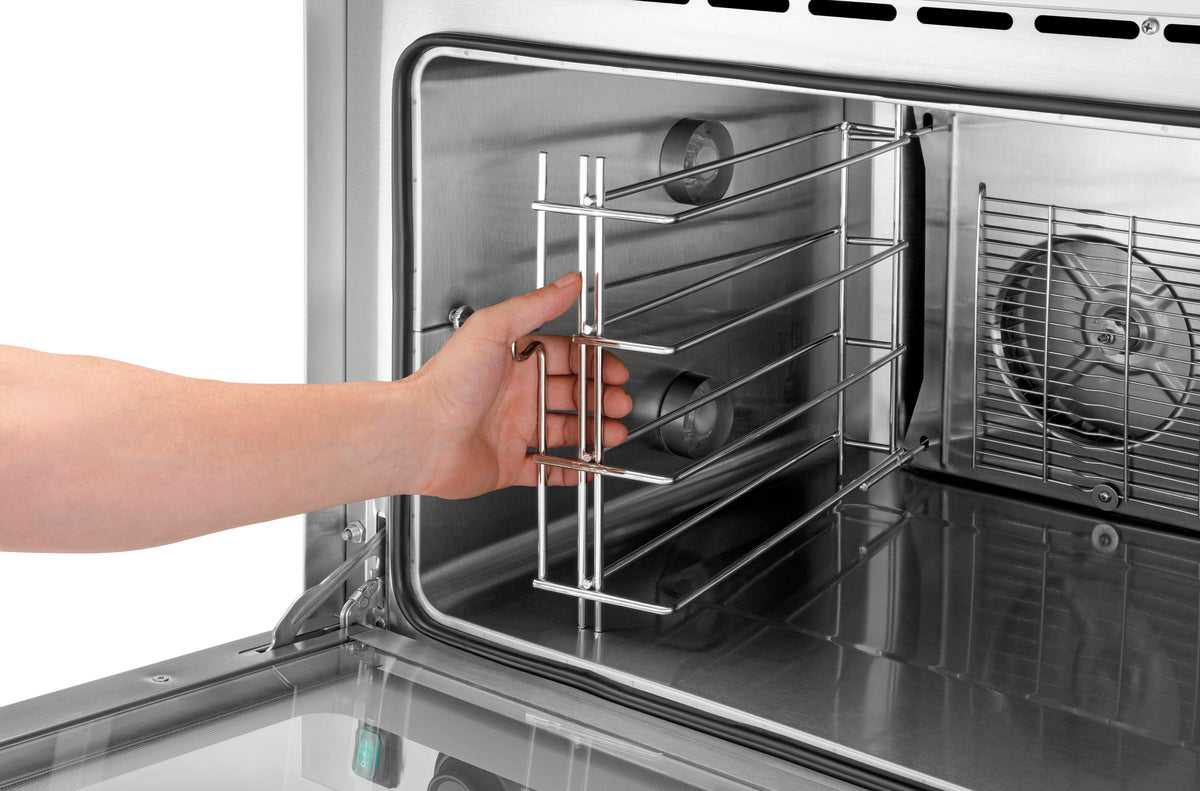

• Functional design, maximum convenience: Removable support rails and a rounded baking chamber make cleaning easier and increase user-friendliness in everyday work.

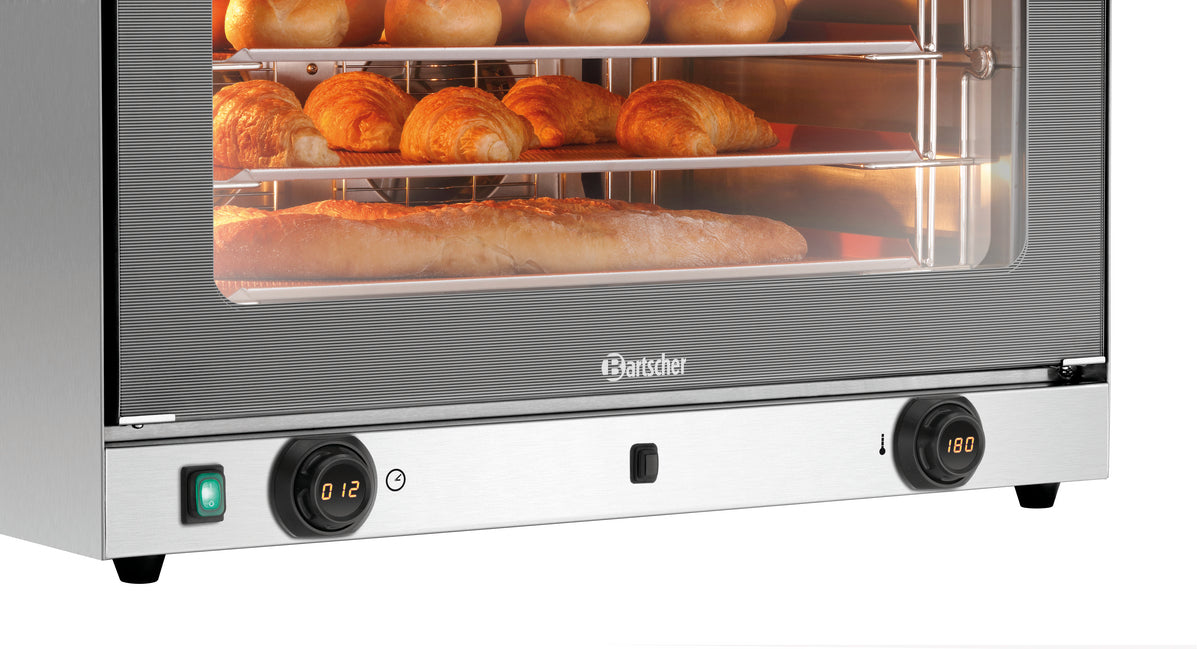

• Everything in view: The bright Interior lighting and LED display for time and temperature ensure full control over the cooking process at all times – without opening the door and losing heat.
• Intelligent details for safe processes: With a memory function, reversing motor direction and pause option for the cooking process, the AT410-MDI adapts flexibly to changing requirements.

Technical data

• Width: 835 mm
• Depth: 765 mm
• Height: 570 mm
• Net weight: 69 kg
• Gross weight: 76.2 kg
• Volume: 0.52 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Colour: Silver grey
• Fan speed: 1 level
• Number of cooking programs: 1
• Temperature control: Thermostatic ,In 1 °C steps
• LED display: Temperature ,Time
• Control lamp: ON/OFF ,Heat up ,Timer
• Series: AT
• Water connection: Fixed connection to water supply 3/4"
• ON/OFF switch: Yes
• Thermostat: Yes
• Number of fans: 2
• Control unit: MDI knob
• Properties: Rounded baking chamber ,Bearing rails can be detached ,Double-winged door pane ,Knob with digital display for temperature and time ,Memory function ,Possible cooking pause using the temperature controller ,Audible signal when the time expires (1 - 120 minutes)
• Height inside: 360 mm
• Heat-up time: approx. 12 minutes (150 °C)
• Number of cooking phases: 1
• Power: 6.4 kW
• Material: Stainless steel
• Format drawers: 600 x 400 mm
• Voltage: 400 V
• Timer: Yes
• Time setting to: 120 minute(s)
• Including: 4 trays ,1 supply hose
• Width inside: 700 mm
• Protection class: IPX3
• Number of drawers: 4
• Interior lighting: Yes
• Type of drawers: Crosswise
• Temperature range from: 50 °C
• Equipment connection: 3 NAC
• Temperature range to: 300 °C
• Distance between trays: 80 mm
• Functions: Circulating air ,Steaming ,Reversing motor direction (fan wheels)
• Frequency: 50/60 Hz
• Depth inside: 460 mm
• Material cooking chamber: Stainless steel
• Time setting from: 1 minute(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: A120822
