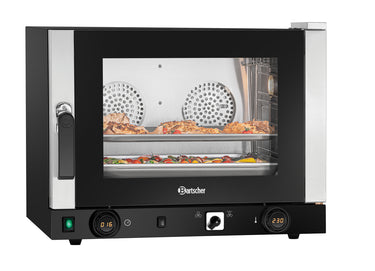

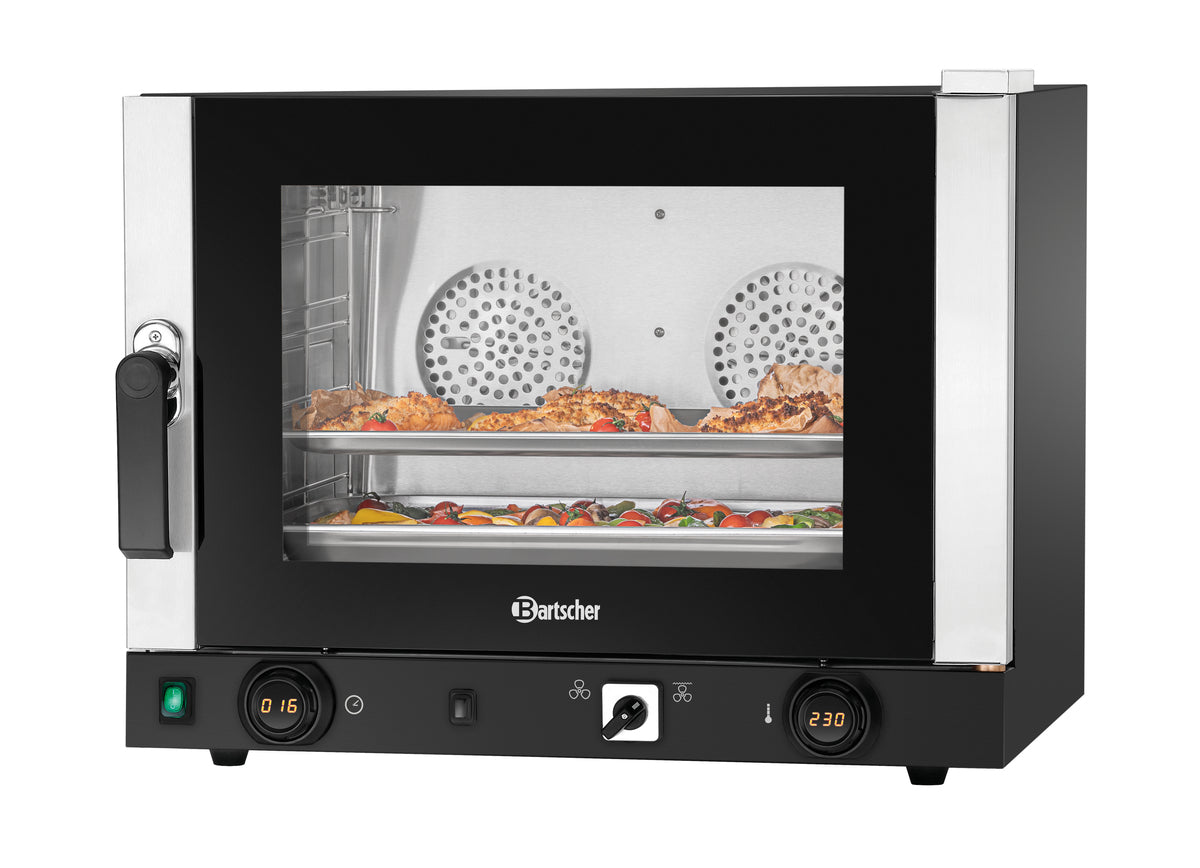

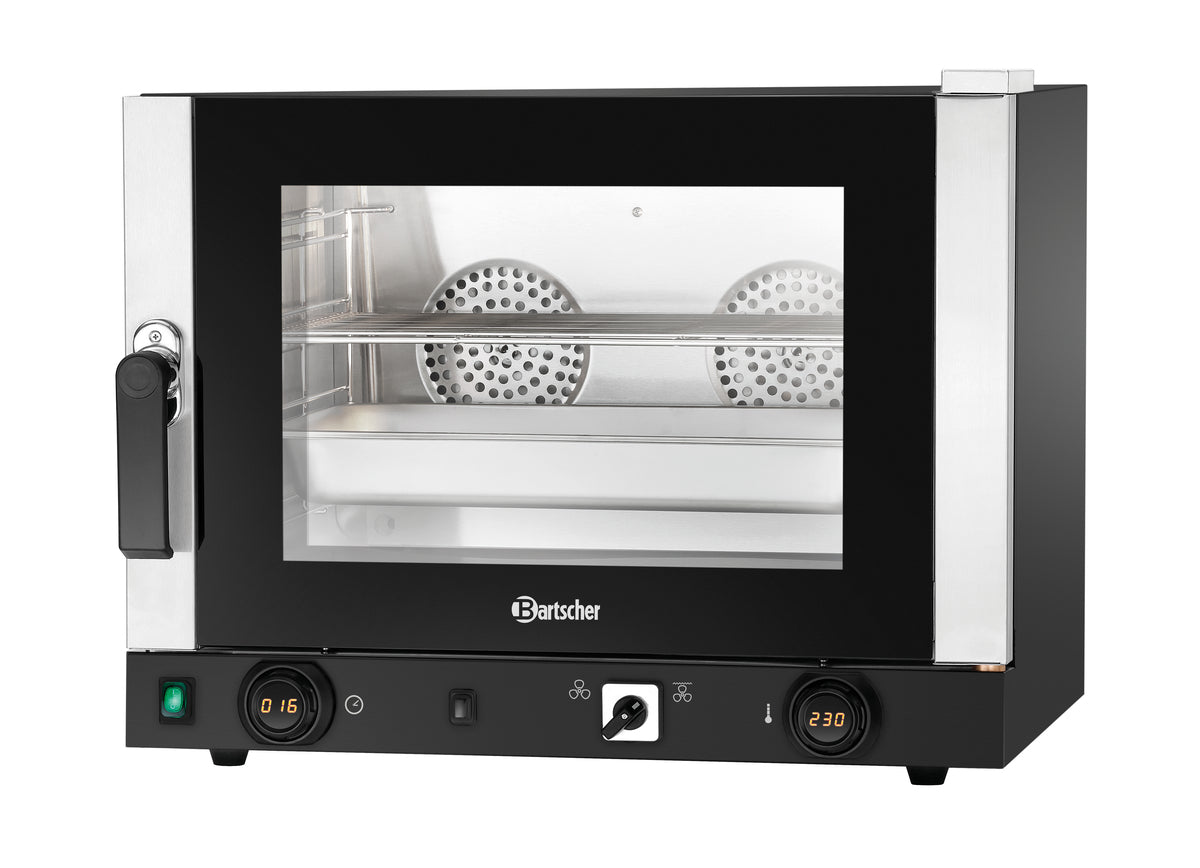

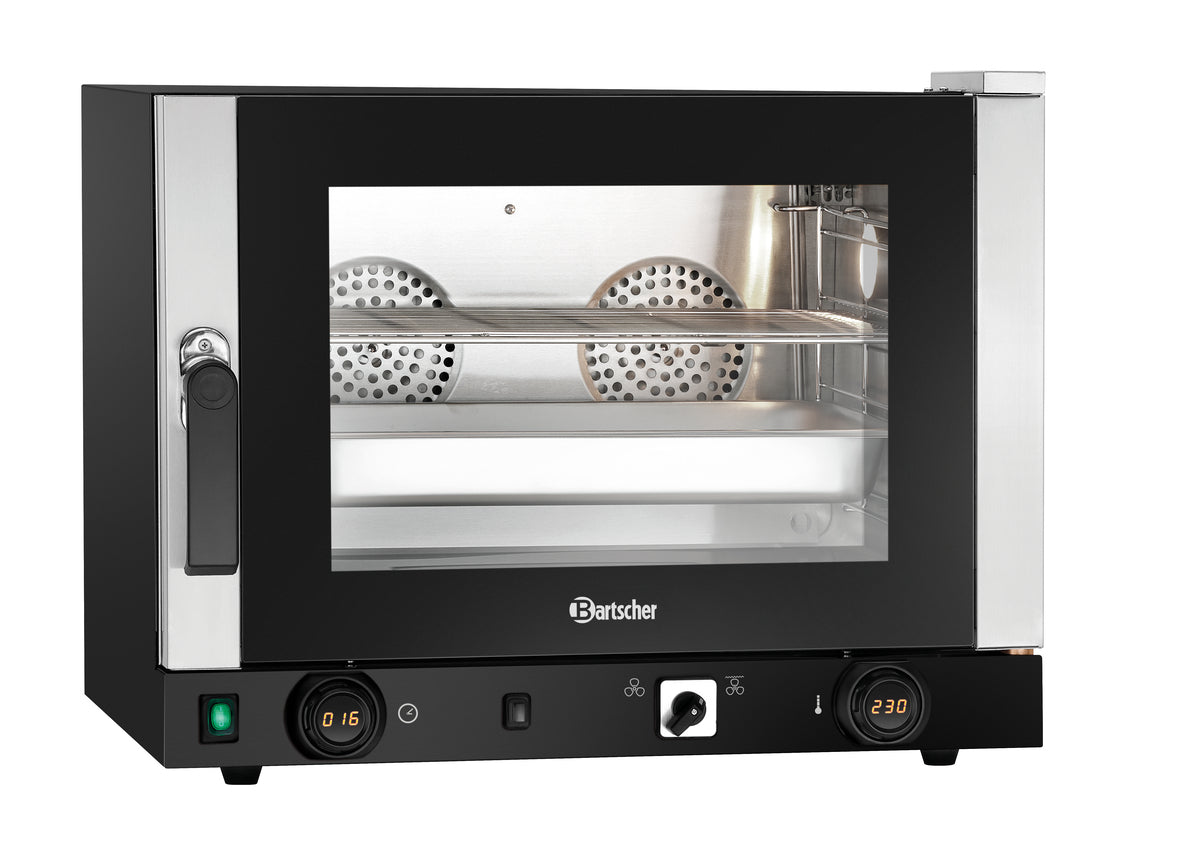

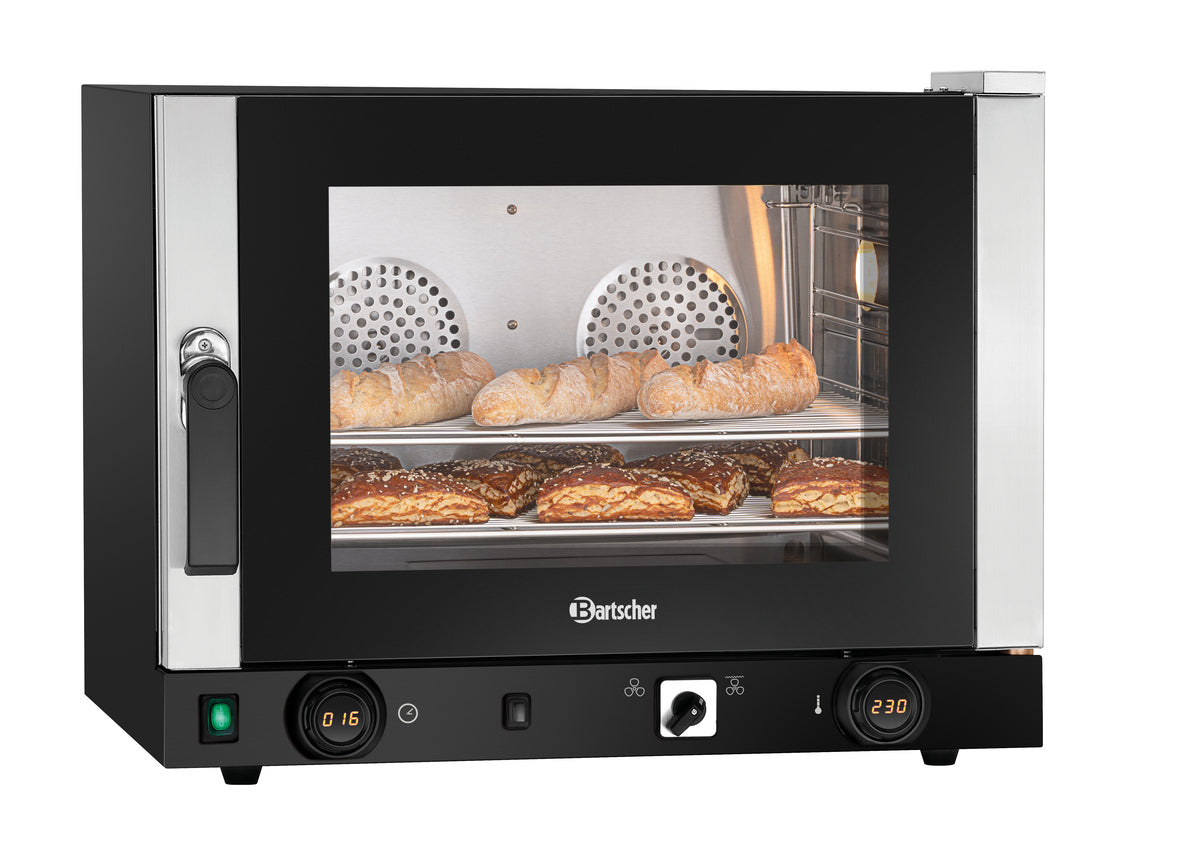

The AT230-MDI S simplifies the loading of the baking chamber thanks to the side door stop. By combining the tried-and-tested AT features with the additional grill function and steaming, nothing is left to be desired. The intuitive Bartscher MDI control system with quick and easy temperature and time regulation ensures maximum ease of use.

Product benefits

• Precision in every cooking phase: MDI control unit with 1 °C increments and digital display ensures precise temperature control and repeatable results.
• Grilling, steaming, convection - all in one appliance: The combination of hot air, grill function and steam support allows versatile cooking from crispy to juicy - without changing appliances.

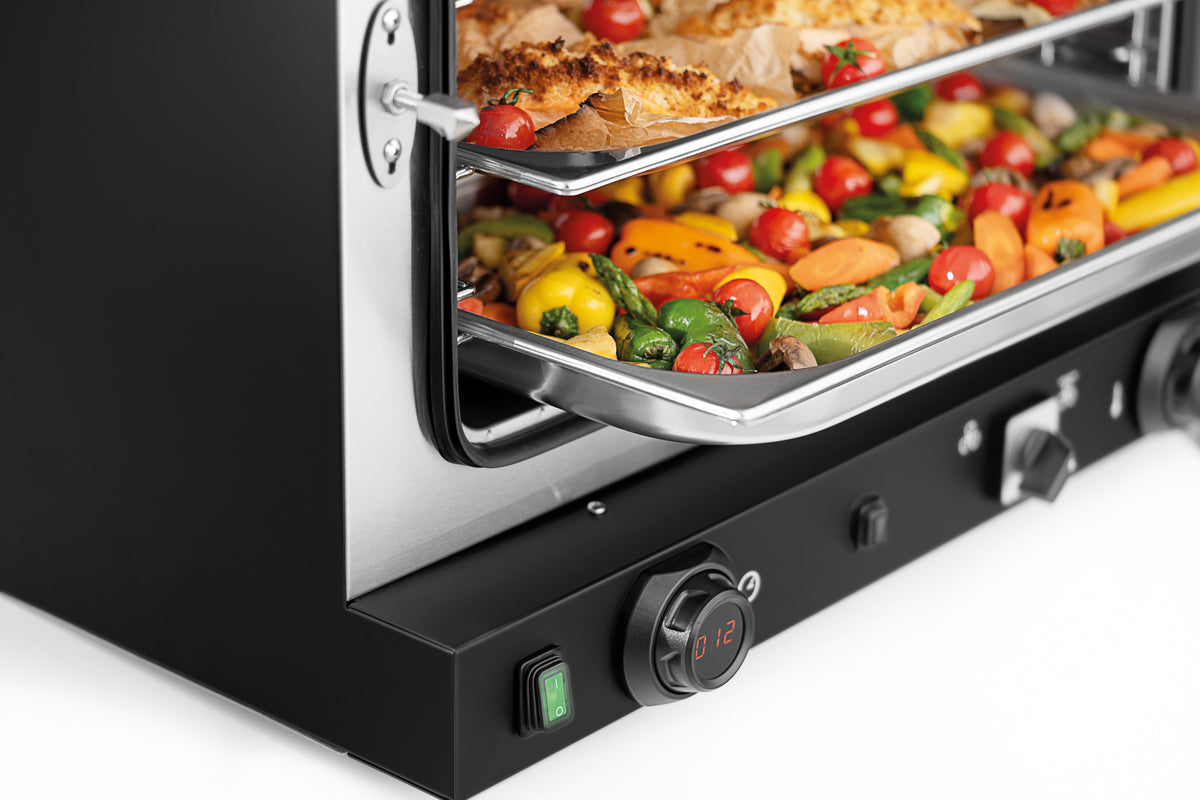

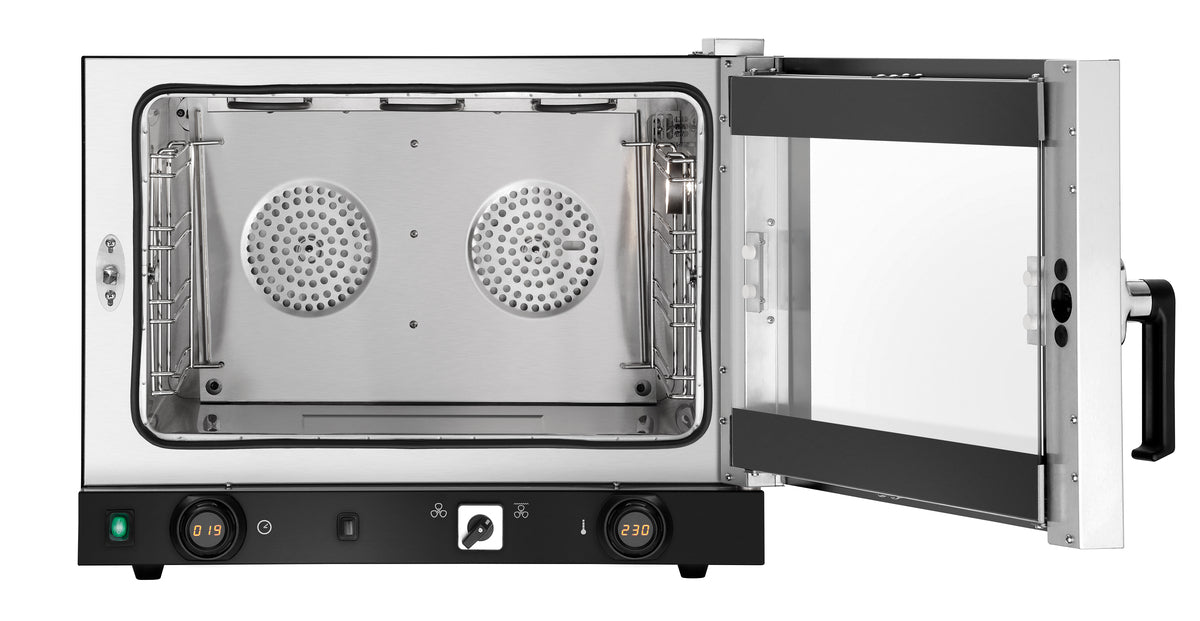

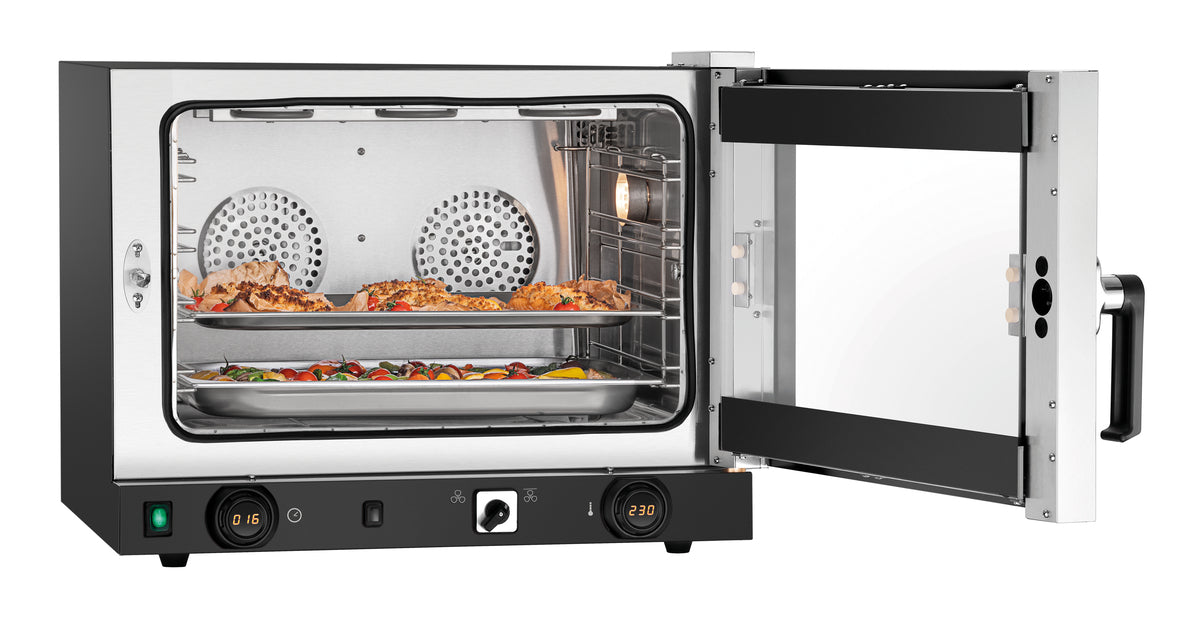

• Maximum flexibility thanks to side Door hinge side: Filling is easy and ergonomic, even in confined kitchen spaces - ideal for everyday professional use.
• Heats up quickly, ready for use immediately: The AT230-MDI S reaches 150 °C in just approx. 12 minutes - ideal for peak times in the kitchen.
• Sophisticated design for professional requirements: Rounded baking chamber, removable rails and double-glazed Door make cleaning easier and guarantee safety.

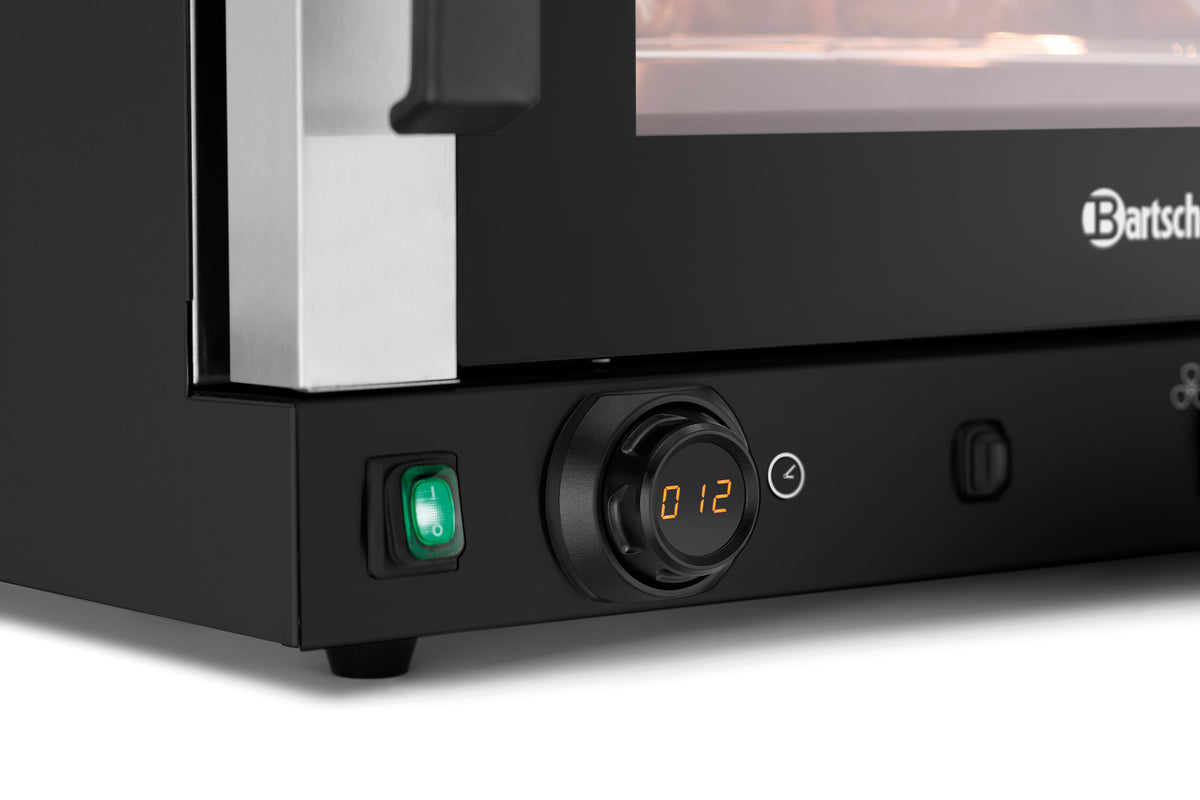

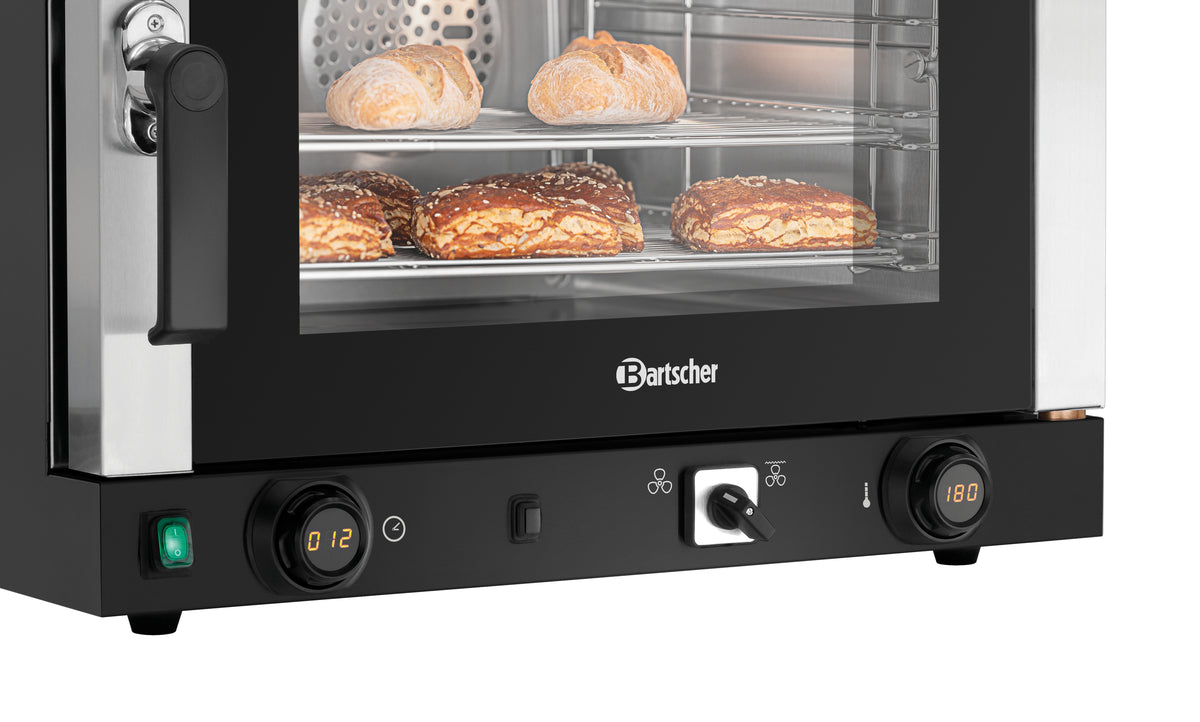

• Convenient operation with MDI toggle control: Simple operation, clear display and memory function for recurring cooking processes save time and minimise sources of error.
• Powerful in a compact space: With 3 kW Power, four 1/1 GN format drawers and precise air circulation, the oven offers high capacity on a minimal footprint.
• Durable design with a professional look: Black, matt stainless steel surface combines robust material quality with a modern, high-quality look.

Technical data

• Width: 700 mm
• Depth: 675 mm
• Height: 560 mm
• Net weight: 49.5 kg
• Gross weight: 53 kg
• Volume: 0.353 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Colour: Black, matt
• Fan speed: 1 level
• Number of cooking programs: 1
• Temperature control: Thermostatic ,In 1 °C steps
• LED display: Temperature ,Time
• Control lamp: ON/OFF ,Heat up ,Timer
• Series: AT
• Water connection: 3/4"
• ON/OFF switch: Yes
• Thermostat: Yes
• Number of fans: 2
• Control unit: MDI knob
• Properties: Rounded baking chamber ,Bearing rails can be detached ,Double-winged door pane ,Easy loading with side door hinge ,Knob with digital display for temperature and time ,Memory function ,Possible cooking pause using the temperature controller ,Audible signal when the time expires (1 - 120 minutes)
• Height inside: 350 mm
• Heat-up time: approx. 12 minutes (150 °C)
• Number of cooking phases: 1
• Power: 3 kW
• Material: Stainless steel, coated
• Format drawers: 1/1 GN
• Voltage: 230 V
• Timer: Yes
• Time setting to: 120 minute(s)
• Including: 1 grid ,1 GN container ,1 supply hose
• Width inside: 560 mm
• Protection class: IPX3
• Grill output: 2.4 kW
• Number of drawers: 4
• Interior lighting: Yes
• Type of drawers: Crosswise
• Temperature range from: 50 °C
• Equipment connection: Pluggable
• Temperature range to: 300 °C
• Distance between trays: 75 mm
• Functions: Circulating air ,Grill function ,Steaming
• Frequency: 50/60 Hz
• Depth inside: 380 mm
• Material cooking chamber: Stainless steel
• Time setting from: 1 minute(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 120827
