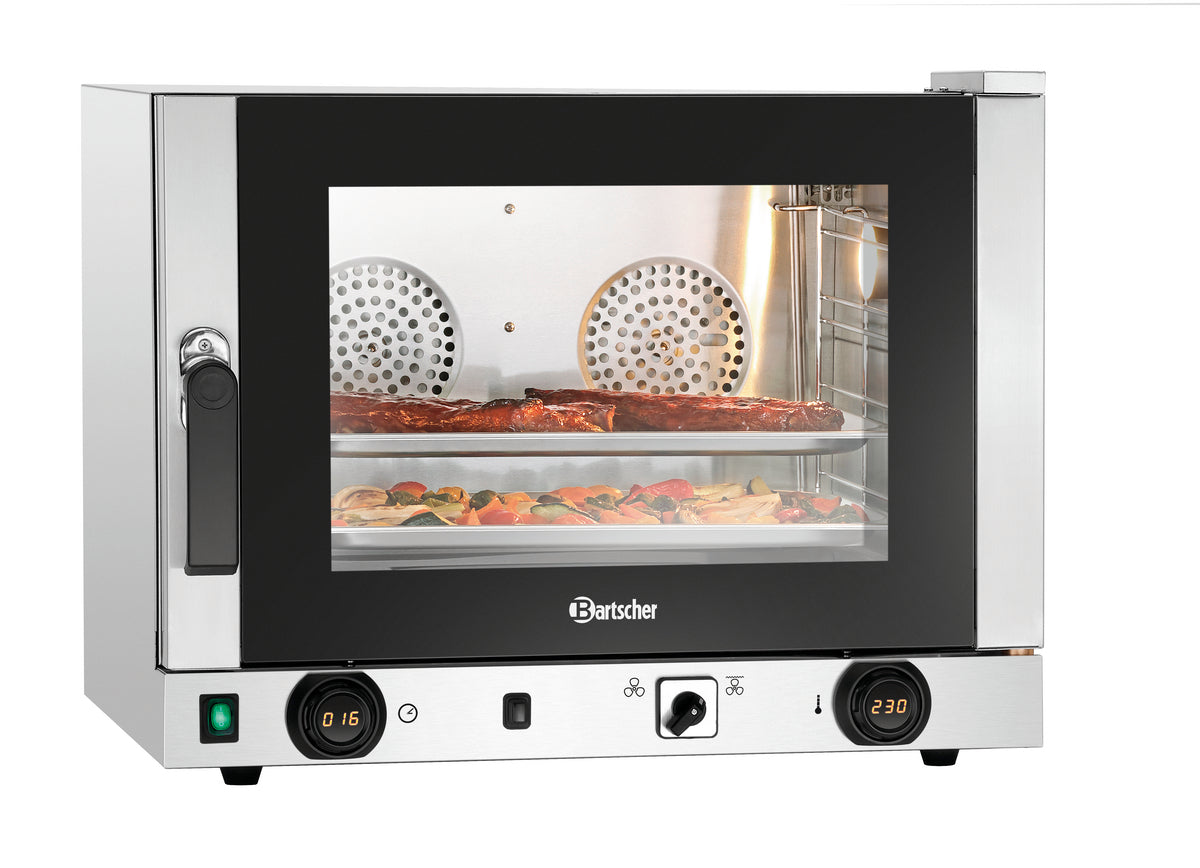

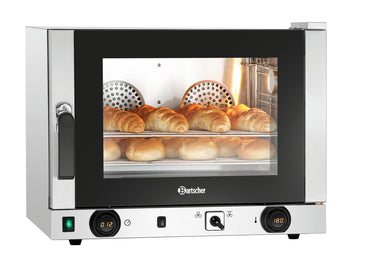

The AT230-MDI simplifies the loading of the baking chamber thanks to the side door hinge. It meets all requirements since it combines tried-and-tested AT features with an additional grilling function and steaming. The digital Bartscher MDI control ensures top ease-of-use with quick and easy temperature and time regulation.

Product benefits

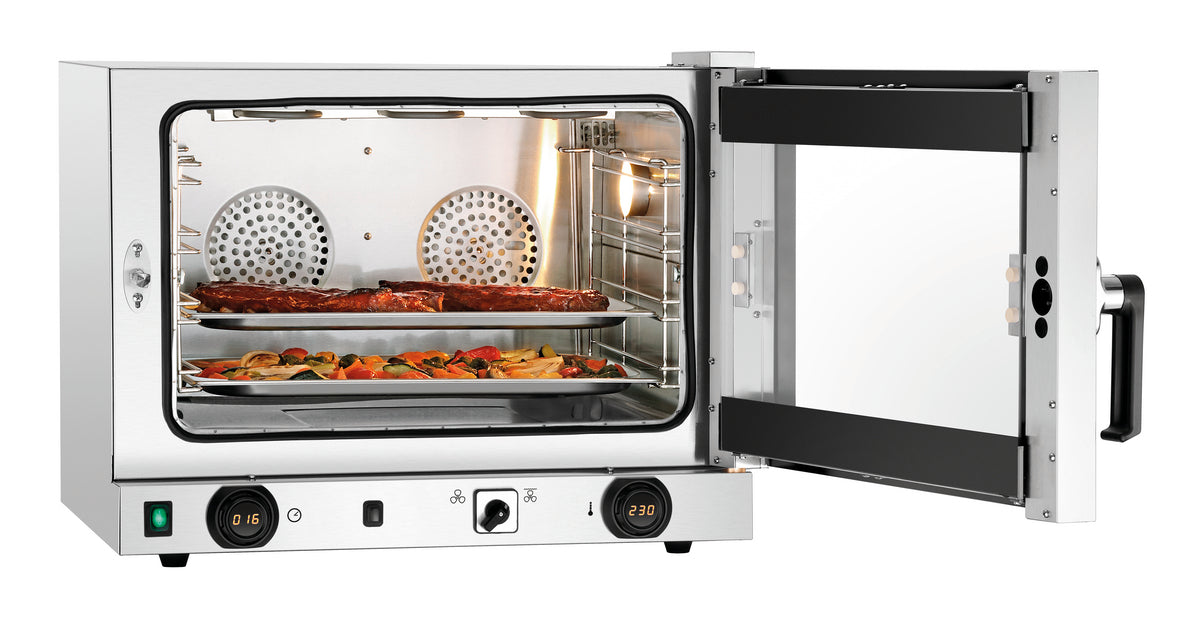

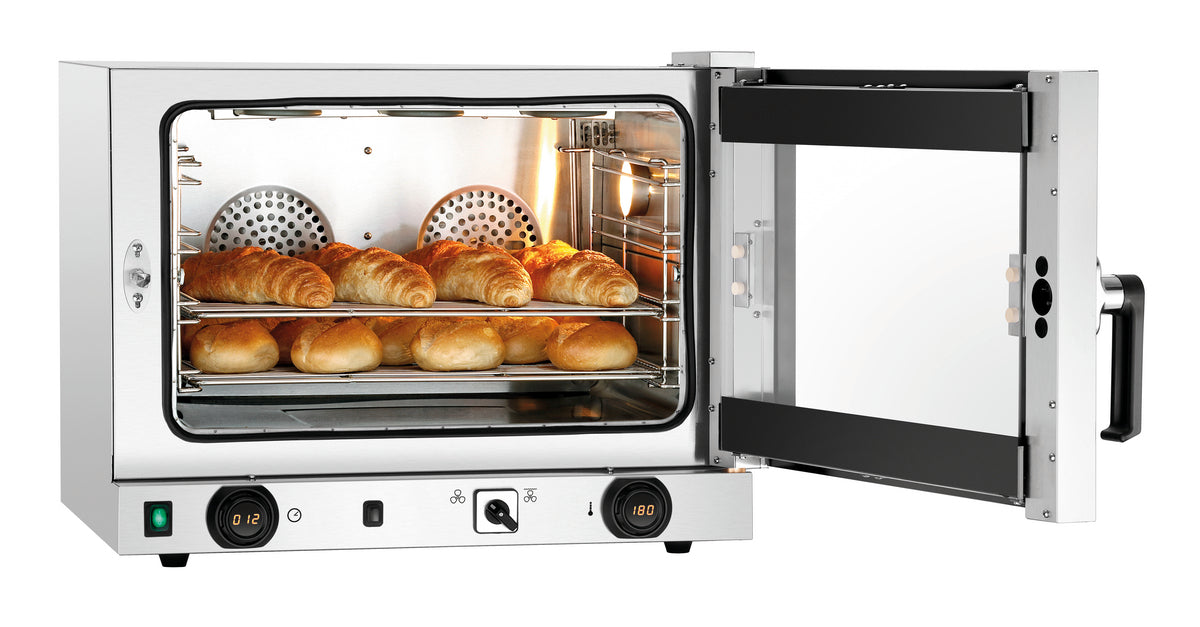

• Designed for effortless handling: Thanks to its ergonomic door hinge side, the AT230-MDI makes loading easier even in confined kitchen environments – ideal for high workloads in everyday catering.
• Grilling, cooking, steaming – all in one appliance: With a combined grill function, convection technology and optional steaming, the oven expands your preparation options – flexible use from breakfast service to buffet operation.

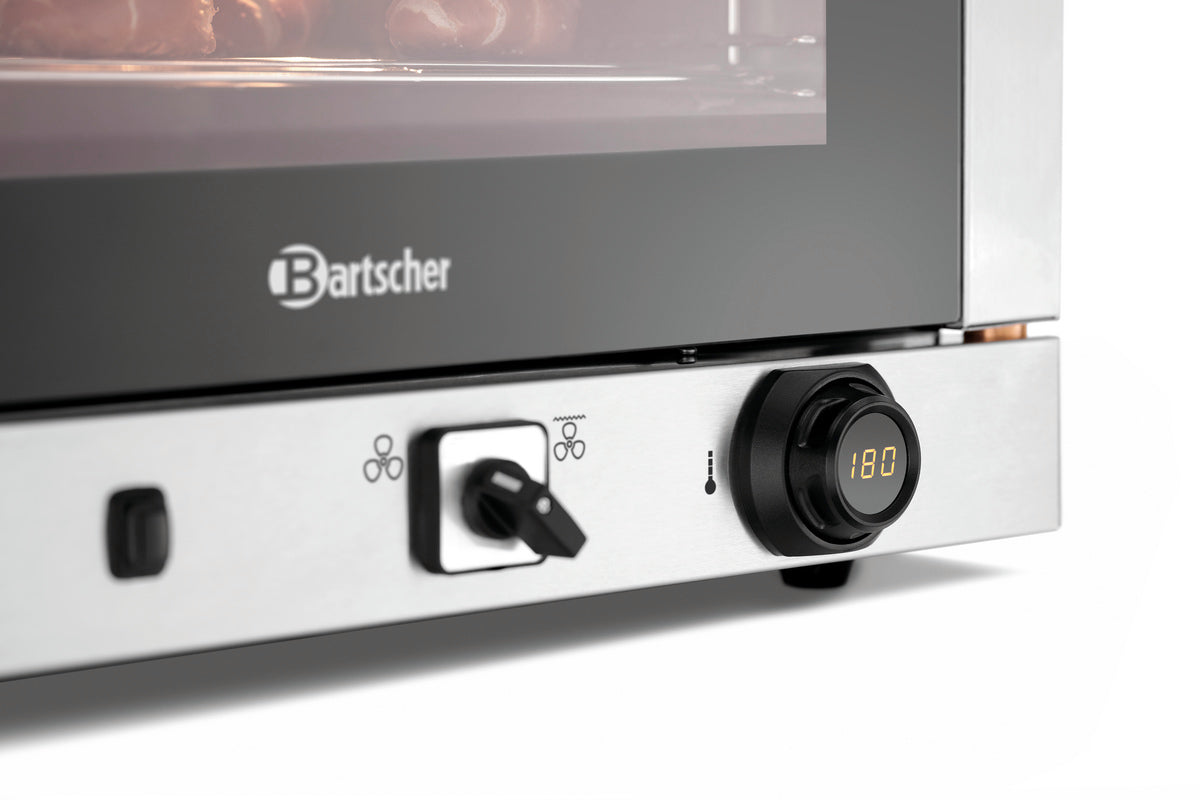

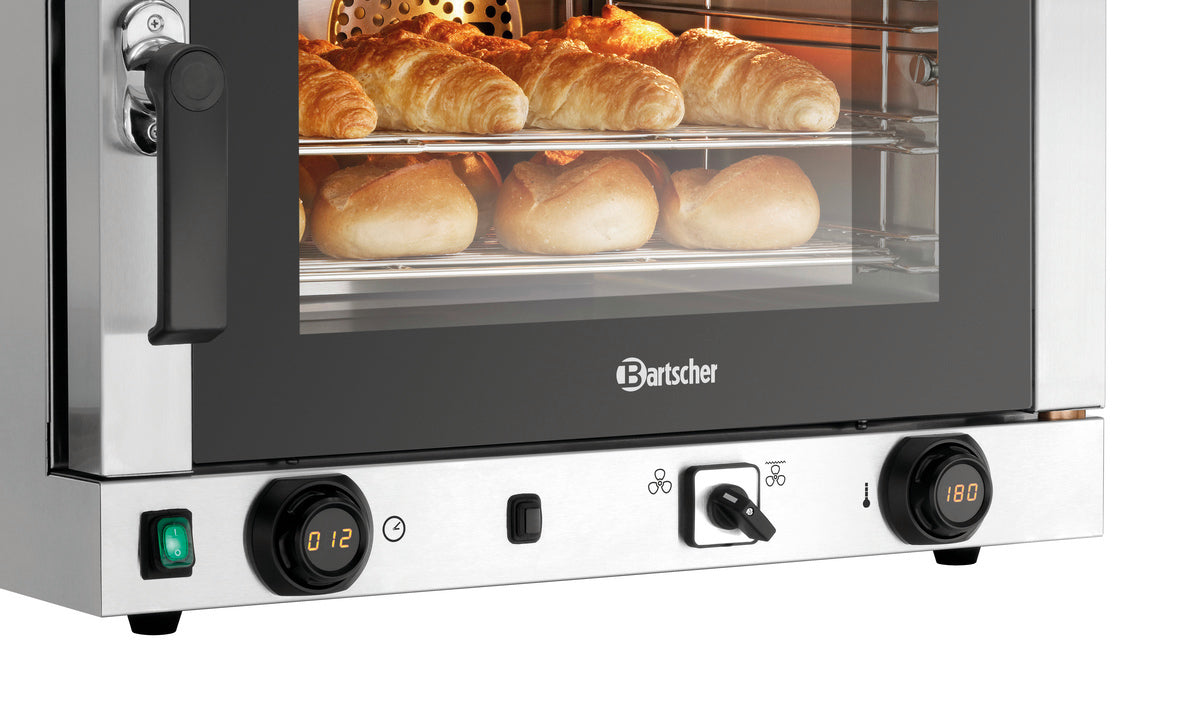

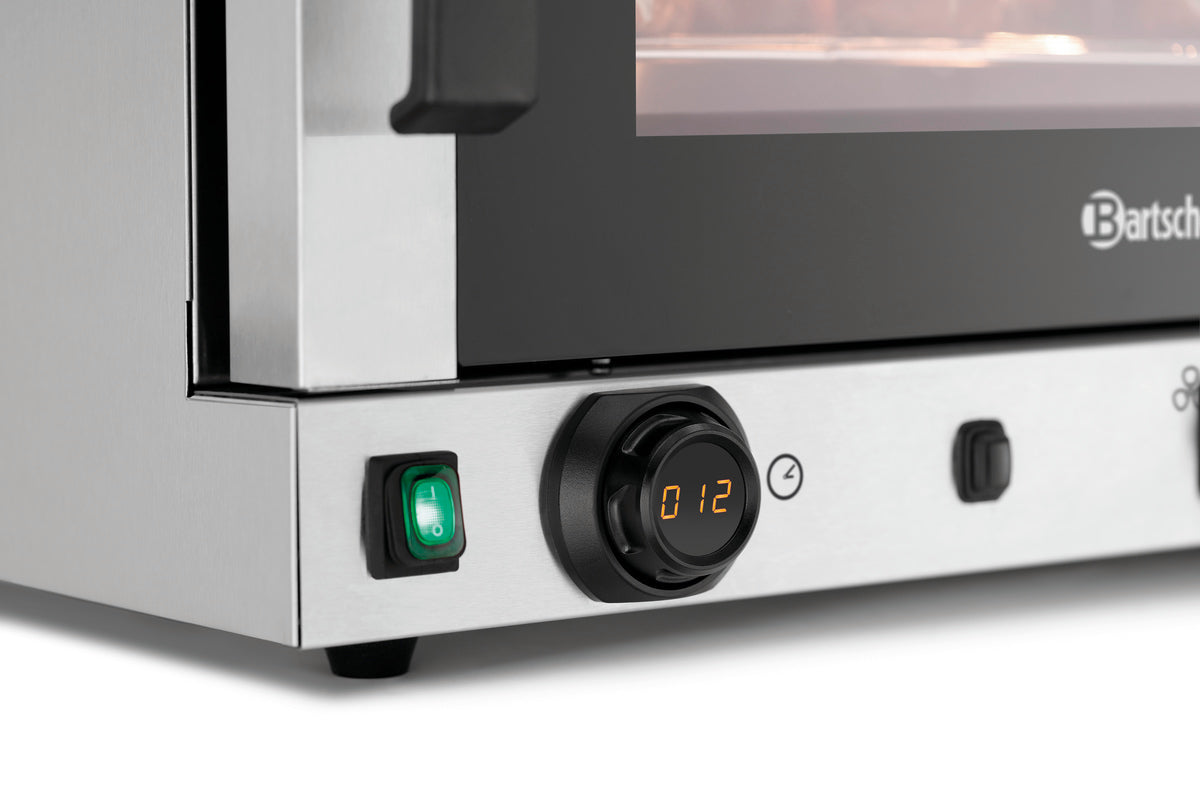

• Smart twist for full control: The digital MDI knob control allows intuitive adjustment of temperature and time – precisely, even when the kitchen is busy.

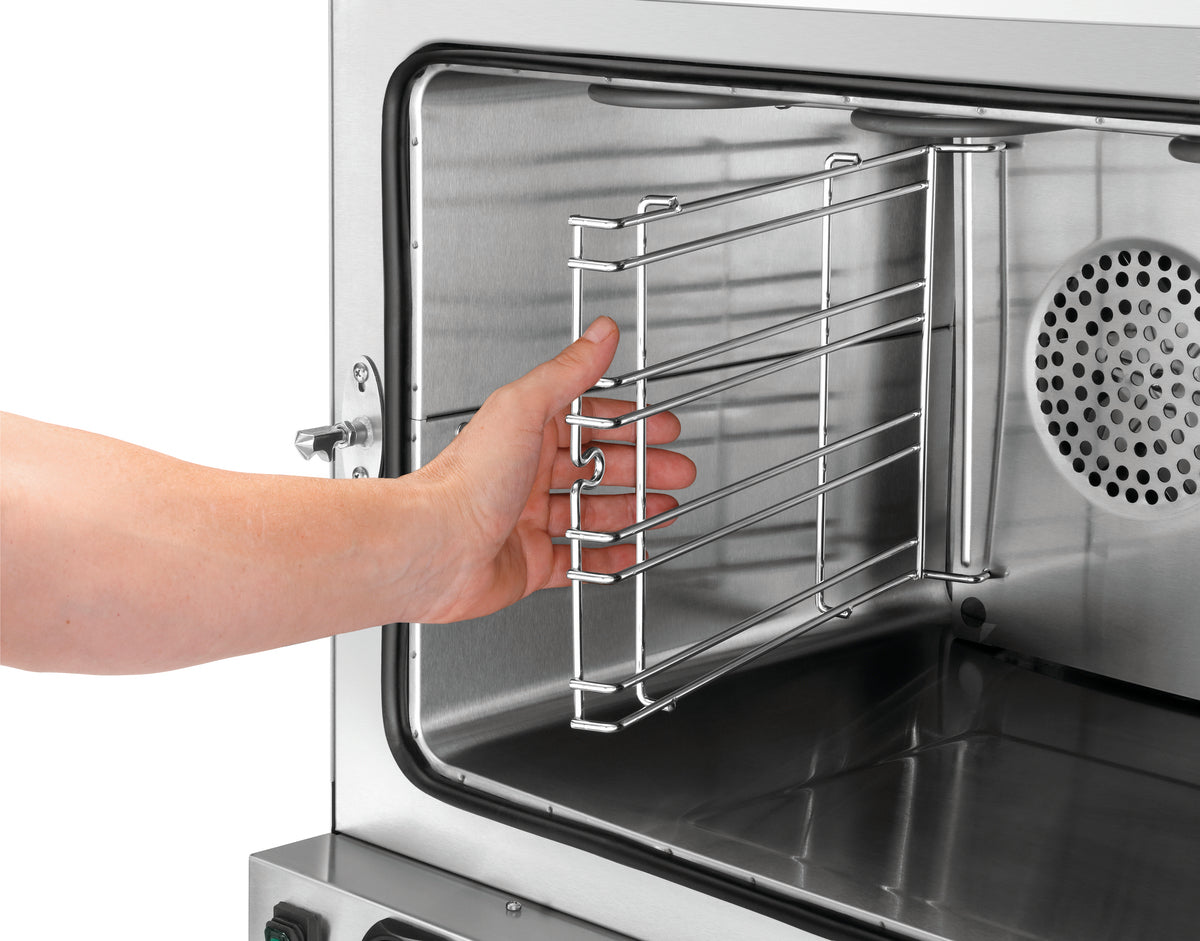

• Consistently hygienic and easy to clean: Rounded baking chamber, removable support rails and stainless steel interior enable quick cleaning in accordance with the highest hygiene standards.
• Quick to reach temperature – ready in 12 minutes: With a heat-up time of only approx. 12 minutes to 150 °C, the AT230-MDI is ideal for kitchens with short lead times and high utilisation.
• Space for variety – 4 drawers in GN 1/1 Format: The cross-inserts with 75 mm spacing offer sufficient space for different cooking processes – used efficiently, depending on the menu structure.

Technical data

• Width: 700 mm
• Depth: 675 mm
• Height: 550 mm
• Net weight: 47.6 kg
• Gross weight: 51.6 kg
• Volume: 0.356 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Colour: Silver grey
• Fan speed: 1 level
• Number of cooking programs: 1
• Temperature control: Thermostatic ,In 1 °C steps
• LED display: Temperature ,Time
• Control lamp: ON/OFF ,Heat up ,Timer
• Series: AT
• Water connection: Fixed connection to water supply 3/4"
• ON/OFF switch: Yes
• Thermostat: Yes
• Number of fans: 2
• Control unit: MDI knob
• Properties: Rounded baking chamber ,Bearing rails can be detached ,Double-winged door pane ,Easy loading with side door hinge ,Knob with digital display for temperature and time ,Memory function ,Possible cooking pause using the temperature controller ,Audible signal when the time expires (1 - 120 minutes)
• Height inside: 350 mm
• Heat-up time: approx. 12 minutes (150 °C)
• Number of cooking phases: 1
• Power: 3 kW
• Material: Stainless steel
• Format drawers: 1/1 GN
• Voltage: 230 V
• Timer: Yes
• Time setting to: 120 minute(s)
• Including: 1 GN container ,1 grid ,1 supply hose
• Width inside: 560 mm
• Protection class: IPX3
• Grill output: 2.4 kW
• Number of drawers: 4
• Interior lighting: Yes
• Type of drawers: Crosswise
• Temperature range from: 50 °C
• Equipment connection: Pluggable
• Temperature range to: 300 °C
• Distance between trays: 75 mm
• Functions: Circulating air ,Grill function ,Steaming
• Frequency: 50/60 Hz
• Depth inside: 380 mm
• Material cooking chamber: Stainless steel
• Time setting from: 1 minute(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: A120823
