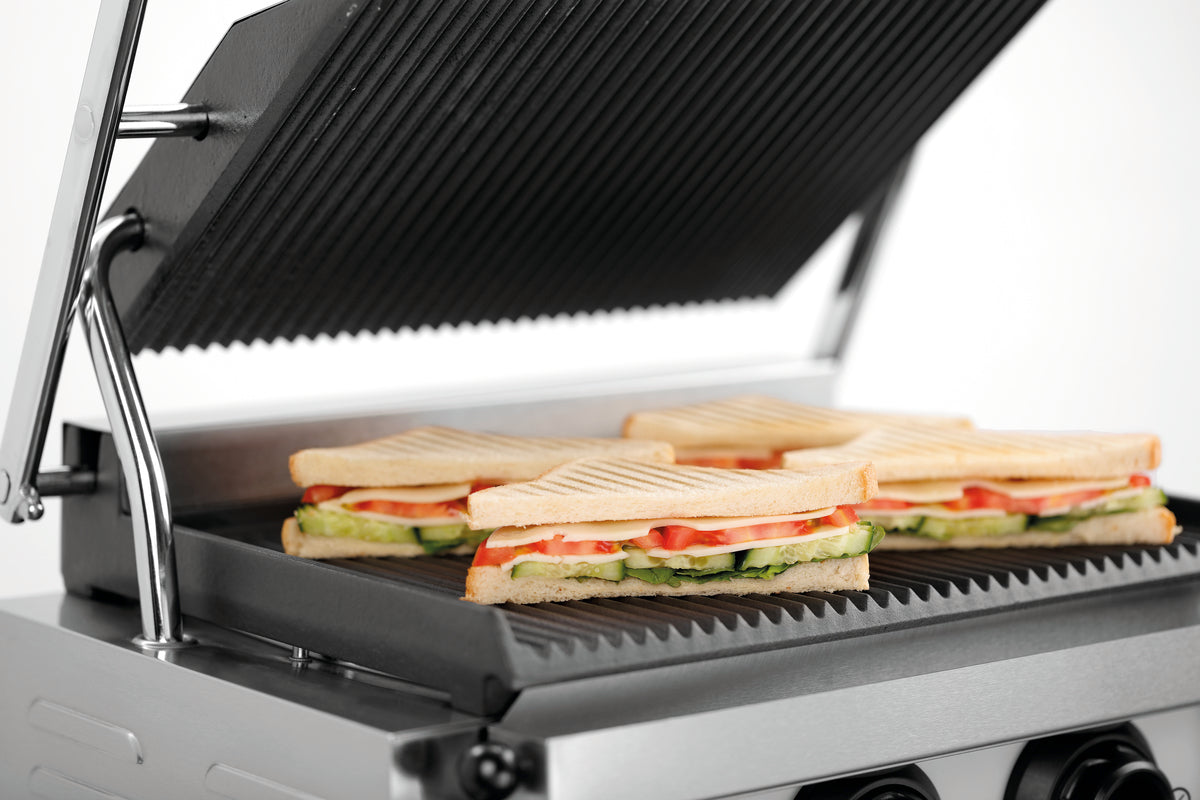

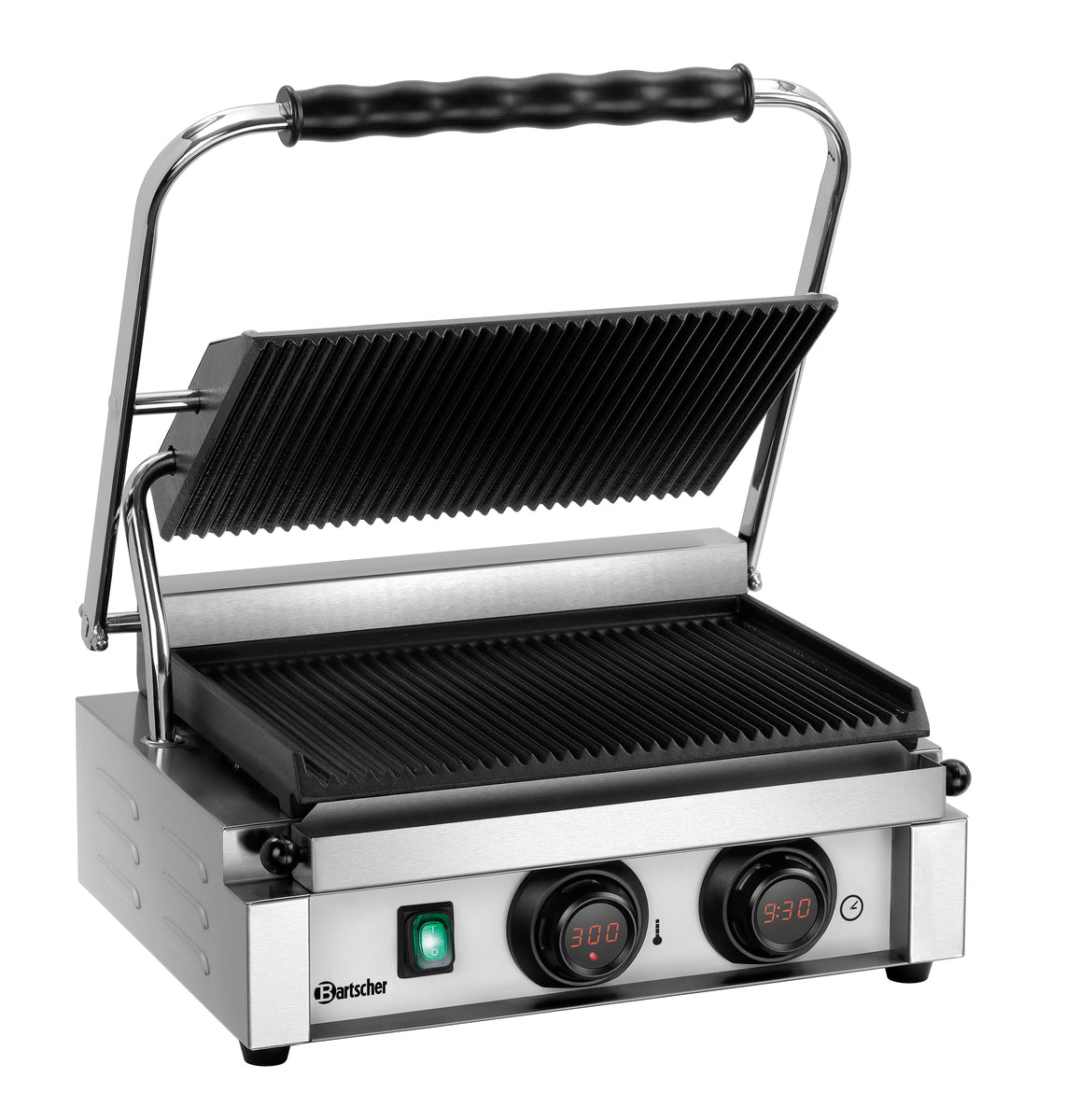

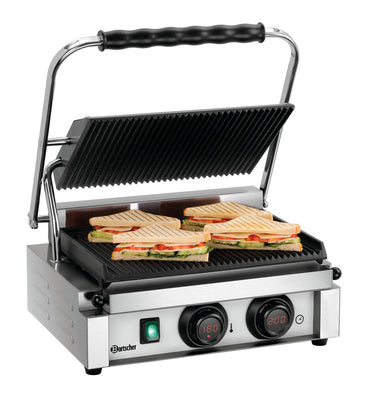

The “Panini-MDI” contact grill with ribbed grill plates offers everything a good contact grill needs: Grill plates with optimal thermal conductivity, a robust design and simple and intuitive toggle operation with digital display, timer and audible signal.

Product benefits

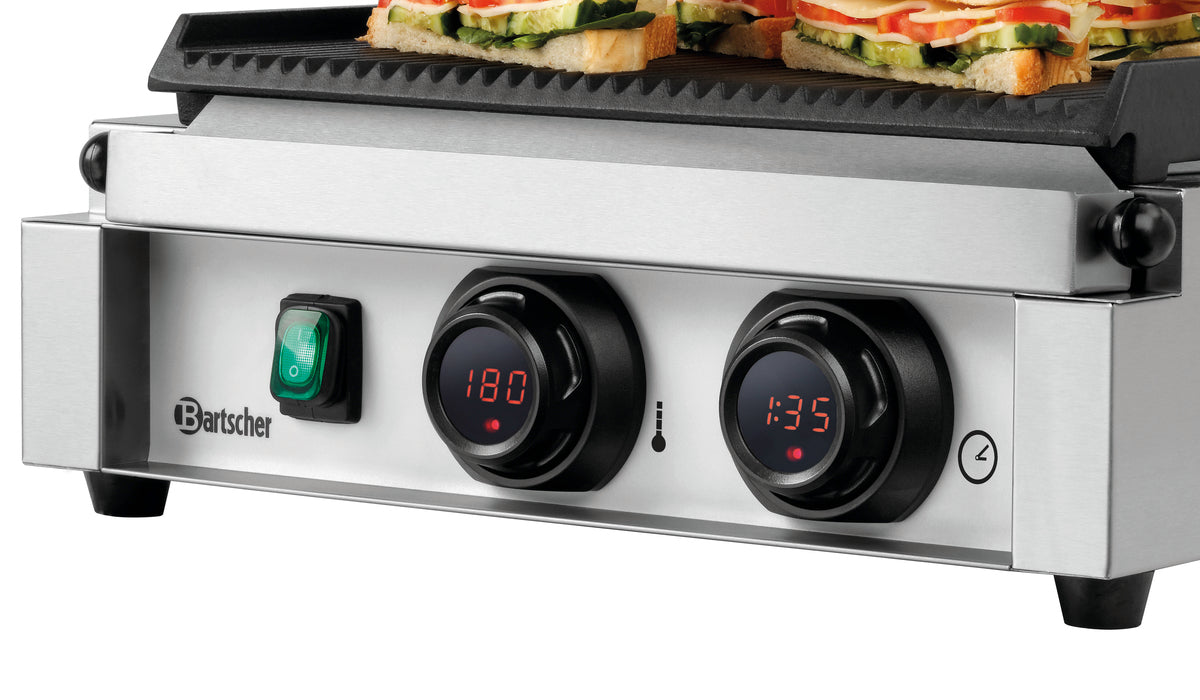

• Precise control unit at the touch of a button: The precise MDI toggle control with Digital display allows for exact temperature and time selection – ideal for consistent cooking results at high throughput.
• High heat, fast use: The enamelled cast iron grill plates distribute heat optimally and ensure short heat-up times – for more efficient work during peak hours.
• Consistently robust construction: Stainless steel housing and enamelled cast iron Grill plates guarantee long-lasting stability – even with daily continuous use in kitchens or food trucks.
• Digital control with signal: Timer with memory function and acoustic signal supports precise timing – particularly useful when working with several devices at the same time.
• Grilling with intelligence: With a temperature range of 50–300 °C, adjustable in 1 °C increments, the Panini-MDI adapts flexibly to a wide variety of preparations – from paninis to vegetables.
• Easy cleaning included: The integrated Grease collection tank and the cleaning brush supplied make cleaning easy – so the appliance remains hygienic and ready for use even in Continuous operation.

Technical data

• Width: 410 mm
• Depth: 400 mm
• Height: 200 mm
• Net weight: 18.3 kg
• Gross weight: 21 kg
• Volume: 0.059 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Voltage: 230 V
• Material grill plates: Cast iron ,Enamelled
• Equipment connection: Pluggable
• Colour: Silver grey
• Power: 2.2 kW
• Design grill surface: Ribbed
• Grease collection tank: Yes
• Stopper of upper plate can be adjusted: No
• Including: 1 cleaning brush
• Material: Stainless steel
• Protection class: IPX3
• Depth lower grill plate: 235 mm
• Number of grill units: 1
• Frequency: 50/60 Hz
• Control lamp: Heat up ,ON/OFF
• Temperature range from: 50 °C
• Control unit: MDI knob
• Temperature range to: 300 °C
• Width upper grill plate: 340 mm
• Properties: Knob with digital display for temperature and time ,Memory function ,Audible signal when the time expires (0:10 - 9:30 minutes)
• ON/OFF switch: Yes
• Digital display: Yes
• Timer: Yes
• Temperature control: Electronic ,In 0.1 °C steps
• Depth upper grill plate: 220 mm
• Width lower grill plate: 345 mm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: A150974
