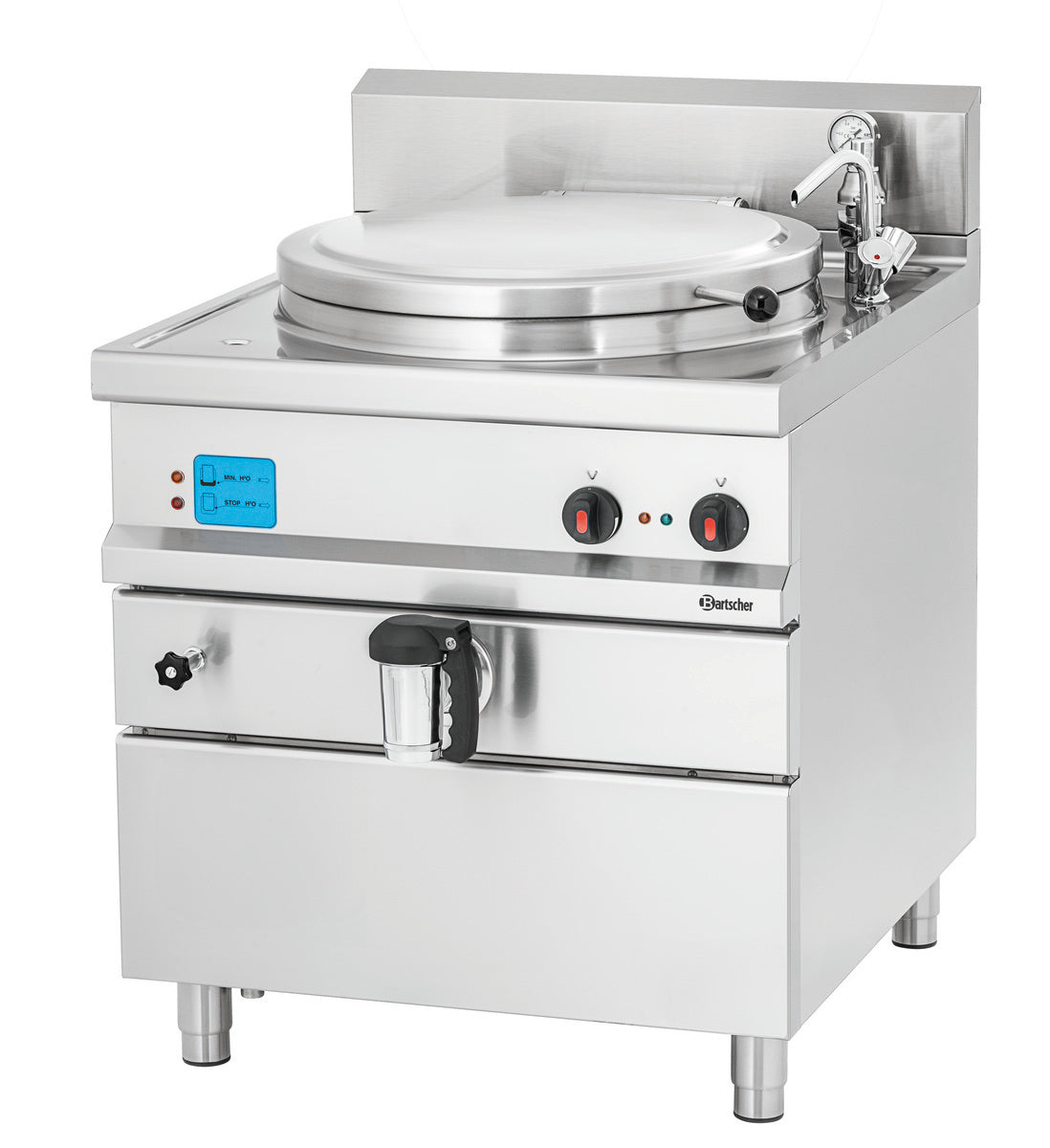

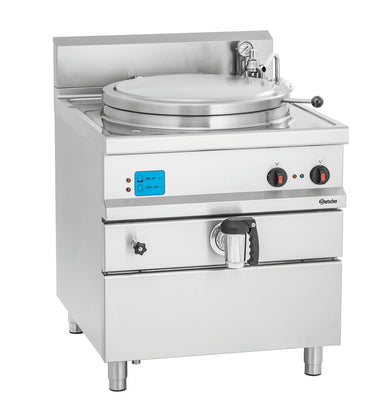

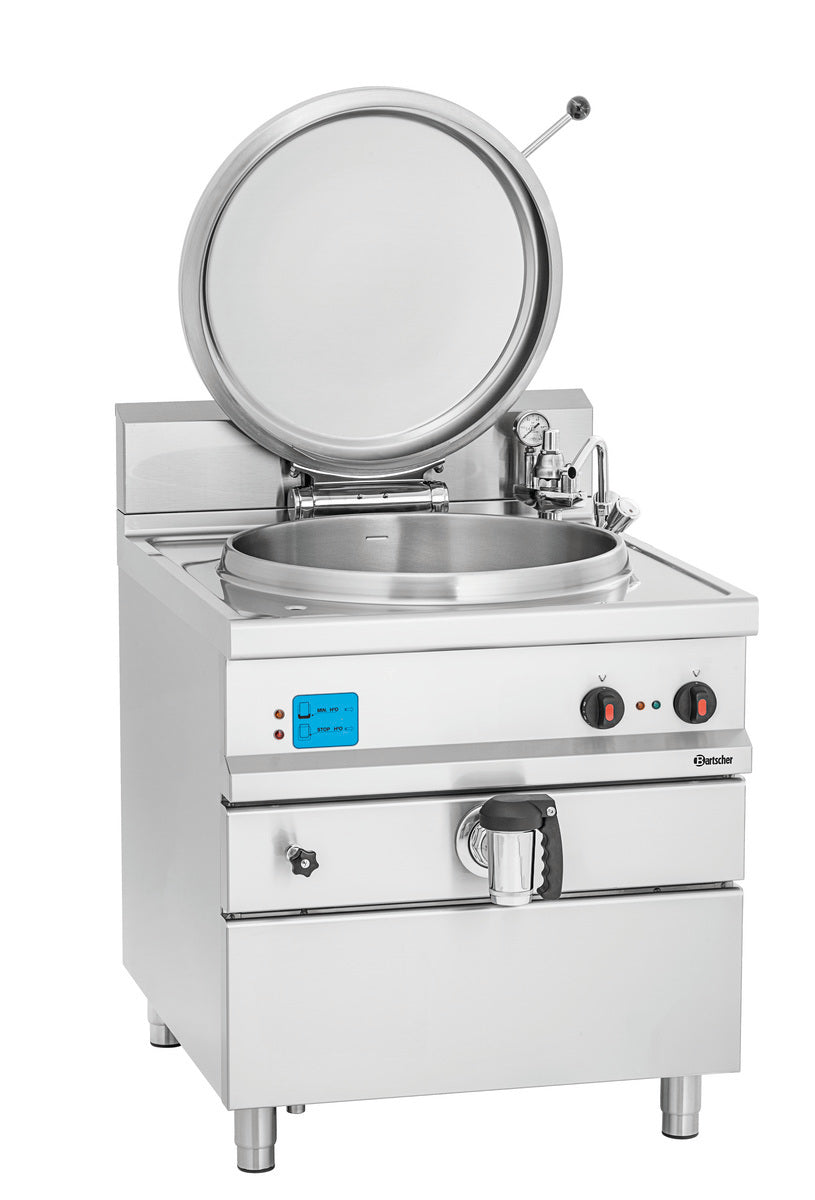

For catering, mass catering and large professional kitchens, this electric cooking pot is ideal for preparing large quantities of food – from soups to stews and even side dishes such as potatoes, pasta or rice.

Product benefits

• Large-volume efficiency – 113 litre capacity: Ideal for commercial kitchens: effortlessly prepare soups, stews or side dishes in large quantities – without compromising on quality or time management.
• Reliability thanks to smart safety systems: Automatic water level control, pressure monitoring and automatic shut-off protect personnel and equipment during every use – for maximum operational peace of mind.
• High-performance heating made from special alloy: The cast-encapsulated Incoloy 800 Heating elements enable even heat distribution and reduce boiling times – for consistently high kitchen performance.
• Maximum hygiene thanks to sophisticated stainless steel design: The boiler, made entirely of stainless steel, is easy to clean and reliably meets all requirements for commercial hygiene processes.
• Ergonomic working thanks to height adjustment: Flexibly adjust the working height between 850 and 900 mm – for fatigue-free working in demanding everyday kitchen environments.

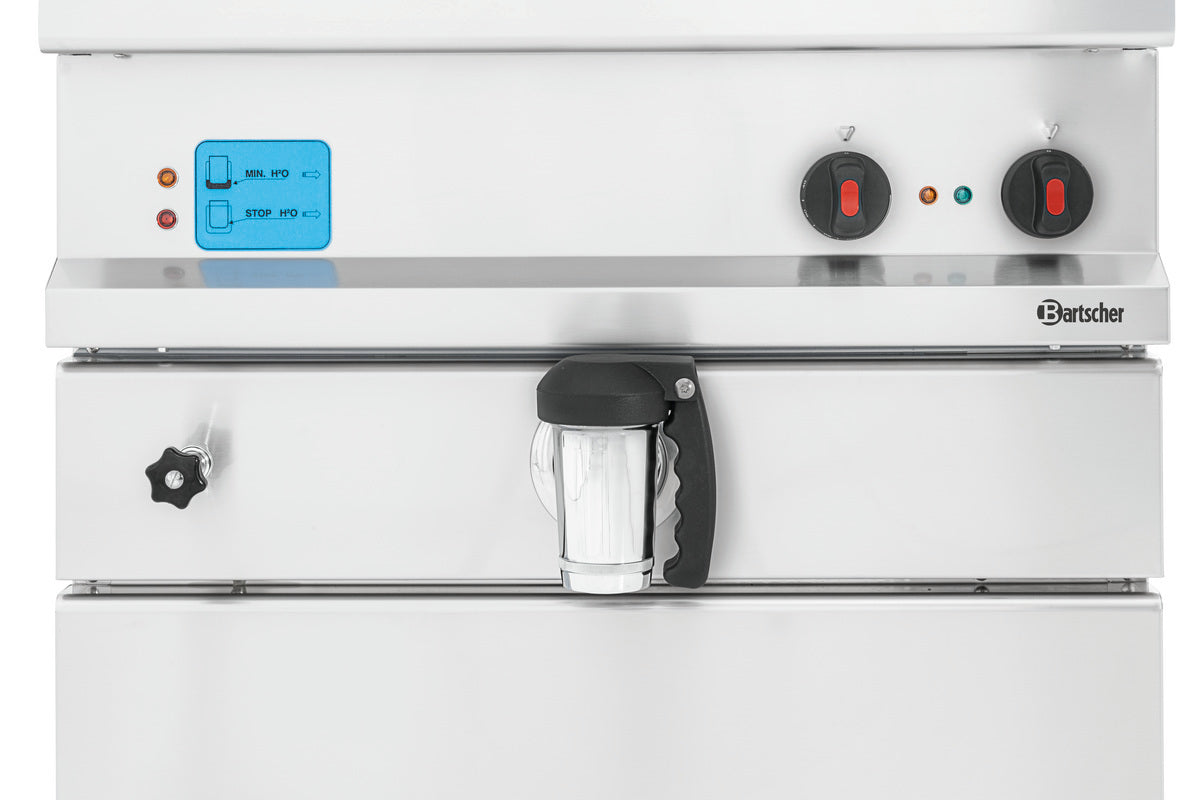

• Precise control unit with clear feedback: Two-stage Temperature control with Control lamps for operating status and water level guarantee simple operation and maximum process reliability.
• Flexible water connection for every installation: With an integrated inlet valve for cold and hot water, the Boiling kettle adapts precisely to your operational requirements.
• Quick emptying with drain tap and drain strainer: The integrated outlet with strainer ensures safe, controlled and clean drainage – even with large quantities and solid components.

Technical data

• Width: 800 mm
• Depth: 900 mm
• Height: 900 mm
• Net weight: 143 kg
• Gross weight: 171 kg
• Volume: 0.867 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Height boiler: 415 mm
• Equipment connection: 3 NAC
• Height-adjustable from: 850 mm
• Material boiler: Stainless steel
• Control unit: Toggle
• Voltage: 400 V
• Drain tap: Yes
• Useful content: 102 litre(s)
• Water connection: Connection valve for hot and cold water Ø 10 mm
• Content: 113 litre(s)
• Material: Stainless steel
• Heating type: Indirect
• Control lamp: ON/OFF ,Heat up ,Water filling level
• Operating mode: Electro

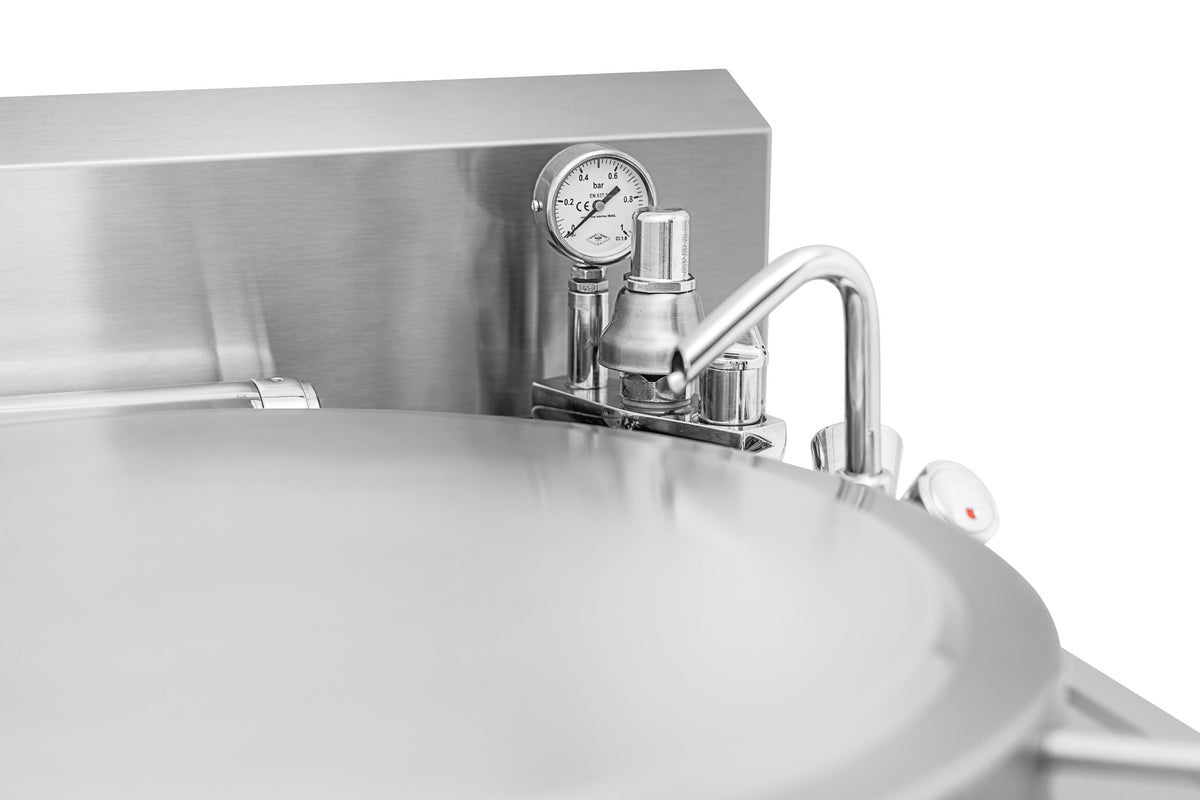

• Properties: Automatic water level check in the intermediate jacket ,Automatic shutdown in case of malfunction ,Pressure monitoring: Funnel fitting with safety valve (calibrated to 0.5 bar) ,Electrical heating thanks to cast case "Incoloy 800" resisters made of a special alloy ,Mixer tap for cold and warm water ,Including: strainer
• Height-adjustable feet: Yes
• Height-adjustable to: 900 mm
• Power: 16 kW
• Diameter boiler: 600 mm
• Available on request: Cooking pot for steam heating
• Temperature control: 2 levels ,Thermostatic
• Frequency: 50/60 Hz

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 280015
