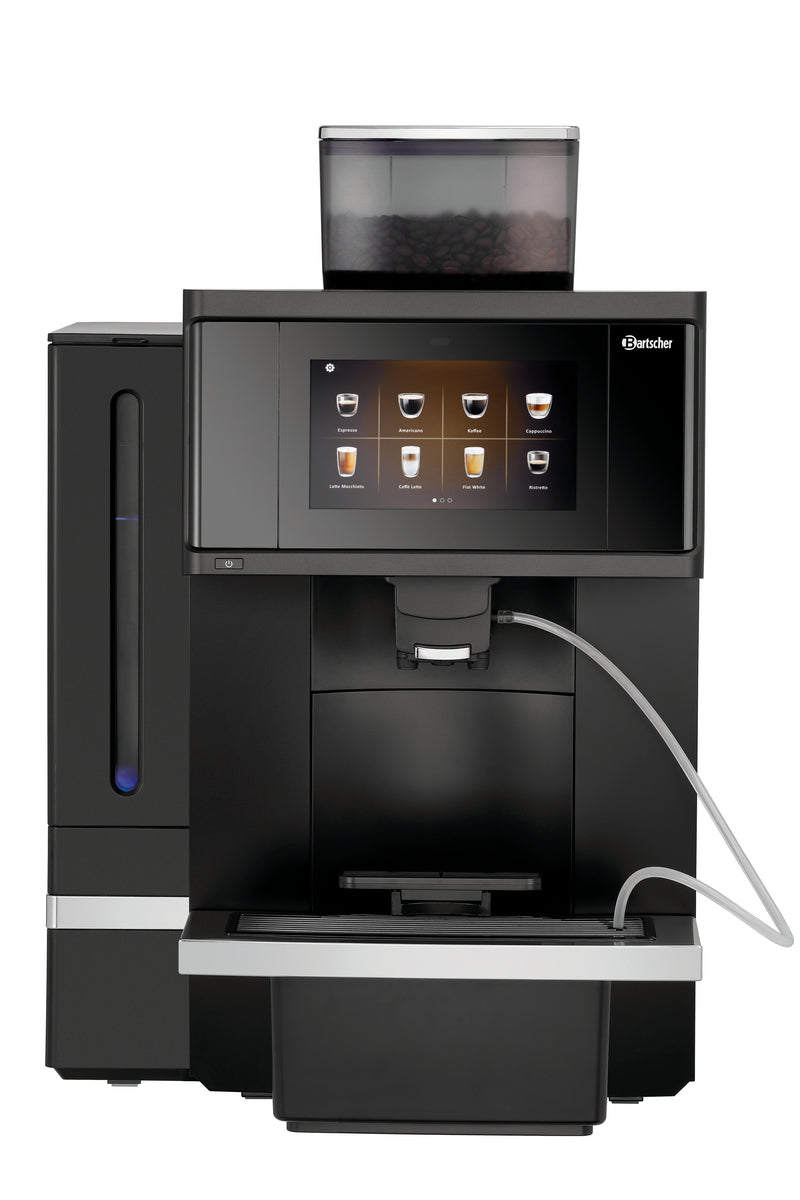

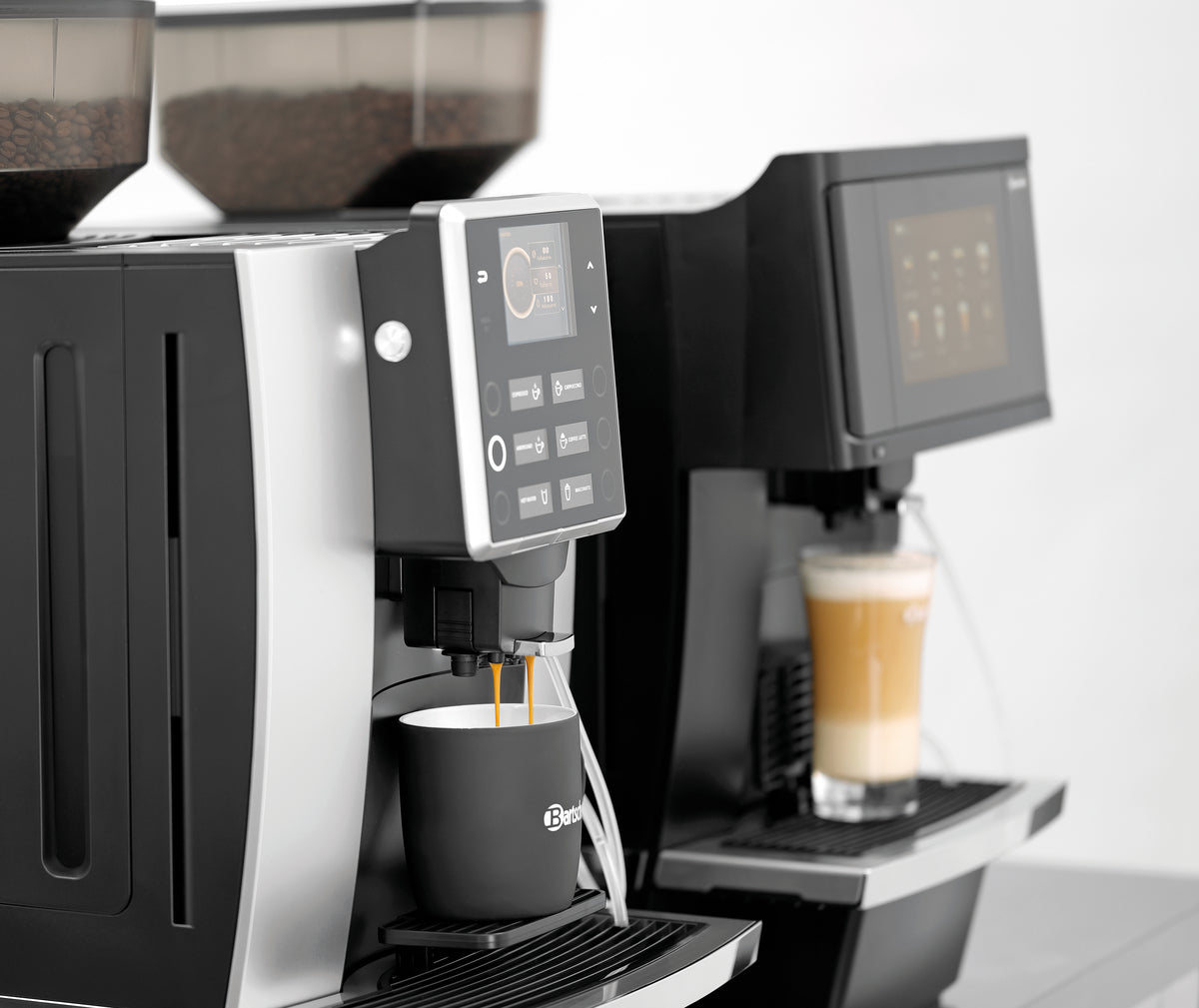

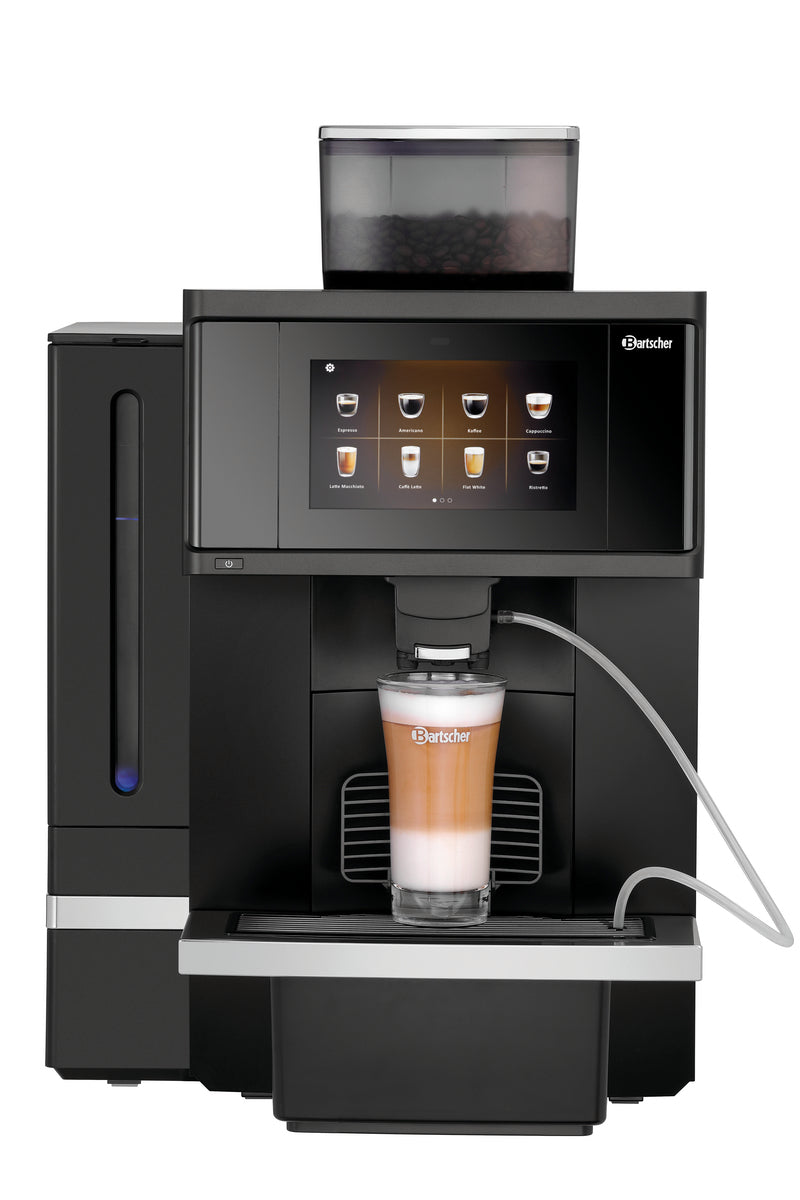

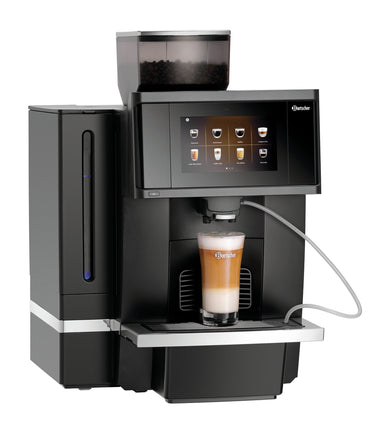

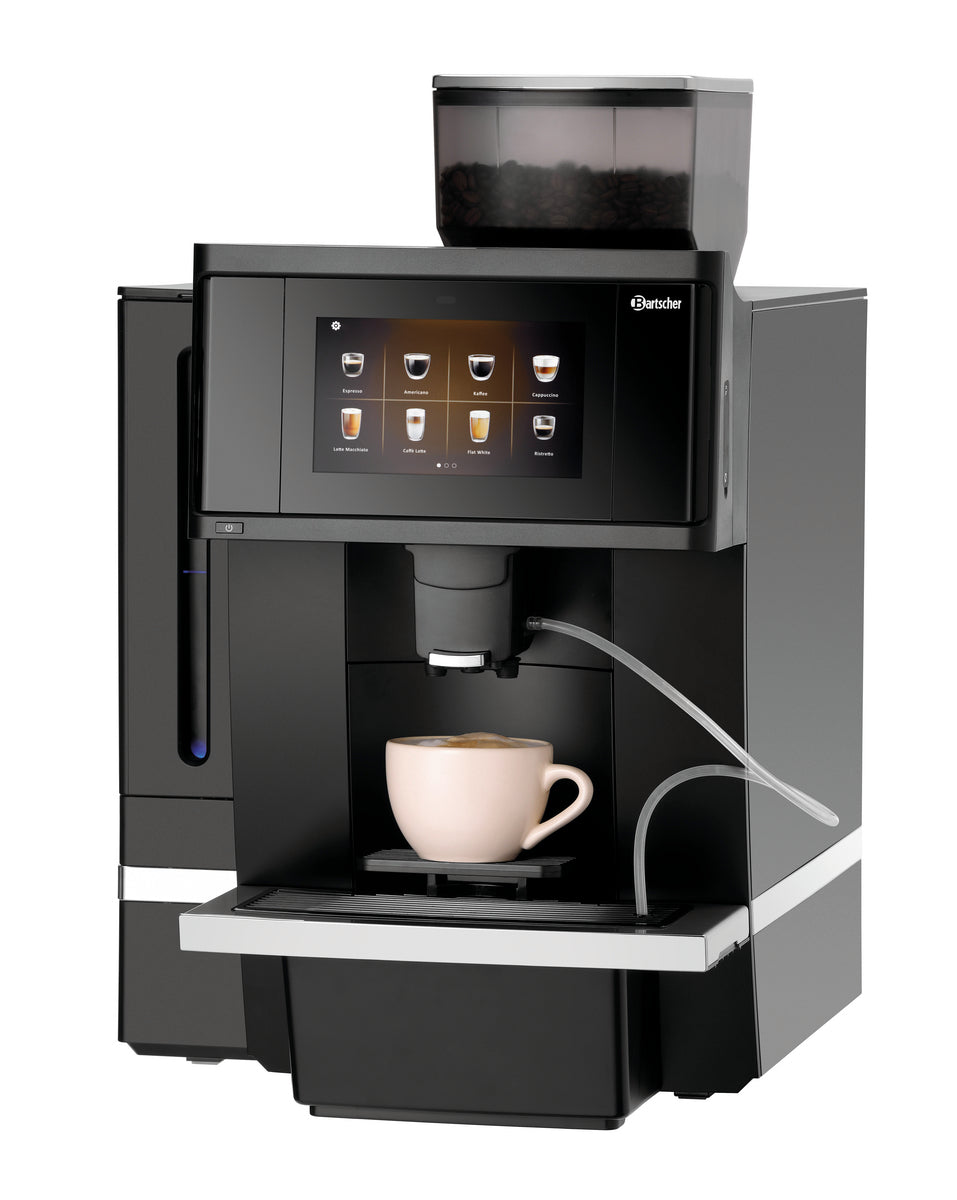

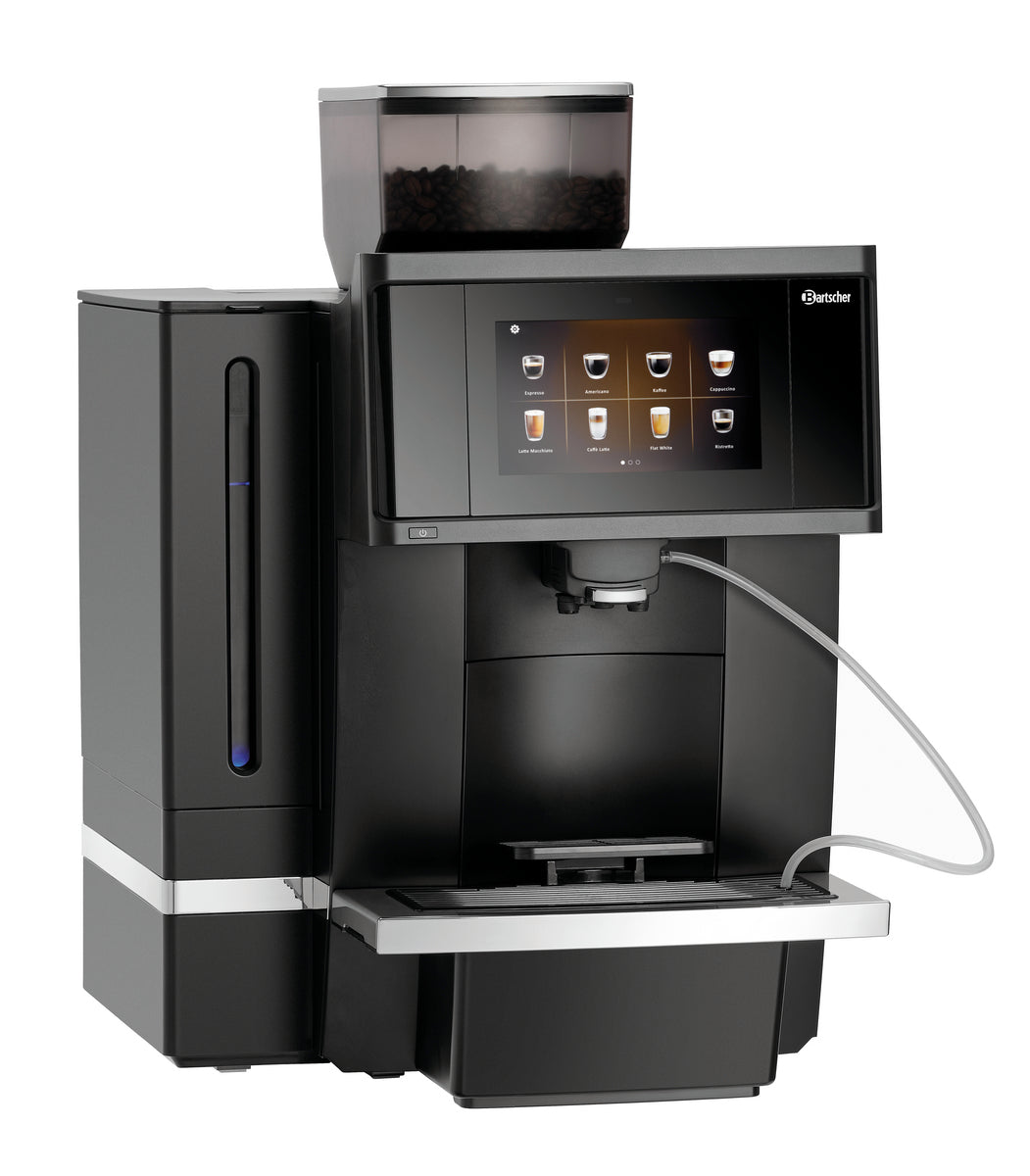

With up to 23 individually programmable coffee variations, a mains water connection and a 6-litre water tank, the clever version of the KV1 offers maximum coffee enjoyment with simple, intuitive touch controls. In combination with the elegant design, the 7" advertising display, which can be set to play a custom message, automatically invites onlookers to enjoy a freshly brewed espresso, cappuccino, latte macchiato and more.

Product benefits

• Variety at the touch of a button: With 23 individually programmable coffee variations, the KV1 Comfort caters to every preference – ideal for discerning guests and versatile Application areas.
• Full control, maximum output: With up to 60 cups per hour, programme-protected operation and intelligent Cup counter, the machine guarantees reliable performance during peak hours.
• Fixed water connection for continuous operation: Thanks to a flexible water supply option – including a fixed connection – your workflow remains undisturbed, even with a high daily volume of up to 80 cups.

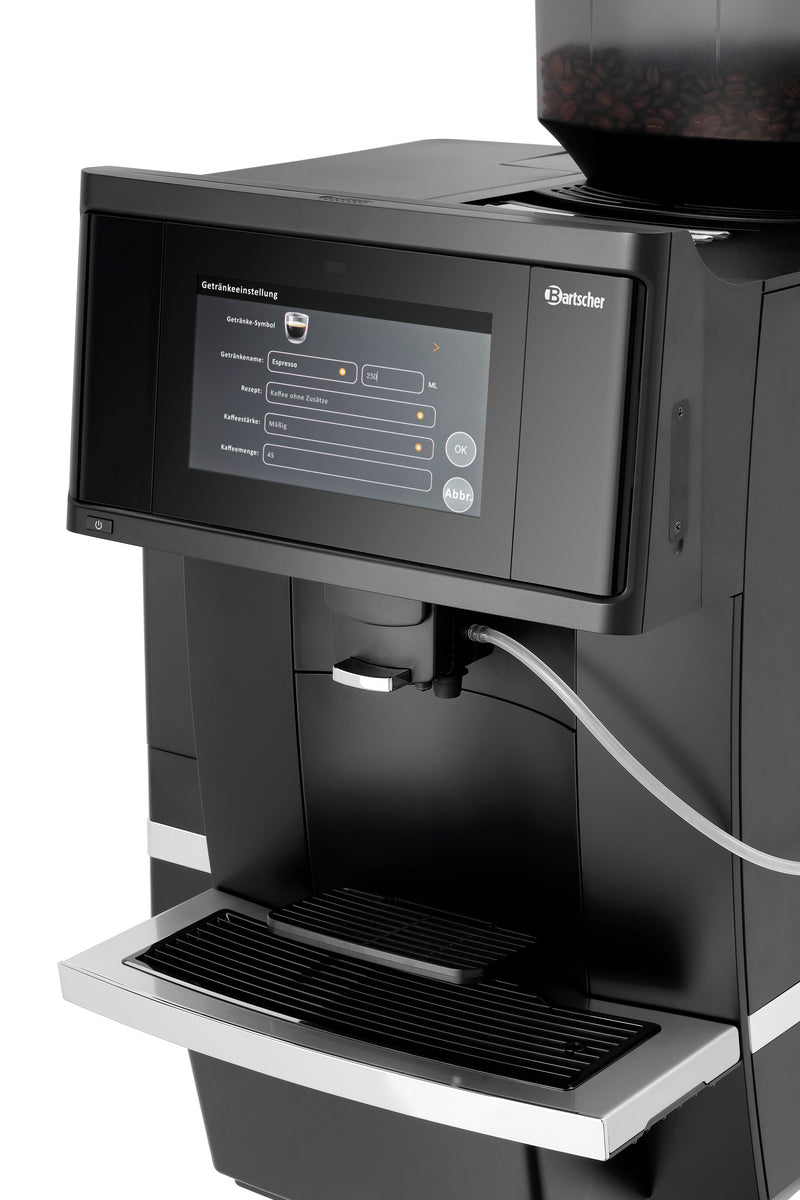

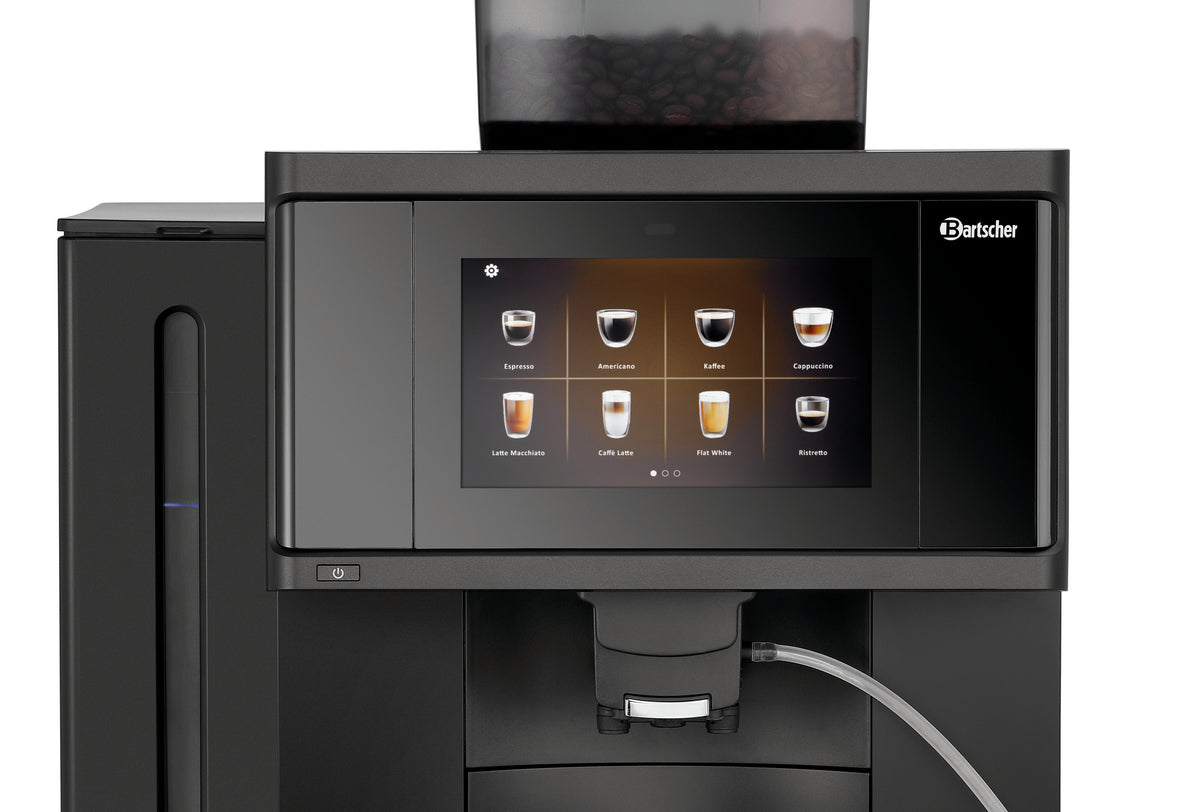

• Advertising space including: The 7-inch touch display is not only intuitive to use, but also offers space for individual advertising and branding directly at the dispensing point.

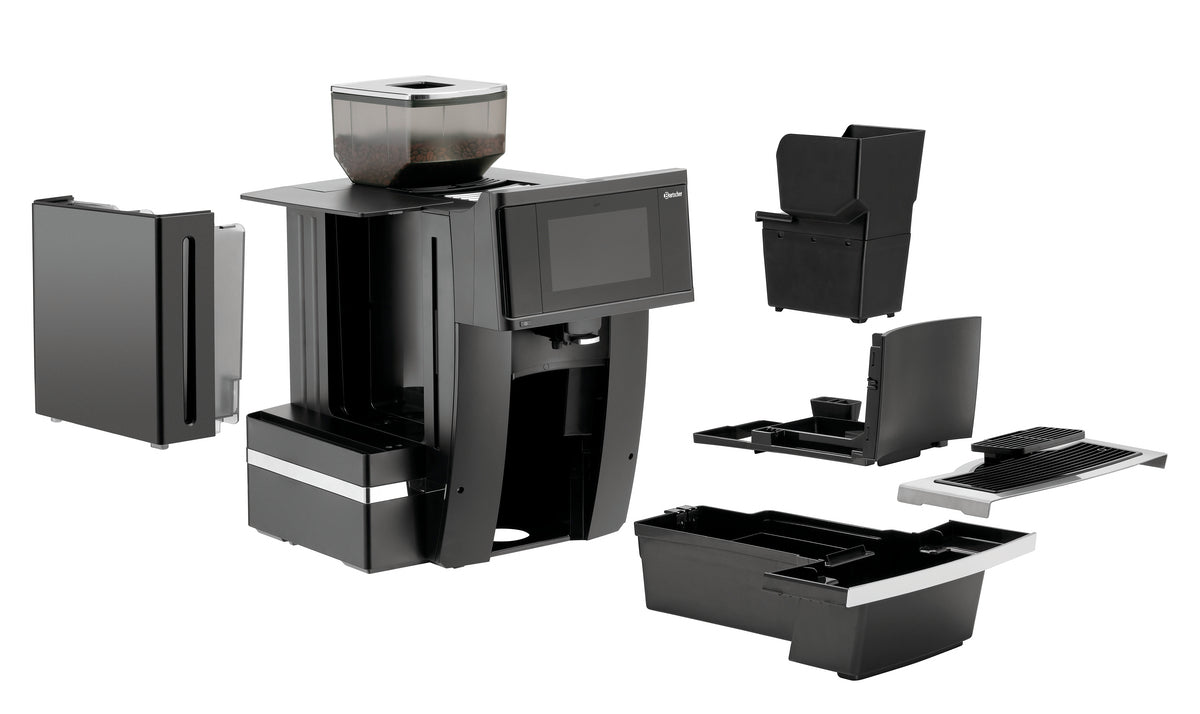

• Design meets hygiene and convenience: The automatic cleaning process, dishwasher safe system and maintenance cycle memory function ensure consistent quality and minimal downtime.
• Space-saving design: Despite its powerful technology, the KV1 Comfort has a compact design and can be expanded with clever details such as a height-adjustable outlet and replaceable pomace ejector.

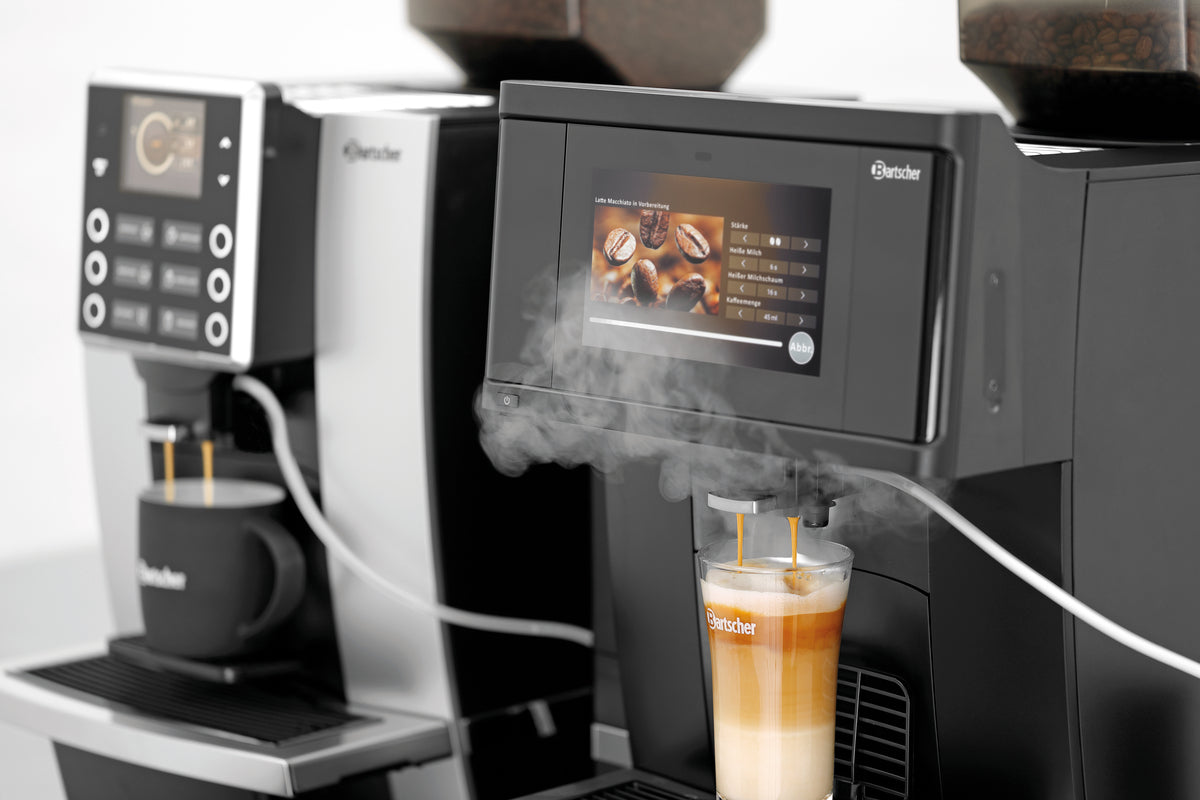

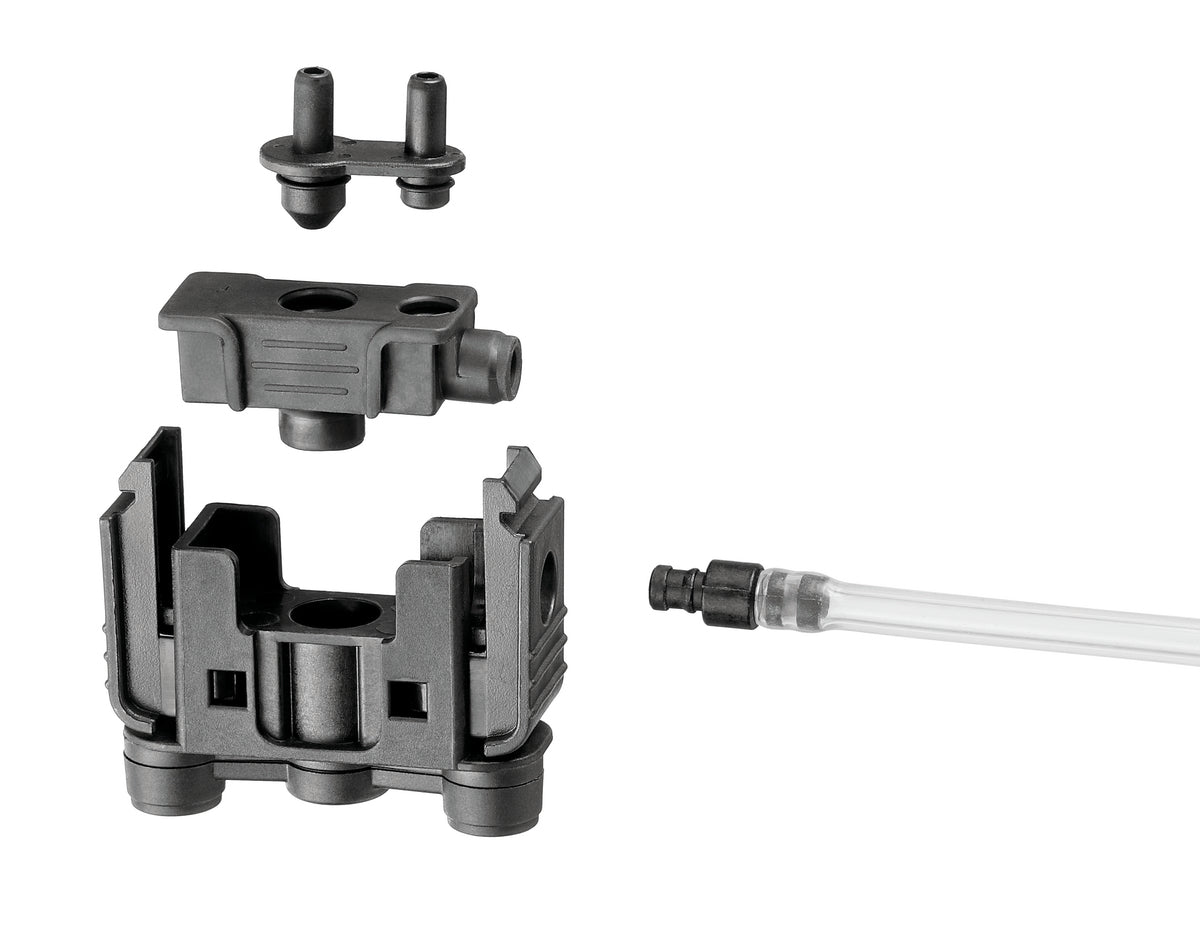

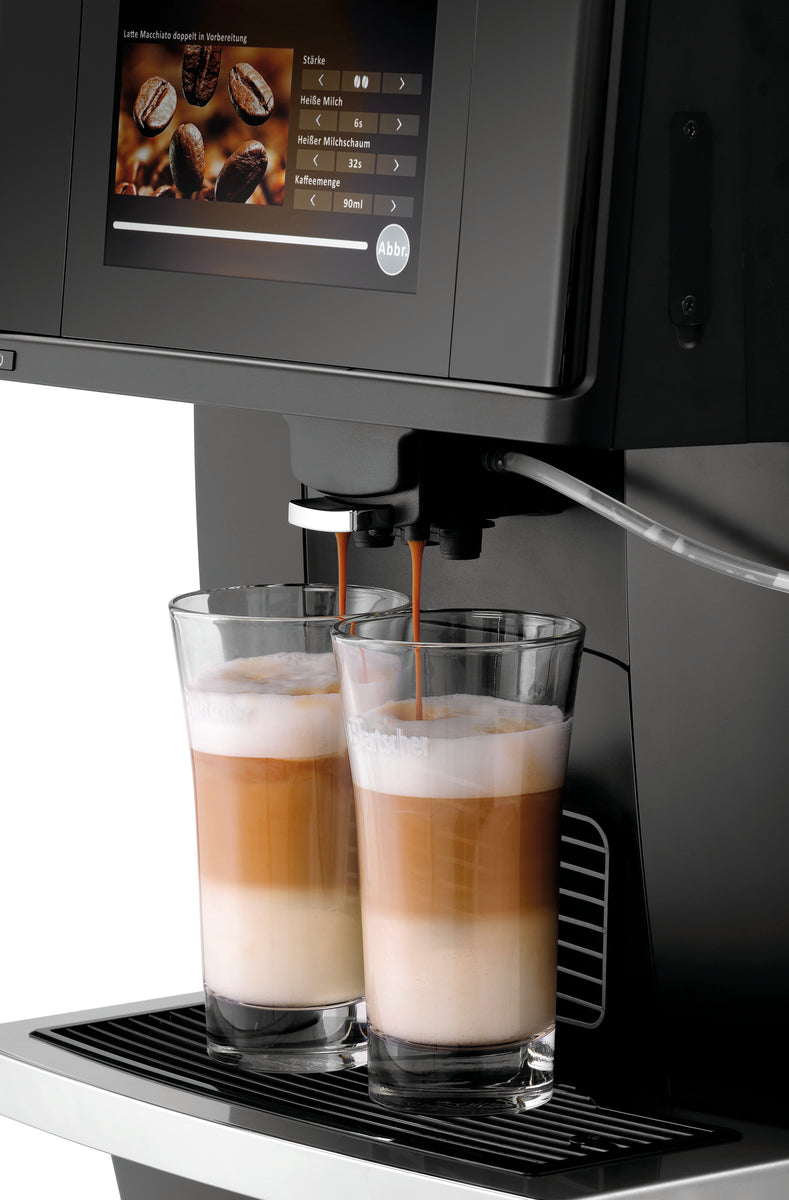

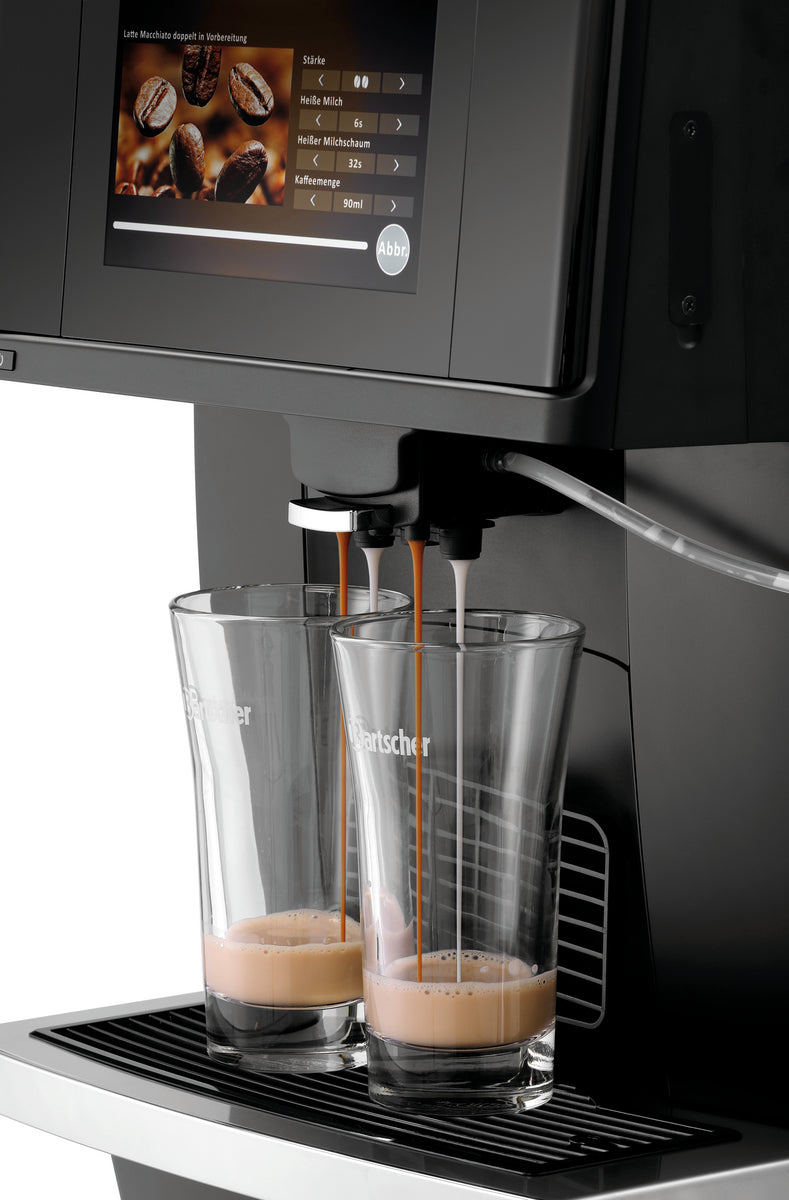

• Perfect milk foam, served in parallel: The simultaneous preparation of coffee and milk foam enables faster service times – ideal for peak periods in restaurants and catering.

Technical data

• Width: 390 mm
• Depth: 495 mm
• Height: 580 mm
• Net weight: 19.100000000000001 kg
• Gross weight: 24.4 kg
• Volume: 0.213 MTQ
• Guarantee: VG
• Customs tariff number: 84198120
• Display: Programs ,Status ,Volume ,Maintenance info ,Fault messages ,Size: 7 inch
• Voltage: 230 V
• Number of bean containers: 1
• Decalcification signal: Yes
• Milk frother: yes
• Grinder material: Steel
• Cup counter: Per program and total
• Output max.: 40 cups of 120 ml / hour (single cup outlet) ,60 cups of 120 ml / hour (double cup outlet)
• Filling level display: yes ,Illuminated
• Pump pressure: 19 bar
• Cleaning program: yes
• Residues container capacity: Approx. 35 cups

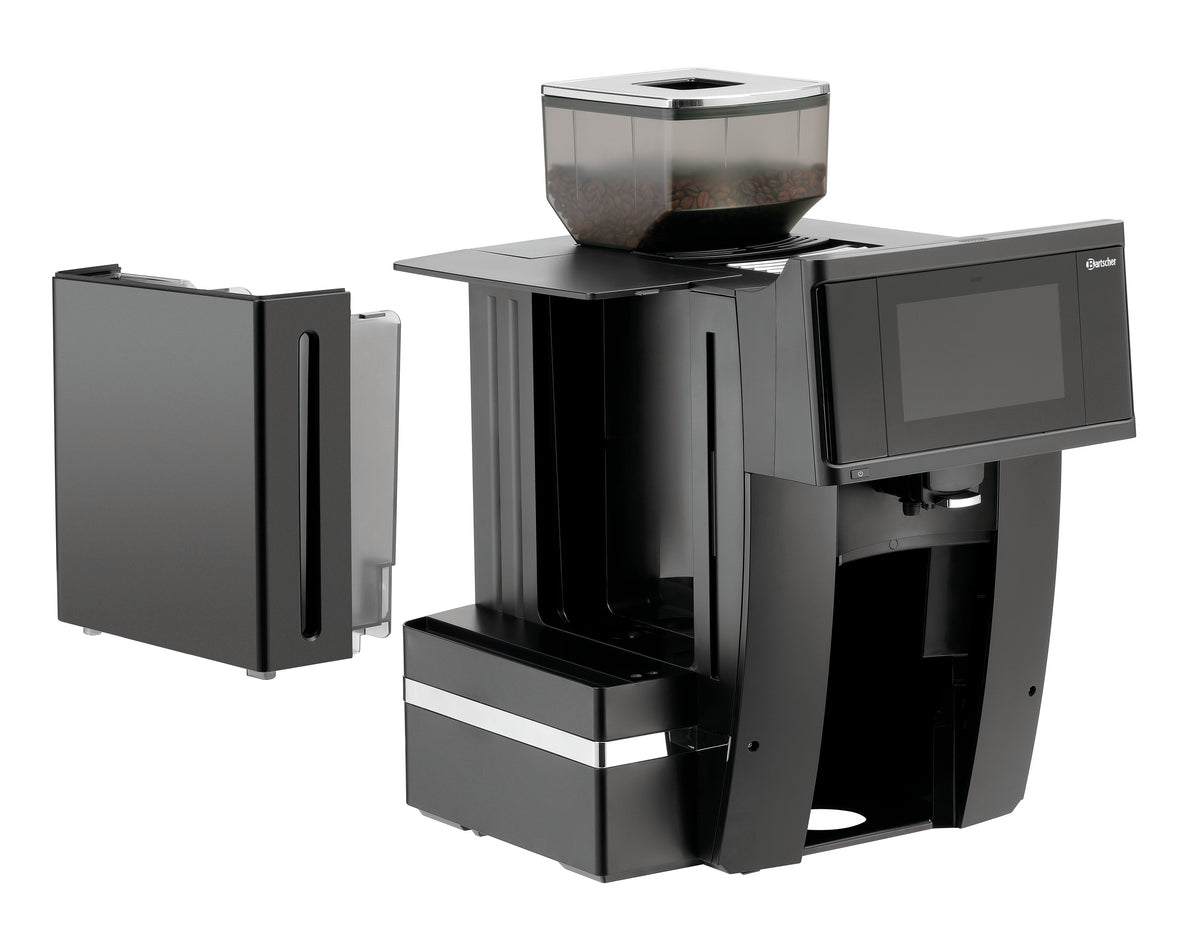

• Detachable water tank: Yes
• Programs: 23, preset, individual write-over possible ,Programming password protected
• Minimum brewing quantity: 25 ml
• Hot milk function: yes
• Multi cups: Yes
• Frequency: 50/60 Hz
• Residues container dishwasher-suitable: Yes
• Water supply: 3 options ,Water tank ,Fixed connection to water supply ,Water supply via external container
• Designed for: 80 cups / day
• Detachable bean/topping containers: No
• Grinding mechanism: Cone grinder
• Operating system: Android
• Brewing group(s): 1
• Important information: A pressure reducer is required from a water pressure of 3 bar ,This coffee machine has wearing parts ,Provided the coffee machine is properly maintained, it can generally be assumed that the following wearing parts will last up to the specified reference quantity of drinks ,Brewing unit: 50,000 poured drinks ,Pump, Drainage valve, grinding mechanism and seals: 25,000 poured drinks ,Failure of these wearing parts after reaching the respective reference quantity does not mean that the coffee machine is defective.
• Pressure system: Piston pressure

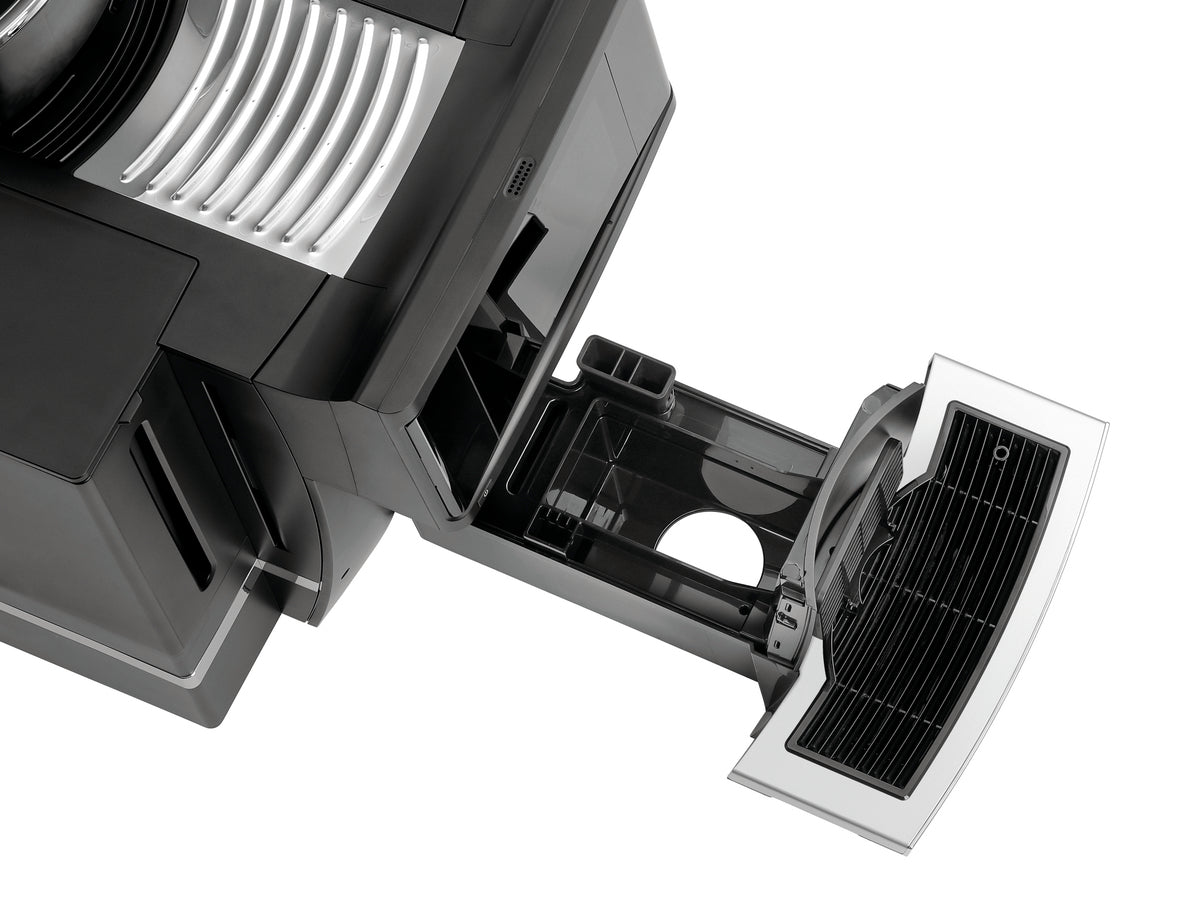

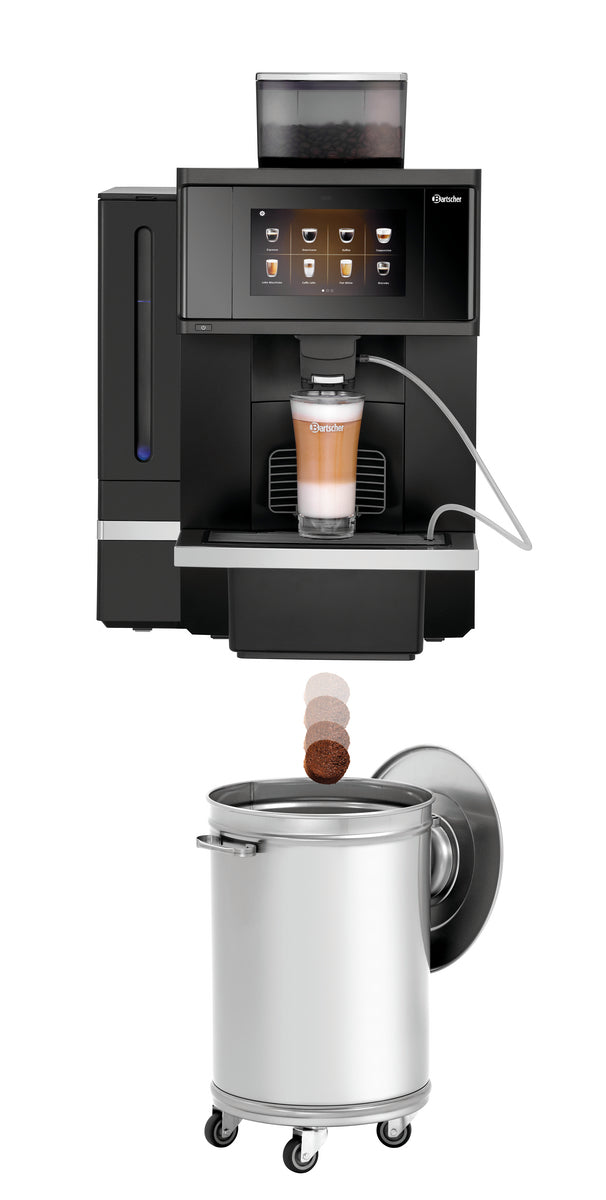

• Properties: Base plate with cutout for automatic ejection of slops (in conjunction with the slops ejector shaft KV1 - available as an option) ,Milk temperature can be set in the program ,Cleaning cycles memory
• Bean-/topping containers lockable: No
• Milk container: No

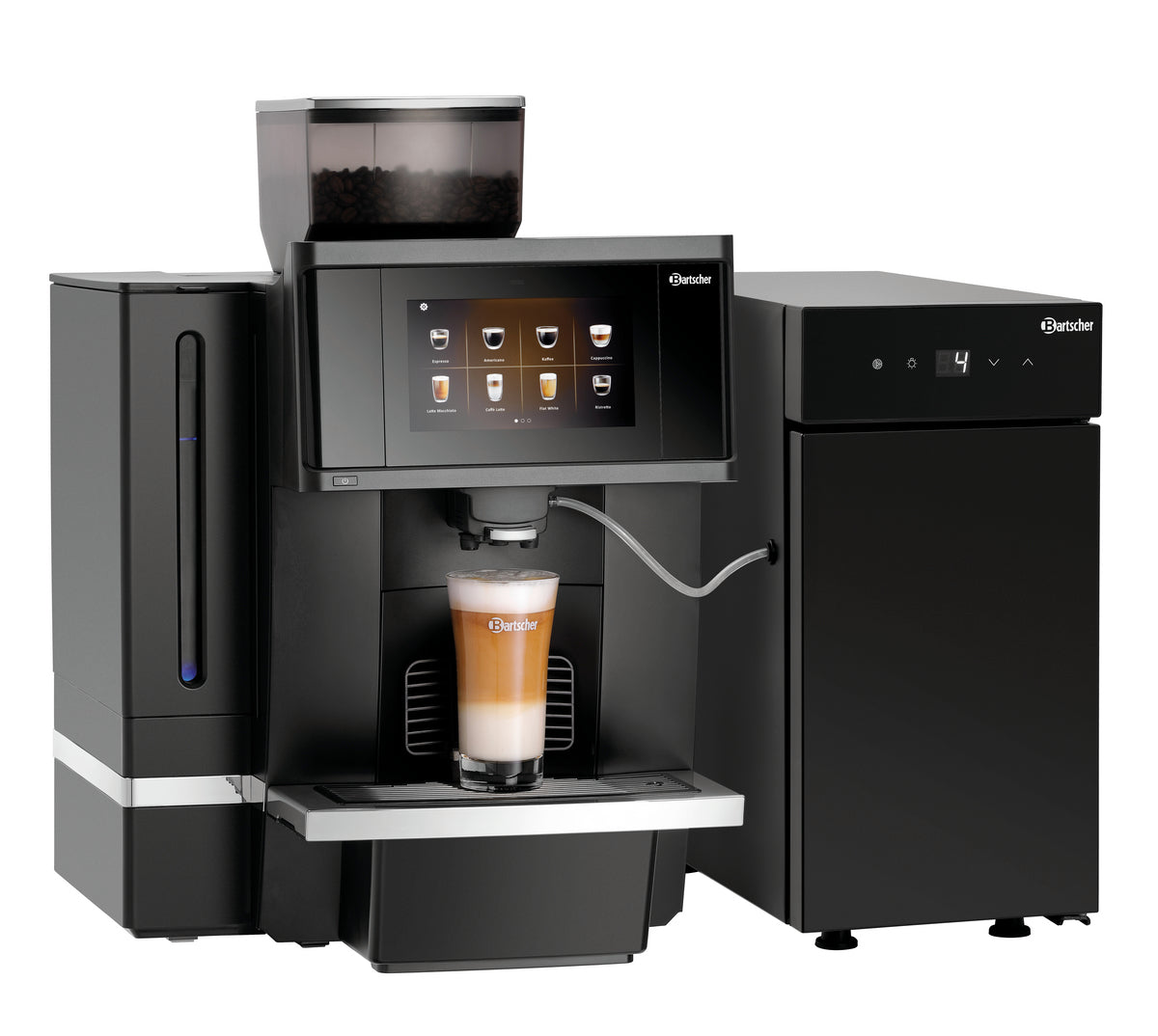

• Milk supply: External via tube

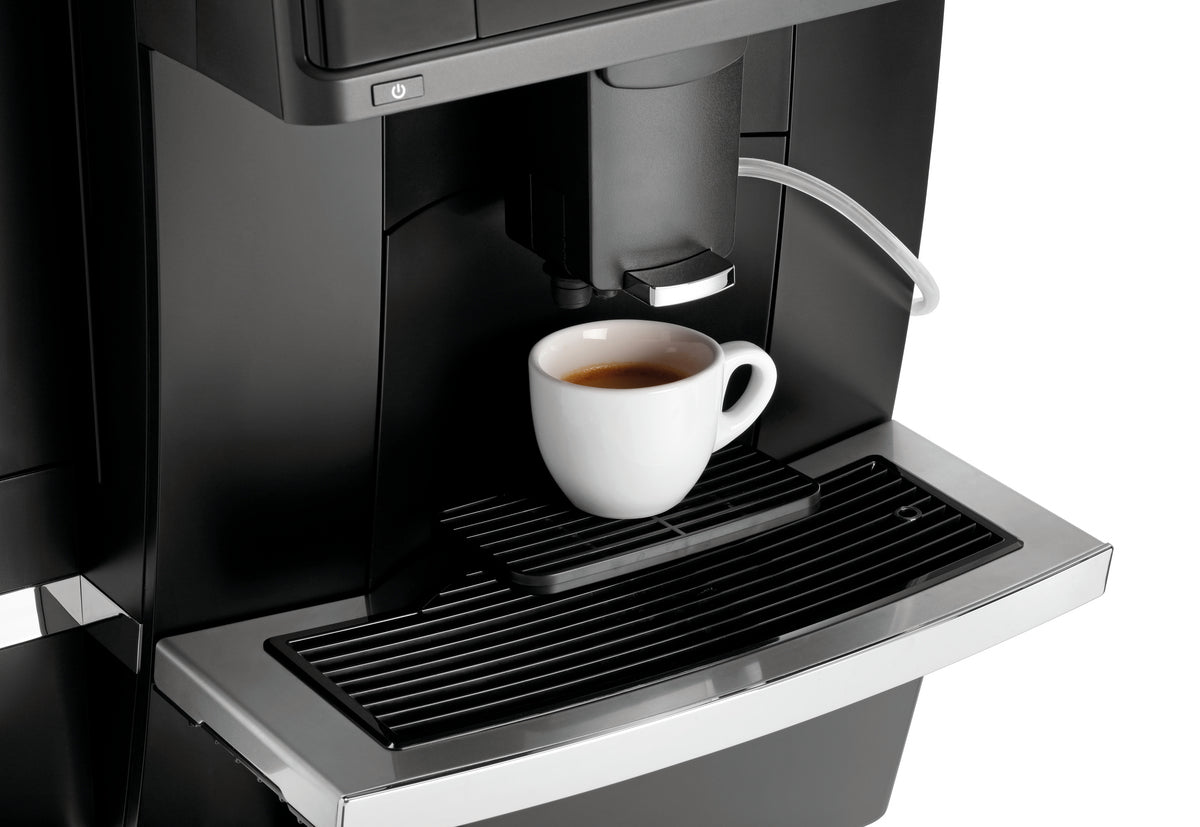

• Height-adjustable outlet: 100 - 160 mm
• Automatic turn-off: Yes
• Control unit: Touch
• Equipment connection: Pluggable
• Water tank capacity: 6 litre(s)
• Colour: Black ,Silver
• ON/OFF switch: Yes
• Material: Plastic
• Video display: Individual playable via USB ,Up to 10 videos can be saved ,During coffee preparation and during breaks ,1 video can be selected for all processes
• Power: 2.7 kW
• Setting possibilities: 5 grinding levels ,Coffee dosing ,Water quantity ,Water temperature ,Milk quantity ,Video display
• USB connection: Yes

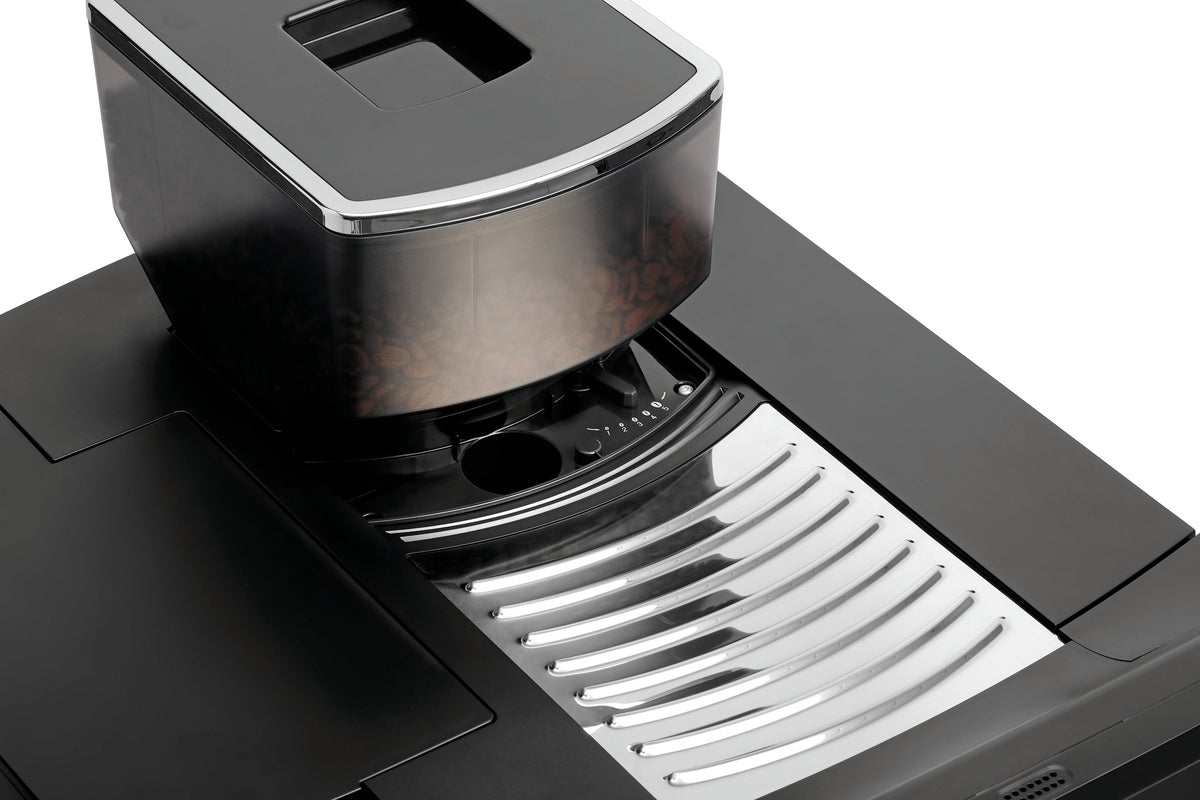

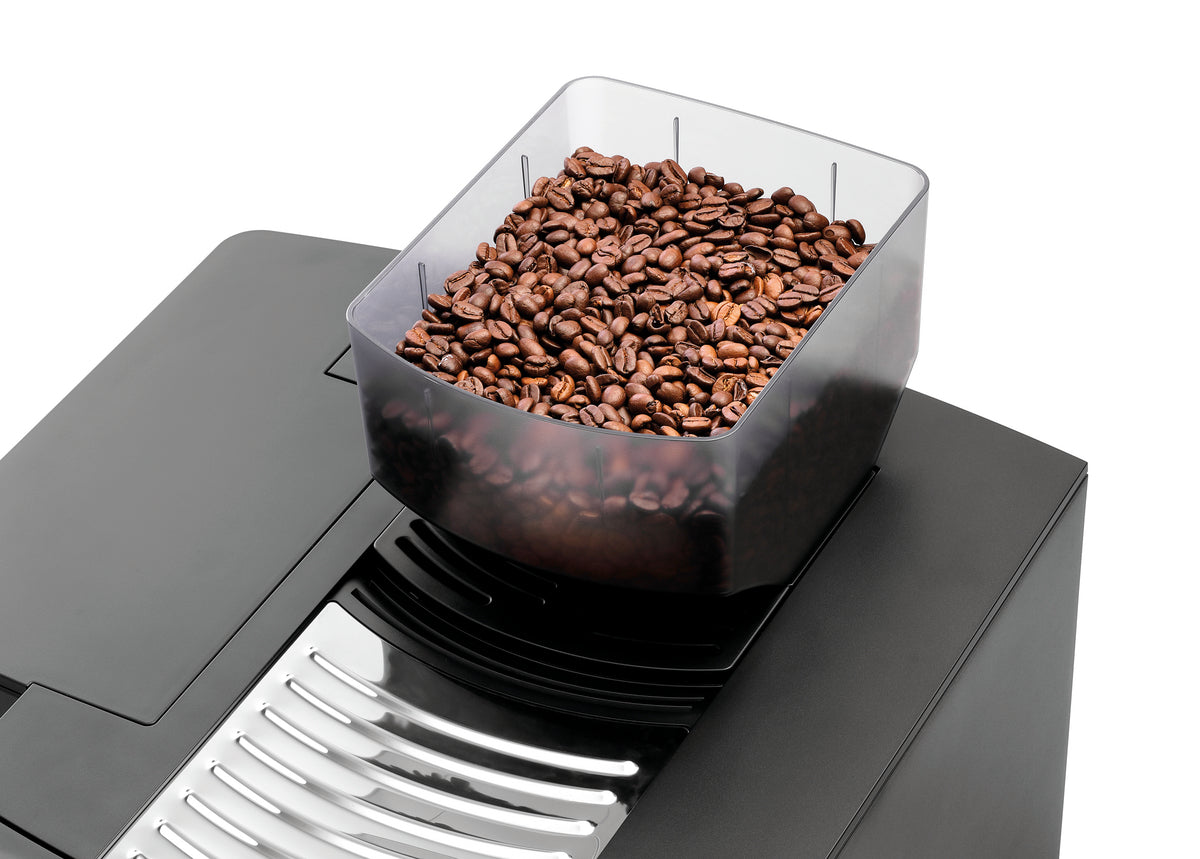

• Content bean container: 1.000 g
• Including: 2 milk hoses, 50 cm ,1 water supply hose, 150 cm ,1 water supply hose, 200 cm
• Hot water function: yes
• Design: Complete machine

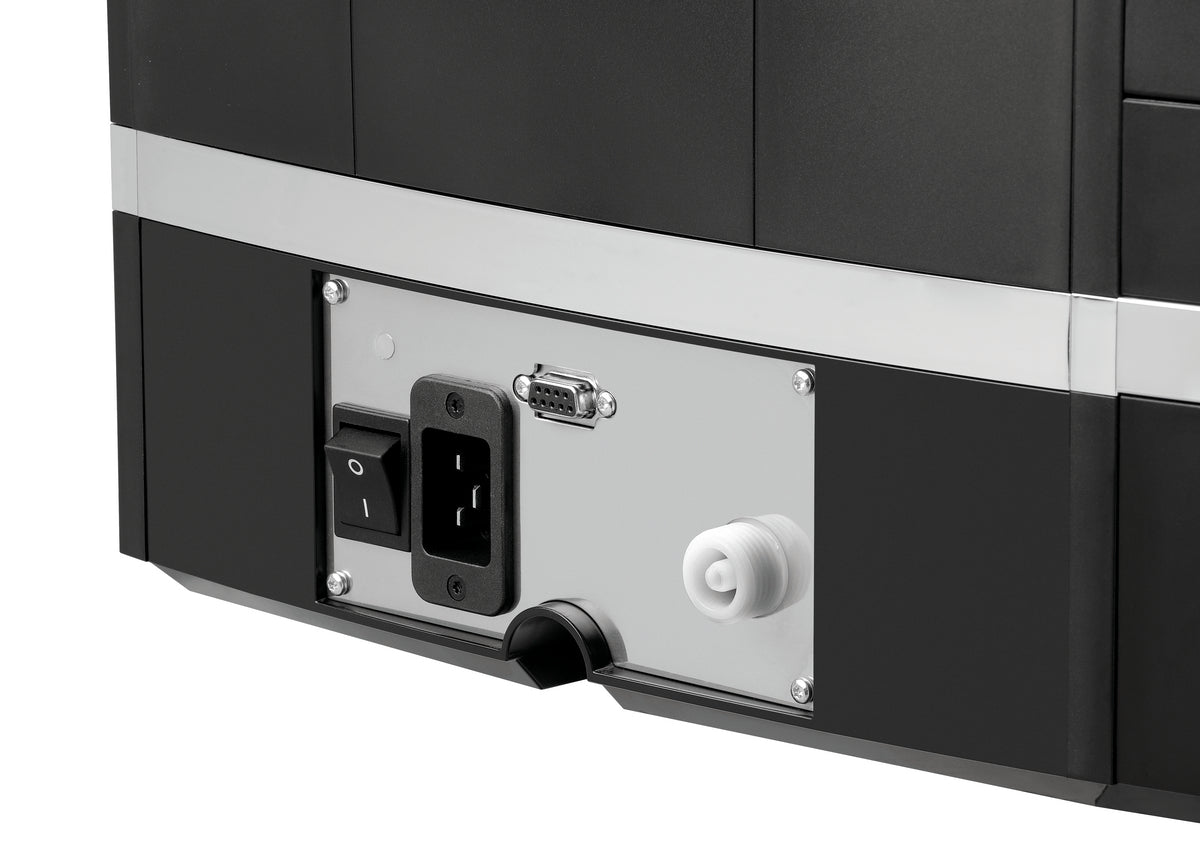

• Water connection: Fixed connection to water supply 1/2"
• Ground coffee option: Individual cups ,Manual 5 - 14 g

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 190031
